12.1.5 Information on the type plate

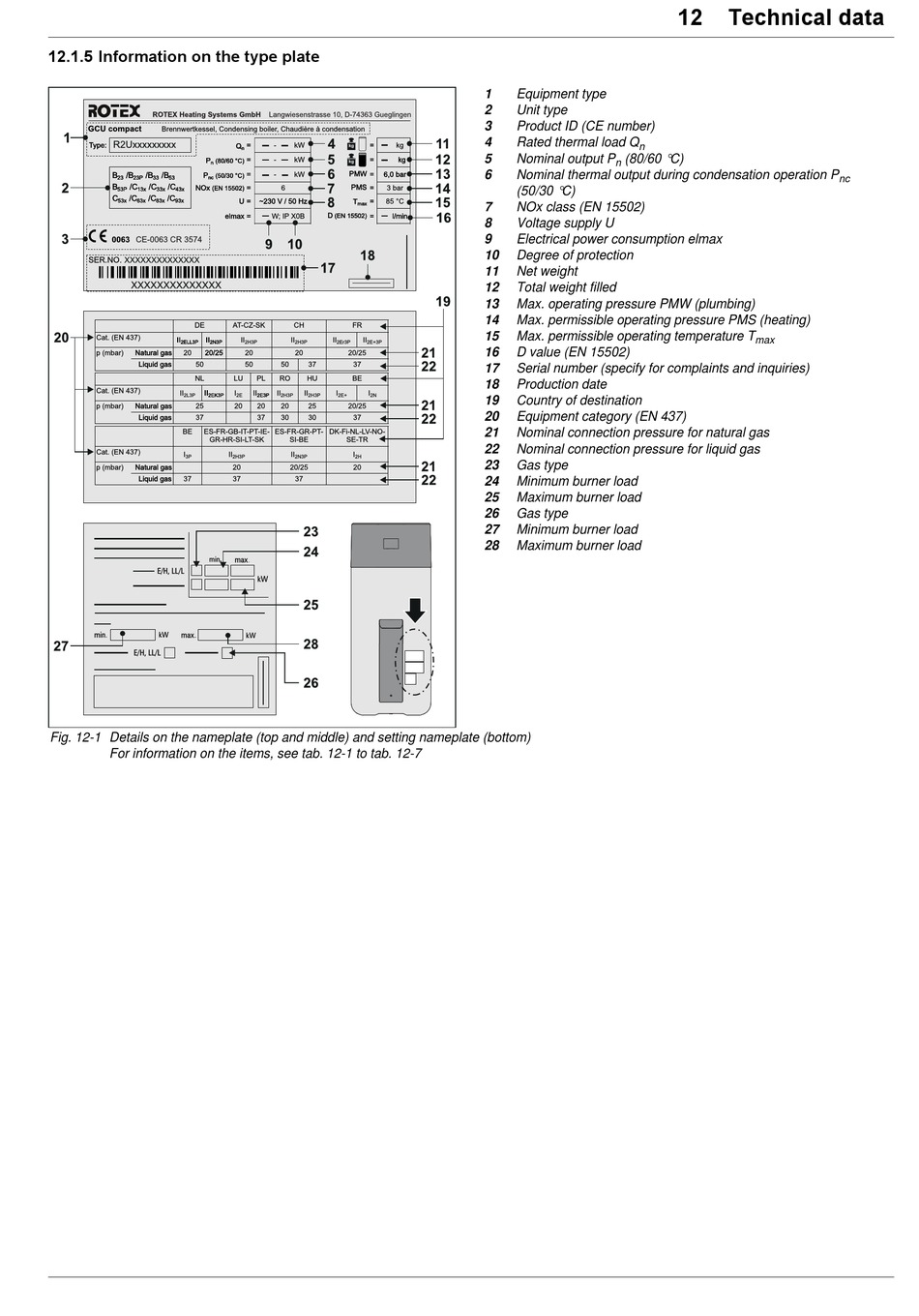

Fig. 12-1 Details on the nameplate (top and middle) and setting nameplate (bottom)
For information on the items, see tab. 12-1 to tab. 12-7
1 Equipment type
2 Unit type
3 Product ID (CE number)
4 Rated thermal load Q
n
5 Nominal output P (80/60 °C)
n
6 Nominal thermal output during condensation operation P
(50/30 °C)
7 NOx class (EN 15502)
8 Voltage supply U
9 Electrical power consumption elmax
10 Degree of protection
11 Net weight
12 Total weight filled
13 Max. operating pressure PMW (plumbing)
14 Max. permissible operating pressure PMS (heating)
15 Max. permissible operating temperature T
16 D value (EN 15502)
17 Serial number (specify for complaints and inquiries)
18 Production date
19 Country of destination
20 Equipment category (EN 437)
21 Nominal connection pressure for natural gas
22 Nominal connection pressure for liquid gas
23 Gas type
24 Minimum burner load
25 Maximum burner load
26 Gas type
27 Minimum burner load
28 Maximum burner load

12 x Technical data
nc
max
