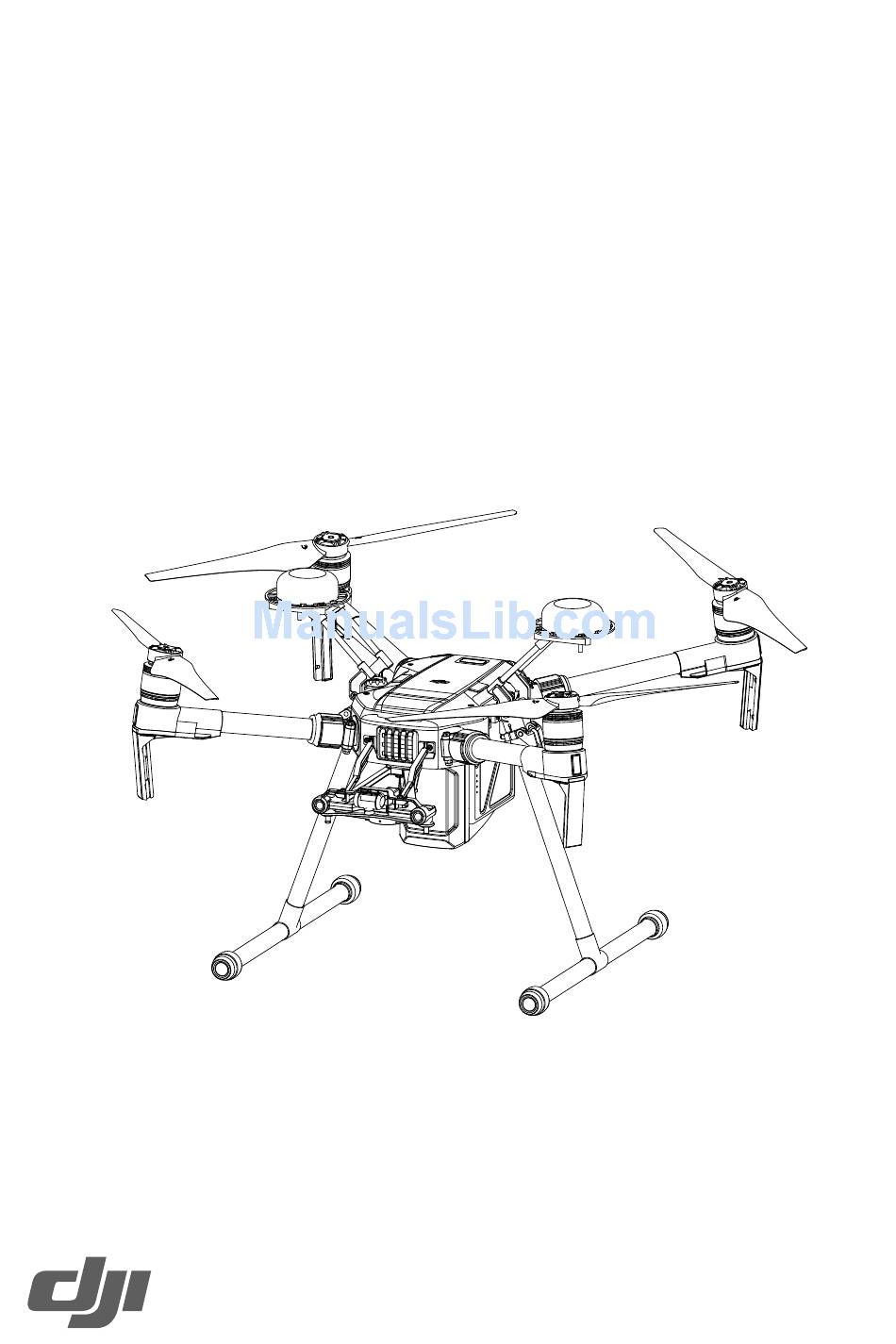

MATRICE 200
SERIES
M210/M210 RTK
Quick Start Guide
快速入门指南
V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Matrice M210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji Matrice M210

  • Page 1 MATRICE 200 SERIES M210/M210 RTK Quick Start Guide 快速入门指南 V1.0...
  • Page 2 25. Micro SD Card Slot * Gimbals can be purchased separately from the official DJI Online Store. A GPS module is required when using a single upward gimbal. DO NOT use an upward and downward gimbal simultaneously. Please refer to the user manual for more details about expansion ports, upward gimbals, and downward gimbals.
  • Page 3 (7 km).* Equipped with a DJI CrystalSky 7.85 inch monitor, it displays a live HD view directly via the built-in DJI Pilot app or DJI 4 app, providing a precise and responsive flying experience. Dual frequency support makes the HD video downlink more stable.
  • Page 4: Charging The Batteries

    2 on your computer via the website link below: http://www.dji.com/matrice-200-series Ensure that the built-in DJI GO 4 app and DJI Pilot app are working normally. This manual uses the DJI GO 4 app as an example. First-time activation requires your DJI account and an internet connection.
  • Page 5 FPV Camera For more information about how to connect and use the remote controller, please refer to the user manual. You can change the stick mode and customize the C1-C4 and BA-BH buttons’ functions in the DJI GO 4 app.
  • Page 6: Preparing The Aircraft

    4. Preparing the Aircraft Unfolding the D-RTK Antennas For the M200 series, only mount the D-RTK antennas to the M210 RTK. Unfold the D-RTK antennas and tighten the screws. Installing the Landing Gears Unfolding the Aircraft Unfold the frame arm, slide the arm lock to the end of the frame arm, then rotate it about 90°...
  • Page 7 Mounting the Gimbal and Camera Press the Gimbal Align the white and Rotate the gimbal Detachment button red dots and insert lock to the locked to remove the cover. the gimbal. position. Make sure to press down the gimbal detachment button when rotating the gimbal lock to remove the gimbal and camera. The gimbal lock should be fully rotated when removing the gimbal for the next installation.
  • Page 8 Intelligent Flight Modes These icons are for reference only. Icons in the DJI Pilot app may be different than icons in the DJI GO 4 app. Watch the tutorials in the DJI GO 4 app or on the official DJI website to learn more.
  • Page 9: Specifications

    Input Current 6.9 A other countries. Download the latest version from MATRICE and DJI are trademarks of DJI. Copyright © 2017 DJI All Rights Reserved. http://www.dji.com/matrice-200-series This content is subject to change without prior notice. Designed by DJI. Printed in China.
  • Page 10 可适配多款 DGC2.0 接口的云台相机 * ,支持上置单云台和下置双云台,可满足不同领域的使用需求。配备多个扩展口,可满足不同 扩展功能,其中,M210 RTK 标配 DJI D-RTK ,可实现高精度准确定位 *。双电池系统提升飞行安全系数,空载时,M210 使用标配 电池(TB50-M200)飞行时间约 27 分钟,使用大容量电池(TB55)可达 38 分钟,M210 RTK 则分别为 23 和 32 分钟 *。 本文档以 M210 RTK 安装 DJI ZENMUSE Z30 云台相机进行示例。 16 17 18 19 1. FPV 摄像头...
  • Page 11 Cendence 遥控器使用 LIGHTBRIDGE 高清图传技术,配合完备的功能按键可在最大 7 千米 * 通信距离内完成飞行器与云台相 机的各种操作和配置。配备 DJI CrystalSky 7.85inch 高亮显示屏,可直接通过内置的 DJI Pilot App 或 DJI GO 4 App 实时显 示高清画面。图传系统拥有 5.8G 和 2.4G 两个通信频率 *,可以根据环境的干扰情况切换频率。遥控器通过无线信号可实现主从机 功能,最大无线通信范围可达 100 米 *。 遥控器外置 WB37 智能电池, 可通过遥控器接口 (180W 充电器约 2 小时 24 分钟) 或智能电池充电管家 (约 1 小时 11 分钟) 进行充电。...
  • Page 12 使用计算机在 DJI 官网下载并安装 DJI ASSISTANT 2 调参软件。 http://www.dji.com/matrice-200-series 确保显示设备内置 DJI GO 4 App 或 DJI Pilot App 可正常使用。以下内容仅使用 DJI GO 4 App 进行示例。 全新的飞行器需使用 DJI GO 4 App 激活才能使用。激活时请确保设备可以接入互联网。 Internet DJI Assistant 2 要求使用 Windows 7 及以上系统或 Mac OS X 10.11 及以上系统。...
  • Page 13 天线应位于槽内,切勿压到,否 器。 则容易损坏天线。 M2.5×6 M3×12 1/4" 使用双面胶固定 CAN Hub 模块到 使用螺丝固定天线夹到挂载板上, 最后连接天线到天空端。 挂载板上并连线,最后拧紧四颗 螺丝固定挂载板。 使用遥控器 遥控器出厂默认操控方式为 “美国手” (左手油门) 。 左摇杆控制飞行高度与方向, 右摇杆控制飞行器的前进、 后退以及左右飞行方向。 按住 C2 按键并拨动左拨轮可控制 FPV 摄像头的拍摄角度。 控制 FPV 摄像头 左摇杆 右摇杆 更多飞行操作详见用户手册;可以在 DJI GO 4 App 进行遥控器操控方式更改和 C1-C4、BA-BH 按键功能映射等操作。...
  • Page 14 4. 准备飞行器 展开 D-RTK 天线 展开两侧安装支架,拧紧螺丝。 安装两侧起落架 展开飞行器 展开机臂,滑动锁扣到底并转动约 90° ,使锁扣上的银线落到 范围内。 安装螺旋桨 桨 帽 不 带 颜 色 的 使 桨 帽 嵌 入 电 机 桨 螺 旋 桨 安 装 到 没 座并按压到底,沿锁 有 标 记 的 电 机 桨 紧方向...
  • Page 15 安装云台相机 按住云台相机解锁 对齐云台相机上的白 旋 转 云 台 相 机 快 拆 按钮, 移除保护盖。 点与接口红点,并嵌 接 口 至 锁 定 位 置, 入安装位置。 以固定云台。 移除云台相机时,需要按住解锁按钮,才能旋转云台相机的快拆接口。为方便下次安装,请在移除云台时,务必将接口旋转到位才取下云台。 安装智能飞行电池 高 装入两块电池。 检查电量:短按一次电源按键。 开启 / 关闭:短按一次, 在 3 秒内长按可开启 / 关闭电池。 如果需要使用单个电池供电,则电池必须插在 B 槽。 低 需要按下电池弹出按钮,才能移除电池。...
  • Page 16 DJI GO 4 App 相机界面 自动起飞 自动降落 自动返航 云台工作模式 更多智能飞行模式 DJI GO 4 App 相机界面图标仅用于示例,DJI Pilot App 显示可能与 DJI GO 4 不同,请以实际显示为准。 请在 DJI GO 4 App 或 DJI 官方网站观看教学视频以正确使用指点飞行与智能跟随等功能。 请预先在 DJI GO 4 App 设置合适的自动返航高度以安全返航。飞行安全注意事项详见《免责声明和安全操作指引》。 手动起飞 手动降落 缓慢向下拉动油门杆,直 或...
  • Page 17 Interface, and the HDMI Logo are trademarks or registered 输入电压 trademarks of HDMI Licensing LLC in the United States and 6.9 A 输入电流 other countries. MATRICE 和 DJI 是大疆创新的商标。 了解产品全部信息,请访问官网产品专页下载《用户手册》 Copyright © 2017 大疆创新 版权所有 http://www.dji.com/matrice-200-series Designed by DJI. Printed in China. ※ 内容如有更新,恕不另行通知。...
  • Page 18 MATRICE 200 SERIES www.dji.com...
