Taking thickness measurements or accessing the menu will reset
the activity timer back to zero.
You can change the activity time value the Setup menu, see Power
Off Setting on page 95.

Measurement Screen Views

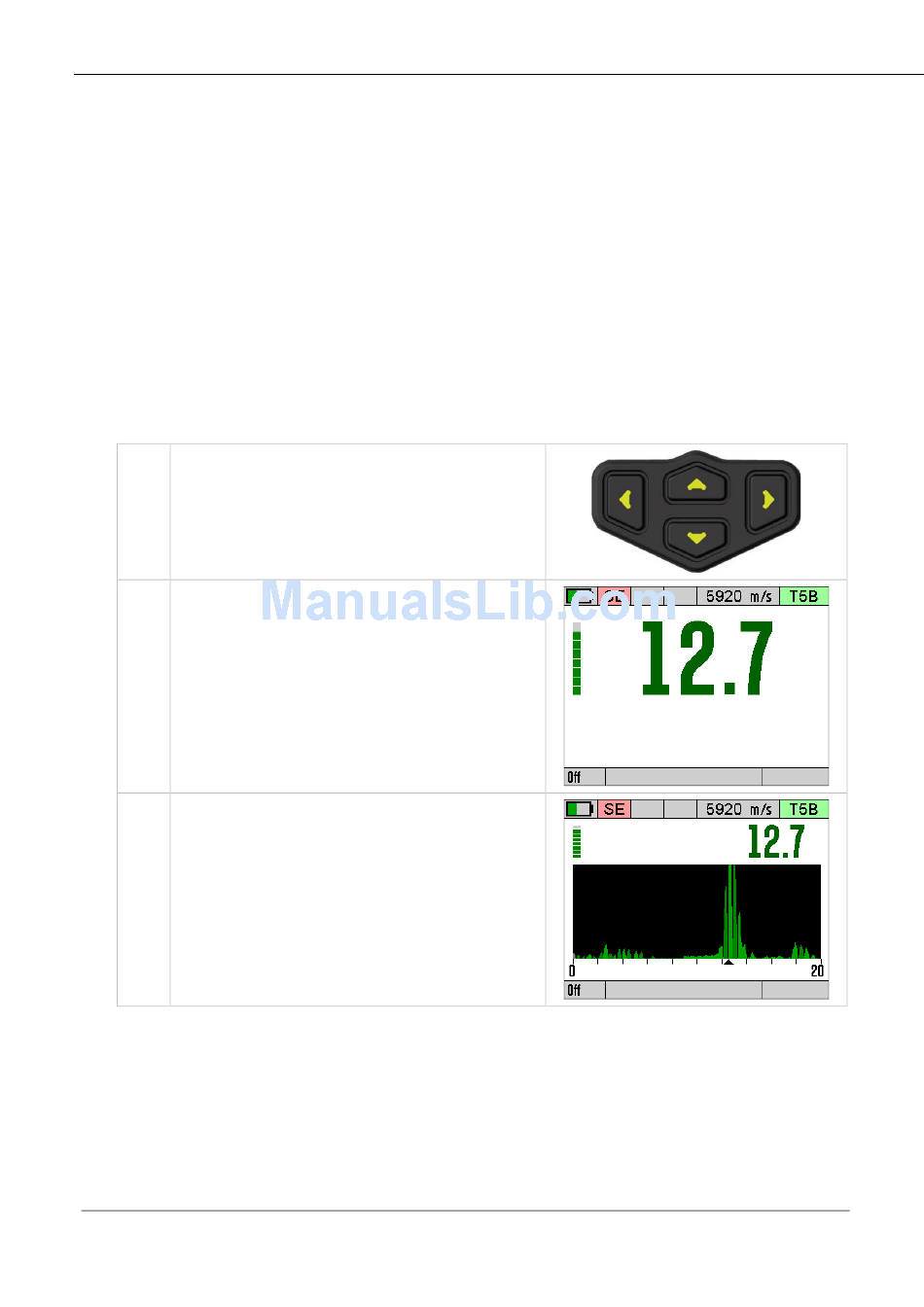

The gauge has three measurement screens that can be quickly
changed using the left and right navigation keys. These screens
offer three views to suit the situation.
1.
Use the Left and Right
navigation keys to move
between the three screens
2. Basic Screen
Just shows a large thickness
measurement value.
3. A-Scan Screen
Show the thickness
measurement and a live A-Scan
display of the ultrasound signals
received.
