Page 1: Quick Start Guide

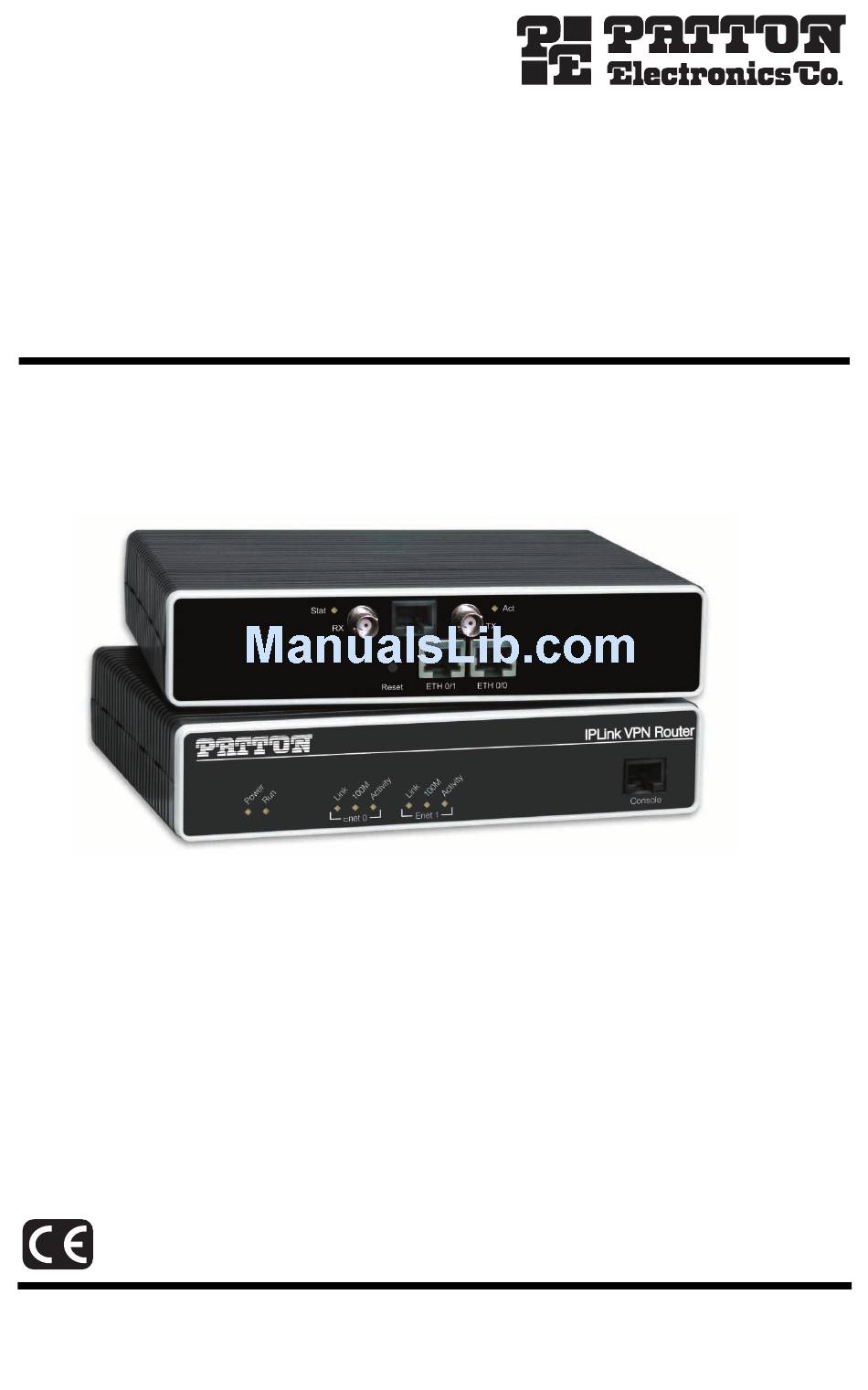

IPLink™ 2800 Series VPN Routers Quick Start Guide Sales Office: +1 (301) 975-1000 Document Number: 13220U7-001 Rev. D Technical Support: +1 (301) 975-1007 Part Number: 07M2800-QS E-mail: support@patton.com Revised: March 31, 2006 WWW: www.patton.com... - Page 2 • The IPLink contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Line voltages are present when the power cord is con- nected. The mains outlet shall be within 10 feet (3 meters) of the device, shall be easily accessible, and protected by a circuit breaker.
-
Page 3: Setting The Ip Address
1.3 Models with internal DC power supply Strip insulation 1/4-inch from the wires connecting the power source to the IPLink. Connect the ground terminal from the power source with to the E terminal on the IPLink. Connect the negative (-) terminal from the power source with to the (-) terminal on the IPLink. Connect the positive (+) terminal from the power source with to the (+) terminal on the IPLink. -
Page 4: Changing The Ip Address
Open a Telnet connection to the default LAN IP address of the IPLink ( 192.168.1.1 ). Use the name administrator after the login prompt and simply press the Enter key after the password prompt. login:administrator password: 2803/K/EUI> The prompt includes the model number of your IPLink ( 2803/K/EUI in the example above) of the WAN Note (ETH 0/0) port. -
Page 5: Connecting To The Network
(GSG) available on the CD-ROM and online at www.patton.com. 4.0 Connecting the IPLink serial port If your IPLink is equipped with a serial WAN port, connect it to the appropriate DCE. The IPLink 2800 Series is available with the following serial interfaces: V.35 (DB-25)—Model 2835 •... -
Page 6: Additional Information
The configuration of the enabled T1/E1 port is displayed. The defaults for the E1 are Master clocking, Line Code HDB3, Framing CRC4, Impedance 120 Ohms. This is for connecting to the RJ48C. For modifying the T1/E1 port configuration, consult the IPLink Software Configuration Guide on the Patton web- site: www.patton.com/manuals. -
Page 7: Ec Declaration Of Conformity
The safety advises in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The signed Declaration of Conformity can be downloaded from www.patton.com/certifications/. IPLink 2800 Quick Start Guide... -
Page 8: Copyright Statement
For additional service and support information, refer to the “Contacting Patton for assistance” chapter Note of the IPLink 2800 Series Getting Started Guide located on the CD-ROM that came with your IPLink Router or available online at www.patton.com. Warranty, Compliance Information For warranty, trademark and compliance information, refer to the IPLink 2800 Series Getting Started Guide located on the CD-ROM that came with your VPN Router or available online at www.patton.com.
