Summary of Contents for SHOWTEC AirDrive 2.4 IP, 5-pin XLR

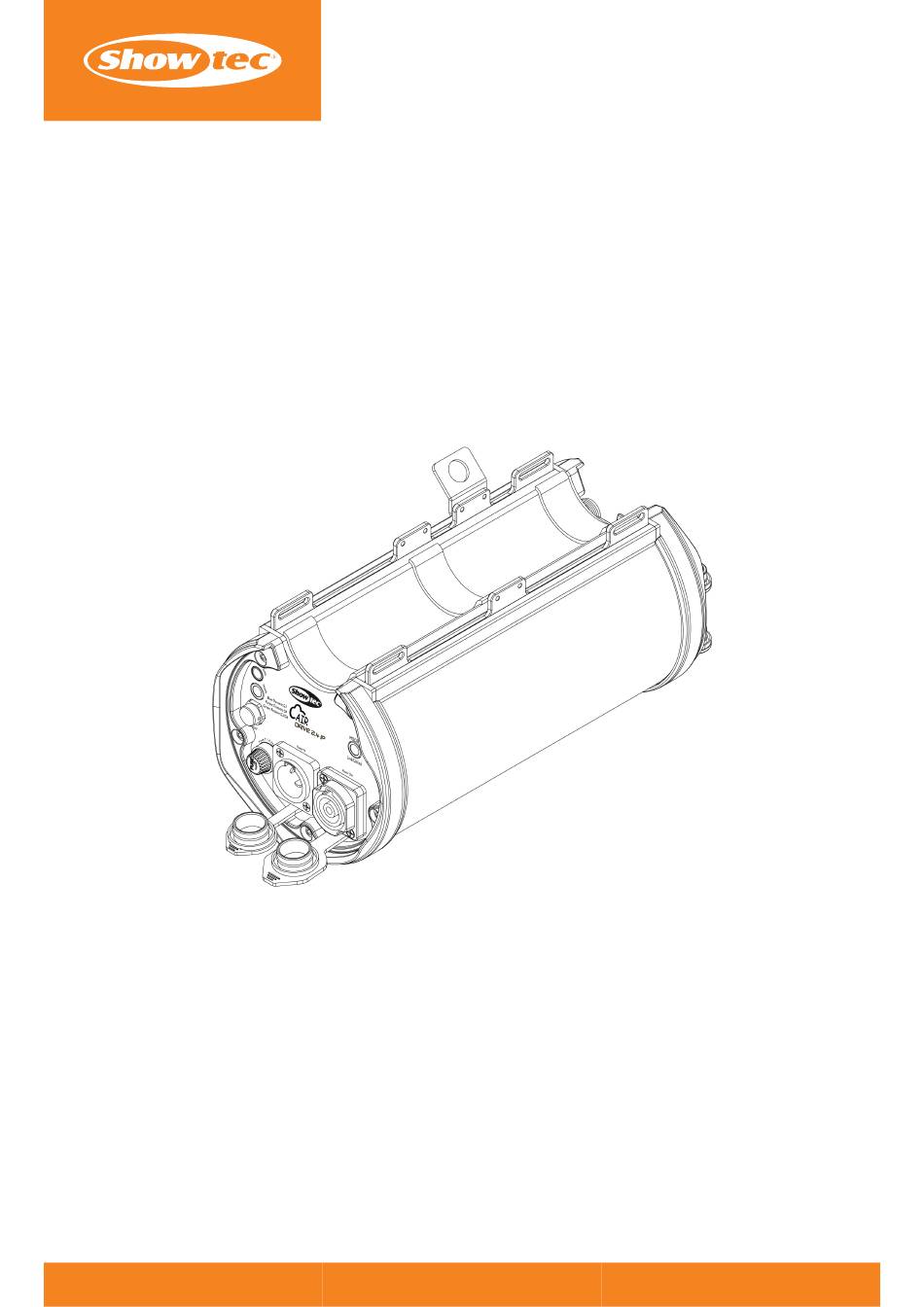

- Page 1 USER MANUAL ENGLISH V1.0 AirDrive 2.4 IP, 5-pin XLR Product code: 50267...
- Page 2 AirDrive 2.4 IP, 5-pin XLR Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
AirDrive 2.4 IP, 5-pin XLR Table of contents 1. Introduction ............................ -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec AirDrive 2.4 IP, 5-pin XLR • • Schuko to Power Pro True cable (1,5 m) • •... -
Page 5: Symbols And Signal Words
AirDrive 2.4 IP, 5-pin XLR 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
AirDrive 2.4 IP, 5-pin XLR Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. - Page 7 AirDrive 2.4 IP, 5-pin XLR Attention Power supply • • Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 8: Requirements For The User
AirDrive 2.4 IP, 5-pin XLR 2.2. Requirements for the User This product may be used by ordinary persons. Maintenance may be carried out by ordinary persons. Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 9: Description Of The Device
1 unit set up as a receiver. The AirDrive 2.4 IP, 5-pin XLR has IP65-rated Power Pro True connectors and 5-pin DMX XLR connectors. It has 3 additional optically isolated DMX outputs that can be used as DMX splitters/boosters. -
Page 10: Back View
AirDrive 2.4 IP, 5-pin XLR 3.2. Back View Figure 3 Antenna connector 3x IP65-rated 5-pin DMX XLR connectors OUT (optically isolated) IP65-rated 5-pin DMX XLR connector OUT IP65-rated 5-pin DMX XLR connector IN 3.3. Top View Figure 4 Safety eye... -
Page 11: Product Specifications
AirDrive 2.4 IP, 5-pin XLR 3.4. Product Specifications Model: AirDrive 2.4 IP, 5-pin XLR Control and programming: DMX channels 512 Protocols DMX Operational modes Transceiver Electrical specifications and connections: Power supply 100–240 V AC 50/60 Hz Power consumption 5 W Power connector IN Power Pro True ... -
Page 12: Dimensions
AirDrive 2.4 IP, 5-pin XLR 3.5. Dimensions Figure 5 3.6. Optional Accessories You can additionally purchase antennas which can enhance the connectivity range. The following products are available: • • 50117 Outdoor Mini Antenna 2,4 GHz, 2 dBi • • 50118 Indoor Omni Antenna 2,4 GHz, 3 dBi •... -
Page 13: Installation
AirDrive 2.4 IP, 5-pin XLR Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Mounting Options
AirDrive 2.4 IP, 5-pin XLR 4.4. Mounting Options The device can be mounted to a truss or other rigging structure in any orientation. It can be mounted using a clamp or the included hook-and-loop straps. Make sure that all loads are within the pre-determined limits of the supporting structure. -
Page 15: Mounting With Hook-And-Loop Straps
AirDrive 2.4 IP, 5-pin XLR 4.4.2. Mounting with Hook-and-loop Straps You can mount the device to a tube (max. Ø 50 mm) with the supplied 2 hook-and-loop straps. At least 2 persons are necessary to mount the device. To mount the device, follow the steps below: 01) Thread the hook-and-loop straps through the hook-and-loop slots (14) to attach the device to the pipe structure. -
Page 16: Installing The Antenna
AirDrive 2.4 IP, 5-pin XLR 4.5. Installing the Antenna The device is delivered with 1 antenna. Other antennas are optionally available (see 3.6. Optional Accessories on page 11). To install the antenna, follow the steps below: 01) Insert the antenna into the antenna connector (08). -
Page 17: Line Of Sight
AirDrive 2.4 IP, 5-pin XLR 4.6. Line of Sight There are limitations to how wireless waves transmit through air. Physical barriers like glass or walls limit the transmission range. It is important to always have a clear line of sight between transmitters and receivers. -
Page 18: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. The maximum recommended number of devices depends on the total load of all connected fixtures and AirDrive 2.4 IP, 5-pin XLR devices. The total load shall not exceed 10 A (2300 W). Product code: 50267... -
Page 19: Setup And Operation
Disconnect power supply before connecting or disconnecting data cables. 5.2. Setup Example The AirDrive 2.4 IP, 5-pin XLR can be used in various setups. At least 2 devices are required: 1 to be used as a transmitter and 1 to be used as a receiver. Figure 8 ... -
Page 20: Setup As Signal Booster
Note: The AirDrive 2.4 IP, 5-pin XLR has 4 DMX XLR connectors out. The standard DMX XLR connector OUT (10) is not optically isolated. The 3 DMX XLR connectors OUT (09) are optically isolated. It is recommended to use an optically isolated output when using an AirDrive 2.4 IP, 5-pin XLR as a receiver. -
Page 21: Change The Transmitter/Receiver Mode
5.5. Connecting and Disconnecting Multiple Devices In the G3 or G4 Transmit mode, the AirDrive 2.4 IP, 5-pin XLR that is used as a transmitter, can be connected to all active receivers within range that are not yet connected: Press the mode button (01) on the transmitter to connect it to all powered receivers that are within range. The mode LED indicator (06) starts flashing fast to indicate the connecting procedure. -
Page 22: Dmx Cables
AirDrive 2.4 IP, 5-pin XLR 5.7.2. DMX Cables Shielded twisted-pair cables with 5-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 23: Troubleshooting
AirDrive 2.4 IP, 5-pin XLR Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 24: Maintenance
AirDrive 2.4 IP, 5-pin XLR Maintenance 7.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 7.2. Preventive Maintenance Attention Before use, examine the device visually for any defects. Make sure that: •... -
Page 25: Corrective Maintenance
AirDrive 2.4 IP, 5-pin XLR 7.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 26: Deinstallation, Transportation And Storage
Approval Hereby, Highlite International declares that the device AirDrive 2.4 IP, 5-pin XLR, product code 50267, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com). - Page 27 AirDrive 2.4 IP, 5-pin XLR Product code: 50267...
- Page 28 Showtec is a brand of Highlite International B.V.
