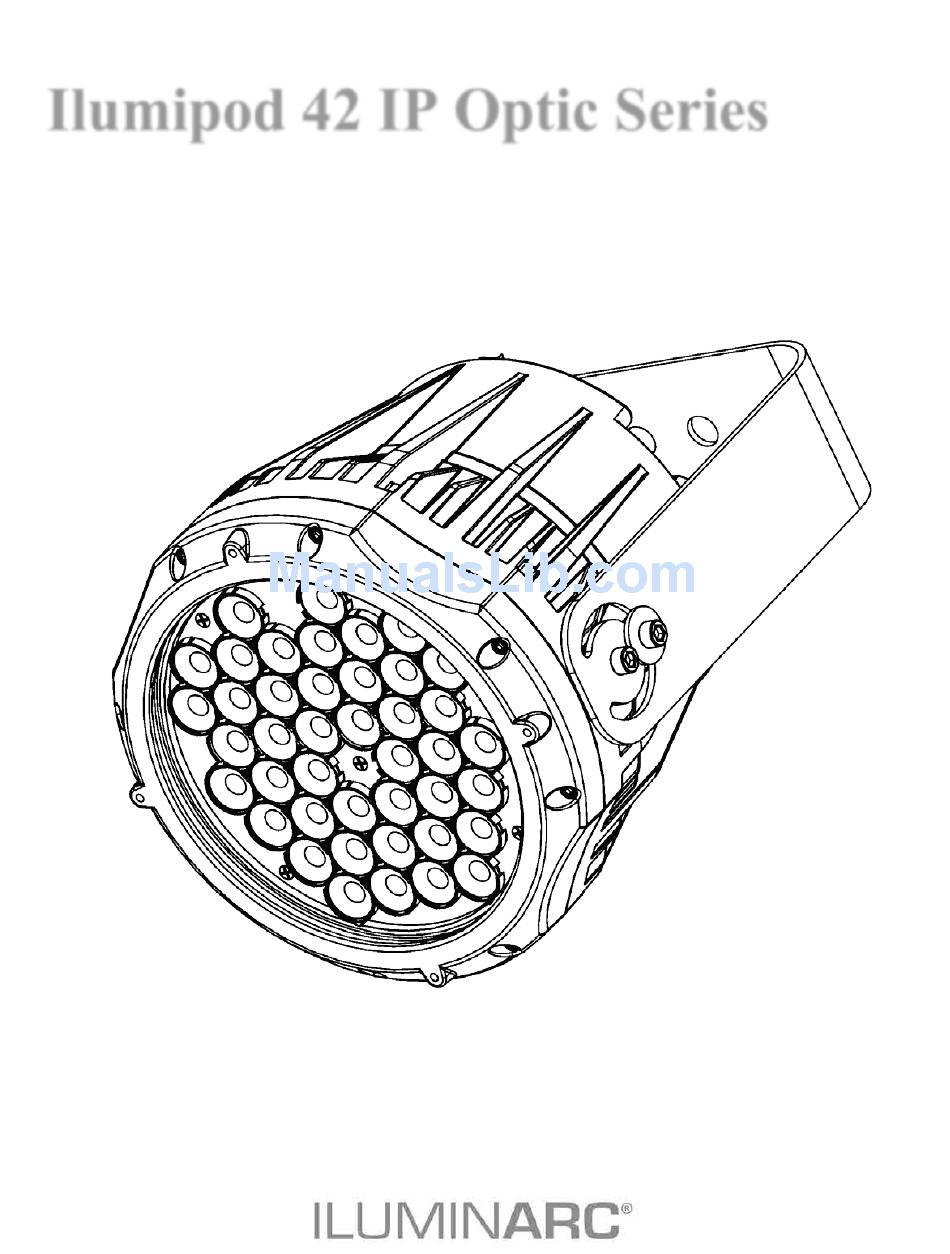

- Page 1 Ilumipod 42 IP Optic Series User Manual...
- Page 2 Document Revision The Ilumipod 42 IP Optic Series User Manual Rev. 6 supersedes all previous versions of this manual. Please discard any older versions of this manual you may have, whether in printed or electronic format, and replace them with this version.
-
Page 3: Table Of Contents
Control Options (SpectraWhite™ Fixtures) ............... 12 Programming ......................12 DMX Personality ........................ 12 DMX Control Without ID Addressing ................. 12 DMX Control With ID Addressing ..................12 Master/Slave........................12 Static Colors ........................13 Ilumipod 42 IP Optic Series User Manual Rev. 6... - Page 4 LED Binning........................26 Color Rendering Index (CRI) ..................... 26 Returns Procedure ..................... 27 Claims......................... 27 Contact Us ....................... 27 Technical Specifications RGBW Fixtures ..............28 Technical Specifications SpectraWhite™ Fixtures ........... 29 Ilumipod 42 IP Optic Series User Manual Rev. 6...
-
Page 5: Introduction
A set of two mutually exclusive menu options in a menu A unique value to enter or select in a menu The term “DMX” used throughout this document refers to the USITT DMX512-A transmission protocol. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 6: Safety Notes
· In case of a serious operating problem, stop using this product immediately! event that your Ilumipod 42 IP Optic Series fixture may require service, please contact ILUMINARC ® Technical Support. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 7: Product Description
Product Description 2. Product Description The Ilumipod 42 IP Optic Series encompasses two types of fixtures, the Ilumipod 42 IP Optic RGBW and Ilumipod 42 IP Optic VW. These fixtures are available in 15 degree and 30 degree optics. Common Features ·... -
Page 8: Product Overview
Housing Front View Safety Cable Loop 13 mm Mounting Holes Power In Humidity DMX In/Out Control Valve (under bracket) (under bracket) LED Display Heavy Duty (under cover) Mounting Bracket Rear View Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 9: Product Dimensions
Product Description Product Dimensions Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 10: Installation
AC Power Always connect the Ilumipod 42 The Ilumipod 42 IP Optic Series has an auto-ranging power supply that can work with an input IP Optic Series to voltage range of 100~240 VAC, 50/60 Hz. a protected circuit with an... -
Page 11: Dmx Linking
Installation DMX Linking You may link the Ilumipod 42 IP Optic Series to a DMX controller using a standard DMX serial connection. If using other DMX compatible fixtures with the Ilumipod 42 IP Optic Series, it is possible to control them individually with a single DMX controller. -
Page 12: Mounting
Always mount this fixture in any safe position while making sure that there is adequate room around it for ventilation, configuration, and maintenance. Rigging Make sure to The Ilumipod 42 IP Optic Series consists of the fixture body and a single heavy duty mount this fixture ® mounting bracket with 13mm screw holes. ILUMINARC... -
Page 13: Operation
DMX channel 11 to “0” if Go to MENU > Id and select an ID address (1~66). using TOUR. When in TOUR, channel 11 controls ID addressing. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 14: Master/Slave
Go to MENU > CAL2 > RGbw. Select an RGB color (R, G, or b). Configure the color value (0~255). Repeat steps 2 and 3 for the other RGB colors to obtain a white color. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 15: Password
When the RGB faders are all set to “255”, the output is the selected White color (see RGB to White Setting section). When the RGB faders are all set to “255”, the output matches the same color output of previous versions of this fixture. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 16: Control Panel Description
Go to MENU > STAT and manually set the color values (see Static Colors). mode. On each of the Slave units: Go to MENU > RUN and select SLAV. The slave fixtures will follow the program played by the Master. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 17: Static Colors
This will increase the output of the fixture for a limited time only. The fixture will automatically adjust output to prevent overheating. Go to MENU > SET > POw. Select a power setting (NORM or HIGH). Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 18: Menu Map (Rgbw Fixtures)
R (red) Modifies the white color used when SET > RGbw G (green) CAL2 000~255 (RGB to white) COLOR > RGbw is active b (blue) ON/OFF Turns the password on or off Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 19: Menu Map (Spectrawhite™ Fixtures)
Changes the dimmer curve (fast ó slow) dIM1~4 wT.01~05 (warm white) Modifies the white temperature used in the white (white CAL1 000~255 macros channel (STd.2, channel 4) temperature) (cool white) ON/OFF Turns the password on or off Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 20: Dmx Values Rgbw Mode
030 ó 069 Dimming curve 1 (fastest) Dimmer Speed 070 ó 129 Dimming curve 2 130 ó 189 Dimming curve 3 190 ó 255 Dimming curve 4 (slowest) Continued on next page Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 21: Tour (Cont.)
000 ó 255 0~100% White ARC2+D Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% 000 ó 255 0~100% Green 000 ó 255 0~100% Blue 000 ó 255 0~100% White Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 22: Arc2+S
White 0~100% 000 ó 010 Strobe No Function 011 ó 255 0~20 Hz Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 0~100% Saturation 000 ó 255 Value 0~100% Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 23: Dmx Values Spectrawhite™ Mode
ID 18 ID 41 ID 64 190 ó 199 ID 19 ID 42 ID 65 200 ó 209 ID 20 ID 43 ID 66 ID 21 ID 44 ID 22 ID 45 Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 24: Technical Information
Troubleshooting Guide as a guide only. In most cases, opening the product’s housing will invalidate its warranty, unless there is a written indication to the contrary. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 25: Troubleshooting Guide
DMX signal problems Too many fixtures Install an optically coupled DMX splitter after unit #32 or before Interference from AC wires Keep DMX cables separated from power cables or fluorescent/black lights Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 26: Photometrics
1,316.5 30.2 29.8 Beam (50%): 22.4% 576.0 13.7 Total: 70.5% 1,810.4 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 27: Photometrics (Cont.)
59.9 62.7 Beam (50%): 32.2% 598.9 31.9 32.6 Total: 72.1% 1,341.3 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 28: Photometrics (Cont.)
32.6 32.4 Beam (50%): 28.7% 573.8 15.5 15.6 Total: 92.3% 1,845.6 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 29: Photometrics (Cont.)
1,536.1 59.9 62.0 Beam (50%): 801.0 30.9 30.8 Total: 90.5% 1,809.5 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 42 IP Optic Series User Manual Rev. 6... -
Page 30: Led Disclaimer
LED. Data from the manufacturer of ® the LED are not independently verified or measured by ILUMINARC . When the fixture is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 31: Returns Procedure
® damage report and any related claims with the carrier, not ILUMINARC . The customer must will need those to ship the submit the report upon reception of the damaged merchandise. Failure to do so in a timely ®... -
Page 32: Technical Specifications Rgbw Fixtures
User Manual Technical Specifications RGBW Fixtures Dimensions and Length Width Height Weight Weight 7.9 in (202 mm) 8.4 in (213 mm) 9.6 in (245 mm) 10.6 lbs (4.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection... -
Page 33: Technical Specifications Spectrawhite™ Fixtures
IP Gland Nut 1, 2, 3, 6 Ordering Ilumipod 42 IP Optic RGBW Item Number 15º (white housing) 11042005 30º (white housing) 11042006 15º (gray housing) 11042007 30º (gray housing) 11042008 Ilumipod 42 IP Optic Series User Manual Rev. 6... - Page 34 User Manual...
