XBee‐PRO®  XSC OEM RF Modules

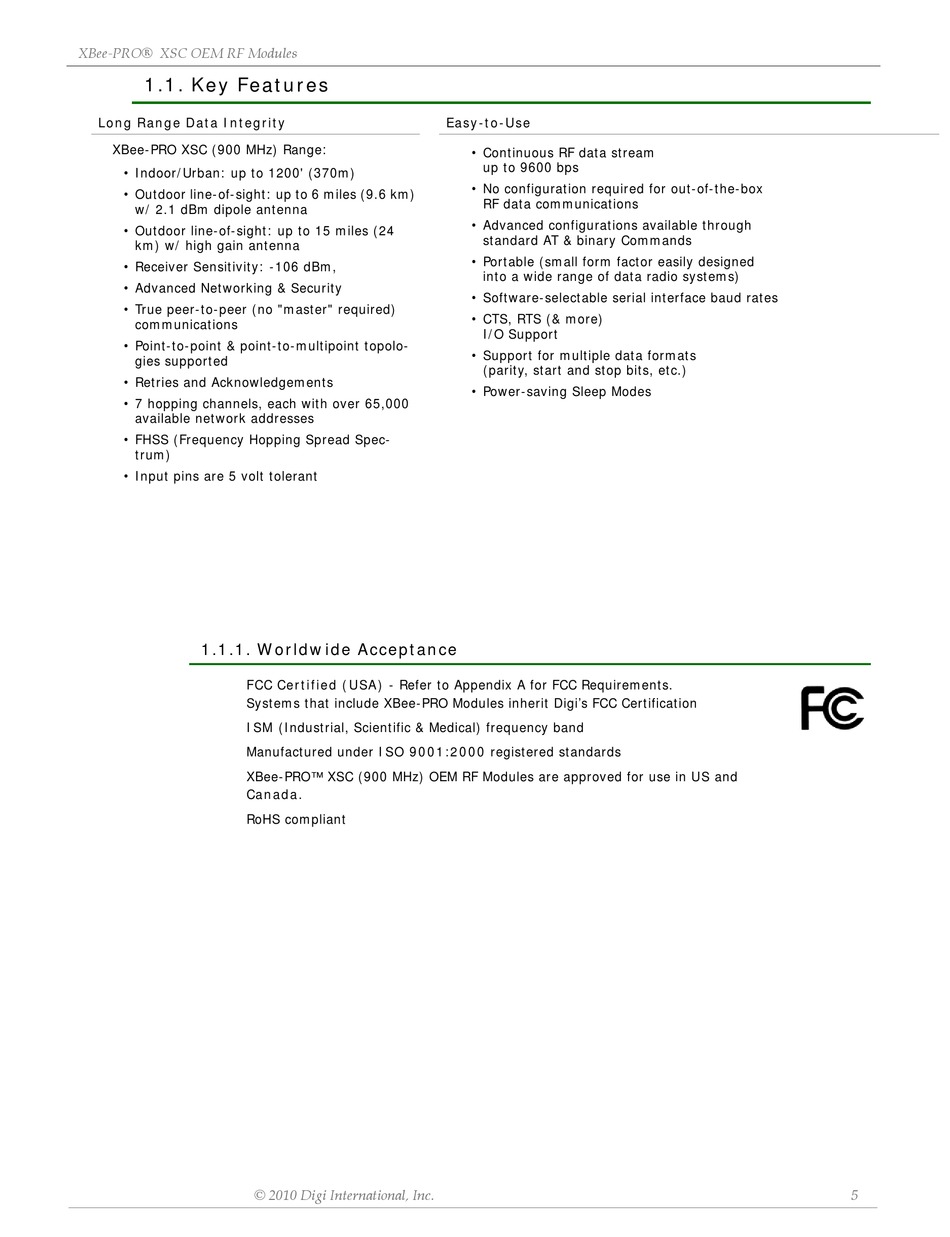

1.1. Key Features

Long Range Data Integrity
XBee-PRO XSC (900 MHz) Range:
• Indoor/Urban: up to 1200' (370m)
• Outdoor line-of-sight: up to 6 miles (9.6 km)
w/ 2.1 dBm dipole antenna
• Outdoor line-of-sight: up to 15 miles (24
km) w/ high gain antenna
• Receiver Sensitivity: -106 dBm,
• Advanced Networking & Security
• True peer-to-peer (no "master" required)
communications
• Point-to-point & point-to-multipoint topolo-
gies supported
• Retries and Acknowledgements
• 7 hopping channels, each with over 65,000
available network addresses
• FHSS (Frequency Hopping Spread Spec-
trum)
• Input pins are 5 volt tolerant

1.1.1. Worldwide Acceptance

FCC Certified (USA) - Refer to Appendix A for FCC Requirements.
Systems that include XBee-PRO Modules inherit Digi's FCC Certification
ISM (Industrial, Scientific & Medical) frequency band
Manufactured under ISO 9001:2000 registered standards
XBee-PRO™ XSC (900 MHz) OEM RF Modules are approved for use in US and
Canada.
RoHS compliant
© 2010 Digi International, Inc.
Easy-to-Use
• Continuous RF data stream
up to 9600 bps
• No configuration required for out-of-the-box 
RF data communications
• Advanced configurations available through 
standard AT & binary Commands
• Portable (small form factor easily designed 
into a wide range of data radio systems)
• Software-selectable serial interface baud rates
• CTS, RTS (& more) 
I/O Support
• Support for multiple data formats 
(parity, start and stop bits, etc.)
• Power-saving Sleep Modes
     5
