Fisher Fieldvue DVC5010 Quick Start Manual page 12

DVC5000 Series
1'Main Menu
2 Analog In12.42 mA
3 Pressure 10 psi
4 Travel 53.69%
5 Drive Sgl 58.15%
Main Menu (Setup)
1'Initial Setup
2 Detailed Setup
3
3 Display
4 Calibrate
5 Stroke Output
Initial Setup
1'Auto Setup
2 Manual Setup
Auto Setup
1'Setup Wizard
2 Auto Calib Travel
3 Stabilize/Optimize
Table 3-1. Actuators Available with Setup Wizard
Manufacturer
Fisher Controls
Baumann
Gulde
Masoneilan
Neles-Jamesbury
3-2
From the DVC5000 online menu,
select Main Menu.
From the Main Menu, select Initial
Setup.
From the Initial Setup menu, select
Auto Setup.
From the Auto Setup menu, se-
lect Setup Wizard and follow the
on-line instructions.

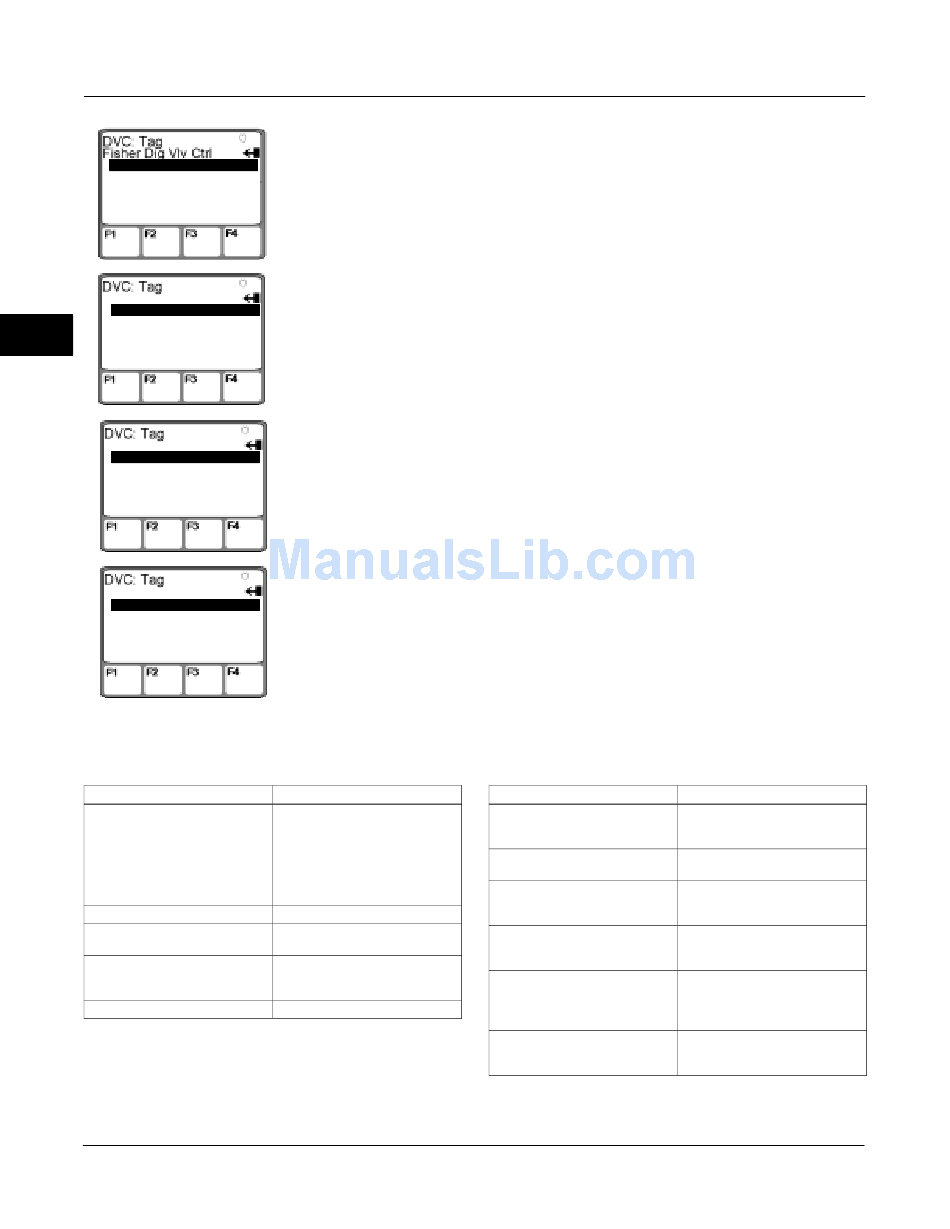

Figure 3-2. Accessing the Setup Wizard on the Model 275 HART Communicator
Actuator Model
513 and 513R
585C and 585CR
657 and 667
1051 or 1052
1066SR
1250 and 1250R
System 9000
All
3024
3025
Camflex II
Sigma F, Minitorque
and Ball II
Quadra-Power II
Table 3-2. DVC5000 Series Factory Default Settings
Setup Parameter
Analog Input Units
Input High
Input Low
Travel Range High
Travel Range Low
Control Mode
Restart Control Mode
Self-Test Shutdown
Dynamic Bypass Enabled
Input Filter Time
Input Characteristic
Travel Limit High
Travel Limit Low
Travel Cutoff High
Travel Cutoff Low
Minimum Opening Time
Minimum Closing Time
Polling Address
Default Setting
mA
20.0 mA
4.0 mA
100%
0%
Analog (RSP)
Resume Last
All Failures Disabled
No
0 secs
Linear
125%
–25%
99.5%
0.5%
0 secs
0 secs
0
November 1999
