BEFORE USE

HANDLING OF THE PACKED MACHINE

The machine is supplied with suitable packing foreseen for fork lift
truck handling.
The total weight is 105 kg (231,5 lbs.)
Packing dimensions:
Base: 118 cm x 67 cm (46.5" x 26.4")
Height: 119 cm (46.8")
Do not place more than 2 packings on top of each other.

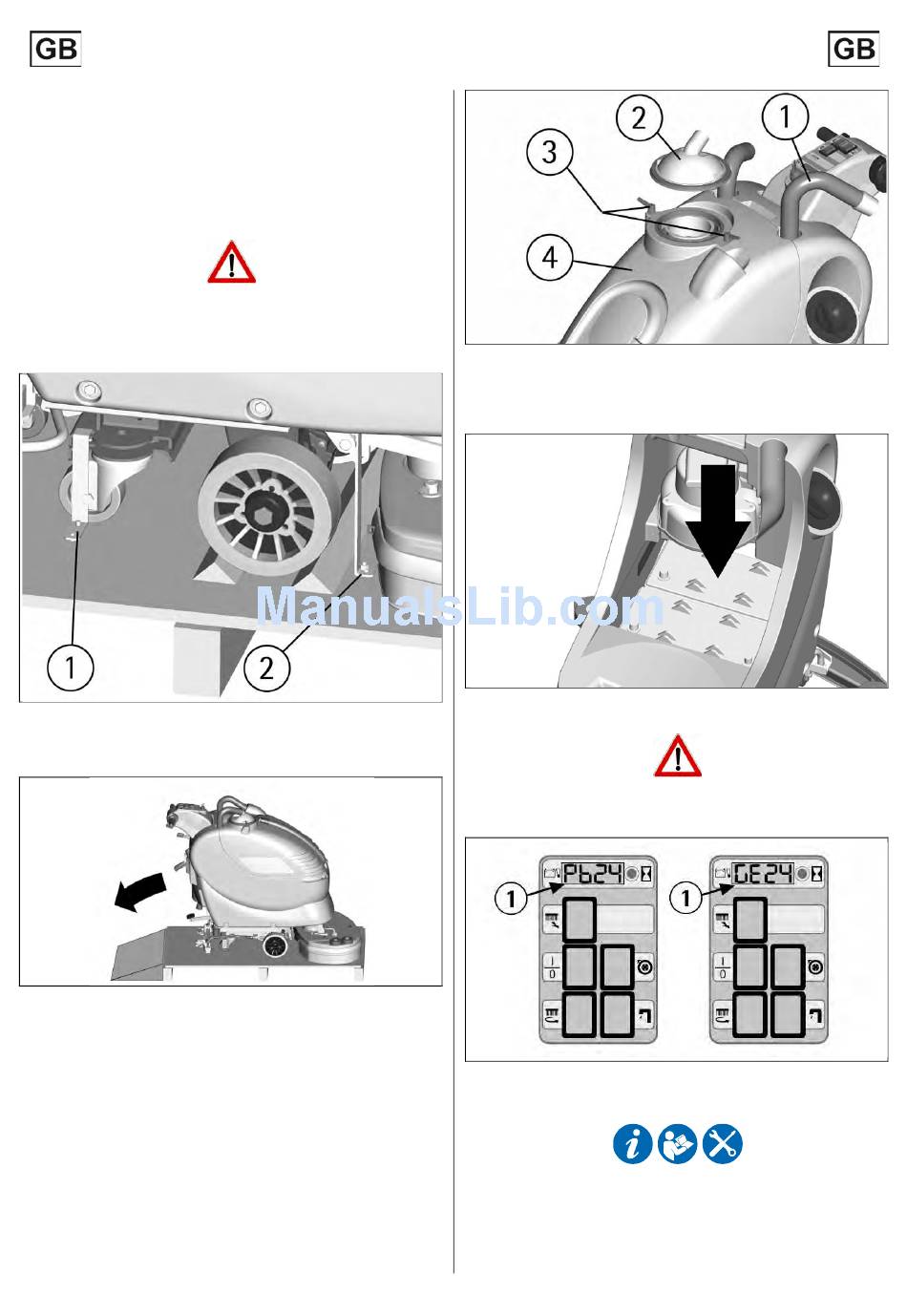

UNPACKING OF THE MACHINE

1. Remove the external packing.
2. Unscrew the brackets (1+2) that secure the machine to the pallet.
3. Provide for an inclined base.
4. Move the machine backwards, as indicated in the figure, avoiding
heavy contacts to mechanical parts.
5. Keep the pallet and the brackets for eventual transport.

BATTERY INSTALLATION

The machine is equipped either with batteries in serial connection or
elements of DIN-type assembled together and connected in series,
placed in its appropriate compartment under the recovery tank and
must be handled using suitable lifting equipment (due to weight,
considering the type of batteries chosen, and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
For batteries installation proceed as follows:
1. Take off the squeegee hose (1).
2. Take off the suction cover (2) after turning the blocking levers (3).
3. Take off the recovery tank (4).
4. Place the batteries in its compartment.
Connect the terminals, respecting the polarities, avoiding
5.
contact with other parts that could create short circuit.
6. Reassemble all parts.
The machine and its battery check card foresee the use of traditional
lead batteries.
CHECK THE SETTING OF THE CHECK CARD ON THE INDICATOR (1).
In case of GEL batteries installation, it is necessary to set the battery
check card. Please contact the authorized technical assistance.
Strictly follow manufacturer/distributor
maintenance and daily recharge of the batteries. All installation and
maintenance operations must be executed by specialized staff, using
suitable protection accessories.
8
indications for the
