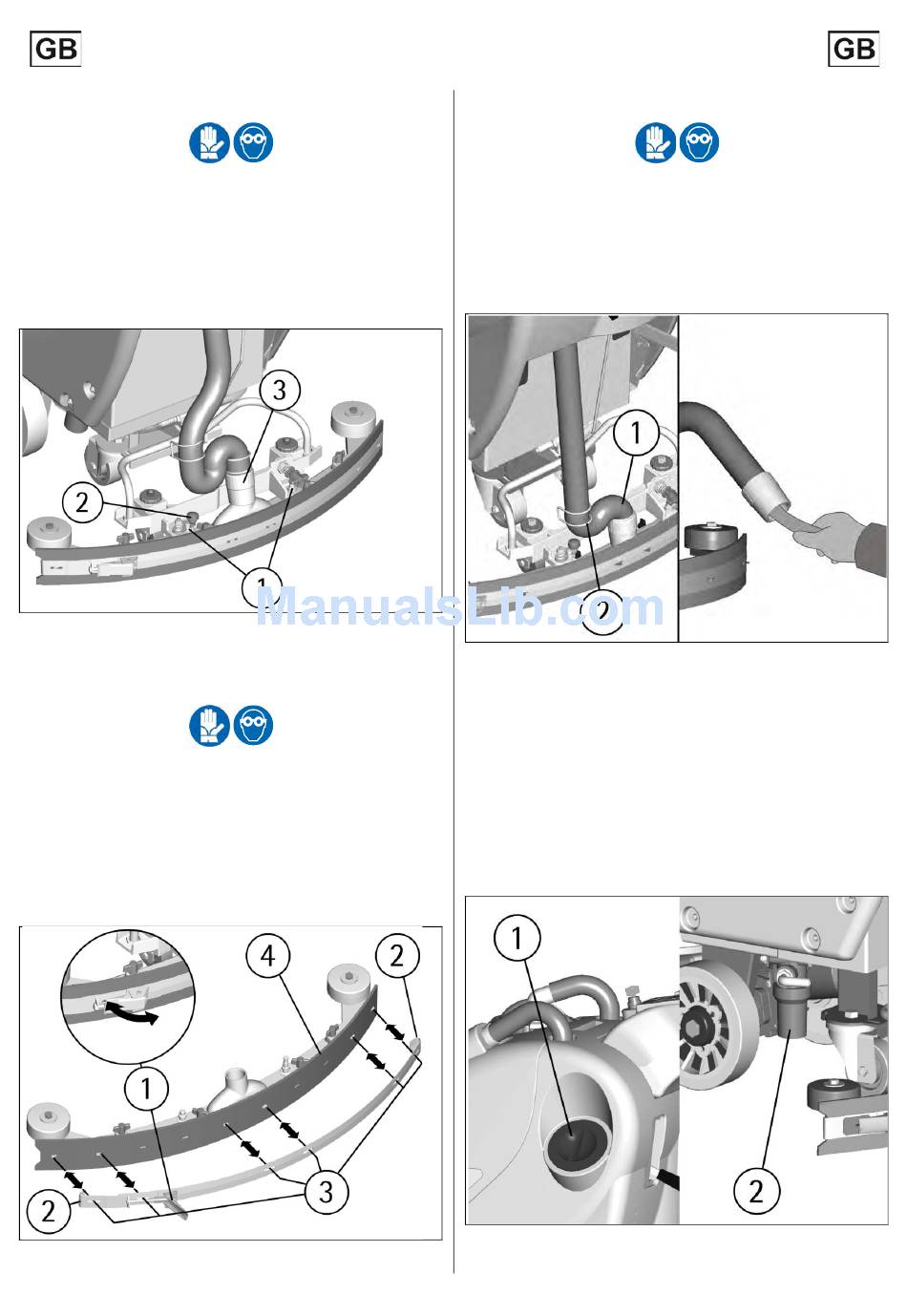

SQUEEGEE CLEANING

Keeping the squeegee clean guarantees always the best drying action.
For the cleaning it is necessary to:
1. Take off the squeegee hose (3) from its coupling.
2. Disassemble the squeegee from its support by rotating the lever
(2) counterclockwise and making slide the stud bolts (1) in their
slots up to their release.
3. Clean with care the internal part of the squeegee inlet eliminating
eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.

WEEKLY MAINTENANCE

REAR SQUEEGEE RUBBER CHECK

Check the squeegee rubber wear and eventually turn or replace it.
For the replacement it is necessary to:
1. Lift the squeegee acting upon the lever.
2. Uncouple the hook (1) of the rubber holder blade, release the
extremities (2) from the squeegee body and take off the rubber
(4).
3. Turn the rubber (4) to a new side or replace it.
To reassemble the squeegee repeat reverse the operations above-
mentioned, inserting the rubber (4) on the guides (3), couple the
extremities (2) of the rubber holder blade onto the squeegee body and
finally block the hook (1).

SQUEEGEE HOSE CLEANING

Weekly or in case of insufficient suction, it is necessary to check that
the squeegee hose is not obstructed. Eventually, to clean it, proceed as
follows:
1. Take off the hose from the squeegee coupling (1) and release the
guide spring of the squeegee hose (2).
2. Wash the inside of the hose with a water jet, from the squeegee
hose side.
3. To reassemble the hose repeat reverse the operations above-
mentioned.

CLEANING OF SOLUTION TANK AND FILTER

1. Bring the machine to an appropriate place for tanks draining.
2. Unscrew the solution tank cap (1).
3. Unscrew the exhaust plug (2).
The machines equipped with the optional device of the solution
drainage, it is sufficient to open the solution valve of the device
(see under "EMPTYING DEVICE DETERGENT SOLUTION").
4. Rinse with a water jet the solution tank.
5. Rinse the solution tank filter placed inside the exhaust plug, under
the machine.
6. Reassemble all parts and close, if present, the solution valve of the
drainage device.
7. The machines equipped with the 3S system (see under "3S SYSTEM
SOLUTION SAVING SYSTEM") (optional), it is necessary to clean in
the same way also the filter of the auxiliary hydraulic circuit.
