BEFORE USE

HANDLING OF THE PACKED MACHINE

The machine is supplied with suitable packing foreseen for fork lift
truck handling.
For the package dimensions please look at the "TECHNICAL
DESCRIPTION" table.
Do not place more than 2 packings on top of each other.

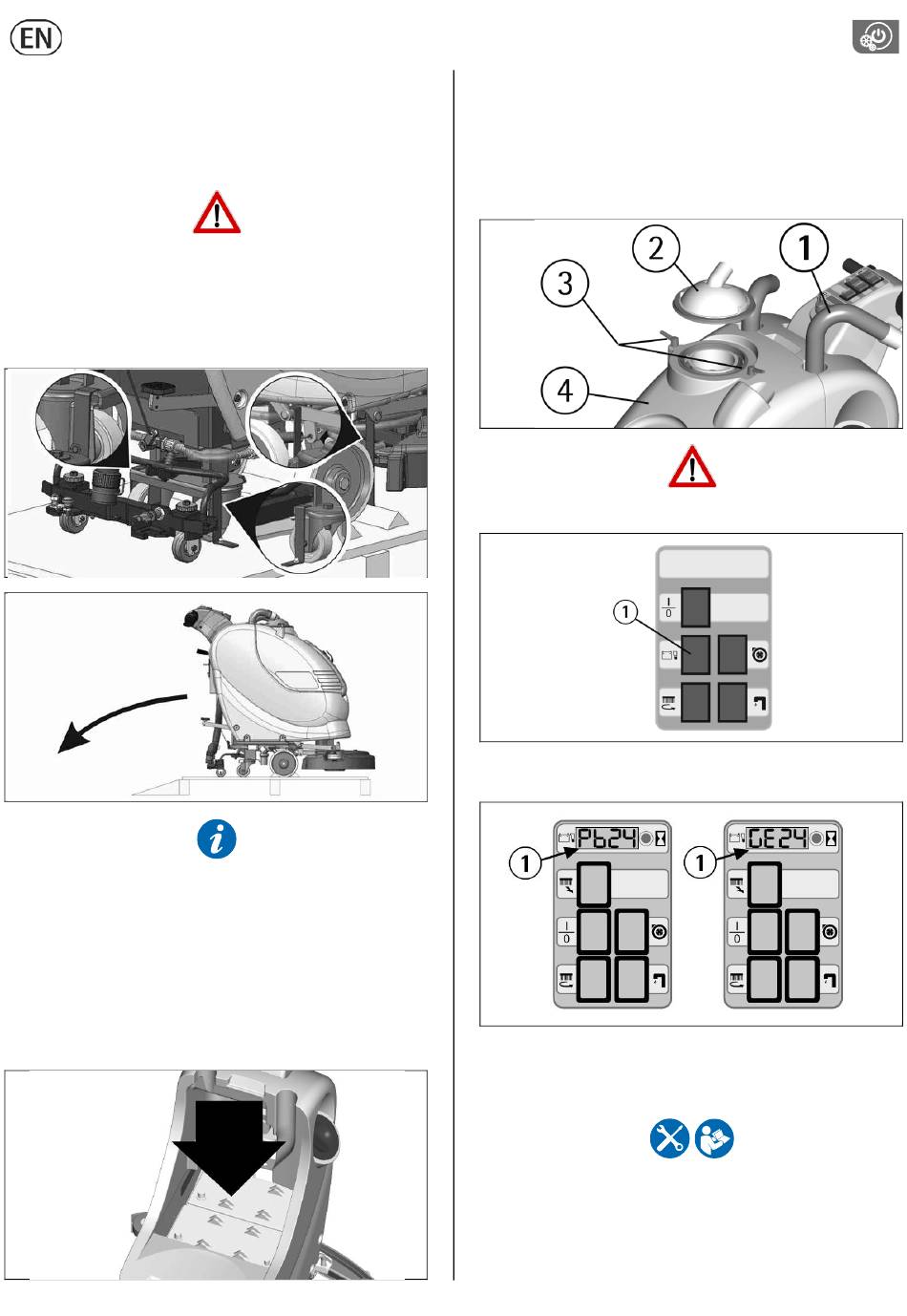

UNPACKING OF THE MACHINE

1. Remove the external packing.
2. Unscrew the brackets that secure the machine to the pallet.
3. Move the machine backwards, as indicated in figure, avoiding
heavy contacts to mechanical parts.
4. Keep the pallet for eventual transport.
The portable slope is not included in the packaging.

BATTERY INSTALLATION AND SETTING OF THE BATTERY TYPE

This machine is equipped with two batteries at 12V in serial
connection, placed in its appropriate compartment under the
recovery tank and must be handled using suitable lifting equipment
(due to weight and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
The connection of the batteries' cables has to be carried out by
specialized staff, because the inversion of polarity causes the damage
of the electrical components.
Before the machine is supplied with power, check that the red cable
is connected to the + pole of the battery.
For batteries installation proceed as follows:
1. Take off the squeegee hose (1).
2. Take off the suction cover (2) after turning the blocking levers
(3).
3. Take off the recovery tank (4).
4. Place the batteries in its compartment.
Connect the terminals, respecting the polarities, avoiding
5.
contact with tools that could create short circuit.
6. Reassemble all parts.
The machine and the signal lamp of the battery charge level foresee
the use of traditional lead batteries.
If the machine is equipped with the display, check the battery
setting on it (1).
In case of GEL batteries installation, it is necessary to carry out a
specific adjustment. Please contact the authorized technical
assistance.

BATTERY CHARGER

Be sure that the battery recharger is suitable for the installed
batteries both for their capacities and type (lead/acid or GEL and
equivalent).
In the plastic bag containing the use and maintenance you will find
the coupling connector for the recharger. It must be assembled onto
the cables of your recharger, following the instructions given by the
manufacturer.
