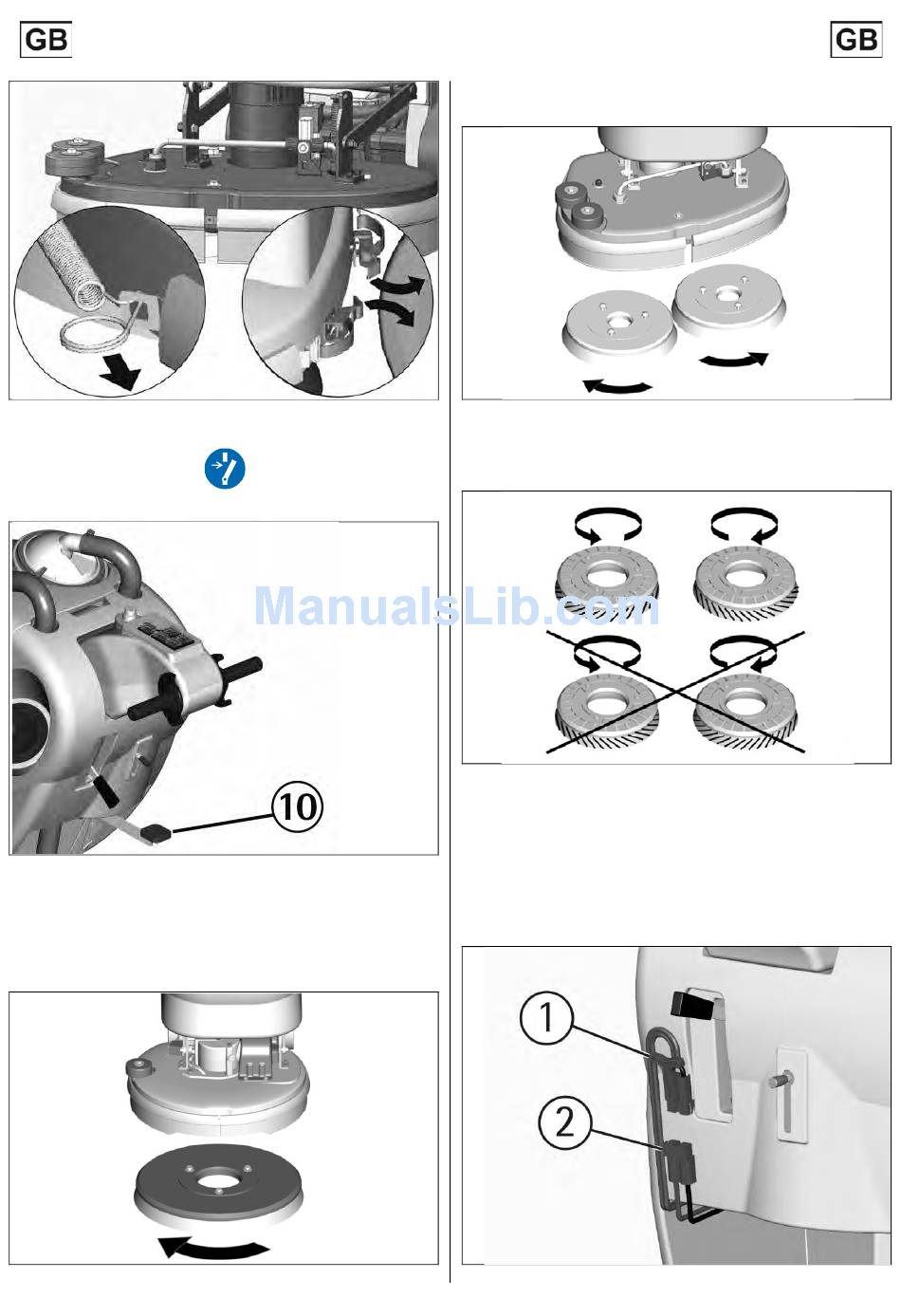

BRUSH/ES ASSEMBLY

Acting upon the pedal (10) lift the brushes base group.
With the brush base group in lifted position, insert the brush into its
plate seat underneath the brush base turning it until the three metal
buttons are properly seated in their slots; rotate energically the brush
to push the button towards the coupling spring until it gets blocked.
The figure shows the rotating sense for the brush coupling with brush
base 50.
The following figure shows the rotating sense for the brushes coupling
with brushes base 45 and 55.
For a longer life of the brushes we suggest to invert daily their position.
Whenever brushes were deformed we suggest to reassemble them in
the same position, avoiding that the different inclination of the bristles
causes excessive motor overload or troublesome vibrations.
Use only brushes supplied with the machine or the ones indicated in
the paragraph "RECOMMENDED BRUSHES". The use of other brushes
can compromise the security.

FLOOR CLEANING

CONNECTION OF THE BATTERIES TO THE MACHINE

Plug in the batteries connector (1) to the machine connector (2), placed
in the rear part of the machine.
