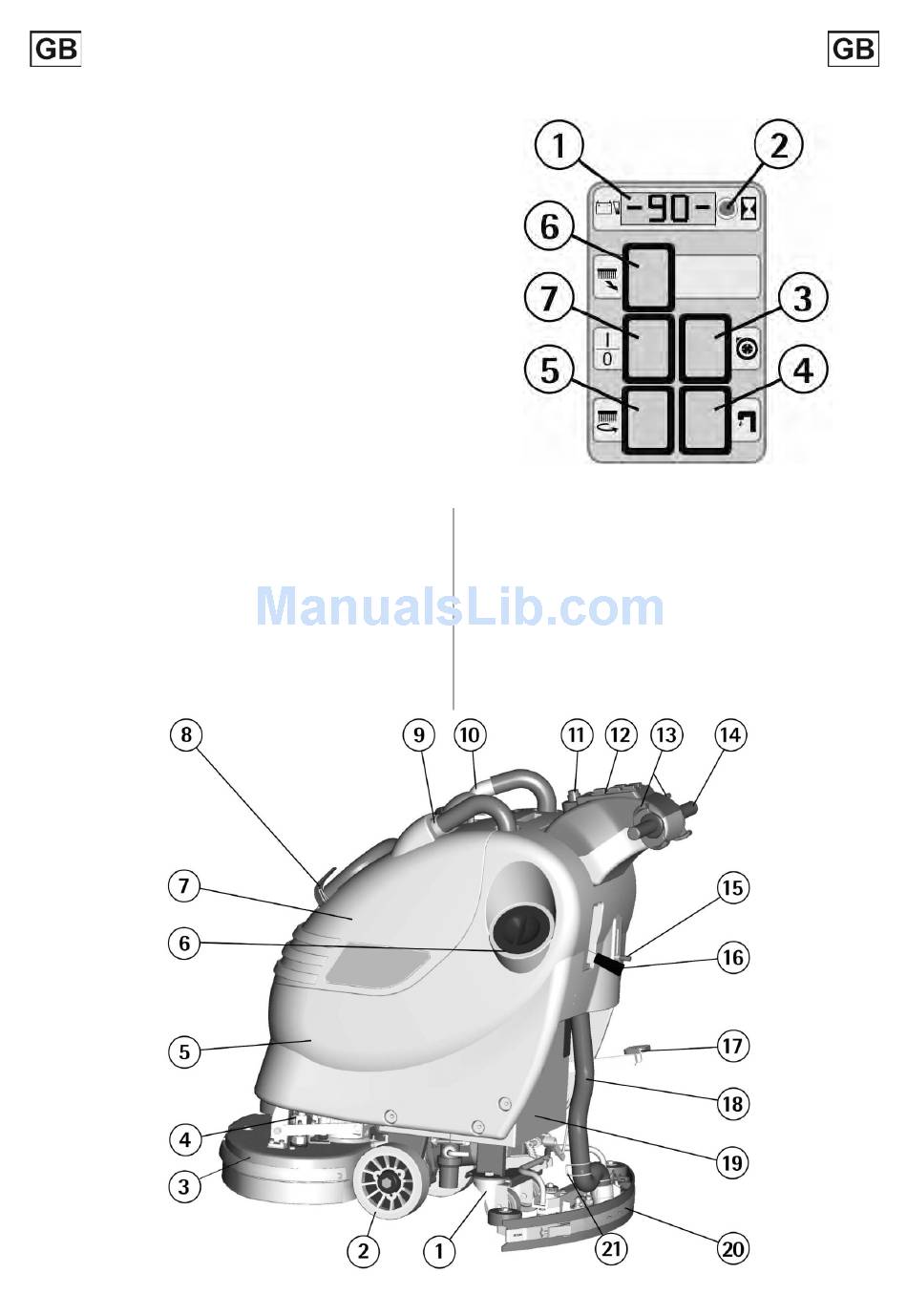

LEGEND INSTRUMENT BOARD AND CONTROLS

1. DISPLAY CHARGE LEVEL BATTERIES/HOUR METER
2. PUSH BUTTON VISUALIZATION HOUR METER (DISPLAY)
3. SWITCH SUCTION MOTOR
4. SIGNAL LAMP SOLUTION VALVE OPEN/ SWITCH 3S SYSTEM
(OPTIONAL)
5. SWITCH BRUSH/ES MOTOR
6. PUSH BUTTON BRUSH RELEASE
7. GENERAL SWITCH (ABSENT IN CASE OF OPTIONAL KEY)

LEGEND MACHINE

1. CASTOR WHEELS
2. WHEELS
3. BRUSH/ES BASE GROUP
4. SOLENOID VALVE (OPTIONAL)
5. SOLUTION TANK
6. SCREW CAP FOR INLET DETERGENT SOLUTION
7. RECOVERY TANK
8. PLUG EXHAUST HOSE RECOVERY TANK
9. INLET OPENING SQUEEGEE HOSE
10. SUCTION COVER
11. SWITCH WITH KEY (OPTIONAL)
12. INSTRUMENT BOARD
13. LEVERS DRIVE CONTROL
14. HANDLE BARS
15. LEVER SOLUTION VALVE
16. LEVER SQUEEGEE LIFTING
17. PEDAL BRUSH/ES BASE GROUP LIFTING
18. SQUEEGEE HOSE
19. BATTERIES
20. SQUEEGEE ASSEMBLY
21. GUIDE SPRING SQUEEGEE HOSE
