DAILY MAINTENANCE

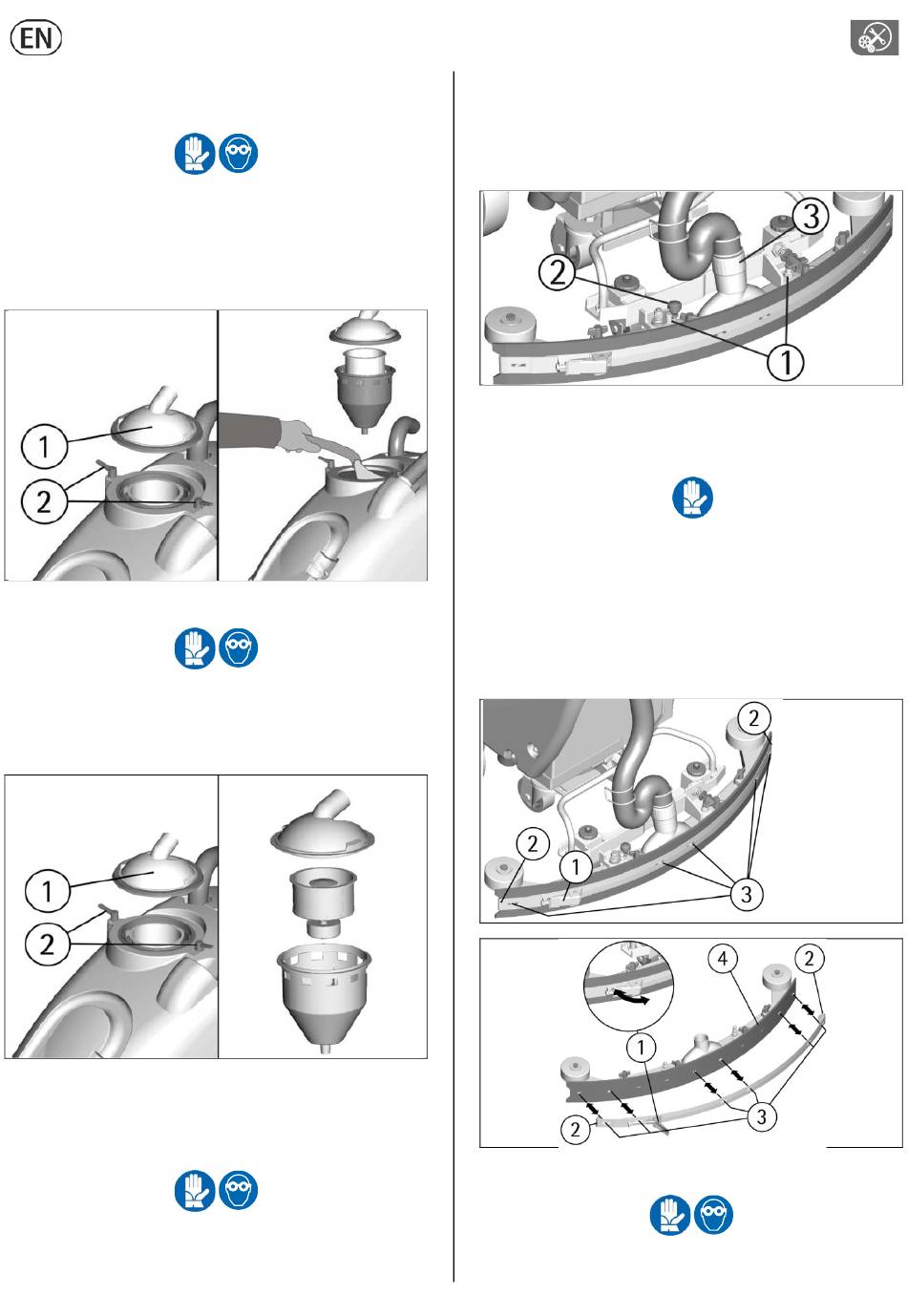

RECOVERY TANK CLEANING

1. Hold the exhaust hose placed in the front part of the machine.
2. Take off the exhaust plug acting upon its lever and empty the
recovery tank into
"OVERFLOW DEVICE").
3. Take off the suction cover (1) after rotating the blocking levers
(2).
4. Take off the filter and filter protection.
5. Rinse the tank with a water jet.

SUCTION FILTER CLEANING

1. Take off suction cover (1) after rotating the blocking levers (2).
2. Take off the filter and filter protection.
3. Clean all parts with a water jet especially inside surfaces and
filter bottom.
4. Carry out carefully the cleaning operations.
5. Reassemble all parts.

BRUSH/ES CLEANING

Disassemble the brush/es and clean it/them with a water jet (for the
brush disassembly see under "BRUSH ASSEMBLY AND DISASSEMBLY").

SQUEEGEE CLEANING

Keeping the squeegee clean guarantees always the best drying action.
For the cleaning it is necessary to:
1. Take off the squeegee hose (3) from its coupling.
appropriate containers (see
2. Disassemble the squeegee from its support by rotating the lever
(2) counterclockwise and making slide the stud bolts (1) in their
slots up to their release.
3. Clean with care the internal part of the squeegee inlet
eliminating eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.
under

WEEKLY MAINTENANCE

REAR SQUEEGEE RUBBER REPLACEMENT

Check the squeegee rubber wear and eventually turn or replace it.
For the replacement it is necessary to:
1. Lift the squeegee acting upon the lever.
2. Uncouple the hook (1) of the rubber holder blade, release the
extremities (2) from the squeegee body and take off the rubber
(4).
3. Turn the rubber (4) to a new side or replace it.
To reassemble the squeegee repeat reverse the operations above-
mentioned, inserting the rubber (4) on the guides (3), couple the
extremities (2) of the rubber holder blade onto the squeegee body
and finally block the hook (1).

SQUEEGEE HOSE CLEANING

Weekly or in case of insufficient suction, it is necessary to check that
the squeegee hose is not obstructed. Eventually, to clean it, proceed
as follows:
