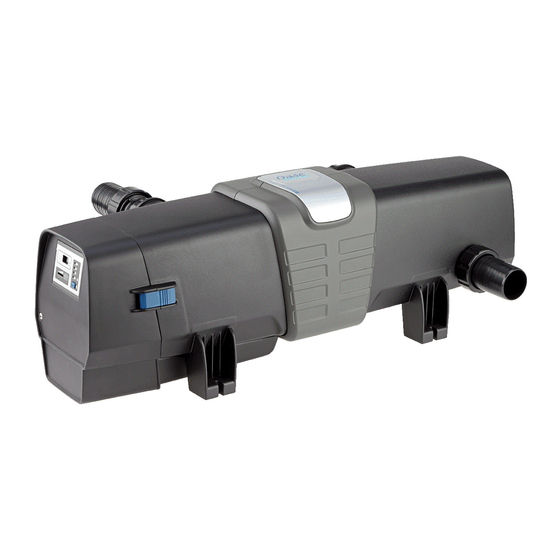

Oase Bitron Eco 180W Operating Instructions Manual
Uvc clarifier
Hide thumbs
Also See for Bitron Eco 180W:
- Operating instructions manual (563 pages) ,
- Commissioning (248 pages) ,
- Operating instructions manual (318 pages)
Subscribe to Our Youtube Channel
Related Manuals for Oase Bitron Eco 180W
Summary of Contents for Oase Bitron Eco 180W

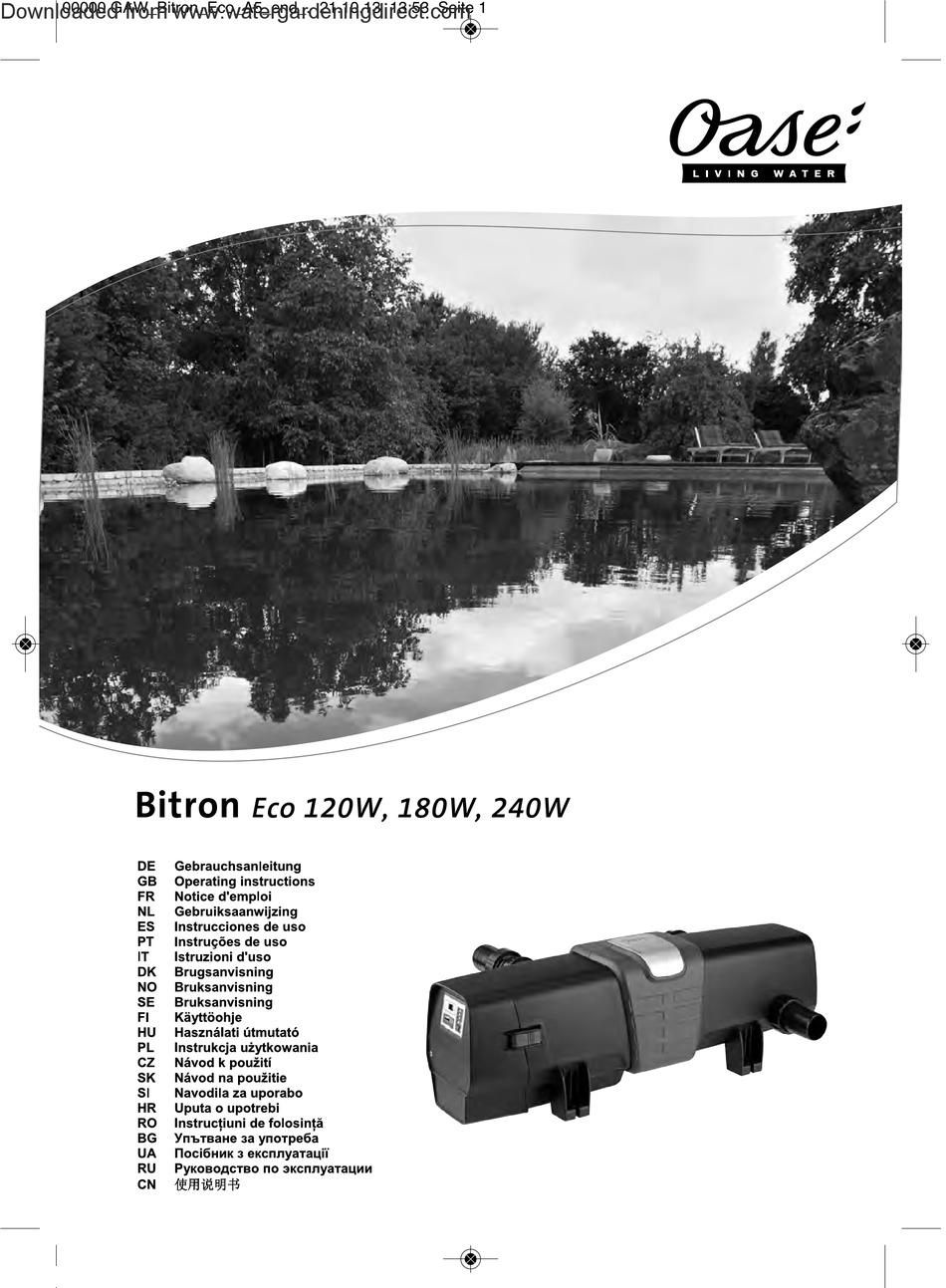

- Page 1 Downloaded from www.watergardeningdirect.com 00000 GAW_Bitron_Eco_A5_end_. 21.10.13 13:53 Seite 1 Bitron Eco 120W, 180W, 240W...
- Page 2 Downloaded from www.watergardeningdirect.com BTN0003 BTN0001 BTN0008 BTN0004 BTN0013 30481-11-13_GA_Bitron Eco 120, 12 2 18.11.2013 11:29:43...
- Page 3 Downloaded from www.watergardeningdirect.com BTN0015 BTN0017 30481-11-13_GA_Bitron Eco 120, 13 3 18.11.2013 11:29:43...
- Page 4 Downloaded from www.watergardeningdirect.com BTN0005 BTN0016 30481-11-13_GA_Bitron Eco 120, 14 4 18.11.2013 11:29:44...
- Page 5 Downloaded from www.watergardeningdirect.com BTN0006 BTN0010 BTN0009 30481-11-13_GA_Bitron Eco 120, 15 5 18.11.2013 11:29:44...
- Page 6 Downloaded from www.watergardeningdirect.com BTN0012 BTN0002 30481-11-13_GA_Bitron Eco 120, 16 6 18.11.2013 11:29:44...
- Page 7 Downloaded from www.watergardeningdirect.com BTN0011 30481-11-13_GA_Bitron Eco 120, 17 7 18.11.2013 11:29:45...
- Page 8 Translation of the original Operating Instructions Information about these operating instructions Welcome to OASE Living Water. You made a good choice with the purchase of this productBitron Eco 120W/180W/240W. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.
-
Page 9: Scope Of Delivery
Scope of delivery Quantity Bitron Eco 120W/180W/240W Quartz glass UVC lamps − Bitron Eco 120W − Bitron Eco 180W − Bitron Eco 240W Cleaning rotor Casing Unit head with control unit Accessory kit with connection material: Adapter 38/50 mm (1½ / 2 ") for connection of the hose connector to the outlet Hose connector 50 mm (2 ") for the inlet or outlet... -
Page 10: Product Description
• The long dwell time of the water in the large volume casing increases the sterilising capacity. • Suitable for fitting to OASE filter systems ProfiClear, BioTec 30 and BioTec Screenmatic. • The cleaning rotor continuously removes soiling from the quartz glass. - Page 11 Downloaded from www.watergardeningdirect.com - GB - Safety information Hazards to persons and assets may emanate from this unit if it is used in an improper manner or not in accordance with its intended use, or if the safety instructions are ignored. This unit can be used by children from the age of 8 and by persons with physical, sensory or mental impairments or lack of experience and knowledge, as long as they are supervised or instructed on how...
-
Page 12: Installation And Connection
Downloaded from www.watergardeningdirect.com - GB - Installation and connection Operation with pool water or salt water • For operation with pool water or salt water, the following limits must be adhered to: Type Pool water Salt water pH value 7.2 … 7.6 7.5 …... - Page 13 • The bypass membrane is fitted on delivery and is located in the outlet opposite the inlet. • OASE recommends closing the bypass in the following situations: − Acute problems such as disease or turbidity due to a build-up of bacteria.
-
Page 14: Operation
Downloaded from www.watergardeningdirect.com - GB - Operation Control system overview BTN0007 Operating mode Four operating modes for irradiation of algae and germs as required (→ Selecting the operating mode) − LEDs indicate the selected operating mode. − LED is lit blue: UVC lamps are switched on. −... - Page 15 Downloaded from www.watergardeningdirect.com - GB - Selecting the operating mode To allow irradiation of algae and germs to suit the respective situation, it is possible to choose between four operating modes. The duration of irradiation is automatically controlled on the basis of the measured water temperature and the selected operating mode.
- Page 16 − Replace defective UVC lamp (→ Cleaning and maintenance) UVC lamp "L1a" and/or "L1b" defective. − 1 is not extinguished: Contact the OASE service. − Replace defective UVC lamp (→ Cleaning and maintenance) Bitron Eco 180W UVC lamp "L2a" defective −...
-
Page 17: Remedy Of Faults
The temperature probes are precise to ± 1 °C. If other Display of different temperature values Tolerance range of the temperature measu- when several OASE units with temperatu- rement units with temperature display are operated, the re display are used. -
Page 18: Maintenance And Cleaning
Downloaded from www.watergardeningdirect.com - GB - Maintenance and cleaning Attention! Dangerous electrical voltage. Possible consequences: Death or severe injury. Protective measures: • Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water: Isolate the units and installations (switch off and disconnect from the power supply) before reaching into the water. - Page 19 Downloaded from www.watergardeningdirect.com - GB - Replacing the UVC lamp Replace the UVC lamps after max. 12000 operating hours. This ensures optimum filtering performance. • An LED is flashing in the LED bar of the control system. This status display indicates that the UVC lamps need changing.
-
Page 20: Wear Parts
− Undo the clamping screw and pull the quartz glass, together with the O ring, from the casing cover. − Clean the O ring and lubricate with OASE grease (order No. 27872). Replace the O ring if it is damaged. -
Page 21: Technical Data
Downloaded from www.watergardeningdirect.com - GB - Technical data Bitron Eco 120W 180W 240W Supply voltage 220 – 240 V AC, 220 – 240 V AC, 220 – 240 V AC, 50 – 60 Hz 50 – 60 Hz 50 – 60 Hz Power consumption UVC lamp wattage UVC lamp type... - Page 22 Downloaded from www.watergardeningdirect.com BTN0014 30481-11-13_GA_Bitron Eco 120, 1196 196 18.11.2013 11:29:52...
- Page 23 Downloaded from www.watergardeningdirect.com 30481-11-13_GA_Bitron Eco 120, 1200 200 18.11.2013 11:29:53...
