Summary of Contents for SOUNDMASTER VCS3

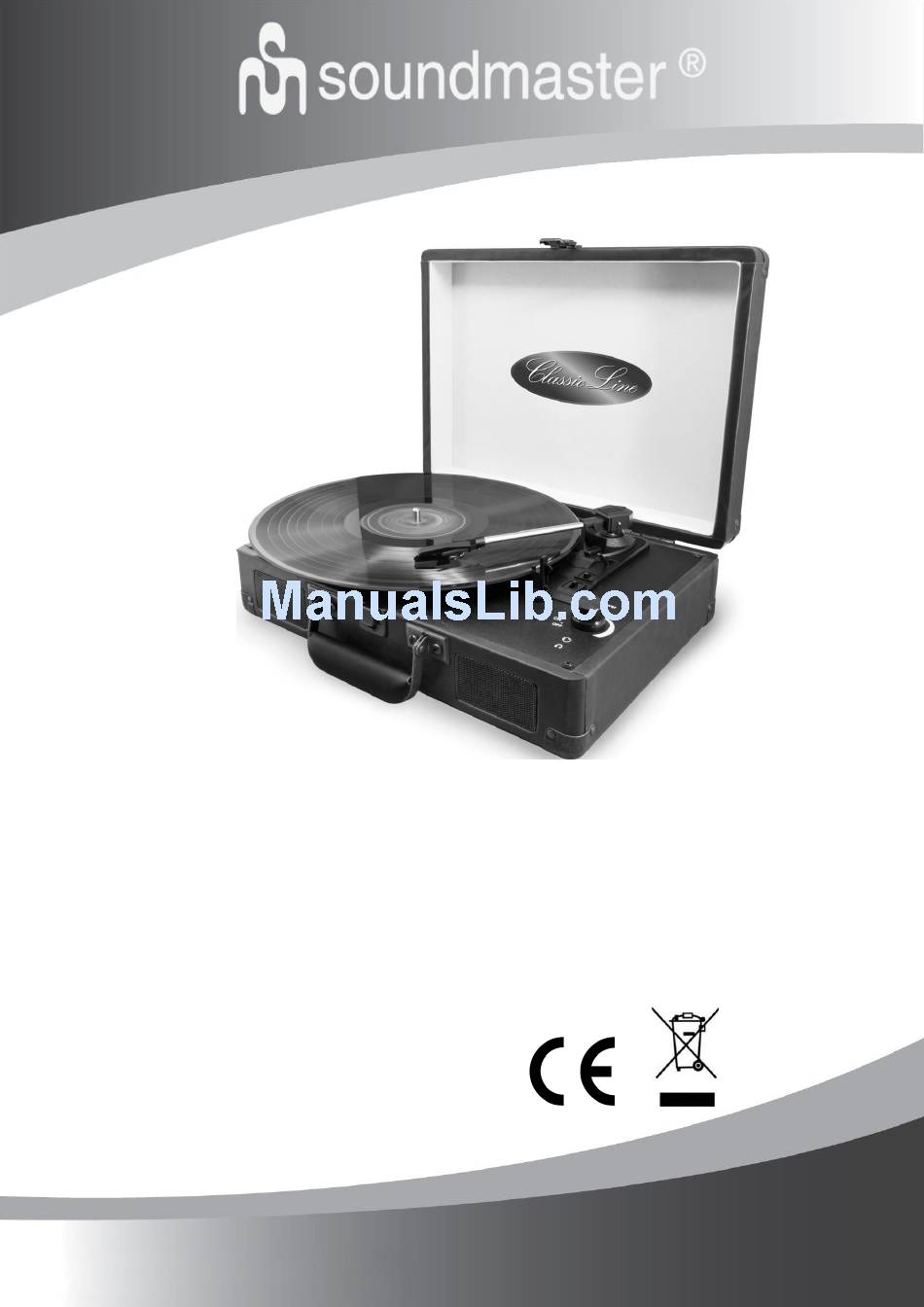

- Page 1 DEUTSCH PORTUGUÊS ENGLISH NORSK FRANÇAIS SVENSKA NEDERLANDS DANSK ITALIANO SLOVENSKÝ ESPANOL ČEŠTINA Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com VCS3...
- Page 2 Safety, Environmental and Setup Instructions The mains plug or an appliance coupler is used ENVIRONMENTAL PROTECTION as the disconnect device, the disconnect devices Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection shall remain readily operable.
-
Page 3: Locations Of Controls
VCS3 / English Instruction Manual LOCATIONS OF CONTROLS 1. 45 RPM ADAPTOR 2. TURNTABLE SHAFT 3. LIFT LEVER 4. SPEED SELECTION SWITCH 5. AUTO AND MANUAL STOP SWITCH 6. LED POWER INDICATOR 7. POWER ON/OFF AND VOLUME KNOB 8. EARPHONE JACK 9. -
Page 4: Line Out
VCS3 / English Instruction Manual PHONOGRAPH FUNCTION 1. Rotate the POWER/VOLUME knob clockwise until you hear a “click” sound to turn the device on. The Power LED indicator will light up. 2. Put a record on the turntable platter. Remember to use the 45 RPM adaptor located on the top-right corner when playing a 45 RPM record. -
Page 5: How To Replace The Turntable Stylus (Needle)
VCS3 / English Instruction Manual HOW TO REPLACE THE TURNTABLE STYLUS (NEEDLE) Removing old stylus 1. Hold a screwdriver at the tip of the stylus and push down in the direction of “A”. 2. Remove the stylus by pulling it forward and down. -
Page 6: Troubleshooting
VCS3 / English Instruction Manual TROUBLESHOOTING Problem Cause Solution Power does not come on when the Unit is unplugged. Connect the unit to the AC power supply. unit is switched on. The volume is turned down Adjust the volume. (to MIN).
