Summary of Contents for SOUNDMASTER NR907R

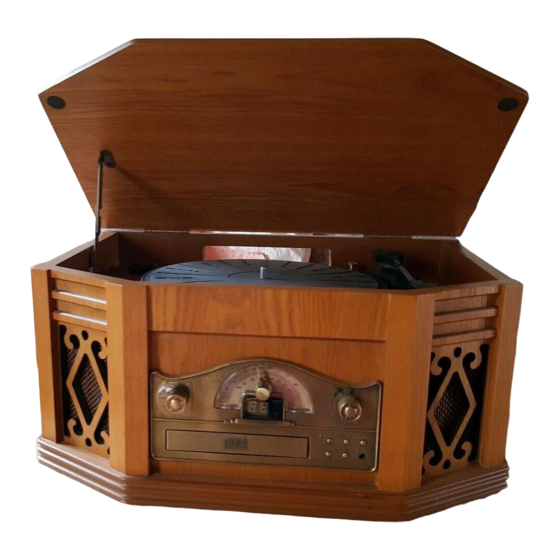

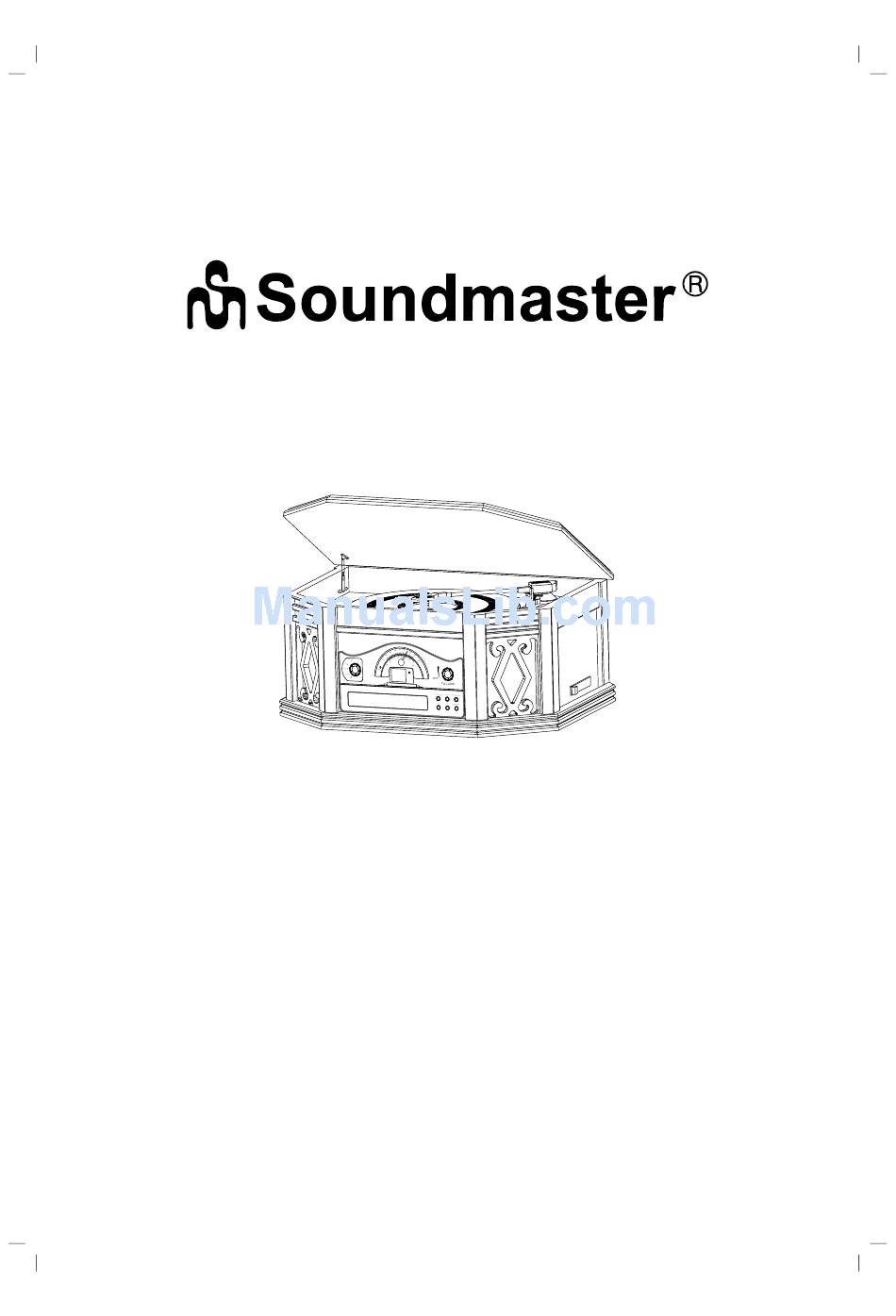

- Page 1 MODEL: NR907R NOSTALGIC TURNTABLE RADIO/CASSETTE/CD PLAYER OPERATION INSTRUCTIONS...
- Page 2 UNPACKING THE UNIT 1.Carefully remove unit from its packaging. 2.Remove polystyrene shipper. 3.PLEASE ENSURE YOU RETAIN ALL PACKAGING! POWER SOURCE Unwind the AC power cord at the back of the unit and connect it to a 230V Mains power outlet. LOCATION OF PARTS FM STEREO LED INDICATOR POINTER...
- Page 3 Using the remote controller for CD Operation All the function on the remote controller are only available for CD. OPEN/CLOSE Press the key, the CD drawer is opened or closed. OPEN/CLOSE PLAY/PAUSE UP/FF DOWN/REW RANDOM PLAY/PAUSE REPEAT STOP Press the PLAY/PAUSE key to pause the selection being played.
- Page 4 CD OPERATION 1.Rotate the FUNCTION KNOB (6) to the CD position. 2.The CD TRACK NUMBER DISPLAY (9) will illuminate. 3.Press the OPEN/CLOSE button (11) and insert your CD with the printed side of the disc facing upwards into the CD Drawer(7). 4.Press the OPEN/CLOSE button (11) and allow time for the disc to initialize and the total number of tracks will be displayed.
- Page 5 Handing Of Tapes And Compact Discs Finger marks and dust should be carefully wiped off the disc's recorded surface with a soft cloth (not included).
- Page 6 THE BELT IS FACTORY FITTED - USE THESE INSTRUCTIONS ONLY IF THE TURNTABLE FAILS TO REVOLVE..STEP 1 Use a screwdriver to remove the black iron C-clip and lift the turntable off the phonograph mechanism. Iron binder Small column point STEP 2 Retrieve the dropped black rubber band and replace it around the column on the bottom of the turntable,...
-
Page 7: Important Safeguards For Audio Products
IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS 1. Read Instructions - All the safety and operating instructions should be read before the product is operated. 2. Retain instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. - Page 8 12.Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacle and point where they exit from the product.
- Page 9 Troubleshooting Guide Chart In case of trouble with the unit, please look through this chart and see if you can solve the problem by yourself before calling your dealer. Problem Cause Solution Connect the unit to the AC power Power does not come on when the Unit is unplugged power switch is pressed supply...
- Page 10 Preparation for Use of Unit Connect the VDE power cord. Loosen the screw used for transportation by turning it clockwise with a coin. Basic Operation Listening through Earphones/Headphones. PHONO TAPE PHONES POWER PLAY VOLUME PLAY/PAUSE STOP OPEN/CLOSE EARPHONE The sound from all speakers is cut off.
-
Page 11: Specification
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. C A U T I O N RISK OF ELECTRIC SHOCK The exclamation point...
