Summary of Contents for SOUNDMASTER NR545DAB

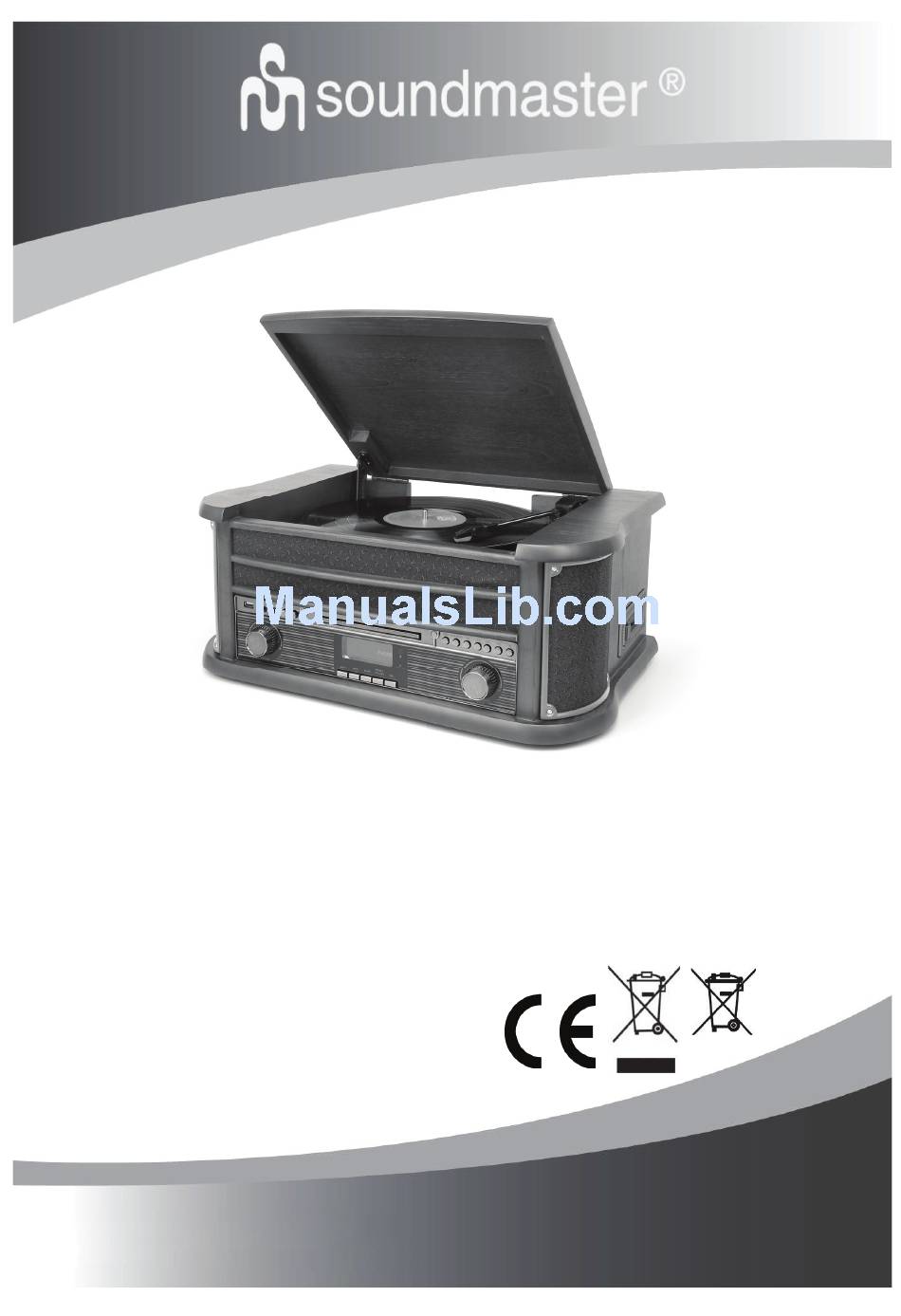

- Page 1 DEUTSCH ITALANIO ENGLISH NORSK FRANÇAIS SVENSK NEDERLANDS DANSK Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. service@woerlein.com GERMANY Web: www.woerlein.com NR545DAB Ver.2...
- Page 2 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
- Page 3 M_NR545DAB / English Instruction Manual BATTERY INSTALLATION The battery compartment is located on the back of the remote control. Remove the battery compartment door by pressing in on the tab and lifting it off. Insert two (2) AAA size batteries (not included) into the battery compartment following the polarity markings inside the battery compartment.
-
Page 4: Location Of Controls
M_NR545DAB / English Instruction Manual LOCATION OF CONTROLS MAIN UNIT 1) USB Socket 2) Aux-in jack 3) Earphone jack 4) On/Standby button 5) Function button 6) LCD display 7) CD tray 8) Remote sensor 9) Power LED indicator 10) Record button 11) Play Mode button 12) Play/Pause button... - Page 5 M_NR545DAB / English Instruction Manual Precautions for use Installation Unpack all parts and remove protective material. Do not connect the unit to the mains before checking the main voltage and before all other connections have been made. Do not cover any vents and make sure that there is a space of several centimeters around the unit for ventilation.
- Page 6 M_NR545DAB / English Instruction Manual Recall preset stations Press the Mem/Clock-Adjust button (21) once to enable recall state Press Skip/ Pre up/down button (14/15) to select the desired memory station. Press Memory/Clock-Adjust button (21) to confirm the recall memory station. ...
- Page 7 M_NR545DAB / English Instruction Manual Repeat/Random mode Press the “Play Mode” button (11) during playback to select repeat and random function, a single track, all the tracks repeat or folder repeat(MP3 only) and random can be played in difference mode as follow: For CD (1) repeat 1 (2) repeat all track...
- Page 8 M_NR545DAB / English Instruction Manual Playback of MP3 song via USB storage media Connecting The system is able to decode and playback all MP3 file which stored in the memory media with USB connecting port. Set the system at standby mode first or other function except USB mode. Open plug-in the USB pen-drive with the face up &...
- Page 9 M_NR545DAB / English Instruction Manual E) track separation(On remote control only) You can divide the recording music from tape or Aux/DAB etc. in to USB track by track during encoding. Every time when press the “ ” (track separation) button (on remote control) once during encoding from tape or Aux in, the system will generate a new track and continuous the recording.
- Page 10 Press Function button to select (5) to “Bluetooth” mode. The LCD display (6) will flashing with Bluetooth icon, it means the BT is in non-connection/searching mode. Switch on the Bluetooth feature of your BT device (such as mobile phone) and select “NR545DAB” BT equipment to connecting.
- Page 11 M_NR545DAB / English Instruction Manual More features A. Sleep function 1. Press “Sleep” button (18) “SLP-120” will be shown on the LCD display (6). 2. Keep pressing the button to adjust the sleep timer in the order of 120>90> 60 > 45 >….15 minutes respectively and sleep icon “...
- Page 12 M_NR545DAB / English Instruction Manual Remote control transmitter Control functions Battery installation (battery not provided) The infra-red transmitter require 2 pc “AAA” size batteries for operation Button description 1. On/standby Press to power on / standby the system In CD/USB mode: press to start playback/pause mode 2.
