MOVOTEC
Crank Driven ATU
Lift System Manual
by
Copyright © 2013 by
®
Suspa
Incorporated
All rights reserved. No part of this manual may be reproduced or transmitted
in any form or by any means, electronic or mechanical, including photocopying,
recording, or by any information storage and retrieval system
®
without permission in writing from Suspa
Incorporated.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVOTEC and is the answer not in the manual?

Questions and answers

Related Manuals for Suspa MOVOTEC

Summary of Contents for Suspa MOVOTEC

  • Page 1 All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system ® without permission in writing from Suspa Incorporated.

  • Page 2: Table Of Contents

    1.0 Table of Contents 2.0 Introduction ......................... 2 3.0 Safety Instructions ...................... 3 4.0 How it Works....................... 5 4.1 Extension Cycle: ........................... 5 4.2 Retraction Cycle: ..........................6 5.0 Unpacking Instructions ....................6 6.0 Lift System Specifications ..................8 6.1 Lift Cylinder Specifications ........................8 6.2 Crank Driven Pump Specifications ......................

  • Page 3: Introduction

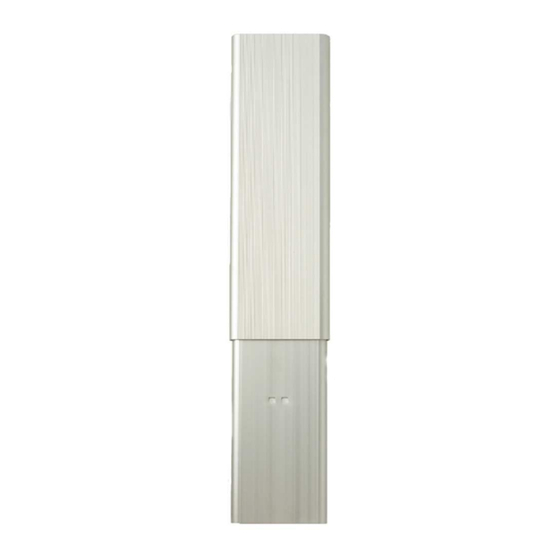

    ® The Movotec ATU is a telescoping table leg which provides guide support for Movotec lift cylinders throughout their extension and retraction cycle. The ATU also offers a solution for customers who want to make their own height adjustable table, but do not have the means to manufacture their own telescoping leg.

  • Page 4: Safety Instructions

    VERIFY SYSTEM SELECTION. Before installing or operating the system, please ® review the application to confirm that the correct Movotec Lift System has been selected. Pay particular attention to the load capacity and adjustment range ratings listed on the blue product label.
  • Page 5 Suspa Incorporated. Do not replace or replenish lift system hydraulic fluid unless the ® fluid is supplied by Suspa Incorporated . MAINTENANCE SAFEGUARDS. Prior to performing any maintenance or service on the device, remove the load from all lift cylinders. The workstation or structure that the lift system is attached to should be stabilized to prevent personal injury or property damage during maintenance or service procedures.

  • Page 6: How It Works

    4.0 How it Works ® Movotec Crank Driven “ATU” Lift Systems are comprised of three major component subsystems; the crank, the pump, and the lift cylinders. This section will explain how each subsystem works together to make the lift system extend and retract.

  • Page 7: Retraction Cycle

    ® 4.2 Retraction Cycle: (Refer to Movotec Crank Driven Schematic on page 6) The crank is mechanically coupled to the pump leadscrew shaft. When the crank is rotated in a counter-clockwise (CCW) direction, the leadscrew shaft rotates in the same (CCW) direction.
  • Page 8 (Attached to Lift Cylinders) (E) Mounting Clips (Not Shown) (F) Cable Ties (Not Shown) • If the lift system is damaged or any component is missing, please contact Suspa ® Incorporated to resolve the issue. • Dispose of the all packaging materials in an ecologically sound manner.

  • Page 9: Lift System Specifications

    6.0 Lift System Specifications The “A”, “B”, “X”, and “Y” dimensions shown in the table and drawings below vary depending on the system lift capacity and the adjustment range of the selected system. Crank Driven Pump ATU Assembly Lift System Adjustment System Lift CE Cylinder...

  • Page 10: Atu Specifications

    RoHS Directive (2002/95/EC) ® Suspa Incorporated has examined all of the materials and processes utilized in the ® production of Movotec lift systems and has determined that this product is in compliance with the European Union RoHS Directive 2002/95/EC. 01/11/2013 670-00028A...

  • Page 11: Installation Instructions

    IT IS THE RESPONSIBILITY OF THE WORKSTATION COMPONENT PURCHASER AND USER TO ENSURE THE TABLE COMPONENTS AND CONFIGURATION ARE APPROPRIATE FOR THE APPLICATION. ® This section contains installation instructions for the Movotec Crank Driven ATU Lift ® System when used with a Movotec ATU Workstation Kit.

  • Page 12: Typical Installation

    7.2 Typical Installation ® The typical installation for the Movotec ATU Workstation Kit is shown below. The installation configuration may vary slightly when using customer designed brackets, hardware, and/or other structural components. 01/11/2013 670-00028A...

  • Page 13: Foot Bracket Installation

    7.3 Foot Bracket Installation • Install M10 washer onto glide thread. • Insert glide thread into hole at end of foot bracket. . • Fasten glide to foot bracket using M10 washer and M10 hex nut. Repeat for each glide and foot bracket. 01/11/2013 670-00028A...
  • Page 14 • Insert end plugs into open ends of both foot brackets using soft-face hammer, if necessary. • Align foot bracket with ATU bottom in the desired mounting configuration (cantilever or centered). Cantilever Configuration Centered Configuration • Fasten foot bracket to bottom of ATU using (2) 5/16”-18 thread forming screws. Please note that the function of the thread forming screw is to cut threads into the ATU as the screw is driven into the material.
  • Page 15 • Insert hole plug into unused mounting hole. • Repeat foot bracket assembly procedure for second ATU. When fastening second foot bracket to ATU, make sure that the tubing cutout is facing inwards in relation to the other ATU. Cantilever Configuration Shown 01/11/2013 670-00028A...

  • Page 16: Cross Beam Installation

    7.4 Cross Beam Installation • Fasten cross beam bracket to cross beam using (2) #14 tapping screws. The tapping screws require a #3 Phillips drive style for installation. Please note that the function of the tapping screw is to cut threads into the cross beam as the screw is driven into the material.
  • Page 17 • Position ATU legs as shown below. • Align and insert the cross beam bracket hex nuts into ATU T-slot. Repeat cross beam installation on second ATU. • Position cross beam assembly at desired mounting height. The recommended position is 400mm (15.7 in.) from the top of the ATU to the centerline of the cross beam.

  • Page 18: Cylinder & Top Bracket Installation

    • Fasten cross beam to ATU legs by tightening the (4) flat head screws on the cross beam brackets. 7.5 Cylinder & Top Bracket Installation • Before installing the top brackets, the pump should be placed in between the ATU legs in a secured position.
  • Page 19 • Orient cylinder head so that tubing exits the ATU tubing cutout as shown. • Align top bracket with top of the ATU in the desired mounting configuration, cantilever or centered. Insert cylinder head into top bracket mounting hole as shown.

  • Page 20: Work Surface Installation

    • Fasten top bracket to ATU using (2) 5/16”-18 thread forming screws. Please note that the function of the thread forming screw is to cut threads into the ATU as the screw is driven into the material. Cantilever Configuration Shown •...

  • Page 21: Crank Driven Pump Installation

    7.7 Crank Driven Pump Installation The crank driven pump can be installed in any orientation, however it is recommended to install the unit horizontally. The pump should be installed so that there is enough hydraulic tubing to reach each lift cylinder and enough clearance for the minimum hydraulic tubing bend radius of 2 in.

  • Page 22: Hydraulic Tubing Management

    Take special care not to damage flexible tubing during this operation. • While it is recommended to coil up excess tubing when hydraulic tubing lengths ® are too long, the lines can be shortened. Contact Suspa Incorporated for detailed ®...

  • Page 23: Operation Instructions

    ® are installed and used correctly. The Movotec Crank Driven “ATU” Lift System is not intended for continuous cycling or for applications requiring precision height adjustment.
  • Page 24 If technical support is needed, or any questions exist before operation, system information can be found using the product labels located on the side of the pump (reference photographs below). ® Do not dismantle the system unless authorized by Suspa NOTICE Incorporated. Attempting to repair the system or system ®...

  • Page 25: System Extension Cycle

    8.2 System Extension Cycle Rotate crank in the clockwise (CW) direction. Continue rotating the crank in the (CW) direction until the workstation has reached the desired height or the upper limit is reached. 8.3 System Retraction Cycle Rotate crank in the counter-clockwise (CCW) direction. Continue rotating the crank in the (CCW) direction until the workstation has reached the desired height or the lower limit is reached 01/11/2013...

  • Page 26: Stowing The Crank

    8.4 Stowing the Crank When not in use, the folding handle can easily be stowed inside the crank body. Pull crank grip outward until crank mechanism begins to fold. 01/11/2013 670-00028A...

  • Page 27: Troubleshooting

    Verify system load does not exceed rating and Rating is exceeded remove weight as needed. Problem: Uneven lift cylinder retraction. Possible Causes Recommended Solutions ® Add load to system. Contact Suspa Incorporated Insufficient Lift Cylinder Load for tube shortening instructions. ® Flexible Tubing Lengths Too Contact Suspa...

  • Page 28: Inspection And Maintenance

    COULD RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. ® The Movotec Crank Driven ATU Lift System should be inspected regularly to detect any condition which has or may lead to excessive component wear or premature failure. Special attention should be given to the following possible causes of system failure.

  • Page 29: Warranty

    ® the item by Suspa Incorporated or, if applicable, by Suspa Incorporated’s supplier and if ® the Buyer returns the item to Seller within that period, F.O.B. Suspa Incorporated’s plant ® ® in Grand Rapids, Michigan, then Suspa Incorporated shall, at Suspa Incorporated’s...

  • Page 30: Replacement Parts

    (as shown below): 13.0 Optional Accessories ® ® Suspa Incorporated offers many optional accessories for customizing Movotec Crank Driven ATU Lift Systems which include: - ATU Workstation Kits - Special folding cranks - Hydraulic tube shortening instructions - System refill kits ®...
