MOVOTEC

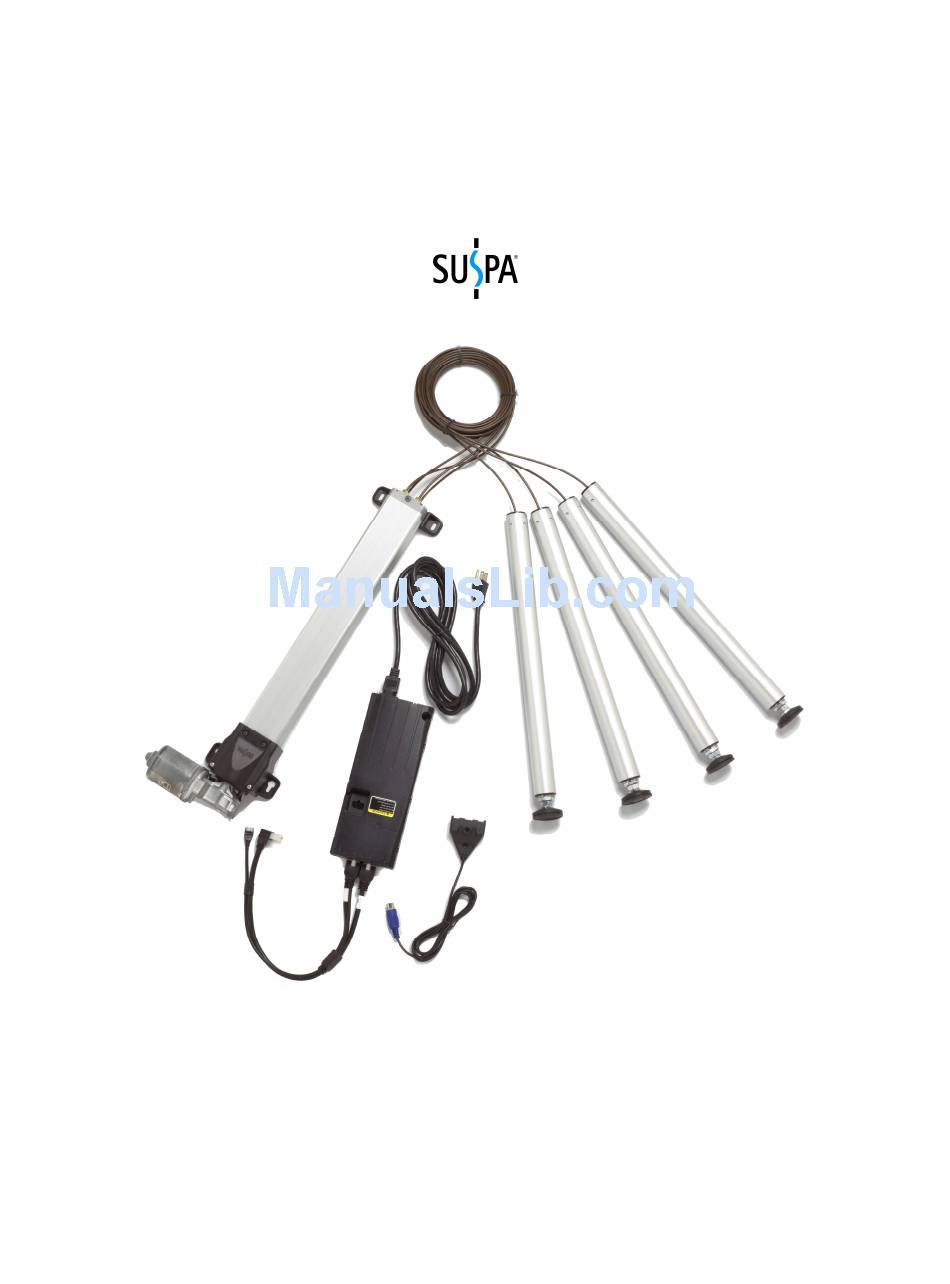

Q-Drive "Bolt-On"
Lift System Manual
by
Copyright © 2016 by
®
Suspa
Incorporated
All rights reserved. No part of this manual may be reproduced or transmitted
in any form or by any means, electronic or mechanical, including photocopying,
recording, or by any information storage and retrieval system
®
without permission in writing from Suspa
Incorporated.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVOTEC and is the answer not in the manual?

Questions and answers

Related Manuals for Suspa MOVOTEC

Summary of Contents for Suspa MOVOTEC

  • Page 1 All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system ® without permission in writing from Suspa Incorporated.
  • Page 2 1.0 Table of Contents 2.0 Introduction........................2 3.0 Safety Instructions ......................2 4.0 How it Works ........................5 4.1 Extension Cycle........................ 5 4.2 Retraction Cycle: ......................6 5.0 Unpacking Instructions ..................... 6 6.0 Lift System Specifications ....................8 6.1 Lift Cylinder Specifications ..................... 8 6.2 Motorized Pump Specifications ..................

  • Page 3: Introduction

    2.0 Introduction For more than 30 years, Movotec® lift systems have been used to make work-surfaces height adjustable. They have been used on industrial workbenches, small machine bases, massage tables, physical therapy tables, packaging equipment, and many other applications. Years of experience, engineering, and research have resulted in a product that is proven, time-tested and will deliver unparalleled performance.
  • Page 4 OBSERVE DUTY CYCLE. The term duty cycle refers to the amount of time that a ® motor or system is in motion versus the amount of time that it is resting. The Movotec Q-Drive “Bolt-On” Lift System is not designed to operate continuously without rest. It is designed for intermittent use only and is rated for a 10% duty cycle.
  • Page 5 DO NOT INSERT OBJECTS. To reduce the risk of fire or electrical shock, do not insert any objects into the system when powered. MAINTENANCE SAFEGUARDS. Prior to performing any maintenance or service on the device, remove the load from all lift cylinders and unplug the motor controller from power source.

  • Page 6: How It Works

    4.0 How it Works ® Movotec Q-Drive “Bolt-On” Lift Systems are comprised of three major component subsystems; the motor drive, the pump and the lift cylinders. This section will explain how each subsystem works together to make the lift system extend and retract.

  • Page 7: Retraction Cycle

    The gear motor will automatically shut off once the programmed pump upper limit is reached. ® 4.2 Retraction Cycle: (Refer to Movotec Q-Drive Schematic on page 7) When the motor switch “DN” arrow button is depressed, the 24VDC gear motor shaft begins to rotate in a (CW) clockwise direction.
  • Page 8 (H) Mounting Clips (I) Power Cord (J) Motor Cable • If the lift system is damaged or any component is missing, please contact Suspa ® Incorporated to resolve the issue before installing the system. • Dispose of the all packaging materials in an ecologically sound manner; if uncertainty exists with regards to disposal / recycling details, please contact ®...

  • Page 9: Lift System Specifications

    6.0 Lift System Specifications The “A”, “B”, and “Z” dimensions shown in the table and drawings below vary depending on the system lift capacity and the adjustment range of the selected system. System Part Numbers 120V 230V CB "Bolt-On" Cylinder Motorized Pump Lift System Lift System...

  • Page 10: Motorized Pump Specifications

    6.2 Motorized Pump Specifications (Refer to chart below for “Z” dimensions) ® The Movotec Q-Drive gear motor used with the motorized pump shown below is rated for 24 volts DC. The no-load speed of the gear motor is 160 rpm. The no-load current is 3A.

  • Page 11: Motor Controller Specifications

    6.3 Motor Controller Specifications Motor Controller Parameter Specification 120V / 50-60Hz (US) Supply Voltage / Frequency 230V / 50-60HZ (Europe) <0.6W Standby Power Consumption 5VDC / 150mA Switch Operating Voltage / Current Hall Sensor Operating Voltage / Current 5VDC / 150mA Operating Temperature Range 32º...

  • Page 12: Regulatory Information

    ® Suspa Incorporated has examined all of the materials and processes utilized in the ® production of Movotec Q-Drive “Bolt-On” Lift Systems and determined that this product is in compliance with European Union RoHS Directive (2002/95/EC). CE Information All known, relevant EU guidelines were observed and applied in the design and manufacture of this product.

  • Page 13: Installation Instructions

    In addition, the motor controller should be placed so that it is ® in relatively close proximity to the gear motor. If this is not possible, Suspa Incorporated offers motor extension cables to make up the difference. These cables can be purchased on our website at https://shop.suspa.com/storefront.aspx.

  • Page 14: Motorized Pump Installation

    These cylinder mounting brackets can be purchased on our website at https://shop.suspa.com/storefront.aspx. 7.1.5 Tubing and Cable Placement – Hydraulic tubing and power cables must be kept away from sharp edges and moving parts. Contact with moisture and heat must also be avoided.

  • Page 15: Motor Controller Installation

    • Mount the motorized pump assembly to the surface. Please note that mounting screws are not provided with system. To avoid deforming the plastic housing, it is recommended to use metallic washers when installing the motor bracket fasteners. • Check mounting screws to ensure that the unit is tightly secured. 7.3 Motor Controller Installation •...

  • Page 16: Low Profile Switch Installation

    • Install controller using mounting screws and check to ensure that the unit is secured. 7.4 Low Profile Switch Installation • Place the switch in the desired location on the underside of the work surface. • Align the switch body with front edge of the work-surface. Mark and prepare two holes in the locations provided in the switch enclosure.

  • Page 17: Controller Cable Connections

    7.5 Controller Cable Connections • The motor controller ports are labeled on the top side of the control box. • The switch plug is blue and corresponds with the round switch port shown above. The motor cable plugs are marked “M1” and “M2” on the cable, and correspond with the (M1) and (M2) motor ports shown above (white, rectangular plugs).

  • Page 18: Lift Cylinder Installation

    It is important to install both motor cables in to the control box, or the system will not operate! Ensure both NOTICE connections are secure and in the correct ports on the controller. • Connect the blue switch cable plug to the (HS) switch port.
  • Page 19 • Thoroughly clean all workstation leg mounting surfaces to ensure the cylinder drilling templates will adhere. Apply the drilling templates parallel to the workstation leg surfaces, making sure that the templates are oriented correctly. Please note that the drilling templates are shown upside down due to the orientation of the workstation.
  • Page 20 • Install each cylinder to the workstation frame using (4) - M5 screws of the ® appropriate length. Suspa Incorporated recommends a lift cylinder mounting screw thread engagement of 0.196-0.275in. (5-7mm). • Make sure there is enough flexible hydraulic tubing to reach each workstation leg without putting any tension on the tubing and while maintaining the minimum flexible tubing bend radius of 2in.

  • Page 21: Hydraulic Tubing And Cable Management

    Take special care not to damage flexible tubing during this operation. • While it is recommended to coil up excess tubing when hydraulic tubing lengths ® are too long, the lines can be shortened. Contact Suspa Incorporated for detailed ®...
  • Page 22 To prevent damage from occurring to the system, take NOTICE special care not to drop the workstation onto the lift cylinders • Place a level on the top of the work-surface. Unthread glide(s) from the lift cylinder(s) as needed to achieve a level work-surface. Once the workstation is level, tighten the lock nut on all glides to ensure the workstation will remain level during use.

  • Page 23: Operation Instructions

    Movotec systems can lift relatively large loads, lasting for many years, as long as they ® are installed and used correctly. The Movotec Q-Drive “Bolt-On” Lift System is not intended for continuous cycling or for applications requiring precision height adjustment.

  • Page 24: Connecting To Power

    ® ® Suspa Incorporated assembles and tests every Movotec Q-Drive “Bolt-On” Lift System before it leaves our manufacturing facility to make sure that it functions correctly. If the unit is installed correctly, the system should be ready to operate immediately after installation.
  • Page 25 (reference photographs below). Movotec pump part number and description Movotec system number and description ® Do not dismantle the system unless authorized by Suspa NOTICE Incorporated. Attempting to repair the system or system ® components without authorization from Suspa Incorporated voids the warranty.

  • Page 26: System Extension Cycle

    8.4 System Extension Cycle Depress the “up” arrow button on the surface mount switch. Continue holding the “up” arrow button until the workstation has reached the desired height or the upper limit is reached. 8.5 System Retraction Cycle Depress the “down” arrow button on the surface mount switch. Continue holding the “down”...

  • Page 27: Duty Cycle Monitoring

    8.8 System Reset Procedure ® The following procedure should be used to reset a Movotec Q-Drive motor controller and pump to their respective “home” positions. The procedure should be performed only if the following conditions exist: 1.) A new or replacement controller is introduced to an existing motor driven...

  • Page 28: Limit Alteration Instructions

    Once heard, the limit has been un-set. Repeat for each limit as desired. Note: Suspa, Inc. offers additional switch options. Please see the additional offerings at https://shop.suspa.com/storefront.aspx or contact our sales team (see Section 15 for contact information).

  • Page 29: Troubleshooting

    Perform “System Reset Procedure” in Section 8.8. Problem: Uneven lift cylinder retraction. Possible Causes Recommended Solutions ® Add load to system. Contact Suspa Incorporated Insufficient Lift Cylinder Load for tube shortening instructions. Cylinder Mounting Screws Too Reduce cylinder mounting screw length.

  • Page 30: Inspection And Maintenance

    COULD RESULT IN FIRE, PROPERTY DAMAGE, ELECTRIC SHOCK, PERSONAL INJURY OR DEATH. ® The Movotec Q-Drive “Bolt-On” Lift System should be inspected regularly to detect any condition which has or may lead to excessive component wear or premature failure. Special attention should be given to the following possible causes of motor or system failure.

  • Page 31: Warranty

    ® the item by Suspa Incorporated or, if applicable, by Suspa Incorporated’s supplier and if ® the Buyer returns the item to Seller within that period, F.O.B. Suspa Incorporated’s plant ® ® in Grand Rapids, Michigan, then Suspa Incorporated shall, at Suspa Incorporated’s...

  • Page 32: Replacement Parts

    13.0 Optional Accessories and Enhanced Capabilities ® ® Suspa offers many optional accessories and enhanced capabilities for the Movotec Q-Drive “Bolt-On” Lift Systems which include: - Wire connection to PLC controller for lift system activation - Using multiple activation switches on a single workstation...
