Digital I/O Conversion Module
(Cat 1492-CM1771-LD005)
I. Description
This Digital I/O Conversion Module provides for the conversion of (1) 1771, 32 point I/O modules to be converted to
(1) 1756, 32 point I/O module and consists of the following:
(1) 1771 Module (32pt) to (1) 1756 Module (32pt)
(2) Conversion Module: 1492-CM1771-LD005
(1) Cable: 1492-CONCAB005Z (Table 2, Section III)
(1) Conversion Mounting Assembly: 1492-MUA... (Table 1, Section II)
This conversion is accomplished without the removal of any field wires from the existing 1771 Swing Arm. The exist-
ing 1771 Swing Arm fits directly onto the edge connector of the 1492 Conversion Module. On one end of the 1492
Cable is (1) connector for the Conversion Module. On the other end is the Removable Terminal Block (RTB) for the
1756 I/O module, as shown in the photo below. The I/O signals are routed through the 1492 Conversion Module and
the 1492 Cable to the appropriate terminals on the 1756 I/O module per the Wiring Diagrams in Section V. As stan-
dard, both portions of the 1492 Cables are 0.5M long, but we also offer a 1.0M cable length. Refer to the footnotes in
Table 2, Section III for further details.
WARNING
PN-114277
DIR 10000060088 (Version 01)
Publication 1492-IN035B-EN-E
Printed in U.S.A.

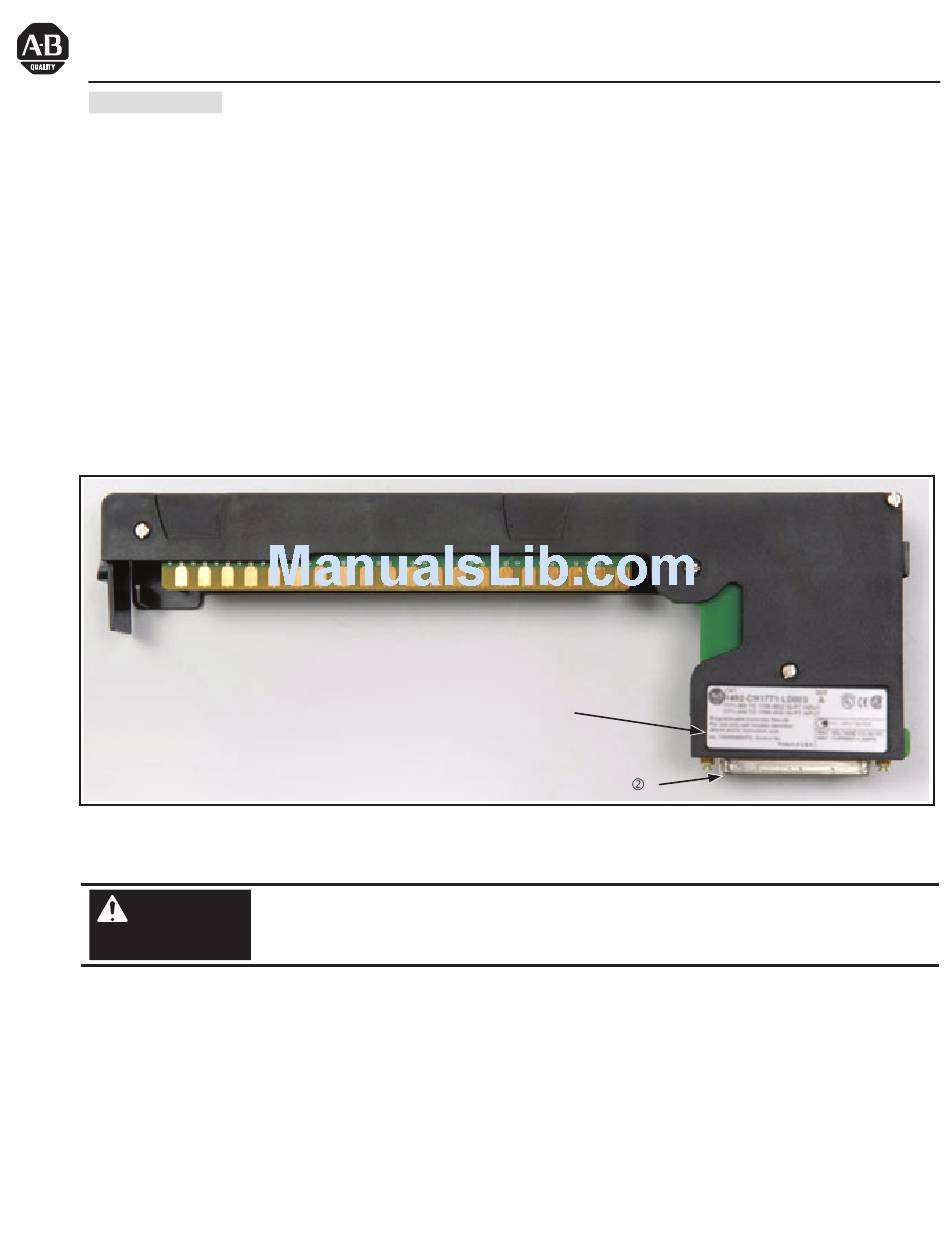

Conversion Compatibility and
Product I.D. Label
37-Pin Connector for cable 1492-CONCAB Z
1492-CM1771-LD005 Conversion Module
De-energize and lockout any and all power to all I/O field devices connected to the A-B 1771 I/O chassis,
and the power to the 1771 I/O chassis itself. Ensure all power is de-energized and locked out to any
device in the control cabinet where the conversion is to be performed. Ensure work is performed by
qualified personnel.
