24V dc FLEX I/O
Thermocouple/mV Input Module
(Cat. No. 1794-IT8)
4
Module Installation

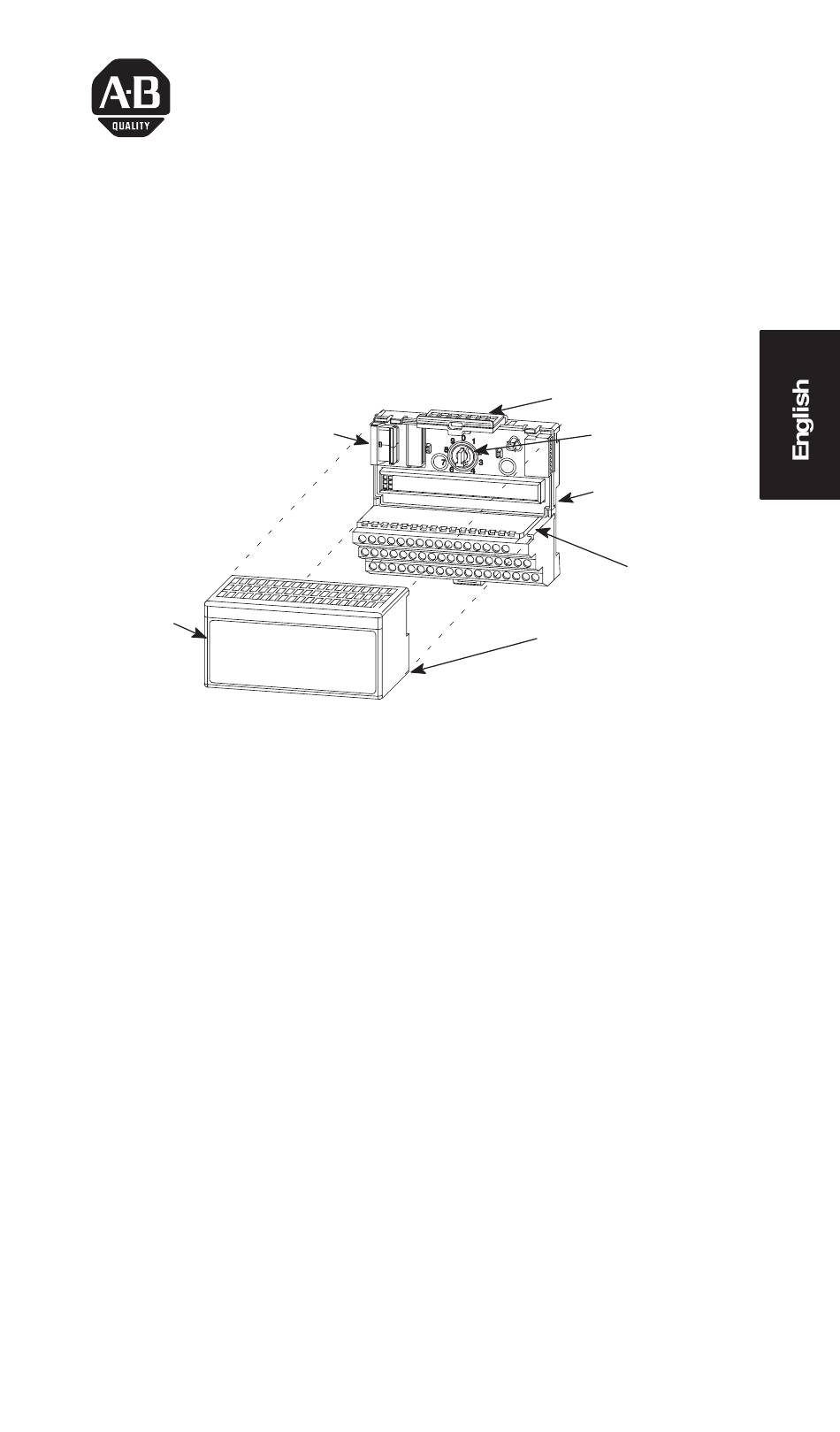

This module mounts on a 1794 terminal base unit.
1. Rotate keyswitch (1) on terminal base unit (2) clockwise to position
as required for this type of module.
2. Make certain the flexbus connector (3) is pushed all the way to the left
to connect with the neighboring terminal base/adapter. You cannot
install the module unless the connector is fully extended.
3. Make sure that the pins on the bottom of the module are straight so
they will align properly with the connector in the terminal base unit.
4. Position the module (4) with its alignment bar (5) aligned with the
groove (6) on the terminal base.
5. Press firmly and evenly to seat the module in the terminal base unit.
The module is seated when the latching mechanism (7) is locked into
the module.
FLEX I/O is a trademark of Rockwell Automation
Installation Instructions
3
Allen-Bradle
7
1
2
6
5
Publication 1794-5.21 – May 1999
3
