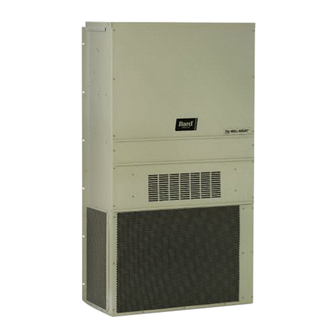

INSTALLATION INSTRUCTIONS
WALL MOUNTED PACKAGE
W18HA-A
W24HA-A
W24HA-B
W24HA-C
W30HA-A
W30HA-B
W30HA-C
W36HA-A
W36HA-B
W36HA-C
HEAT PUMP
Models:
W42HA-A
W42HA-B
W42HA-C
W48HA-A
W48HA-B
W48HA-C
W60HA-A
W60HA-B
W60HA-C
Bard Manufacturing Company, Inc.
Bryan, Ohio 43506
www.bardhvac.com
W24HADA
W42HADA
W24HADB
W42HADB
W24HADC
W42HADC
W30HADA
W48HADA
W30HADB
W48HADB
W48HADC
W30HADC
W60HADA
W36HADA
W36HADB
W60HADB
W36HADC
W60HADC
Manual:
2100-654C
Supersedes: 2100-654B
Date:
7-26-17
Page
1 of 34
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Bard W18HA-A
Summary of Contents for Bard W18HA-A
-
Page 1: Installation Instructions
W30HADA W48HADA W30HA-B W48HA-B W30HADB W48HADB W48HADC W30HA-C W48HA-C W30HADC W60HADA W36HA-A W60HA-A W36HADA W36HA-B W60HA-B W36HADB W60HADB W36HA-C W60HA-C W36HADC W60HADC Bard Manufacturing Company, Inc. Manual: 2100-654C Bryan, Ohio 43506 Supersedes: 2100-654B Date: 7-26-17 www.bardhvac.com Page 1 of 34... -
Page 2: Table Of Contents
CONTENTS Start Up ..............19 Getting Other Information and Publications ..3 General ............. 19 Topping Off System Charge ......... 19 Wall Mount General Information ......4 Safety Practices ..........19 Heat Pump Wall Mount Model Nomenclature ..4 Important Installer Note ........20 Shipping Damage .......... -
Page 3: Getting Other Information And Publications
GETTING OTHER INFORMATION AND PUBLICATIONS For more information, contact these publishers: These publications can help when installing the heat pump. They can usually be found at the local library or purchased directly from the publisher. Be sure to ACCA Air Conditioning Contractors of America consult the current edition of each standard. -
Page 4: Wall Mount General Information
WALL MOUNT GENERAL INFORMATION HEAT PUMP WALL MOUNT MODEL NOMENCLATURE – CONTROL MODULES REVISIONS MODEL NUMBER (See Spec. Sheet S3523) CAPACITY 18 - 1½ Ton VOLTS & PHASE COIL OPTIONS H - Heat Pump 24 - 2 Ton A - 230/208/60/1 X - Standard COLOR OPTIONS 30 - 2½... -
Page 5: Filters
Any grille that meets with 5/8" louver criteria may be factory and is installed in place of the fresh air damper used. It is recommended that Bard Return Air Grille shipped with each unit. Kit RG-2W through RG-5W or RFG-2W through RFG- 5W be installed when no return duct is used. -
Page 6: Installation
INSTALLATION WALL MOUNTING INFORMATION Minimum Clearances Required to Combustible Materials 1. Two holes for the supply and return air openings must be cut through the wall as shown in Figures SUPPLY AIR DUCT MODELS CABINET 3A – D. FIRST 3' 2. -
Page 7: Figure 2 Unit Dimensions
FIGURE 2 Dimensions of Basic Unit for Architectural and Installation Requirements (Nominal) SUPPLY RETURN WIDTH DEPTH HEIGHT MODEL W18HA 33.300 17.125 74.563 7.88 19.88 11.88 19.88 35.00 10.88 29.75 20.56 30.75 32.06 33.25 31.00 2.63 34.13 26.06 10.55 4.19 12.00 9.00 W24HA W30HA... -
Page 8: Figure 3A Mounting Instructions - W18H, W24H
Manual 2100-654C Page 8 of 34... -
Page 9: Figure 3B Mounting Instructions - W30H, W36H
Manual 2100-654C Page 9 of 34... -
Page 10: Figure 3C Mounting Instructions - W42H, W48H
Manual 2100-654C Page 10 of 34... -
Page 11: Figure 3D Mounting Instructions - W60H
Manual 2100-654C Page 11 of 34... -
Page 12: Figure 4 Electric Heat Clearance
FIGURE 4 Electric Heat Clearance W30H, W36H, W42H, W48H, W60H SIDE SECTION VIEW OF SUPPLY AIR DUCT FOR WALL-MOUNTED UNIT SHOWING 1/4" CLEARANCE TO COMBUSTIBLE SURFACES. WARNING A minimum of 1/4" clearance must be maintained between the supply air duct and combustible materials. This is required for the first 3' of ducting. -
Page 13: Figure 5 Wall Mounting Instructions
FIGURE 5 Wall Mounting Instructions WALL STRUCTURE SEE FIGURES 3A-D – MOUNTING INSTRUCTIONS FACTORY SUPPLIED RAIN FLASHING. MOUNT ON UNIT BEFORE INSTALLATION SUPPLY AIR SUPPLY AIR SUPPLY AIR DUCT OPENING OPENING RETURN AIR RETURN AIR RETURN AIR OPENING OPENING OPENING BOTTOM MOUNTING WOOD OR STEEL SIDING BRACKET. -
Page 14: Figure 7 Common Wall Mounting Installations
FIGURE 7 Common Wall Mounting Installations SUPPLY DUCT MAY BE LOCATED IN AN ATTIC OR BELOW CEILING RAFTERS AS SHOWN RAIN RAIN FLASHING RAFTERS FLASHING RAFTERS FINISHED CEILING SURFACE SUPPLY AIR DUCT SUPPLY AIR DUCT FINISHED CEILING SURFACE W/ GRILLE RETURN AIR RETURN AIR OPENING W/ GRILLE... -
Page 15: Wiring - Main Power
WIRING – MAIN POWER For low voltage wiring, an 18 gauge copper, color-coded cable is recommended. See Table 4 on page 16 for Refer to the unit rating plate for wire sizing information more information. and maximum fuse or circuit breaker size. Each outdoor unit is marked with a “Minimum Circuit Low Voltage Connections Ampacity”. -
Page 16: Table 1 Wall Thermostats
TABLE 1 Wall Thermostats Part Number Predominate Features 8403-057 1 stage Cool, 1 stage Heat; Electronic Non-Programmable; Auto or Manual changeover (TH3110D1040) 8403-058 2 stage Cool, 2 stage Heat; Electronic Non-Programmable; (TH5220D1151) HP or Conventional (Default: HP); Auto or Manual changeover 8403-059 2 stage Cool, 2 stage Heat;... - Page 17 Model #CS9B-THO or Model #CS9BE-THO W1/E Yellow Blue Orange White Thermostat W1/E YO/D Bard #8403-060 Optional CO2 Controller Bard Part #8403-067 24VAC CO2 OUT TEMP-OUT Unit Low W3/8 B/W1 Voltage Term. Strip 12-Pin Vent Plug ALL VENT OPTIONS PLUG IN HERE If not equipped with a ventilation option to plug in, a jumper plug must be installed.
-
Page 18: Figure 9 Non-Programmable Thermostat Connections
(TH311OD1040) 1 Stage Heat 8403-058 (TH522OD1151) 1 Stage Cool 8403-059 8403-047 2 Stage Heat (TH522OD1219/U) Electronic Humidistat Optional CO2 Controller Bard Part #8403-067 24VAC CO2 OUT TEMP-OUT Unit Low B/W1 W3/8 Voltage Term. Strip 12-Pin Vent Plug ALL VENT OPTIONS PLUG IN HERE If not equipped with a ventilation option to plug in, a jumper plug must be installed. -
Page 19: Start Up
TOPPING OFF SYSTEM CHARGE sunlight. 9. Never heat cylinders above 125°F. If a leak has occurred in the system, Bard Manufacturing recommends reclaiming, evacuating 10. Never trap liquid R-410A in manifold sets, gauge (see criteria above) and charging to the nameplate lines or cylinders. -
Page 20: Important Installer Note
IMPORTANT INSTALLER NOTE PHASE MONITOR For improved start-up performance, wash the indoor All units with three phase scroll compressors are coil with dishwashing detergent. equipped with a three phase line monitor to prevent compressor damage due to phase reversal. HIGH AND LOW PRESSURE SWITCH The phase monitor in this unit is equipped with two LEDs. -
Page 21: Sequence Of Operation
SEQUENCE OF OPERATION control and the defrost timer will start accumulating run time. COOLING – Circuit R-Y makes at thermostat pulling After 30, 60 or 90 minutes of heat pump operation at in compressor contactor, starting the compressor 30°F or below, the heat pump control will place the and outdoor motor. - Page 22 activate the timing circuit. This permits the defrost cycle to be checked out in warmer weather conditions without the outdoor temperature having to fall into the defrost region. In order to terminate the defrost test, the SEN JMP jumper must be removed. If left in place too long, the compressor could stop due to the high pressure control opening because of high pressure condition created by operating in the cooling mode with outdoor fan off.
-
Page 23: Figure 10 Defrost Control Board
FIGURE 10 Defrost Control Board TIME (SEC) LOW PRESSURE BYPASS TIMER SWITCH 120* *(FACTORY SETTING 120 SECONDS) ACCUMULATED DEFROST TIME TIMER (FACTORY SETTING 60 MIN.) MIS-2668 A Model Setting W18HA W24HA W30HA W36HA W42HA W48HA W60HA Manual 2100-654C Page 23 of 34... -
Page 24: Service
SERVICE SOLID STATE HEAT PUMP CONTROL NOTE: If there was no power to 24 volt transformer, TROUBLESHOOTING PROCEDURE the compressor and outdoor fan motor will not start for 5 minutes. This is because of the 1. NOTE: A thorough understanding of the defrost compressor short cycle protection. -
Page 25: Checking Temperature Sensor Outside Unit Circuit
CHECKING TEMPERATURE SENSOR 3. Check resistance reading to chart of resistance. Use sensor ambient temperature. (Tolerance of OUTSIDE UNIT CIRCUIT part is ± 10%.) 1. Disconnect temperature sensor from board and 4. If sensor resistance reads very low, sensor is from outdoor coil. -
Page 26: Figure 11 Motor Connections
1. It is normal for the motor to rock back and forth NOTE: Bard Models PA13242; PA13302; PA13362-A, -B; PA13422-A, -B, -C; PA13482-A, -B, -C; PA13602-A, -B, -C E. If the motor does not shut off at the end of the on start up. -
Page 27: Figure 12 Motor Connections
TROUBLESHOOTING GE X13-SERIES ECM2.3 ™ MOTORS CONT’D. 2. If the motor has proper high voltage and ground at A. If the low voltage communication is not the (L/L1) (G) (N/L2) connections, then continue present, check the demand from the 2. Initiate a demand from the thermostat and check the Model X13 Communication Diagnostics with the “Model SelecTech Communication thermostat. -
Page 28: Figure 13 Fan Blade Setting
FAN BLADE SETTING DIMENSIONS REMOVAL OF FAN SHROUD The correct fan blade setting for proper air delivery 1. Disconnect all power to the unit. across the outdoor coil is shown in Figure 13. Refer to 2. Remove the screws holding both grilles, one on Table 6 for unit specific dimension. -
Page 29: Table 7A Cooling Pressure
TABLE 7A – Cooling Pressure Air Temperature Entering Outdoor Coil °F Return Air Temp Model Pressure (DB/WB) Low Side 75/62 High Side Low Side W18HA 80/67 High Side Low Side 85/72 High Side Low Side 75/62 High Side Low Side W24HA 80/67 High Side... -
Page 30: Table 8
TABLE 8 Electrical Specifications Single Circuit Dual Circuit Minimum Maximum Rated Volts Field Circuit External Fuse or Field Power Ground Maximum Field MODEL Minimum & Phase Power Ampacity Ckt. Breaker Wire Size Wire Size External Power Ground Circuit Circuits... -
Page 31: Table 9 Recommended Airflow
TABLE 9 Recommended Airflow Recommended Factory Speed Model Rated CFM * Rated ESP * Airflow Range Connection W18H 600 575 - 725 W24H 700 - 925 Single W30H 1000 930 - 1300 High W36H 1100 930 - 1350 High W42H 1400 1250 - 1700... -
Page 32: Table 11 Maximum Esp Of Operation
TABLE 11 Maximum ESP of Operation Electric Heat Only Model Front Outlet Model High W18H Speed Speed W24H W30H W24H W36H W24H W30H W36H W30H W36H W42H W48H W60H Model Speed KW High Speed Low Speed High Speed Low Speed High Speed Low Speed -A00... -
Page 33: Table 13 Optional Accessories
TABLE 13 Optional Accessories Part Number EHW18H-A04 EHW18H-A08 EHW2TH-A04 EHW2TH-A08 EHWH24-B06B EHWH24B-C06 EHWH30-A05 EHW30H-A10 EHWH36-A05 EHW3TH-A10 EHW3TH-A15 EHWH03-B06 EHW36H-B06 EHWH03-B09 EHW3TH-B15 EHW3TH-C06 EHW3TA-C09 EHW3TH-C15 EHW4TH-A05 EHWH42-A05B EHW4TH-A10 EHW4TH-A15 EHWH42-A15B EHWH04-A20B EHWH05-B06B EHWH05-B09B EHWH05-B15B EHW4TH-C06 EHW4TH-C09 EHW4TH-C15 EHWH04-A15B EHW5TH-A10 EHW4TH-B18 WMCB-02A WMCB-02B WMCB-03A WMCB-03B... -
Page 34: Table 14 Vent And Control Options
TABLE 14 Vent and Control Options Part Number Description Low Ambient Control – Heat Pump (LAC) CMH-27 Outdoor Thermostat – Heat Pump (ODT) CMH-28 CMH-29 LAC and ODT – Heat Pump CMH-30 LAC and Start Kit (1-PH only) CMH-31 LAC, ODT and Start Kit (1-PH only) ...
