Wavion WBS-700 Installation Manual

Outdoor wi-fi base station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

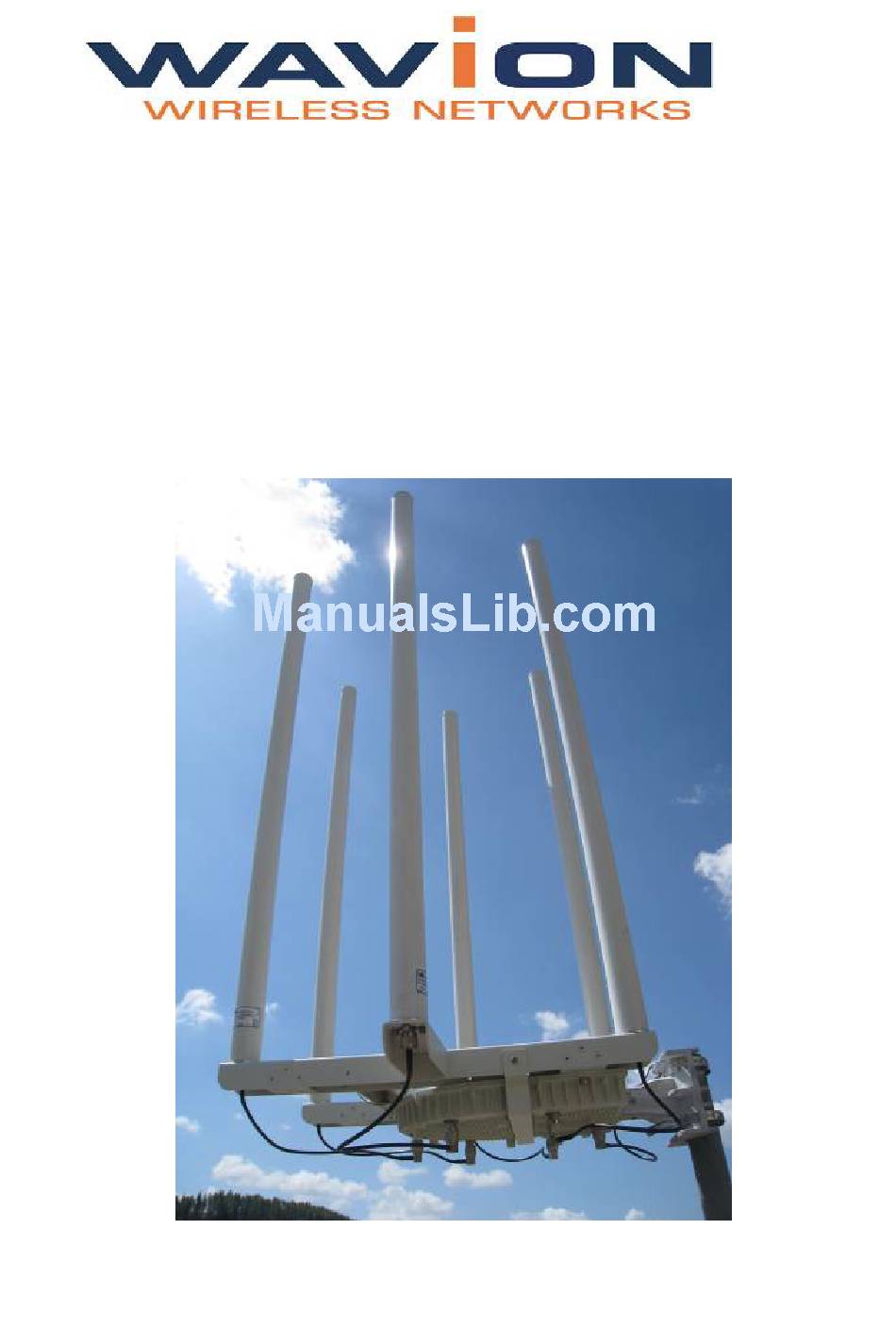

WBS-700 Mhz
Outdoor Wi-Fi Base Station
Installation Guide
Rev. 1
September 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBS-700 and is the answer not in the manual?

Questions and answers

Related Manuals for Wavion WBS-700

Summary of Contents for Wavion WBS-700

  • Page 1 WBS-700 Mhz Outdoor Wi-Fi Base Station Installation Guide Rev. 1 September 2010...
  • Page 2 Copyright Notice ©2010 Wavion, Inc. All rights reserved. Wavion is a registered trademark of Wavion in the United States and certain other jurisdictions. Specifications are subject to change without notice. FCC Notice to Users and Operators This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 C h a p t e r 2 Package Content............... 7 C h a p t e r 3 Installing the Wavion WBS-700 Metro Base Station ....9 C h a p t e r 4 Important Safety Instructions ..............10 Preparing for Installation ................11...

  • Page 4: Preface

    Chapter 1 About This Guide Preface This guide details the Wavion WBS-700 installation procedures. The intended audience of this document is trained technical professionals. Conventions The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

  • Page 5: Contacting Technical Support

    Contacting Technical Support For technical support, contact Wavion using these methods: Wavion Technical Support Wavion 5 Hamada Street, Address: PO BOX 580 Yoqneam Illit, 20692 Israel Telephone: +972-4-9097343 Fax: +972-4-9097322 support@wavionnetworks.com Email: www.wavionnetworks.com Web: Installation Guide...
  • Page 6 Introduction WBS-700 a high capacity, IP services oriented Broadband Wireless access system. WBS-700 is a new category of Broadband Wireless Base Station designed from the ground up for metro-Wi-Fi deployments. The system employs wireless packet switched data technology to support high-speed IP services including fast Internet and Virtual Private Networks. WBS-700 users are provided with a network connection that is always on, supporting immediate access to the Internet and other IP services at high data rates.

  • Page 7: Package Content

    WARNING Use straight Ethernet (POE) cable connecting the injector to WBS-700 in order to have all the features work properly (reset button and Link LED). Using cross cable might cause turn Link led to “ON” permanently and also may be the cause software reset. DATA cable connecting the injector to the network can be cross cable as well.
  • Page 8 Failure to do so may void the WBS-700 product warranty and may expose the end user or Service Provider to legal and financial liabilities. Wavion...
  • Page 9 Chapter 4 Installing the Wavion WBS-700 Metro Base Station This guide explains how to safely install the Wavion WBS-700 Metro Base Station. The following topics are covered in this chapter:  Important Safety Instructions  Preparing for Installation  Mounting Strategies ...

  • Page 10: Important Safety Instructions

    Risk of personal injury or death when installing this device! There is a risk of personal injury or death if the WBS-700 antennas come near electric power lines. Carefully read and follow all instructions in this manual. By nature of the installation, you may be exposed to hazardous environments and high voltage.

  • Page 11: Preparing For Installation

    Caution The WBS-700 must be installed only with the equipped antennas. Caution A minimum distance of 46 cm from the WBS-700 antenna should be kept when the system is operated. Caution Read and save these instructions. Heed all warnings. Follow all...

  • Page 12: Choosing A Location

    40 meters. 4. An appropriate ground cable should be available. Connect a grounding cable between the Ground terminal of the outdoor unit and a good ground connection. Please refer to standards for building entrance protection. Wavion Networks...

  • Page 13: Mounting Strategies

    It is recommended to attach ground and data cables to the WBS-700 prior to mounting. Grounding the Wavion Before mounting the WBS-700, read the wiring instructions in...
  • Page 14 There are two pairs of threaded holes on the back of the unit, enabling to use the special clamps for mounting the unit on diverse pole diameters. Figure 4.2 Using Special Hose Clamps & Screwing the Clamps Wavion Networks...

  • Page 15: Mounting On A Pole/Streetlight

    Before mounting the WBS-700, read the wiring instructions in Grounding the Wavion WBS-700 Connecting a Data Port chapter. Metal/Wood/Streetlight Pole Mounting Figure 4.3 illustrate how to mount an WBS-700 unit on a pole, using the clamp on an outdoor metal pole. Metal pole installation requires that...
  • Page 16 To mount the Wavion WBS-700 on a metal/wood/streetlight pole: 1. Choose a mounting location. You can attach the WBS-700 outdoor unit to any pole or pipe with diameter of 3-10 inches. Wooden poles of larger diameter require different types of clamps (any streetlight arm with diameter of 3 to 10 inches will fit for this installation).
  • Page 17 5. Attach safety cable to protect installed unit Figure 4.5 Attached Safety Cable Installation Guide...
  • Page 18 4 screws. Re- torque to 15 ft-lb Figure 4.6 Use a torque wrench click Note : The WBS-700 unit must be parallel to the ground. The unit can be rotated to obtain the correct position. Note Installations on large wooden poles require band clamps such as those supplied by Panduit, www.panduit.com.
  • Page 19 : Transient or electrostatic discharges that may occur at the WBS- 700, for example a lightning strike, may damage your network equipment connected to the WBS-700 and cause personnel injury or death of persons touching the exposed metal connectors of the equipment. You must install a properly grounded lightning surge protector.

  • Page 20: Grounding The Data Protection Device

    2. Attach a length of #10 AWG bare copper wires to the ground post on the data protection device. 3. Attach the other end of the grounding wire to the ground connection of an electrical outlet or a grounded water pipe. Figure 4.9 Grounding indoor injector by Network Protection Unit Wavion Networks...
  • Page 21 Figure 4.10 Grounding injector that located outdoor by Network Protection Unit Installation Guide...

  • Page 22: Connecting Antennas

    This section explains how to connect the six antennas to the WBS-700X. In order for the WBS-700 to work properly, six antennas must be connected. Use 6 RF cables to connect all 6 Antennas to the unit body. Each RF cable has two sides with right angle and straight N-type connectors Connect straight N-type to the antenna and right angle N-type to the unit body.
  • Page 23 Figure 4.12 Connecting right angle N-Type connector to the antenna Figure 4.13 Connecting 6 antennas Installation Guide...
  • Page 24 Do not screw in the antenna when holding the top section of the antenna. You will most likely damage the antenna. WARNING: The installation should be done after connecting the antennas. After installation, the user should connect the antennas. Wavion Networks...

  • Page 25: Antenna Sealing

    Antenna Sealing The following describes antenna sealing procedure Caution It is important to read carefully this procedure and perform all its steps to ensure maximal moisture protection. Sealing Technique: After the antenna is connected, use isolation material to cover the N-Type connectors Apply the tape with tacky side up on the antenna and N-Type connector.

  • Page 26: Connecting Power And Data

    Make sure you have completed grounding before you connect power to the WBS-700. The Wavion WBS-700 is equipped with two RJ45 connectors. The right hand port named "TEST" is for engineering use. Use the ETH port to connect data and power cable.
  • Page 27 5. Thread the Ethernet cable through the cap cover and the cap. 6. Connect the other cable end to ETH port on the WBS-700. Use a shielded RJ45 8- pin modular plug to terminate the cables at the desired lengths 7.
  • Page 28 Step 4 Step 3 and Step 4: Screw the plastic cap; make sure it is well tightening. Furthermore screw the cap cover to ensure perfect sealing. It will ensure IP-67 compliance. Figure 4.16 Steps to connect the Ethernet cable. Wavion Networks...
  • Page 29 POE port RJ45 Pin Descriptions Signal Color Description TXD+ Orange-White TX Data 10/100BaseT TXD- Orange TX Data 10/100BaseT RXD+ Green-White RX Data 10/100BaseT PoE+ Blue Power input, 55 VDC (+) PoE+ Blue-White Power input, 55 VDC (+) RXD- Green RX Data 10/100BaseT PoE- Brown-White Power input, 55 VDC (-)

  • Page 30: Safety Information For The Wavion Wbs-700

     Do not operate a portable transmitter near unshielded blasting caps or in an explosive environment.  The Wavion WBS-700 must be used only with Wavion approved components and antennas.  Use safety cable to protect installed unit Service Instructions The Wavion WBS-700 contains no user serviceable parts inside.
  • Page 31 Chapter 5 Product Specification WBS-700 The tables in this chapter contain specifications for the Wavion WBS-700. Physical Specifications  Auto-sensing 10/100 Ethernet Network Interfaces  Input from Wavion Injector Power Input  Power from a Wavion POE Injector.  Ethernet port LED Link/Act indicator Indicator Lights ...
  • Page 32 ESTI 300-192-4 spec T41.E Transportation ISTA2A Approvals FCC CFR 47 part 27 TUVus EN 60950-1:2001+A11:2004 IEC 60950-1:2001 Safety Second Edition Information Technology equipment – Safety – Part 1 FCC CFR 47 Part 15, Sub Part B, Class B (USA) Wavion Networks...

  • Page 33: Lightning Protection Power Over Ethernet

    Chapter 6 Installation Accessories This chapter describes the accessories available for the WBS-700 and ordering information. The following topics are covered in this chapter: Ethernet Cables  Lightning Protection  Power Over Ethernet  Ethernet Cables Part Contact Description Manufacturer...
  • Page 34 The Wavion WBS-700 weighs approximately 22 lbs, including all mounting hardware. When the Wavion WBS-700 is mounted on a pole, the sail area of the WBS-700 is approximately TBD square foot. The Wavion WBS-700 can load a pole with a maximum load of TBD Newton in wind conditions of 165mph.
  • Page 35 Chapter 8 Acronyms Acronym Description Two-Phase or Split Phase Two-Wire Three-Wire Alternating Current ANSI American National Standards Institute American Wire Gauge Celsius Category Complementary Code Keying Code of Federal Regulations Canadian Standard Association Decibels Decibels Relative to an Isotropic Radiator DBPSK Differential-Binary Phase-Shift Keying Direct Current...
  • Page 36 Orthogonal Frequency Division Multiplexing Phase Protective Earth Power over Ethernet RJ45 Registered Jack 45 Received Signal Strength Receive Receive Data Technical Inspection Association Transmit Transmit Data Underwriters Laboratories Voltage (Alternating Current) VCCI Voluntary Control Council for Interference Voltage (Direct Current) Watts Wavion Networks...
