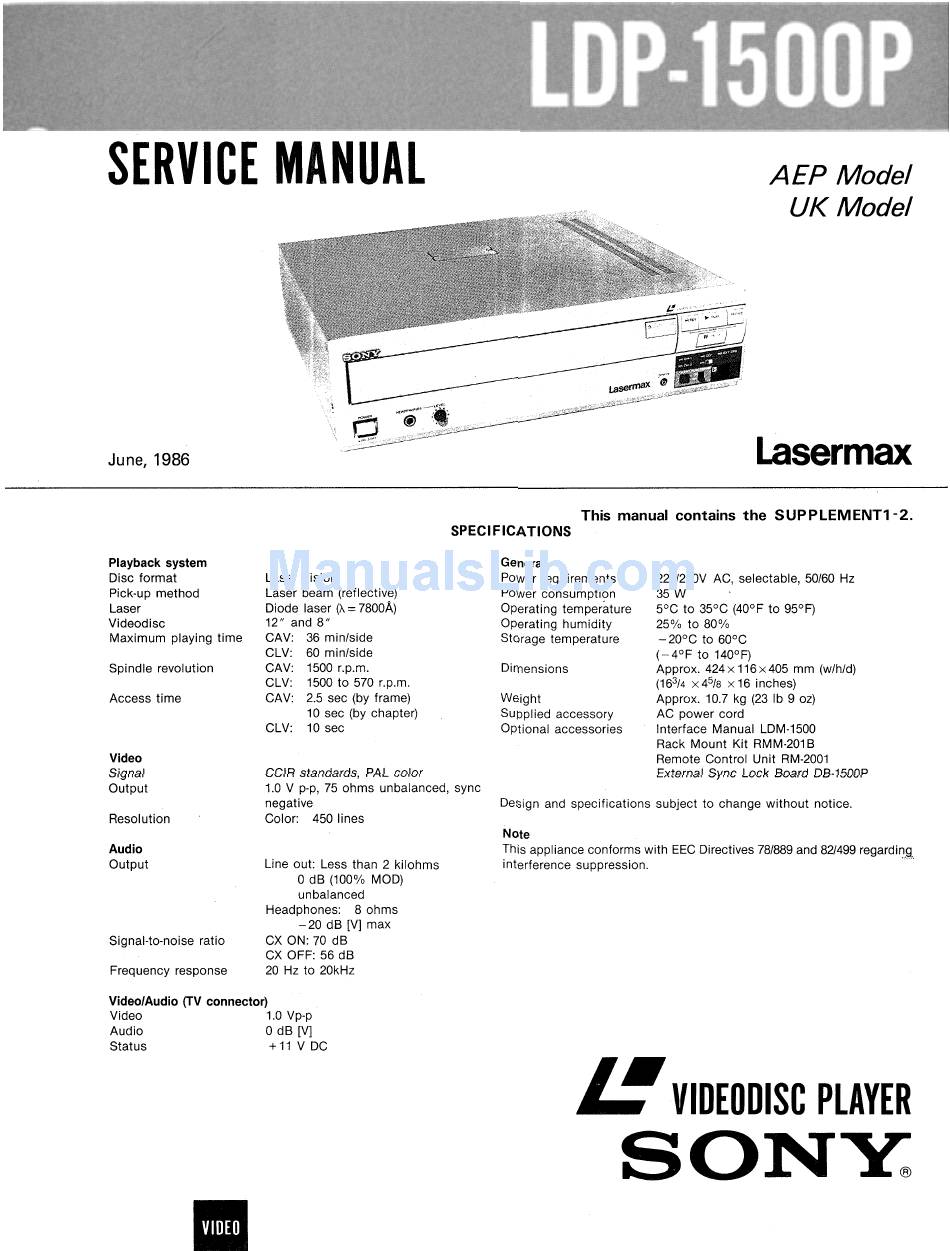

Sony LDP-1500P Service Manual

SERVICE MANUAL
June, 1986
AEP Model
UK Model
Lasermax
This manual contains the SUPPLEMENT1 -2.
SPECIFICATIONS
Playback system
Disc format
Pick-up method
Laser
Videodisc
Maximum playing time
Spindle revolution
Access time
Video
Signal
Output
Resolution
Audio
Output
Signal-to-noise ratio
Frequency response
Laser Vision
Laser beam (reflective)
Diode laser
(A=
7800A)
12" and 8"
CAV: 36 min/side
CLV: 60 min/side
CAV: 1500 r.p.m.
CLV: 1500 to 570 r.p.m.
CAV: 2.5 sec (by frame)
1 O sec (by chapter)
CLV: 10 sec
CCIR standards, PAL color
1.0 V p-p, 75 ohms unbalanced, sync
negative
Color: 450 lines
Line out: Less than 2 kilohms
0 dB (100%
MOD)
unbalanced
Headphones: 8 ohms
-20 dB [V] max
ex
ON: 70 dB
ex
OFF: 56 dB
20 Hz to 20kHz
Video/Audio (TV connector)
Video 1.0 Vp-p
Audio O dB [V]
Status
+
11 V DC
General
Power requirements
Power consumption
Operating temperature
Operating humidity
Storage temperature
Dimensions
Weight
Supplied accessory
Optional accessories
220/240V AC, selectable, 50/60 Hz
35 W
5°C to 35°C (40°F to 95°F)
25% to 80%
- 20°C to 60°C
(-4°F to 140°F)
Approx. 424x 116x405 mm (w/h/d)
(16
3 /4
x 4
5
/a x 16 inches)
Approx. 10.7 kg (23 lb 9 oz)
AC power cord
Interface Manual LDM-1500
Rack Mount Kit RMM-201 B
Remote Control Unit RM-2001
External Sync Lock Board DB-1500P
Design and specifications subject to change without notice.
Note
This appliance conforms with EEC Directives 78/889 and 82/499 regarding
interference suppression. ·· ' ·
e
VIDEODISC PLAYER
SONY.
