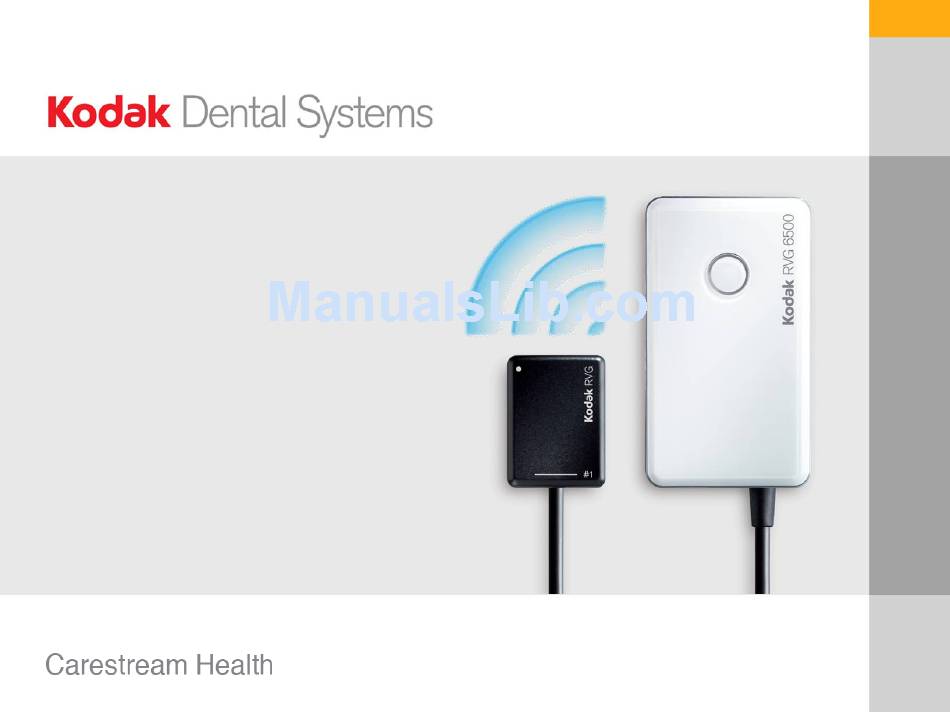

  • Page 1 Introducing the new KODAK RVG 6500 System...
  • Page 2 Innovation New features • Wireless image transmission – First Wi-Fi enabled sensor delivering the same film–quality images as our best wired sensor • Intelligent Positioning System • iPhone / iPod touch compatible...

  • Page 4: Compact Wireless Solution

    Compact wireless solution Optimized portability and integration • No wired connection between the sensor and the computer • Sensors can be easily moved from one operatory to the other • Eliminates cumbersome cable improving comfort during exams • Creates a clean, cable-free working environment...
  • Page 5 Compact wireless solution Optimized portability and integration • A full set of holders lets you place the sensor exactly where it is most convenient for the user...

  • Page 6: Proven Wi-Fi Technology

    Proven Wi-Fi technology Fast, reliable, user-friendly • Faster image transfer for improved productivity • Secured image transfer with no interference • Wi-Fi network provides complete mobility for the entire practice • Sensors are automatically recognized by the Wi-Fi 05” network without interrupting workflow •...
  • Page 7 Proven Wi-Fi technology Easy to integrate, easy to share • Single chair practice • 1 dental chair • 1 sensor • 1 WiFi access point...
  • Page 8 Proven Wi-Fi technology Easy to integrate, easy to share • 2 dental chairs • Multiple chairs practice • 1 sensor • 1 Wi-Fi access point...
  • Page 9 Proven Wi-Fi technology Easy to integrate, easy to share • Multiple chairs practice • 2 dental chairs • 2 sensors • 1 Wi-Fi access point...

  • Page 11: Iphone / Ipod Touch Compatible

    iPhone / iPod touch compatible Redefining mobility • Direct RVG acquisition on iPod / iPhone • Acquire and review images through a dedicated RVG Mobile application • RVG Mobile application downloadable from the Apple Store...
  • Page 12 iPhone / iPod touch compatible Direct acquisition on a iPod / iPhone as well as a standard computer* Transfer images from iPod / iPhone to PC for diagnostic review and archiving * Only images on the computer screen are suitable for diagnostic purposes.
  • Page 13 iPhone / iPod touch compatible Download and upload images on a PC with our specific transfer application Download and upload images...
  • Page 14 iPhone / iPod touch compatible Image portability • Eliminates the need for a computer in each operatory • Improves portability in and outside the practice • Maintains modern practice image...
  • Page 15 iPhone / iPod touch compatible Image portability • Image review on iPod / iPhone: – Zoom in/out – Brightness and contrast enhancements – Perio/Endo/DEJ enhancements – Edit comments – Tooth numbering...

  • Page 17: Intelligent Positioning System

    Intelligent Positioning System Get the right image every time • Exclusive technology providing an unique assistance for proper sensor alignment and angulation • Guides the operator during positioning and displays when perfect positioning has been achieved • Controls the X-ray beam alignment with the sensor through a control interface...
  • Page 18 Intelligent Positioning System How does it work? The IPS ring localizes the The software displays real- position of the sensor time notifications regarding during positioning the position of the X-ray beam in relation to the sensor Sensor IPS ring X-ray generator Software...
  • Page 19 Intelligent Positioning System Example: Step 1 The software displays a real- time notification if sensor is IPS detects the position not properly centered of the sensor (X and Y) The X-ray tube and the sensor properly aligned...
  • Page 20 Intelligent Positioning System Example: Step 2 The sensor is shown in the center of the target, so the alignment is correct. The X-ray tube and the sensor now properly aligned...
  • Page 21 Intelligent Positioning System Sensor in the « target » / cross Display: X-ray beam centered on sensor’s active sensor State: No cone cut Benefit: Paralelling alignment not achieved Sensor in the « target » / cross Display: green X-ray beam centered on sensor’s active sensor State: X-ray beam perpendicular to active surface No cone cut...
  • Page 22 Intelligent Positioning System Benefits • Can be used for both paralleling and bisecting- angle techniques: – For paralleling technique, IPS allows the user to achieve parallel alignment and X-ray beam centering Elongation – For bisecting-angle technique, IPS allows the user to center the X-ray beam on the active surface •...
  • Page 23 Intelligent Positioning System • Electro-magnetic technology • Built-in receptors in the sensor’s head, – no extra bulkiness in the mouth – no additional electronics visible • Universal ring compatible with most of the X-ray generators, even short cones or portable systems (cylindric or conic cones - diameter up to 70,7 mm) •...

  • Page 24: Ips Compatibility With Kodak Generators

    – Long brackets 30 mm – Brackets for conic cones On High Frequency generators (Elitys, Kodak 2100, 2200): Need to upgrade the scissor arm with a new jack to better counterweight the ring. An Jack Upgrade Kit will be supplied on demand with the RVG6500 IPS sensor.
  • Page 25 RVG technology Safe, sound and superior Hermetically sealed • Technology designed to sensor housing deliver the highest possible image quality— at the lowest Shock-protective possible dose. layer • Sensor’s elements work in perfect harmony to deliver High sensibility CSI scintillator the best results.
  • Page 26 Best-in-class image quality & resolution Highest diagnostic value • First Wi-Fi enabled sensor to deliver the same image quality as our best wired sensor • 20 lp/mm true resolution for higher clinical details • Clear film-quality images...
  • Page 27 Best-in-class image quality & resolution Why is true resolution critical? • Magnify clinical details with no loss of quality...

  • Page 28: Robust Design

    Robust design Built to last • Flexible and robust cable supports tens of thousands of torsions • Waterproof to allow for surface disinfection • Shock-resistant casing protects from falls, bites, and other damage...
  • Page 29 3 sensor sizes available Perfectly sized for each application • For periapical, vertical or horizontal: Size 1 / Size 1 with Intelligent Positioning System • For bitewing, occlusal: Size 2 / Size 2 with Intelligent Positioning System • For pediatric applications: Size 0 Vertical anterior Horizontal posterior...

  • Page 30: Positioning Accessories

    Positioning accessories Accurate and comfortable positioning • A full set of holders included – Toothbrush-type holders – KODAK RINN-type bite blocks – RINN XCP-ORA™ kit (1 bar, 1 ring, 4 bite blocks) Holders available as an option...

  • Page 31: Kit Content

    Kit Content RVG 6500 sensor box: - RVG sensor - Mounting & charging accessories (charger, USB cable, control box & sensor holder, stickers…) - Printed Regulatory guide - Printed Quick Start Guide - CD-ROM with User & Installation guides RVG Access point...

  • Page 32: Pre-Sale Check-List

    For an RVG6500 sensor with IPS, check the brand of the X-ray generator to ensure the IPS ring will mount on the cone. In case of a Kodak high frequency generator (manufactured before July 2010), order the Front Jack Upgrade kit.
  • Page 33 How to get the RVG Mobile application? The application, called RVG Mobile , is free of charge. You can access the Apple Store from ITunes on your PC or directly from your IPhone or IPod Touch. Don’t hesitate to use the search tool to find it!
  • Page 34 What does this application do? (RVG Mobile v.1.2.3) This application can be either used for: • Demonstration purpose • Real X-ray acquisition (using the KODAK RVG6500 and the transfer application) To set the Acquisition Mode: Tap Settings on the iPod/ iPhone.
  • Page 35 More to read… • The Product News on the New Kodak RVG 6500 and 6500 IPS Sensors – PN 229 for EAMER – PN 230 for LAR-GAR-JAPAN • The Product News PN 231 on the IPS Compatibility List with Competitive Generators •...

  • Page 36: Technical Specifications

    Technical specifications SENSOR SIZE 0 SENSOR SIZE 1 SENSOR SIZE 2 CMOS, scintillator, optical fiber, Sensor technology shock-resistant protective layer True image resolution 15 lp/mm >20 lp/mm >20 lp/mm Pixel size 18.5 µm 18.5 µm 18.5 µm Outside dimensions 22.2 x 30.8 mm 27.5 x 37.7 mm 32.2 x 44.1 mm Dimensions of active area...

  • Page 37: Imaging Software And Recommended Pc Requirements

    Imaging Software and Recommended PC Requirements Imaging Software Kodak Dental Imaging Software 6.12.9.0-D or higher XP SP2/SP3 with DirectX 9.0c or higher, Windows Vista (Home Premium, Business, Ultimate Editions) or Windows 7 32 bits or 64 bits Operating System: (Home Premium, Professional, Ultimate) 1 GHz (Pentium type or equivalent –...
