INSTALLATION AND USER INSTRUCTIONS
Dear Customer,
thank you for having purchased one of our products.
We are certain that this new, modern, functional and practical appliance, built with the very highest
quality materials, will meet your requirements in the best possible way. This appliance is easy to
use. It is, however, important to thoroughly read the instructions in this handbook in order to obtain
the best results.
These instructions are only valid for the countries of destination, the identification symbols
of which are indicated on the cover of the instruction manual and on the appliance itself.
The manufacturer shall not be held responsible for any damages to persons or property
caused by incorrect installation or use of the appliance.
The Manufacturer shall not be held responsible for any inaccuracies in this handbook due to printing or
transcription errors; the designs in the figures are purely indicative. The Manufacturer also reserves the right
to make any modifications to the products as may be considered necessary or useful, also in the interests of
the user, without jeopardizing the main functional and safety features of the products themselves. This cook
top was designed to be used exclusively as a cooking appliance: any other use (such as heating
rooms) is to be considered improper and dangerous.

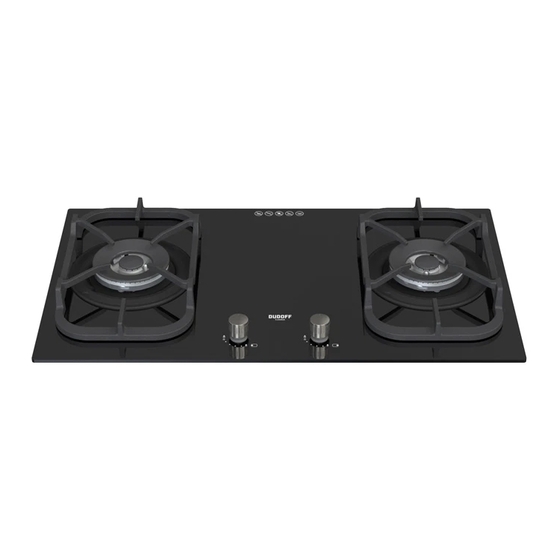

BUILT-IN GAS HOB 2, 3 BURNERS
G02-Z1
G03-Z2
G03-Z1 G02-Z2
G02-Z3 G03-Z3
COD. 04067MU - 20.09.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G02-Z1 and is the answer not in the manual?

Questions and answers

Related Manuals for DUDOFF G02-Z1

Summary of Contents for DUDOFF G02-Z1

  • Page 1 INSTALLATION AND USER INSTRUCTIONS BUILT-IN GAS HOB 2, 3 BURNERS G02-Z1 G03-Z1 G02-Z2 G03-Z2 G02-Z3 G03-Z3 Dear Customer, thank you for having purchased one of our products. We are certain that this new, modern, functional and practical appliance, built with the very highest quality materials, will meet your requirements in the best possible way.
  • Page 2 DESCRIPTION OF HOBS PCZ 90 A 78 cm.
  • Page 3 DESCRIPTION OF HOBS PCZ 90 A 78 cm. WARNING: Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 DESCRIPTION OF HOBS PCZ 90 A 86 cm 1 Double crown gas burner of 4750 ÷ 5000 W 2 Triple crown gas burner of 4000 ÷ 4500 W 3 DUAL gas burner of 4750 ÷ 5000 W 4 Semirapid gas burner of 1750 W 5 Auxiliary gas burner of 1000 W...
  • Page 5 1) TRADITIONALS BURNERS A) - Using the complete burner: starting from the off position ● You must first press A diagram is screen-printed above each knob on the knob, simultaneously turning it anti-clockwise, the front panel. This diagram indicates to which until the indicator points to the maximum delivery burner the knob in question corresponds.
  • Page 6 - If the built-in hot plate has a lid, any spilt food Power Ø Pan Burners should be immediately removed from this (cm) before it is opened. If the appliance has a glass complete DUAL 4750 ÷ 5000 22 ÷ 27 lid, this could shatter when the hot plate becomes hot.
  • Page 7 WARNINGS AND ADVICE FOR THE USER: ●use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventiladed by keeping the natural air vents clear (see fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig.
  • Page 8 CLEANING IMPORTANT: WARNINGS: comply with the following instructions, before always disconnect the appliance from the gas remounting the parts: and electricity mains before carrying out any ●check that burner head slots “T” (fig. 6) have cleaning operation. not become clogged by foreign bodies. ●Check that enamelled burner cap “A-B-C”...

  • Page 9: Installation

    INSTALLATION TECHNICAL INFORMATION 3) INSTALLING THE HOT PLATE FOR THE INSTALLER Check that the appliance is in a good condition after having removed the outer packaging and internal Installation, adjustments of controls and wrappings from around the various loose parts. In maintenance must only be carried out by a case of doubt, do not use the appliance and contact qualified engineer.
  • Page 10 INSTALLATION 4) FIXING THE HOT PLATE - Position the hob in the hole in the unit and fasten it in place using the appropriate screws “F” of the The hot plate has a special seal which prevents fastening hooks (fig. 10/A and 10/B). liquid from getting into the cabinet.

  • Page 11: Room Ventilation

    INSTALLATION IMPORTANT INSTALLATION pressure. Gas connection must comply with SPECIFICATIONS the pertinent standards and provisions in force. The installer should note that the appliance that When gas is supplied through ducts, the appliance side walls should be no higher than the hot plate must be connected to the gas supply system: itself.

  • Page 12: Electrical Connection

    INSTALLATION 8) ELECTRICAL CONNECTION - Remember that the earth wire must not be interrupted by the circuit-breaker. - For optimum safety, the electrical connection may IMPORTANT: the appliance must be also be protected by a high sensitivity differential installed following the manufacturer's circuit- breaker.
  • Page 13 INSTALLATION 9) INSTALLING THE HOT PLATE - Overturn the hot plate and correctly position seal “E” (fig. 9) under the edge of the hot plate itself, WITH THE BATTERY so that the outer side of the seal perfectly Check that the appliance is in a good condition after matches the outer perimetral edge of the hot having removed the outer packaging and internal plate.
  • Page 14 ADJUSTMENTS Always disconnect the appliance from the The flame should not be too low: the lowest small electricity main before making any adjustments. flame should be continuous and steady. Re- All seals must be replaced by the technician at assemble the several components. the end of any adjustments or regulations.

  • Page 15: Replacing The Injectors

    CONVERSIONS paragraphs 11. The technician must reset any 12) REPLACING THE INJECTORS seals on the regulating or pre-regulating The burners can be adapted to different types of devices. gas by mounting injectors suited to the type of gas The envelope with the injectors and the labels in question.
  • Page 16 CONVERSIONS TABLE WORKING HEAT NOZZLE HEAT BURNERS PRESSURE CAPACITY CAPACITY (W) DIAMETER 1/100 mm mbar Description gr/h Min. Max. G30 - BUTANE 28-30 2 x 72B + 46B 2700 4750 DUAL total ** G31 - PROPANE 2 x 72B + 46B 2700 4750 G20 - NATURAL...
  • Page 17 SERVICING Always disconnect the appliance from the immediately greased in compliance with the electricity and gas mains before proceeding following instructions: with any servicing operation. - remove the tap. - Clean the cone and its housing using a cloth 13) REPLACING HOT PLATE PARTS soaked in diluent.

  • Page 18: Replacing The Battery

    SERVICING 14) REPLACING THE BATTERY WARNING: the batteries contain a dangerous material for To change the battery (see fig. 19) comply with our ambient. Always put them in a separate following instructions: and safe container. - unscrew cap “T” and remove exausty battery. - Insert a 1.5 V new battery.
  • Page 19 SERVICING CABLE TYPES AND SECTIONS TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY Gas hot plate H05 RR - F Section 3 x 0.75 mm ATTENTION!!! If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fig.
  • Page 20 TECHNICAL DATA ON THE DATA LABEL 78 cm. 2 BURNERS 2 BURNERS 2 BURNERS (Double crown sx - SR dx) (DUAL sx - Triple crown dx) (Double crown sx dx) BUTANE = 28-30 mbar BUTANE = 28-30 mbar BUTANE = 28-30 mbar PROPANE = 37mbar PROPANE = 37mbar PROPANE = 37mbar...
  • Page 21 TECHNICAL DATA ON THE DATA LABEL 78 cm. 3 BURNERS 3 BURNERS 3 BURNERS (Double crown dx - SR sx (Triple crown dx - SR sx (Double crown sx - SR dx Aux. central) Aux. central) Aux. central) BUTANE = 28-30 mbar BUTANE = 28-30 mbar BUTANE = 28-30 mbar PROPANE = 37mbar...
  • Page 22 TECHNICAL DATA ON THE DATA LABEL 86 cm. 2 BURNERS 2 BURNERS 3 BURNERS (Double crown sx dx) (Triple crown sx dx) (Triple crown sx dx - Aux. central) BUTANE = 28-30 mbar BUTANE = 28-30 mbar BUTANE = 28-30 mbar PROPANE = 37mbar PROPANE = 37mbar PROPANE = 37mbar...
  • Page 23 TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION...

  • Page 24: Technical Assistance And Spare Parts

    TECHNICAL ASSISTANCE AND SPARE PARTS Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
