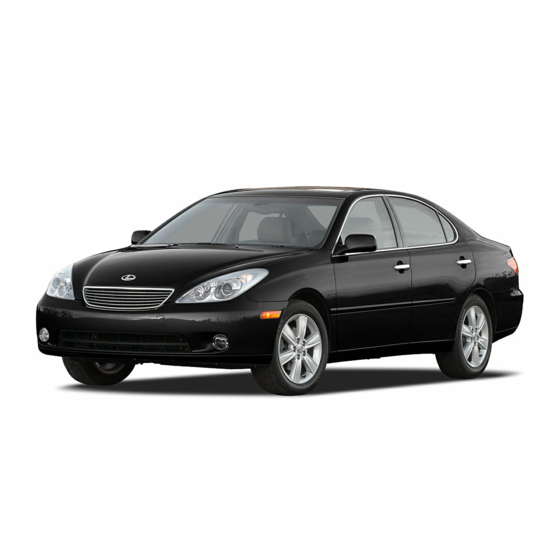

Lexus ES330 2005 Owner's Manual

page of 439

/ 439
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all

the know−how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and

our tradition of incessant striving toward ever greater quality.

This Owner's Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can

enjoy many years of safe motoring.

When it comes to service, remember that your Lexus dealer knows your vehicle very well and is interested in your complete

satisfaction. Your Lexus dealer will provide quality maintenance and any other assistance you may require.

If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:

U.S. OWNERS

D When traveling in the U.S. mainland or Canada:

Lexus Roadside Assistance 1−800−25−LEXUS (Toll−Free)

D HAWAII:

Lexus Customer Service Assistance

CANADIAN OWNERS

D When traveling in Canada or the U.S. mainland:

Lexus Roadside Assistance/Customer Service

Please leave this Owner's Manual in this vehicle at the time of resale. The next owner will need this information also.

All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy

of continual product improvement, we reserve the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find

some explanations for equipment not installed on your vehicle.

(1−800−255−3987)

1−800−25−LEXUS (Toll−Free)

(1−800−255−3987)

1−800−26−LEXUS (Toll−Free)

(1−800−265−3987)

FOREWORD

Table of Contents

Need help?

Do you have a question about the ES330 2005 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexus ES330 2005

Page 1 60 years of making automobiles; the highest motivation of our most talented employees; and our tradition of incessant striving toward ever greater quality. This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can enjoy many years of safe motoring.
Page 2 Occupant restraint systems and how to use them properly, the greater your chances Lexus encourages you and your family to take the time to read become of surviving an accident without death or serious Section 1−6 of this Owner’s Manual carefully. In terms of injury.
Page 3 EDR does not record sound data such as conversation between passengers. Event data recorder Lexus will not disclose the data recorded in an EDR to a third party except when: Your vehicle has computers that monitor and control certain aspects of your vehicle.
Page 4 IMPORTANT INFORMATION ABOUT YOUR LEXUS New vehicle warranty Important health and safety information about your Lexus Your new vehicle is covered by the following Lexus limited warranties: D New vehicle warranty CAUTION D Emission control systems warranty D WARNING: Engine exhaust, some of its constituents,...
Page 5 SRS airbag and seat belt pretensioner removed Spark ignition system of your Lexus and disposed of by a qualified service shop or by your Lexus The spark ignition system in your Lexus meets all dealer before you scrap your vehicle.
Page 6 The vehicle’s equipment is divided into the 7 groups listed Regular and periodic inspection and maintenance of your below. Use of the equipment is explained, including any points Lexus will help to keep your vehicle in its best condition. you should pay particular attention to. 1. Keys and doors SECTION 6 —...
Page 7 Lexus and its equipment. Your Lexus Owner ’s Manual provides you with a considerable amount of information. To use this information most effectively, please take the time to familiarize yourself with the contents and use of the manual.
Page 8 HOW TO USE THIS MANUAL viii...
Page 9 PICTORIAL INDEX INSTRUMENT PANEL...
Page 10 PICTORIAL INDEX Page Page Door lock switch and power window “AIRBAG ON” indicator light ....switches ....... . . 25, 44 Security indicator light .
Page 11 PICTORIAL INDEX INSTRUMENT CLUSTER (vehicles sold in U. S. A.)
Page 12 PICTORIAL INDEX Page Page Tachometer ........Odometer and trip meter .
Page 13 PICTORIAL INDEX INSTRUMENT CLUSTER (vehicles sold in Canada) xiii...
Page 14 PICTORIAL INDEX Page Page Tachometer ........Odometer and trip meter .
Page 15 PICTORIAL INDEX SEAT AND STEERING WHEEL Page Tilt steering lock release lever ......Seat position, seat cushion angle and height control switch .
Page 16 PICTORIAL INDEX EXTERIOR VIEW Page Rear window defogger ... Trunk lid ......Tire and wheel .
Page 17 PICTORIAL INDEX xvii...
Page 18 BASIC OPERATION QUICK REFERENCE Quick reference Driver’s seat ..........Tilt steering column .
Page 19 QUICK REFERENCE 1. DRIVER’S SEAT 2. TILT STEERING COLUMN BE072 (center/4) Seat position Seat cushion angle Seat cushion To tilt the steering wheel up or down to the desired angle: height 1. Pull the lever up while holding the steering wheel. Seatback angle 2.
Page 20 QUICK REFERENCE 3. POWER ADJUSTABLE PEDALS BE070 (center/4) To adjust the position of the accelerator and brake pedals: 1. Set the parking brake firmly. 2. Turn the ignition key to the “ON” position with the automatic transmission selector lever in the “P” position. 3.
Page 21 QUICK REFERENCE 4. AUTOMATIC TRANSMISSION OPERATION OF SELECTOR LEVER BE056 SELECTOR LEVER POSITION BE057 P: Parking, engine starting and key removal position R: Reverse position N: Neutral position D: Normal driving position (shifting into overdrive possible) 4: Position for engine braking (shifting into overdrive not possible) K Shift while pressing the brake pedal.
Page 22 QUICK REFERENCE D HEADLIGHT SWITCH (Canada) 5. HEADLIGHT AND TURN SIGNAL With the ignition OFF SWITCH Parking, tail, license plate, D HEADLIGHT SWITCH (U.S.A.) side marker and instrument BE004 panel lights turn on. With the ignition OFF Parking, tail, license plate, Headlights also turn on.
Page 23 QUICK REFERENCE D HEADLIGHT DIMMER SWITCH 6. WINDSHIELD WIPER AND WASHER SWITCH High beam Variable intermittent windshield wipers Headlight flasher Variable intermittent operation D TURN SIGNAL SWITCH Low speed operation Right or left turn Lane change High speed operation (right or left) Washer on...
Page 24 QUICK REFERENCE Rain−sensing windshield wipers Automatic operation Low speed operation High speed operation Washer on...
Page 25 QUICK REFERENCE...
Page 26 SECTION – INSTRUMENTS AND CONTROLS Keys and doors Keys ........... . Engine immobilizer system .
Page 27 If you should lose your keys or if you need additional keys, Master keys (black) — These keys work in every lock. duplicates can be made by a Lexus dealer using the key For your Lexus dealer to make a new key with a number.
Page 28 KEYS AND DOORS Flat key Starting the engine using a flat key 1. Remove the key plate from the key case. As a transponder chip is built in its key case, you can start the engine with this key. 2. Insert the key plate into the ignition switch. The indicator light keeps flashing.
Page 29 KEYS AND DOORS NOTICE D Do not let the key case become bent as the key plate may fall out or become bent also. D The flat key is designed for emergency use only. So do not use it regularly instead of other master keys. When using a key containing a transponder chip, observe the following precautions: D When starting the engine, do not use the key with a...
Page 30 KEYS AND DOORS D When starting the engine, do not use the key in D Do not bend the key grip or flat key. proximity with other transponder keys (including the D Do not cover the key grip or flat key with any material flat key and keys of other vehicles), and do not press that cuts off electromagnetic waves.
Page 31: Engine Immobilizer System
For your Lexus dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key.
Page 32 KEYS AND DOORS For vehicles sold in Canada For vehicles sold in U.S.A. This device complies with RSS−210 of Industry Canada. FCC ID: MOZRI−20BTY MADE IN JAPAN Operation is subject to the following two conditions: (1) CAUTION This device may not cause interference, and (2) this device must accept any interference, including Changes or modifications not expressly approved by FCC ID: MOZRI−16BTY−B...
Page 33: Wireless Remote Control
21. You can also have the battery of the key replaced by your Lexus dealer. If you lose the wireless key, contact your Lexus dealer as soon Locking the doors and sounding an alarm as possible to avoid the possibility of theft, or an accident. (See “If you lose your keys or lock yourself out”...
Page 34 * The 2−step unlocking function can be changed. door not closed securely, the buzzer sounds for 10 seconds.** Ask your Lexus dealer for details. To stop the buzzer, close all the doors securely or push the At this time, two beeps sound and the turn signal lights flash “UNLOCK”...
Page 35 You can adjust the beep loudness with the knob under the position. instrument panel. Turning the knob clockwise increases the volume and turning it counterclockwise until it stops turns the NOTE: buzzer off. * The operation method can be changed. Ask your Lexus dealer for details.
Page 36 NOTE: * The windows and moonroof can be deactivated. Ask your Lexus dealer for details. When you push the “PANIC” button for about 2 to 3 seconds, an alarm sounds to deter any person trying to break into or damage your vehicle.
Page 37 KEYS AND DOORS For vehicles sold in U.S.A. D Increase the separation between the equipment and receiver. This device complies with Part 15 of the FCC Rules. D Connect the equipment into an outlet on a circuit Operation is subject to the following two conditions: different from that to which the receiver is (1) This device may not cause harmful interference, connected.
Page 38 D When replacing the battery, be careful not to lose the components. D Replace only with the same or equivalent type recommended by a Lexus dealer. D Dispose of used batteries according to the local laws. 2. Remove the module from the key frame.
Page 39 KEYS AND DOORS 5. Replace the battery case cover. 6. Install the module into the key frame and secure the cover with the screw. 7. When pushing any button on the wireless key, make sure the indicator light comes on. 3.
Page 40 The doors lock and unlock simultaneously with the driver’s door. Turning the key once will unlock the driver’s door and twice in succession will unlock all doors simultaneously.* NOTE: * The 2−step unlocking function can be changed. Ask your Lexus dealer for details.
Page 41 CAUTION Do not pull the inside handle of the front doors while driving. The doors will open and an accident may occur. Lexus strongly recommends that all children be placed in the rear seat of the vehicle.
Page 42 KEYS AND DOORS If you do any of the following, no door can be unlocked with the Locking with power door lock switch power door lock switch. D Lock all the doors with the key or wireless remote control when all the doors are closed. D Open the driver’s door or front passenger’s door and move the inside lock buttons of both front doors to the lock position, then close the front doors.
Page 43 KEYS AND DOORS Setting the auto door locking and unlocking Setting the functions functions 1. Close all the doors. 2. Turn the ignition switch to the “ON” position. You can set the following auto door locking and unlocking functions. 3. Within 10 seconds after the ignition switch is turned to the “ON”...
Page 44: Theft Deterrent System
KEYS AND DOORS Locking with rear door child−protector THEFT DETERRENT SYSTEM " Unlock Lock To deter theft of the vehicle, this system is designed to sound an alarm if any of the doors, trunk or hood is Whenever small children are in the vehicle, lock the rear forcibly unlocked or the battery terminal is disconnected door so that it does not open by the inside door handle.
Page 45 KEYS AND DOORS Setting the system 1. Turn the ignition key to the “LOCK” position and remove it. The engine immobilizer system causes the indicator light to flash. 2. Close and lock all the doors, trunk and hood using an ignition key or wireless remote control.
Page 46 D Turn the ignition switch on. reconnected. If the system does not work properly, have it checked by your Lexus dealer. NOTICE Disconnecting the battery may result in the erasure of information you have set in the computer memory. After reconnecting the battery, check that the memorized data has been retained.
Page 47 KEYS AND DOORS...
Page 48 SECTION – INSTRUMENTS AND CONTROLS Switches Headlight switch (U.S.A.) ........Headlight switch (Canada) .
Page 49 NOTE: * The sensitivity of the automatic light control sensor can be changed. Ask your Lexus dealer for details. To turn on the lights manually, twist the knob on the end of the lever. First clickstop: Only the parking, tail, license plate, side marker and instrument panel lights turn on.
Page 50 * The time before turning off the lights can be changed. To prevent the battery from being discharged, do not Ask your Lexus dealer for details. leave the lights on longer than necessary when the When only the tail lights are on, they automatically turn off with engine is not running.
Page 51 If you replace the rear suspension and/or the vehicle height NOTE: changes, contact your Lexus dealer to check the automatic * The sensitivity of the automatic light control sensor can be headlight leveling system and headlight beam level. changed.
Page 52 NOTE: * The time before turning off the lights can be changed. Ask your Lexus dealer for details. When only the tail lights are on, they automatically turn off with the driver’s door opened and the ignition key turned to the...
Page 53 Lexus dealer. If you replace the rear suspension and/or the vehicle height NOTICE changes, contact your Lexus dealer to check the automatic headlight leveling system and headlight beam level. To prevent the battery from being discharged, do not leave the lights on longer than necessary when the...
Page 54 SWITCHES HEADLIGHT DIMMER AND TURN SIGNAL SWITCH For signaling turns, move the lever up or down in the conventional manner. The ignition key must be in the “ON” position. The turn signal is self−cancelling after a turn, but after a lane For high beam, push the lever forward.
Page 55: Fog Light Switch
SWITCHES FOG LIGHT SWITCH WINDSHIELD WIPER AND WASHER SWITCH Variable intermittent windshield wipers To turn on the fog lights, turn the switch to the “ON” position. The fog lights come on only when the headlights are on low beam. Fog light indicator light in the instrument cluster will tell you that "...
Page 56 Twist the interval adjuster upward to increase the wiping do not become blocked. If a nozzle becomes blocked, contact time interval between sweeps, and downward to decrease your Lexus dealer to have the vehicle serviced. The wiper lever must be in the “INT” position. NOTICE To make the washer squirt, pull the lever toward you and release it.
Page 57 SWITCHES Rain−sensing windshield wipers You may adjust the automatic wiper control sensitivity by twisting the automatic control adjuster in the “−” direction, which requires more raindrop volume to start the wiper, or in the “+” direction, which requires less raindrop volume to start the wiper. "...
Page 58 When waxing your vehicle, make sure that the washer nozzles D If the windshield vibrates. do not become blocked. If a nozzle becomes blocked, contact your Lexus dealer to have the vehicle serviced. D If you touch the sensor. NOTICE...
Page 59 SWITCHES Shifting the windshield wiper position " * More than 10 cm (3.9 in.) SHIFTING TO THE REST POSITION " Rest position Retracted position Hold the connection of the wiper arm and wiper blade and The wiper blades retract under the hood when the wipers are pull it upward for more than 10 cm (3.9 in.) along the turned off.
Page 60 SWITCHES REAR WINDOW AND OUTSIDE REAR VIEW MIRROR DEFOGGER SWITCH RETURNING TO THE RETRACTED POSITION Push the connection of the wiper arm and wiper blade downward. NOTICE To turn the electric rear window and outside rear view mirror defogger on, push the switch. To prevent the wiper blades from being deformed, be The ignition key must be in the “ON”...
Page 61: Power Window Switches
SWITCHES POWER WINDOW SWITCHES CAUTION Since the mirror surfaces can get hot, do not touch them when the switch is on. If further defrosting or defogging is desired, simply actuate the switch again. When the surface has cleared, push the switch once again to turn the defogger off.
Page 62 SWITCHES Operating the window lock switch Operating the switch " Indicator lights To lower the window, push the switch halfway down. Pull it up to raise the window. The window glass moves as long With the window lock switch pressed in, only the driver’s as the switch is operated.
Page 63 NOTE: frame. * This feature can be deactivated. If the window receives a strong impact, this function may work Ask your Lexus dealer for details. even if nothing is caught. CAUTION To avoid serious personal injury, you must do the following.
Page 64: Emergency Flasher Switch
SWITCHES EMERGENCY FLASHER SWITCH D Be sure to remove the ignition key when you leave your vehicle. D Never leave anyone (particularly a small child) alone in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power window switches and get trapped in a window.
Page 65 SWITCHES SEAT VENTILATOR/HEATER NOTICE SWITCHES To prevent the battery from being discharged, do not leave the switch on longer than necessary when the engine is not running. " For driver’s seat For front passenger’s seat Operating this switch warms the seats or provides airflow from inside the seats.
Page 66 SWITCHES Seat heater CAUTION Occupants must use caution when operating the seat heater because they may experience minor burns even at low temperatures. Use extra caution for; D Babies, small children, elderly persons, sick persons or persons with physical disabilities D Persons who have delicate skin D Persons who are exhausted D Persons who have taken alcohol or drugs which...
Page 67 SWITCHES Seat ventilator NOTICE D Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. D When cleaning the seats, do not use organic substances (paint thinner, benzine, alcohol, gasoline, etc.).
Page 68 SWITCHES NOTICE D Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. D When cleaning the seats, do not use organic substances (paint thinner, benzine, alcohol, gasoline, etc.). They may damage the seat ventilation/heating system or seat surface.
Page 69 SWITCHES...
Page 70 SECTION – INSTRUMENTS AND CONTROLS Gauges, meters and service reminder indicators Fuel gauge ..........Engine coolant temperature gauge .
Page 71: Fuel Gauge
GAUGES, METERS AND SERVICE REMINDER INDICATORS The indicator lamp goes off after driving several times. If the FUEL GAUGE indicator lamp does not go off, contact your Lexus dealer as soon as possible. See the inner back cover for fuel capacity and recommended fuel selection.
Page 72 GAUGES, METERS AND SERVICE REMINDER INDICATORS Your vehicle may overheat during severe operating conditions, ENGINE COOLANT such as: TEMPERATURE GAUGE D Driving up a long hill on a hot day. D Reducing speed or stopping after high speed driving. D Idling for a long period with the air conditioning on in stop−and−go traffic.
Page 73: Odometer And Trip Meter
GAUGES, METERS AND SERVICE REMINDER INDICATORS TACHOMETER ODOMETER AND TRIP METER " Trip meter reset knob The tachometer indicates engine speed in thousands of rpm (revolutions per minute). Use it while driving to This meter displays the odometer and two trip meters. To prevent engine over−revving.
Page 74 DO THIS. source is disconnected. BUZZER COMES ON... If parking brake is off, stop immediately and contact Lexus dealer. Fasten driver’s seat belt. (indicator and buzzer) Fasten front passenger’s seat belt. (on the center console) Take vehicle to Lexus dealer immediately.
Page 75 GAUGES, METERS AND SERVICE REMINDER INDICATORS IF THIS INDICATOR OR IF THIS INDICATOR OR DO THIS. DO THIS. BUZZER COMES ON... BUZZER COMES ON... Take vehicle to Lexus Stop and check. dealer. Stop and check. Close all doors. Add engine oil. Replace bulb.
Page 76 Key reminder buzzer It is dangerous to continue driving normally when the brake fluid level is low. Have your vehicle checked at your Lexus dealer in the following cases. D The light does not come on even if the parking brake is applied when the ignition key is in the “ON”...
Page 77 The light acts as a reminder to have the front passenger buckle up the seat belt. If either of the following conditions occurs, immediately stop your vehicle at a safe place and contact your Lexus Once the ignition key is turned to the “ON” position, the dealer.
Page 78 If it flickers or stays on while you are driving, pull off the road to a safe place and stop the engine immediately. Call a Lexus D The light does not come on when the ignition key is turned dealer or qualified repair shop for assistance.
Page 79 GAUGES, METERS AND SERVICE REMINDER INDICATORS (g) Low Engine Oil Level Warning Light (h) Engine Oil Replacement Reminder Light (for vehicles sold in U.S.A.) This light warns that the engine oil level is too low. Add oil as soon as possible. (For instructions, see “Checking the engine This light acts as a reminder to replace the engine oil.
Page 80 331. transmission electrical system or warning light system itself. Contact your Lexus dealer as soon as possible to service the vehicle. If engine speed does not increase when the accelerator pedal is depressed, there may be a problem somewhere in the electronic throttle control system.
Page 81 If the anti−lock brake system works properly, the light vehicle at a safe place and contact your Lexus dealer. turns off after a few seconds. Thereafter, if the system malfunctions, the light comes on again.
Page 82 If this light comes on when the headlight switch is turned on (at by the warning light. Contact your Lexus dealer as soon the first or second clickstop), it indicates that one or more of the as possible to service the vehicle.
Page 83 If it comes on, have your vehicle checked by your Lexus dealer. (p) Low Fuel Level Warning Light This light comes on when the fuel level in the tank becomes 3.
Page 84 The following service reminder indicators go off after a few MULTI−INFORMATION DISPLAY seconds. The following service reminder indicator goes off after 6 seconds. If any service reminder indicator or warning buzzer does not function as described above, have it checked by your Lexus dealer as soon as possible.
Page 85 GAUGES, METERS AND SERVICE REMINDER INDICATORS The following information is displayed in the instrument (1) Instantaneous fuel consumption cluster when you push the “DISP” button with the ignition (“MPG” or “L/100km”) switch turned on. The instantaneous fuel consumption is calculated and Each time you push the “DISP”...
Page 86 GAUGES, METERS AND SERVICE REMINDER INDICATORS (3) Driving range (5) Driving time (“RANGE MI” or “RANGE km”) (“E/T”) The distance the vehicle can travel with the remaining fuel The elapsed time after the engine starts is displayed. is calculated and displayed based on the quantity of When the engine is started, driving time is counted from 0:00.
Page 87: Instrument Panel Light Control
GAUGES, METERS AND SERVICE REMINDER INDICATORS INSTRUMENT PANEL LIGHT CONTROL To adjust the brightness of the instrument panel lights, turn the dial. With the dial turned fully up, the intensity of the instrument panel lights will not be reduced when the headlight switch is on.
Page 88 SECTION – INSTRUMENTS AND CONTROLS Interior equipment Sun visors ..........Interior light .
Page 89 INTERIOR EQUIPMENT SUN VISORS INTERIOR LIGHT To block out glare, move the sun visor: To turn on the interior light, slide the switch. The interior light switch has the following positions: To block out glare from the front, swing the sun visor down.
Page 90 INTERIOR EQUIPMENT PERSONAL LIGHTS ILLUMINATED ENTRY SYSTEM 14E133 To turn on the personal light, push the switch. To turn it off, push the switch again. " Ignition switch light Interior light (with the “DOOR” position) Door courtesy lights Foot lights...
Page 91 1:00 (one * The foot lights can be set to turn off when the selector lever o’clock). is moved out of the “P” position. Ask your Lexus dealer for details. When the instrument panel light control dial is turned fully...
Page 92: Cigarette Lighter And Ashtray
INTERIOR EQUIPMENT Use a Lexus genuine cigarette lighter or equivalent for CIGARETTE LIGHTER AND replacement. ASHTRAY CAUTION To reduce the chance of injury in case of an accident or sudden stop while driving, always completely close the ashtray after use.
Page 93: Power Outlet
INTERIOR EQUIPMENT POWER OUTLET D Close the power outlet lid when the power outlet is not in use. Inserting anything other than an appropriate plug that fits the outlet, or allowing any liquid to get into the outlet may cause electrical failure or short circuits.
Page 94: Glove Box
INTERIOR EQUIPMENT GLOVE BOX REAR CONSOLE BOX " " Upper tray Unlock Open Lock To open the glove box door, pull the lever. To lock the glove box door, insert the master key and turn it clockwise. With the tail lights on, the glove box light will come on when the glove box door is open.
Page 95: Garage Door Opener
INTERIOR EQUIPMENT To access the upper tray, push the lock release button and GARAGE DOOR OPENER raise the lid. To access the console box, pull up the lock release lever and raise the lid. The garage door opener ( Universal Transceiver) is manufactured under license from The rear console box light comes on when the tail lights are HomeLink...
Page 96 INTERIOR EQUIPMENT The battery side of the hand−held transmitter must be pointed If the garage door does not operate, identify if your garage away from the HomeLink during the programming process. transmitter is of the “Rolling Code” type. Press and hold the programmed HomeLink button.
Page 97 To program other devices such as home security systems, door up/down. home door locks or lighting, contact your authorized Lexus 4. Repeat steps 1 through 3 for each remaining HomeLink dealer for assistance.
Page 98 INTERIOR EQUIPMENT (c) Erasing the entire HomeLink memory (all This device complies with Part 15 of the FCC Rules three programs) and with RSS−210 of the IC Rules. Operation is To erase all previously programmed codes at one time, press subject to the following two conditions: (1) This device and hold down the 2 outside buttons for 20 seconds until the may not cause harmful interference, and (2) this device...
Page 99 INTERIOR EQUIPMENT CUPHOLDERS " Rear cupholder To use the rear cupholder, pull down the armrest and open " Front cupholder the cover. To use the front cupholder, push the cupholder portion of The cupholder is designed for holding cups or drink−cans the rear console box.
Page 100: Overhead Console Box
INTERIOR EQUIPMENT OVERHEAD CONSOLE BOX NOTICE During hot weather, the interior of the vehicle becomes very hot. Do not leave anything flammable or deformable such as a lighter, glasses, etc. inside. To use the overhead console box, push the lid. CAUTION D To reduce the chance of injury in case of an accident or a sudden stop, always keep the overhead console...
Page 101: Auxiliary Boxes
INTERIOR EQUIPMENT AUXILIARY BOXES To use them, open as shown in the following illustrations. " In the trunk CAUTION " On the instrument panel To reduce the chance of injury in case of an accident or To remove the adapter tray inside of the box, pull it up. a sudden stop, always keep the auxiliary box closed while driving.
Page 102: Trunk Storage Extension
INTERIOR EQUIPMENT TRUNK STORAGE EXTENSION FLOOR MAT " Lock Unlock Open Use a floor mat of the correct size. If the floor carpet and floor mat have 2 holes, then they are Pull down the center armrest in the rear seat. Push down designed for use with locking clips.
Page 103 INTERIOR EQUIPMENT GROCERY BAG HOOK CAUTION To use the grocery bag hook, push the lower portion of the Make sure the floor mat is properly placed on the floor hook. carpet. If the floor mat slips and interferes with the This hook is designed for hanging things like a grocery bag.
Page 104 INTERIOR EQUIPMENT COAT HOOKS REAR ELECTRIC SUNSHADE To use the coat hook, push the hook. To raise the rear electric sunshade, push the switch. To lower the sunshade, push the same switch again. The sunshade works when the ignition switch is in the “ON” CAUTION position.
Page 105 INTERIOR EQUIPMENT TIE−DOWN HOOKS CAUTION D Do not touch the brackets fastening the sunshade to avoid injuring your fingers or hands. D Do not put your fingers in the sunshade groove while the sunshade is operating to avoid getting them caught or injured by the runner.
Page 106 SECTION – INSTRUMENTS AND CONTROLS Exterior equipment Hood ........... . Trunk lid .
Page 107 EXTERIOR EQUIPMENT HOOD 2. Insert your fingers under the hood, push up the auxiliary catch lever and lift the hood. Before closing the hood, check to see that you have not 1. To open the hood, pull the hood lock release lever under the instrument panel.
Page 108 EXTERIOR EQUIPMENT TRUNK LID CAUTION Trunk lid opener Keep the trunk lid closed while driving. This not only keeps the luggage from being thrown out, but also prevents exhaust gases from entering the vehicle. To open the trunk lid, push the switch. To close the trunk lid, lower it and press down on it.
Page 109 EXTERIOR EQUIPMENT Trunk lid opener main switch In case the opener is not actuated " Main switch Operative Inoperative 1. Pull down the rear armrest and open the rear armrest door. If you do not want to activate the trunk lid opener system, turn off the main switch in the glove box.
Page 110 EXTERIOR EQUIPMENT Internal trunk release handle CAUTION D Always lock the trunk lid and all doors, and keep away the vehicle keys out of children’s reach. D Never leave children unattended in the vehicle. Unsupervised children may lock themselves in the vehicle or trunk and suffer serious injuries or death.
Page 111: Fuel Tank Cap
EXTERIOR EQUIPMENT FUEL TANK CAP 1. To open the fuel filler door, push the switch. When refueling, turn off the engine. This indicates that the fuel filler door is on the left side of your vehicle. CAUTION D Do not smoke, cause sparks or allow open flames when refuelling.
Page 112 EXTERIOR EQUIPMENT 2. To remove fuel tank cap, turn 3. The removed cap can be stored on the back side of the fuel filler door. counterclockwise by 90 degrees (to the pressure point ), and then turn it an additional 30 degrees (to point Position the cap so that the hooks point to the left and right, and ).
Page 113 If the cap is not tightened securely, the malfunction indicator lamp comes on. Make sure the cap is tightened securely. The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Lexus dealer as soon as possible. CAUTION D Make sure the cap is installed securely to prevent fuel spillage in the event of an accident.
Page 114 EXTERIOR EQUIPMENT MOONROOF To slide open the tilted−up moonroof: Push the switch on the “SLIDE OPEN” side to tilt down the moonroof. After releasing the switch, push the switch on the same side again. " Open Close To slide open the moonroof, push the switch on the “SLIDE OPEN”...
Page 115 The moonroof may not operate automatically and the jam * This feature can be deactivate. protection function will not function correctly after you Ask your Lexus dealer for details. reconnect, replace or recharge the battery. In any of these cases, you should normalize the moonroof.
Page 116 EXTERIOR EQUIPMENT D Never sit on top of the vehicle around the roof CAUTION opening. To avoid serious personal injury, you must do the D Never try jamming any part of your body to activate following. the jam protection function intentionally. D While the vehicle is moving, always keep the heads, D The jam protection function may not work if hands and other parts of the bodies of all occupants...
Page 117 EXTERIOR EQUIPMENT...
Page 118 SECTION – INSTRUMENTS AND CONTROLS Occupant restraint system Seats ..........Front seats .
Page 119: Front Seats
OCCUPANT RESTRAINT SYSTEM SEATS FRONT SEATS While the vehicle is being driven, all vehicle occupants should Front seat precautions have the seatback upright, sit well back in the seat and properly wear the seat belts provided. Driver seat CAUTION CAUTION D Do not drive the vehicle unless the occupants are The SRS driver airbag deploys with considerable force, properly seated.
Page 120 OCCUPANT RESTRAINT SYSTEM Front seats (with SRS side airbags) D If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck. CAUTION The seat should be adjusted as recommended by The SRS side airbags are installed in the driver and front NHTSA above, while still maintaining control of the foot passenger seats.
Page 121 OCCUPANT RESTRAINT SYSTEM Seat adjustment precautions Adjusting front seats CAUTION D Do not adjust the seat while the vehicle is moving as the seat may unexpectedly move and cause the driver to lose control of the vehicle. D Be careful that the seat does not hit a passenger, luggage or the rear seat.
Page 122 OCCUPANT RESTRAINT SYSTEM Adjusting seat position Adjusting seatback angle Move the control switch in the desired direction. Move the control switch in the desired direction. Releasing the switch will stop the seat in that position. Do not Releasing the switch will stop the seatback in that position. place anything under the seat, as this might interfere with the seat movement.
Page 123 OCCUPANT RESTRAINT SYSTEM Adjusting seat cushion angle and height Adjusting lumbar support (driver’s seat only) Move the control switch in the desired direction. Push the control switch on either side. Releasing the switch will stop the seat cushion in that position. The amount of lumbar support will change while the switch is pushed.
Page 124: Head Restraints
OCCUPANT RESTRAINT SYSTEM HEAD RESTRAINTS CAUTION For your safety and comfort, adjust the head restraint D Adjust the center of the head restraint so that it is before driving. closest to the top of your ears. D After adjusting the head restraint, make sure it is Front seats locked in position.
Page 125: Seat Belts
Rear seats SEAT BELTS Seat belt precautions Lexus strongly urges that the driver and passengers in the vehicle be properly restrained at all times with the seat belts provided. Failure to do so could increase the chance of injury and/or the severity of injury in accidents.
Page 126 OCCUPANT RESTRAINT SYSTEM Pregnant woman. Lexus recommends the use of a seat belt. D Be careful not to damage the belt webbing or Ask your doctor for specific recommendations. The lap belt hardware. Take care that they do not get caught or should be worn securely and as low as possible over the hips pinched in the seat or doors.
Page 127 D If the seat belt does not function normally, seat position. immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed, because it cannot The retractor will lock the belt during a sudden stop or on protect an adult occupant or your child from injury.
Page 128 OCCUPANT RESTRAINT SYSTEM " Front seat belts only Adjust the position of the lap and shoulder belts. Position the lap belt as low as possible on your hips — not Adjust the shoulder anchor position to your size. on your waist. To raise the anchor position, push the anchor up.
Page 129 OCCUPANT RESTRAINT SYSTEM Seat belt comfort guides To release the belt, press the buckle release button and allow the belt to retract. The seat belt comfort guides are installed on the outboard If the belt does not retract smoothly, pull it out and check for rear seats to relieve uncomfortableness from the shoulder kinks or twists.
Page 130 The belt should be kept away from the child’s neck, and should Please contact your local Lexus dealer to order the proper not fall off the child’s shoulder. Failure to observe these required length for the extender. Bring the heaviest coat you...
Page 131 OCCUPANT RESTRAINT SYSTEM D Make sure the “AIRBAG ON” indicator light is illuminated when using the seat belt extender for the front passenger seat. If the “AIRBAG OFF” indicator light is illuminated, disconnect the extender tongue from the seat belt buckle, then reconnect the seat belt.
Page 132 D If the seat belt does not function normally, immediately contact your Lexus dealer. Do not use the seat until the seat belt is fixed, because it cannot To connect the extender to the seat belt, insert the tab into protect an adult occupant or your child from injury.
Page 133 OCCUPANT RESTRAINT SYSTEM The outboard rear seat belt pretensioners are activated even Seat belt pretensioners with no passenger in the outboard rear seats. The seat belt pretensioners and SRS airbags may not operate together in case of collisions at a certain speeds and angles. Both front seats and the two outboard rear seats are equipped with seat belt pretensioners and are designed to be activated in response to a severe frontal impact.
Page 134 OCCUPANT RESTRAINT SYSTEM " Front passenger occupant classification system (ECU and sensors) Front seat belt pretensioner assemblies Rear seat belt pretensioner assemblies SRS warning light Front passenger’s seat belt buckle switch Front airbag sensors Airbag sensor assembly The seat belt pretensioner system consists mainly of the above components, and their locations are shown in the illustration.
Page 135 Consult your Lexus dealer about any repairs and modifications. This indicator comes on when the ignition key is turned to NOTICE the “ON”...
Page 136 D The seat belt pretensioner assembly or surrounding area In the following cases, contact your Lexus dealer as soon as has bees damaged. possible: D The front of the vehicle (shaded in the illustration) was involved in an accident that was not severe enough to cause the seat belt pretensioners to operate.
Page 137: Srs Driver Airbag And Front Passenger Airbag
OCCUPANT RESTRAINT SYSTEM The SRS front passenger airbag will not activate if there is no SRS DRIVER AIRBAG AND FRONT passenger sitting in the front passenger seat. However, the PASSENGER AIRBAG front passenger airbag may deploy if luggage is put in the seat, or the seat belt is buckled up, regardless of the presence of an occupant in the seat.
Page 138 Lexus strongly and front passenger seat belt systems. The driver recommends that all infants and children be placed and front passenger can be killed or seriously injured in the rear seat of the vehicle and properly restrained.
Page 139 OCCUPANT RESTRAINT SYSTEM It is possible that in some collisions where the forward deceleration of the vehicle is very close to the designed threshold level, the SRS front airbags and the seat belt pretensioners may not activate together. Always wear your seat belts properly. "...
Page 140 OCCUPANT RESTRAINT SYSTEM " Hitting a curb, edge of pavement or hard surface Falling into or jumping over a deep hole Landing hard or vehicle falling The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.
Page 141 OCCUPANT RESTRAINT SYSTEM " The front airbag sensors constantly monitor the forward Front passenger occupant classification system deceleration of the vehicle. If an impact results in a forward (ECU and sensors) deceleration beyond the designed threshold level, the system Airbag module for front passenger triggers the airbag inflators.
Page 142 Lexus strongly For instructions and precautions concerning the recommends that: seating position, see “Front seat precautions” on page D The driver sit as far back as possible from the 102.
Page 143 OCCUPANT RESTRAINT SYSTEM D Do not sit on the edge of the seat or lean over the D Lexus strongly recommends that all infants and dashboard when the vehicle is in use, since the front children be placed in the rear seat of the vehicle and passenger airbag could inflates with considerable be properly restrained.
Page 144 Failure to follow these instructions can result in death or serious injury. Consult your Lexus dealer about any repair and modification. If you wish to modify your vehicle for a person with a D Do not put anything or any part of your body on or in physical disability, consult your Lexus dealer.
Page 145 OCCUPANT RESTRAINT SYSTEM NOTICE Do not perform any of the following changes without consulting your Lexus dealer. Such changes can interfere with proper operation of the SRS front airbag system in some cases. D Installation of electronic devices such as a mobile two−way radio, cassette tape player or CD player...
Page 146 The SRS warning light and “AIRBAG OFF” indicator light will be illuminated if there is a malfunction in the front passenger occupant classification system. In the following cases, contact your Lexus dealer as soon as possible: D The SRS front airbags have been inflated.
Page 147 NOTICE Do not disconnect the battery cables before contacting your Lexus dealer. The SRS (Supplemental Restraint System) side airbags and curtain shield airbags are designed to provide further protection for the driver, front passenger and rear outboard passengers in addition to the primary safety protection provided by the seat belts.
Page 148 OCCUPANT RESTRAINT SYSTEM The side airbag on the passenger seat will not activate if there CAUTION is no passenger sitting in the front passenger seat. However, the side airbag on the passenger seat may deploy if luggage D The SRS side airbag and curtain shield airbag system is put in the seat, or the seat belt is buckled up regardless of is designed only as a supplement to the primary the presence of the occupant in the seat.
Page 149 Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are the safest for infants and children.
Page 150 OCCUPANT RESTRAINT SYSTEM " Collision from the front Collision from the rear Vehicle rollover The SRS side airbags and curtain shield airbags are not generally designed to inflate if the vehicle is involved in a front or rear collision, if it rolls over, or if it is involved in a low−speed side collision.
Page 151 OCCUPANT RESTRAINT SYSTEM " When the airbags inflate, they produce a fairly loud noise and Front passenger occupant classification system release some smoke and residue along with non−toxic gas. (ECU and sensors) This does not indicate a fire. This smoke may remain inside the Side and curtain shield airbag sensor assemblies vehicle for some time, and may cause some minor irritation to Side airbag modules (airbag and inflator)
Page 152 OCCUPANT RESTRAINT SYSTEM D Do not allow anyone to lean against the door when D Do not allow anyone to get his/her head closer to the the vehicle is in use, since the side airbag and curtain area where the side airbag and curtain shield airbag shield airbag could inflate with considerable speed inflate, since these airbags could inflate with and force.
Page 153 OCCUPANT RESTRAINT SYSTEM D Do not allow anyone to get his/her head or hands out D Do not attach a cupholder or any other device or of windows, since the curtain shield airbags could object on or around the door. When the side airbag inflate with considerable...
Page 154 Failure to follow these instructions can result in death and assist grips. When the curtain shield airbag or serious injury. Consult your Lexus dealer about any inflates, the microphone or other device or object will repair and modification.
Page 155 OCCUPANT RESTRAINT SYSTEM NOTICE Do not perform any of the following changes without consulting your Lexus dealer. Such changes can interfere with proper operation of the SRS side airbag and curtain shield airbag system in some cases. D Installation of electronic devices such as a mobile two−way radio, cassette tape player or CD player...
Page 156 The SRS warning light and “AIRBAG OFF” indicator light will be illuminated if there is a malfunction in the front passenger occupant classification system. In the following cases, contact your Lexus dealer as soon as possible: D Any of the SRS side airbags and curtain shield airbags have been inflated.
Page 157 Do not disconnect the battery cables before contacting following. your Lexus dealer. D Put a heavy load in the seatback pocket. D Attach a seatback table to the front passenger seat seatback of the front passenger seat.
Page 158 OCCUPANT RESTRAINT SYSTEM To ensure the system correctly detects an adult sitting in the front passenger seat, make sure the above do not occur. Make sure the “AIRBAG ON” indicator light is illuminated when an adult is seated in the front passenger seat. If the “AIRBAG OFF”...
Page 159 OCCUPANT RESTRAINT SYSTEM The SRS warning light and “AIRBAG OFF” indicator light will be illuminated if there is a malfunction in the front passenger occupant classification system.
Page 160 OCCUPANT RESTRAINT SYSTEM Condition and operation in the front passenger occupant classification system Indicator/warning light Devices “AIRBAG Condition detected Front Curtain OFF” and Side airbag Front by the front passenger’s Front shield airbag “AIRBAG on the front passenger’s passenger occupant seat belt passenger in the front...
Page 161 OCCUPANT RESTRAINT SYSTEM D Do not let a rear passenger lift the front passenger CAUTION seat cushion with his/her leg. To avoid potential death or serious injury when the front D Do not put objects under the front passenger seat. passenger occupant classification system does not D Do not recline the front passenger seat seatback so detect the conditions correctly, observe the following.
Page 162: Child Restraint
In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior. D Lexus strongly urges use of a proper child restraint system which conforms to the size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 163 OCCUPANT RESTRAINT SYSTEM D Never install a rear−facing child restraint system on D Do not use the seat belt extender when installing a the front passenger seat even if the “AIRBAG OFF” child restraint system on the front or rear passenger indicator light is illuminated.
Page 164 OCCUPANT RESTRAINT SYSTEM Child restraint system Types of child restraint system Child restraint systems are classified into the following 3 types A child restraint system for a small child or baby must depending on the child’s age and size. itself be properly restrained on the seat with the lap portion of the lap/shoulder belt.
Page 165 OCCUPANT RESTRAINT SYSTEM INSTALLATION WITH 3−POINT TYPE SEAT BELT (B) Convertible seat (A) Infant seat installation (C) Booster seat An infant seat must be used in rear−facing position only.
Page 166 OCCUPANT RESTRAINT SYSTEM D If the driver’s seat position does not allow sufficient CAUTION space for safe installation, install the child restraint D Never install a rear−facing child restraint system on system on the rear right seat. the front passenger seat even if the “AIRBAG OFF” indicator light is illuminated.
Page 167 D If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact your Lexus dealer immediately. Do not install the child restraint system on the seat until the seat belt is fixed.
Page 168 OCCUPANT RESTRAINT SYSTEM 3. While pressing the infant seat firmly against the seat cushion and seatback, let the shoulder belt retract as far as it CAUTION will go to hold the infant seat securely. Push and pull the child restraint system in different directions to be sure it is secure.
Page 169 OCCUPANT RESTRAINT SYSTEM (B) Convertible seat installation 4. To remove the infant seat, press the buckle−release button and allow the belt to retract completely. The belt will move freely again and be ready to work for an adult or older child A convertible seat must be used in forward−facing or passenger.
Page 170 “ON” position, then the SRS front passenger airbag and side airbag on the passenger side may deploy in an accident. Do not drive the vehicle in this condition. Remove the child restraint system and contact your Lexus dealer.
Page 171 OCCUPANT RESTRAINT SYSTEM " Move seat fully back D Never install a rear−facing child restraint system on the front passenger seat even if the “AIRBAG OFF” D A forward−facing child restraint system should be indicator light is illuminated. In the event of an allowed to be installed on the front passenger seat accident the force of the rapid inflation of the front only when it is unavoidable.
Page 172 D If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact your Lexus dealer immediately. Do not install the child restraint system on the seat until the seat belt is fixed.
Page 173 OCCUPANT RESTRAINT SYSTEM 2. Fully extend the shoulder belt to put it in the lock mode. 3. While pressing the convertible seat firmly against the seat When the belt is then retracted even slightly, it cannot be cushion and seatback, let the shoulder belt retract as far as it extended.
Page 174 OCCUPANT RESTRAINT SYSTEM 4. To remove the convertible seat, press the buckle−release button and allow the belt to retract completely. The belt will CAUTION move freely again and be ready to work for an adult or older child passenger. Push and pull the child restraint system in different directions to be sure it is secure.
Page 175 OCCUPANT RESTRAINT SYSTEM (C) Booster seat installation " Move seat fully back A booster seat must be used in forward−facing position only. CAUTION D A forward−facing child restraint system should be allowed to be installed on the front passenger seat only when it is unavoidable.
Page 176 OCCUPANT RESTRAINT SYSTEM D On vehicles with side airbags and curtain shield airbags, do not allow the child to lean his/her head or any part of his/her body against the door or the area of the seat, front or rear pillar or roof side rail from which the side airbags or curtain shield airbags deploy even if the child is seated in the child restraint system.
Page 177 D If the seat belt does not function normally, it cannot protect your child from death or serious injury. Contact your Lexus dealer immediately. Do not install the child restraint system on the seat until the seat belt is fixed.
Page 178 OCCUPANT RESTRAINT SYSTEM Using a top strap " Anchor brackets Symbol mark Use the anchor bracket on the package tray behind the rear Follow the procedure below for a child restraint system seat to attach the top strap. that requires the use of a top strap. Anchor brackets are installed for each rear seating position.
Page 179 OCCUPANT RESTRAINT SYSTEM TO USE THE ANCHOR BRACKET 3. Fix the child restraint system with the seat belt. 1. Lower the head restraint to the lowest position. 4. Latch the hook onto the anchor bracket and tighten the top strap. For instructions to install the child restraint system, see “Child restraint system”...
Page 180 OCCUPANT RESTRAINT SYSTEM Installation with child restraint lower anchorages Lower anchorages for the child restraint systems complying with FMVSS225 CMVSS210.2 specifications are installed in the rear seat. The anchorages are installed in the gap between the seat cushion and seatback of both outboard rear seats. Child restraint systems complying with the FMVSS213 or Canada only CMVSS213 specification can be fixed to these anchorages.
Page 181 OCCUPANT RESTRAINT SYSTEM For owners in Canada The symbol on a child restraint system indicates the presence of a lower connector system. CHILD RESTRAINT SYSTEM INSTALLATION Type A — 1. Widen the gap between the seat cushion and seatback slightly and confirm the position of the lower anchorages near the button on the seatback.
Page 182: Driving Position Memory
OCCUPANT RESTRAINT SYSTEM DRIVING POSITION MEMORY CAUTION SYSTEM D When using the lower anchorages for the child The microcomputer can memorize the positions of the driver’s restraint system, be sure that there are no irregular seat, accelerator and brake pedals, and outside rear view objects around the anchorages or that the seat belt is mirrors.
Page 183 OCCUPANT RESTRAINT SYSTEM By repeating these two steps and pressing the remaining Conditions for memorized position activation button, the driving position for another driver can be recorded. D Ignition key “ON” and selector lever in “P” position To set a new memorized position, select the desired position D Ignition switch off and within 30 seconds of opening driver’s and perform step 2.
Page 184 OCCUPANT RESTRAINT SYSTEM By repeating these two steps and pressing the remaining FRONT PASSENGER SEAT button, the seat position for another passenger can be POSITION MEMORY SYSTEM recorded. The microcomputer can memorize the position of the front To set a new memorized position, select the desired position passenger seat.
Page 185 OCCUPANT RESTRAINT SYSTEM Conditions for memorized position activation D Ignition key “ON” and selector lever in “P” position D Ignition switch off and within 30 seconds of opening front passenger’s door If any seat position memory switch is pushed while one of the memorized seat position profiles is being activated, the operation will stop.
Page 186 SECTION – INSTRUMENTS AND CONTROLS Steering wheel and mirrors Tilt steering column ........Power adjustable pedals .
Page 187 STEERING WHEEL AND MIRRORS TILT STEERING COLUMN POWER ADJUSTABLE PEDALS To change the steering wheel angle, hold the steering To adjust the position of the accelerator and brake pedals, wheel, pull up the lock release lever, tilt the steering wheel push the switch.
Page 188: Outside Rear View Mirrors
STEERING WHEEL AND MIRRORS When you set your driving position: OUTSIDE REAR VIEW MIRRORS 1. Set the parking brake firmly. 2. Move the accelerator and brake pedals to the front most position. 3. Adjust the seat position and steering wheel angle properly. (See pages 105 and 170.) 4.
Page 189 STEERING WHEEL AND MIRRORS When you push the rear window and outside rear view mirror Power rear view mirror control defogger switch, the heater panels in the outside rear view mirrors will quickly clear the mirror surface. (See “Rear window and outside rear view mirror defogger switch”...
Page 190 STEERING WHEEL AND MIRRORS Vehicles with driving position memory system — Folding rear view mirrors When the automatic transmission selector lever is shifted into the “R” position with the master switch in the “L” or “R” position, the rear view mirrors automatically down to help backing up.
Page 191: Inside Rear View Mirror
STEERING WHEEL AND MIRRORS When the outside air temperature is low, it may take a little INSIDE REAR VIEW MIRROR longer for the mirror to darken in response to the detection of headlights. CAUTION Do not adjust the mirror while the vehicle is moving. Doing so may cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injuries.
Page 192 STEERING WHEEL AND MIRRORS Compass Displays Directions North Northeast East Southeast South Southwest West Northwest The compass may not show the correct direction in the following conditions: D The vehicle is stopped immediately after turning. The compass indicates the direction in which the vehicle The compass does not adjust while the vehicle is stopped.
Page 193 If the direction is not indicated or the system does not operate display. Then push the “COMP” switch, referring to the properly, contact your Lexus dealer. following map to select the number of the zone where the vehicle is. " Compass sensor...
Page 194 STEERING WHEEL AND MIRRORS Samoa: 5 Guam: Saipan: CAUTION Do not adjust the display while the vehicle is moving. Be sure to adjust the display only when the vehicle is stopped. Calibrating the compass (circling calibration) 16Z001 To rectify the compass, stop the vehicle and push and hold the “COMP”...
Page 195 STEERING WHEEL AND MIRRORS Perform circling calibration just after you have purchased your Lexus. And then always perform circling calibration after the battery has been removed, replaced or disconnected. D Do not perform circling calibration of the compass in a place where the earth’s magnetic field is subject to interference by...
Page 196: Vanity Mirrors
STEERING WHEEL AND MIRRORS VANITY MIRRORS To turn on the vanity light, slide the switch. The vanity light switch has the following positions: To use the vanity mirror, swing the sun visor down and “ON” — Turns the light on when you swing down the sun visor. open the cover.
Page 197 STEERING WHEEL AND MIRRORS...
Page 198 SECTION – AIR CONDITIONING AND AUDIO Air conditioning Automatic air conditioning controls ......
Page 199 AIR CONDITIONING AUTOMATIC AIR CONDITIONING CONTROLS...
Page 200 AIR CONDITIONING “TEMP” (driver side temperature control) button The automatic air conditioning automatically maintains the set temperature. Driver side temperature display (in degrees In the automatic operation mode, the air conditioning selects Fahrenheit or Centigrade) the most suitable fan speed, air flow, air intake and on−off the Fan speed display air conditioning according to the temperature.
Page 201 AIR CONDITIONING 20E395 " Air flow selection...
Page 202 AIR CONDITIONING (a) Climate control SETTING OPERATION — automatic control 2. Use the “TEMP” or “PASSENGER TEMP” button to set the desired temperature. The “TEMP” or “PASSENGER TEMP” button is used to set the desired temperature. The temperature will be controlled on the 1.
Page 203 AIR CONDITIONING SETTING OPERATION — manual control When one of the manual control buttons is depressed while operating in automatic mode, the mode relevant to the depressed button is set. Other conditions continue to be adjusted automatically. If manual air flow selection is desired — 20E396 The outlets from which air is delivered can be selected manually by pushing the button.
Page 204 AIR CONDITIONING This position allows the air intake to select OUTSIDE AIR To remove exterior windshield frost, use the high speed setting. mode automatically. This is to clean up the front view more If manual switching of air intake is desired — quickly.
Page 205 3. Push the fan speed control button on the right side to obtain “A/C” button blinks even when the “A/C” button is pushed a maximum air flow. again, have the compressor checked by your nearest Lexus 4. Leave the “A/C” button off. dealer.
Page 206 AIR CONDITIONING This button allows the air intake to select OUTSIDE AIR mode (c) Operating tips automatically. This is to clean up the front view more quickly. D To help cool down the interior after parking in the hot sun, It is not possible to return to RECIRCULATED AIR mode in the drive for the first few minutes with the windows open.
Page 207 AIR CONDITIONING D If following another vehicle on a dusty road, or driving in Air conditioning windy and dusty conditions, it is recommended that the air For best results, set controls to: intake be temporarily set to the RECIRCULATED AIR mode, which will close off the outside passage and prevent For automatic operation —...
Page 208 AIR CONDITIONING For manual operation — This button allows the air intake to select OUTSIDE AIR mode automatically. This is to clean up the front view more quickly. Fan speed — To the desired fan speed It is not possible to return to RECIRCULATED AIR mode in the Temperature —...
Page 209 AIR CONDITIONING When the windshield air flow button is pushed, air flows mainly (d) Side vents and rear vents from the windshield vents and turns on the defogging function with the purpose of clearing the front view. Pushing this button once again returns the air flow mode to the last one used.
Page 210 AIR CONDITIONING (e) Checking and replacing the air conditioning filter The air conditioning filter is behind the glove box. The air conditioning filter may clog after long use. The filter may need to be replaced if the air flow of the air conditioner and The air conditioning filter information label is placed in the heater experiences extreme reductions in operating efficiency, glove box as shown and indicates that a filter has been...
Page 211 AIR CONDITIONING 1. Open the glove box. Remove the screw with a 3. Take out the filter case. Phillips−head screwdriver. 4. Remove the filter from the filter case. 2. Remove the 2 pins installed on the upper part of the 5.
Page 212 AIR CONDITIONING INFORMATION The air conditioning filter should be installed properly in position. The use of air conditioning with the filter removed cause deteriorated dustproof performance then affect conditioning performance.
Page 213 AIR CONDITIONING...
Page 214 SECTION – AIR CONDITIONING AND AUDIO Audio Audio system (with single−CD player) ..... . Audio system (with six−CD changer) ..... . . For vehicles equipped with Navigation System, please refer to the separate “Navigation System Owner’s Manual”.
Page 215 AUDIO AUDIO SYSTEM (with single−CD player) Quick reference for your audio system " You can adjust the brightness of the display. See “Instrument panel light control” on page 70 for details.
Page 216 AUDIO Ejecting a CD CD slot (See page 209 for details.) (See page 209 for details.) Function buttons Automatic Sound Levelizer (ASL)/Mute (See page 201 or 203 for details.) 1 — 6: Station selector buttons (See page 205 for details.) TUNE/AUDIO CONTROL knob (See page 202 for details.) SCAN: Scan tuning...
Page 217 AUDIO (a) Turning the system on and off Using your audio system: some basics This section describes some of the basic features of the Lexus audio system. Some information may not pertain to your system. Your audio system works when the ignition switch is in the “ACC”...
Page 218 AUDIO Push the “MUTE” button to decrease the volume Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on momentarily. that mode. The selected mode turns on directly. To return to its original volume, push the same button again. Push these buttons if you want to switch from one mode to another.
Page 219 AUDIO In the “TAPE” or “CD” mode, the applicable functions are Each time you push the “AUDIO CONTROL” knob, the shown in the lowest part of the display. Push the switch display changes as in the following. To adjust the tone and just below to turn on each function.
Page 220 D Putting a window tint (especially, conductive or metallic type) on the rear window may affect the reception of radio or mobile telephone. For the installation of the window tint, consult with your Lexus dealer.
Page 221 AUDIO Radio operation (a) Listening to the radio Turn this knob to the right to step up the station band or to the left to step down. Your radio automatically changes to stereo reception when a stereo broadcast is received. “ST” appears on the display. If Push the “AM”...
Page 222 AUDIO (b) Presetting a station (c) Selecting a station Tune in the desired station using one of the following methods. 1. Tune in the desired station. Seek tuning: Push the “SEEK” button. The radio will begin 2. Push one of the station selector buttons (1 — 6) and seeking up or down for a station of the nearest frequency and hold it until a beep is heard.
Page 223 AUDIO Cassette tape player operation (a) Playing a cassette tape To scan all the frequencies: Push the “SCAN” button briefly. “SCAN” appears on the display. The radio will find the next station up the band, stay there for a few seconds, and then scan again.
Page 224 AUDIO (b) Manual program selection If a cassette is already in the slot, push the “TAPE” button. Dolbyr Noise Reduction* feature: If you are listening to a A " “Program” button: Push the “ ” button to select the tape that was recorded with Dolby* Noise Reduction, push the other side of a cassette tape.
Page 225 AUDIO (c) Automatic program selection “Automatic program selection” button: The automatic program selection feature allows you to program your cassette “RPT” button: The repeat feature automatically replays the player to skip forward or backward to locate the song you want current program.
Page 226 AUDIO Push this button on the lower side to skip backward. Push the CD player operation button until “REW” and the number you want to skip appear on the display. (a) Inserting or ejecting CD’s D If you set “REW 1”, the player will rewind to the beginning The ignition switch must be in the “ACC”...
Page 227 AUDIO (b) Playing a CD D Ejecting a CD: Push the “EJECT” button for the CD. Push the “DISC” button if the CD is already loaded in the player. “CD” appears on the display. The CD’s set in the player are played continuously. The track number and the time from the beginning of the program appear on the display.
Page 228 AUDIO When play of one CD ends, the first track of the following CD (c) Selecting a desired CD (with a CD changer only) starts. When play of the final CD ends, play of the first CD starts again. The player will skip any empty CD trays. Pushing the “DISC”...
Page 229 AUDIO (d) Searching for a desired track or CD Searching for a desired CD (with a CD changer only): Push the “SCAN” button until you hear a beep. With “D.SCAN” on the display, the program at the beginning of each CD will be played for 10 seconds.
Page 230 AUDIO (e) Selecting a desired track (f) Repeating a track or a CD “TRACK” button: Use for direct access to a desired track. “RPT” button: There are 2 repeat features — you can either replay a CD track or a whole CD. Push either side of the “TRACK”...
Page 231 CD’s in the player in random If the malfunction is not rectified: Take your vehicle to your order, or only listen to the tracks on a specific CD in random Lexus dealer. order. Random playing for the tracks on a CD: Push the “RAND”...
Page 232 AUDIO Audio remote controls (a) When the radio mode is selected ” switch: Use this switch for seek tuning or to select a “ preset station. D To select a preset station, push this switch briefly. The station you assigned to a switch on the audio system will be selected.
Page 233 AUDIO (c) When the “CD” mode is selected Audio system operating hints ” switch: Use this switch to select a desired track or CD. “ D To select a desired track, push this switch briefly. NOTICE D To select a desired CD, push and hold this switch until the To ensure correct audio system operations: desired number of the CD appears and you hear a beep.
Page 234 AUDIO Fading and drifting stations — Generally, the effective range Fading — AM broadcasts are reflected by the upper of FM is about 40 km (25 miles). Once outside this range, you atmosphere — especially at night. These reflected signals can may notice fading and drifting, which increase with the distance interfere with those received directly from the radio station, from the radio transmitter.
Page 235 AUDIO Use high−quality cassettes: Caring for your CD player and CD’s D Low−quality cassette tapes can cause many problems, D Your CD player is intended for use with 12 cm (4.7 in.) CD’s including poor sound, inconsistent playing speed, and only.
Page 236 AUDIO D Use only CD’s marked as shown above. The following " Special shaped CD’s products may not be playable on your CD player. Copy−protected CD CD−R (CD−Recordable) CD−RW (CD−Re−writable) CD−ROM " Transparent/translucent CD’s...
Page 237 AUDIO NOTICE Do not use special shaped, transparent/translucent, low quality or labeled CD’s such as those shown in the illustrations. The use of such CD’s may damage the player or changer, or it may be impossible to eject the " Low quality CD’s "...
Page 238 AUDIO " Correct " Wrong To clean a CD: Wipe it with a soft, lint−free cloth that has been dampened with water. Wipe in a straight line from the center D Handle CD’s carefully, especially when you set them into the to the edge of the CD (not in a circle).
Page 239 AUDIO AUDIO SYSTEM (with six−CD changer) Quick reference for your audio system " You can adjust the brightness of the display. See “Instrument panel light control” on page 70 for details. If a Mark Levinson brand audio system is installed, the “Mark Levinson” logo is shown on the panel.
Page 240 AUDIO SCAN: Scan selection Ejecting a CD (See page 241 for details.) (See page 243 for details.) Function buttons CD slot (See page 241 for details.) 1 — 6: Station selector buttons (See page 229 for details.) CD load button (See page 241 for details.) SCAN: Scan tuning (See page 229 for details.)
Page 241 AUDIO (a) Turning the system on and off Using your audio system: some basics This section describes some of the basic features of the Lexus audio system. Some information may not pertain to your system. Your audio system works when the ignition switch is in the “ACC”...
Page 242 AUDIO Push the “AM·SAT”, “FM”, “TAPE” or “DISC” button to In the “TAPE” or “CD” mode, the applicable functions are turn on that mode. The selected mode turns on directly. shown in the lowest part of the display. Push the switch just below to turn on each function.
Page 243 Each time you push the “AUDIO CONTROL” knob, the Lexus dealer. display changes as in the following. To adjust the tone and balance or turn on or off the Automatic Sound Levelizer, (d) Your cassette player turn the knob.
Page 244 AUDIO (e) Your CD player with changer Radio operation (a) Listening to the radio Your CD player with changer can store up to 6 CD’s and play selected CD’s or continuously play all the CD’s set in the player. Push these buttons to choose either an AM or FM station. When you set CD’s into the player, make sure their labels face “AM”, “FM1”...
Page 245 AUDIO (b) Presetting a station Turn this knob to the right to step up the station band or to the left to step down. 1. Tune in the desired station. Your radio automatically changes to stereo reception when a stereo broadcast is received. “ST” appears on the display. If 2.
Page 246 AUDIO (c) Selecting a station Tune in the desired station using one of the following methods. To scan all the frequencies: Push the “SCAN” button briefly. “SCAN” appears on the display. The radio will find the next station up the band, stay there for a few seconds, and then scan again.
Page 247 AUDIO With the program type displayed, push the “SEEK” or “SCAN” (d) RDS (Radio Data System) button. You can seek or scan for stations broadcasting the TYPE (Program type): same type of program. (See page 229 for details.) If no RDS stations can be found, “NOTHING” appears and the display returns to the previous mode.
Page 248 AUDIO Radio text message: Radio operation (XM satellite radio broadcast) To listen to a satellite radio broadcast in your vehicle, an additional genuine Toyota satellite receiver and antenna (or equivalents) must be purchased and installed. A subscription to the XM satellite radio service is also necessary. (a) How to subscribe to an XM satellite radio An XM satellite radio is a tuner designed exclusively to receive broadcasts...
Page 249 AUDIO Satellite tuner technology notice: (c) Listening to the satellite radio Toyota’s satellite radio tuners are awarded Type Approval Certificates from XM Satellite Radio Inc. on “May 7, 2004” as proof of compatibility with the services offered by the XM satellite radio.
Page 250 AUDIO (e) Selecting a channel (d) Presetting a channel Tune in the desired channel using one of the following methods. 1. Turn in the desired channel. 2. Push one of the channel selector buttons (1—6) and Seek tuning: To select the next channel within the current hold it until a beep is heard.
Page 251 AUDIO (f) Channel category To scan the currently selected channel category: Quickly push and release the “SCAN” button. “SCAN” appears on the When you push the “ ” or “ ” side of the “TYPE” button while display. The radio will find the next channel in the same receiving a XM channel.
Page 252 AUDIO Up to 10 alphanumeric characters can be displayed. (Some (g) Displaying the title and name information will not be fully displayed.) If there is no song/program title or artist name/feature associated with the channel at that time, “− − − − −” will appear on the display.
Page 253 The XM antenna is not connected. Check whether the XM antenna cable is attached securely. ANTENNA A short−circuit occurs in the antenna or the surrounding antenna cable. See a Lexus certified dealer. You have not subscribed to the XM satellite radio. The radio is being updated with the latest encryption code.
Page 254 AUDIO NOTICE INFORMATION This equipment has been tested and found to comply Alternation or modifications carried out without with the limits for a class B digital device, pursuant to appropriate authorization may invalidate the user’s Part 15 of the FCC Rules. These limits are designed to right to operate the equipment.
Page 255 AUDIO Cassette tape player operation (a) Playing a cassette tape If a cassette is already in the slot, push the “TAPE” button. Dolbyr Noise Reduction* feature: If you are listening to a tape that was recorded with Dolby* Noise Reduction, push the “...
Page 256 AUDIO (b) Manual program selection (c) Automatic program selection A " “Program” button: Push the “ ” button to select the “RPT” button: The repeat feature automatically replays the other side of a cassette tape. The display indicates which side current program.
Page 257 AUDIO Push this button on the lower side to skip backward. Push the button until “REW” and the number you want to skip appear on the display. D If you set “REW 1”, the player will rewind to the beginning of the current program.
Page 258 AUDIO If you need to insert the next CD, repeat the same procedure CD player operation to insert another CD. (a) Inserting or ejecting CD’s D Setting all the CD’s: The ignition switch must be in the “ACC” or “ON” position. 1.
Page 259 AUDIO (b) Playing a CD D Ejecting a single CD alone: 1. Push the “ ” or “ ” button to display the disc number Push the “DISC” button if the CD’s are already loaded in you want to eject. the player.
Page 260 AUDIO (d) Searching for a desired track or CD (c) Selecting a desired CD Searching for a desired CD: Searching for a desired track: Push the “SCAN” button briefly. “SCAN” will appear on the Push the “ ” or “ ” button to select the CD number. display.
Page 261 AUDIO (e) Selecting a desired track (f) Repeating a track or a CD “TRACK” button: Use for direct access to a desired track. “RPT” button: There are 2 repeat features — you can either replay a CD track or a whole CD. Push either side of the “TRACK”...
Page 262 CD’s in the player in random If the malfunction is not rectified: Take your vehicle to your order, or only listen to the tracks on a specific CD in random Lexus dealer. order. Random playing for the tracks on a CD: Push the “RAND”...
Page 263 AUDIO Audio remote controls (a) When the radio mode is selected ” switch: Use this switch for seek tuning or to select a “ preset station. D To select a preset station, push this switch briefly. The station you assigned to a switch on the audio system will be selected.
Page 264 AUDIO (c) When the “TAPE” mode is selected Audio system operating hints ” switch: Use this switch to fast forward or rewind the “ tape or for automatic program selection. NOTICE D To skip forward or reward for automatic program selection, push this switch briefly.
Page 265 AUDIO Fading and drifting stations — Generally, the effective range Fading — AM broadcasts are reflected by the upper of FM is about 40 km (25 miles). Once outside this range, you atmosphere — especially at night. These reflected signals can may notice fading and drifting, which increase with the distance interfere with those received directly from the radio station, from the radio transmitter.
Page 266 AUDIO Use high−quality cassettes: Caring for your CD player and CD’s D Low−quality cassette tapes can cause many problems, D Your CD player is intended for use with 12 cm (4.7 in.) CD’s including poor sound, inconsistent playing speed, and only.
Page 267 AUDIO D Use only CD’s marked as shown above. The following " Special shaped CD’s products may not be playable on your CD player. Copy−protected CD CD−R (CD−Recordable) CD−RW (CD−Re−writable) CD−ROM " Transparent/translucent CD’s...
Page 268 AUDIO NOTICE Do not use special shaped, transparent/translucent, low quality or labeled CD’s such as those shown in the illustrations. The use of such CD’s may damage the player or changer, or it may be impossible to eject the " Low quality CD’s "...
Page 269 AUDIO " Correct " Wrong To clean a CD: Wipe it with a soft, lint−free cloth that has been dampened with water. Wipe in a straight line from the center D Handle CD’s carefully, especially when you set them into the to the edge of the CD (not in a circle).
Page 270 SECTION – STARTING AND DRIVING Starting and driving Three−way catalytic converter ......Engine exhaust caution .
Page 271 D Do not drive, idle or park your vehicle over anything soon as possible. Remember, your Lexus dealer that might burn easily such as grass, leaves, paper or knows your vehicle and its three−way catalytic rags.
Page 272: Engine Exhaust Caution
D To ensure that the three−way catalytic converter and the entire emission control system operate properly, your vehicle must receive the periodic inspections CAUTION required by the Lexus Maintenance Schedule. For scheduled maintenance information, refer to the D Avoid inhaling the engine exhaust. It contains “Owner’s...
Page 273: Before Starting The Engine
STARTING AND DRIVING BEFORE STARTING THE ENGINE D To allow proper operation of your vehicle’s ventilation system, keep the inlet grilles in front of the 1. Check the area around the vehicle before entering it. windshield clear snow, leaves, other 2.
Page 274 STARTING AND DRIVING If you leave the key in the “ACC” or “LOCK” position and open IGNITION SWITCH WITH STEERING the driver’s door, a buzzer will remind you to remove the key. LOCK “LOCK” — Engine is off and the steering wheel is locked. “START”...
Page 275 STARTING AND DRIVING Before leaving your vehicle, firmly apply the parking brake. PARKING BRAKE To remind you that the parking brake is set, the parking brake reminder light in the instrument panel remains on until you release the parking brake. CAUTION Before driving, make sure the parking brake is fully released and that the parking brake reminder light is off.
Page 276: How To Start The Engine
STARTING AND DRIVING HOW TO START THE ENGINE If the engine stalls... Simply restart it, using the correct procedure given in normal starting. Before cranking 1. Apply the parking brake firmly. If the engine will not start... See “If your vehicle will not start” on page 298. 2.
Page 277 STARTING AND DRIVING " The shift position is displayed on the instrument AUTOMATIC TRANSMISSION cluster. Your automatic transmission has a shift lock system to P: Parking, engine starting and key removal position minimize the possibility of incorrect operation. This means you can only shift out of “P” position when the R: Reverse position brake pedal is depressed with the ignition switch in “ON”...
Page 278 STARTING AND DRIVING Correct use of the automatic transmission is explained in (a) Normal driving the following parts. (a) Normal driving (b) Using engine braking (c) Using the “3”, “2” and “L” positions (d) Backing up (e) Parking (f) Good driving practice (g) If you cannot shift the selector lever "...
Page 279 STARTING AND DRIVING 3. Release the parking brake and brake pedal. Depress the accelerator pedal slowly for smooth starting. In normal cruising, the vehicle will start in first gear and automatically shift up to the most suitable gear. On inclines, declines or winding roads, etc., the vehicle shifts up and down automatically according to the running conditions to obtain the suitable driving power and engine braking.
Page 280 STARTING AND DRIVING Shift into the “2” position. The transmission will downshift (b) Using engine braking to second gear when the vehicle speed is or becomes lower than 83 km/h (51 mph) and more powerful engine braking than that of “3” position will be enabled. Shift into the “L”...
Page 281 STARTING AND DRIVING (c) Using the “3”, “2” and “L” positions (d) Backing up The “3”, “2” and “L” positions are used for strong engine braking as described previously. With the selector lever in “3”, “2” or “L”, you can start the vehicle in motion as with the lever in “D”.
Page 282 STARTING AND DRIVING (e) Parking (f) Good driving practice D If the transmission repeatedly shifts up and down between fourth and overdrive gears when climbing a gentle slope, shift the selector lever to the “4” position. Be sure to shift the selector lever to the “D”...
Page 283: Cruise Control
STARTING AND DRIVING CRUISE CONTROL Turning the system on The cruise control allows you to cruise the vehicle at a desired speed over 40 km/h (25 mph) with your foot off the accelerator pedal. Your cruising speed can be maintained although a slight speed change may occur when driving up or down a gradient, within the limits of engine performance.
Page 284 If the vehicle speed drops 16 km/h (10 mph) below the preset speed, the preset speed will also automatically be cancelled. If the preset speed automatically cancels out for other than these reasons, have your vehicle checked by your Lexus " Each function is described below. dealer at the earliest opportunity.
Page 285 If any of the following conditions then occurs, there is some When the difference between the actual vehicle speed and the trouble in the cruise control system. Contact your Lexus dealer set speed is less than 5 km/h (3 mph), the set speed can be and have your Lexus inspected.
Page 286: Traction Control System
STARTING AND DRIVING ELECTRONIC MODULATED TRACTION CONTROL SYSTEM SUSPENSION The traction control system automatically helps prevent the spinning of front wheels when the vehicle is started or This electronic modulated suspension adjusts the accelerated on slippery road surfaces. damping effect on the shock absorbers with the control When the ignition key is turned to “ON”, the system switch.
Page 287 The slip indicator light comes on for a few seconds when the Normal driving mode ignition key is turned to “ON”. If the indicator light does not come on when the ignition is turned on, contact your Lexus dealer. Traction control off mode "...
Page 288 “ON”. It will come on again when you push the “TRAC OFF” switch to turn off the system. In the following cases, contact your Lexus dealer: D The indicator light does not come on when the ignition key is turned to “ON”.
Page 289: Vehicle Stability Control System
In the following cases, contact your Lexus dealer: slippery road surface or operating steering wheel abruptly.
Page 290 " Canada The slip indicator light comes on for a few seconds when the ignition key is turned to “ON”. If the indicator light does not come on when the ignition is turned on, contact your Lexus dealer.
Page 291: Brake System
However, as conventional braking operates when applied, the brake system warning light may come on. there is no problem to continue your driving. In the following cases, contact your Lexus dealer: CAUTION D The warning light does not come on after the ignition key is Do not drive your vehicle with only a single brake turned to “ON”.
Page 292 STARTING AND DRIVING You may hear a click or motor sound in the engine Anti−lock brake system compartment for a few seconds when the engine is started or The anti−lock brake system is designed to help prevent just after the vehicle begins to move. This means that the lock−up of the wheels during a sudden braking or braking anti−lock brake system is in the self−check mode, and does not on slippery road surfaces.
Page 293 STARTING AND DRIVING “ABS” warning light If tire grip performance exceeds its capability, or if hydroplaning occurs during high speed driving in the rain, the anti−lock brake system does not provide vehicle control. Anti−lock brake system is not designed to shorten the stopping distance: Always drive at a moderate speed and maintain a safe distance from the vehicle in front of you.
Page 294 If either of the following conditions occurs, this indicates a malfunction somewhere in the components monitored by the warning light. Contact your Lexus dealer as soon CAUTION as possible to service the vehicle. If the “ABS” warning light remains on together with the...
Page 295: Brake Pad Wear Limit Indicators
If you hear a squealing or scraping noise while driving, have the The brake assist system becomes operative after the vehicle brake pads checked and replaced by your Lexus dealer as has accelerated to a speed in excess of approximately 10 km/h soon as possible.
Page 296: Starting And Driving
SECTION – STARTING AND DRIVING Driving tips Break−in period ......... . Operation in foreign countries .
Page 297 COUNTRIES Drive gently and avoid high speeds. You need not follow a break−in schedule with your new Lexus. If you plan to drive your Lexus in another country... But following a few simple tips for the first 1600 km (1000 miles) First, comply with the vehicle registration laws.
Page 298: Tips For Driving In Various Conditions
If they still do not work safely, pull to the side of the capability tires. Driving over 140 km/h (85 mph) may road and call a Lexus dealer for assistance. result in tire failure, loss of control and possible injury.
Page 299: Winter Driving Tips
Cold temperatures reduce the capacity of any battery, so it must be in top shape to provide enough power for winter starting. Page 396 tells you how to visually inspect the battery. Your Lexus dealer and most service stations will be pleased to check the battery charge level.
Page 300 Squirt lock de−icer or glycerine into the locks to keep them from freezing. Use a washer fluid containing an antifreeze solution. This product is available at your Lexus dealer and most auto parts stores. Follow the manufacturer’s directions for how much to mix with water.
Page 301: Dinghy Towing
For your safety and the safety of others, you must not overload your vehicle or trailer. Lexus warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes.
Page 302 DRIVING TIPS Weight limits D Trailer hitch assemblies have different weight capacities established by the hitch manufacturer. Before towing, make sure the total trailer weight, gross Even though the vehicle may be physically capable of vehicle weight, gross axle weight and trailer tongue load towing a higher weight, the operator must determine are all within the limits.
Page 303 DRIVING TIPS Hitches D If you wish to install a trailer hitch, your Lexus dealer should be consulted. D Use only a hitch which is recommended by Lexus dealer 32L002 and conforms to the total trailer weight requirement. D Follow the directions supplied by the hitch manufacturer.
Page 304 Break−in schedule D Lexus recommends that you do not tow a trailer with a new vehicle or a vehicle with any new power train component (engine, transmission, differential, wheel bearing, etc.) for...
Page 305 DRIVING TIPS Maintenance Trailer towing tips D If you tow a trailer, your vehicle will require more frequent When towing a trailer, your vehicle will handle differently maintenance due to the additional load. For this than when not towing. The three main causes of information, please refer to the scheduled maintenance vehicle−trailer accidents are driver error, excessive speed information...
Page 306 DRIVING TIPS D Avoid jerky starts or sudden acceleration. D Because of the added load of the trailer, your vehicle’s engine may overheat on hot days (at temperatures over D Avoid jerky steering and sharp turns. The trailer could hit 30_C [85_F]) when going up a long or steep grade with a your vehicle in a tight turn.
Page 307: How To Save Fuel And Make Your Vehicle Last Longer
DRIVING TIPS 3. Release the parking brake and brake pedal and slowly pull HOW TO SAVE FUEL AND MAKE or back away from the wheel blocks. Stop and apply your YOUR VEHICLE LAST LONGER brakes. Improving fuel economy is easy — just take it easy. It will help 4.
Page 308 DRIVING TIPS D Avoid engine over−revving. Use a gear position suitable D Keep your vehicle tuned−up and in top shape. A dirty air for the road on which you are traveling. cleaner, improper valve clearance, dirty plugs, dirty oil and grease, brakes not adjusted, etc.
Page 309: Vehicle Load Limits
DRIVING TIPS Towing capacity: 907 kg (2000 lb.) VEHICLE LOAD LIMITS Towing capacity means the maximum gross trailer Vehicle load limits include total load capacity, seating weight (trailer weight plus its cargo weight) that your capacity, towing capacity and cargo capacity. Follow vehicle is able to tow.
Page 310: Cargo And Luggage
DRIVING TIPS CARGO AND LUGGAGE D Do not drive with objects left on top of the instrument panel. They may interfere with the Stowage precautions driver’s field of view. Or they may move during sharp vehicle acceleration or turning, When stowing cargo and luggage in the vehicle, and impair the driver’s control of the vehicle.
Page 311 DRIVING TIPS 4. The resulting figure equals the available amount of Example on your vehicle cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb. passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
Page 312 DRIVING TIPS As shown in the above example, if the number of occupants increases, the cargo and luggage load equaling the combined weight of occupants who got on later must be reduced. In other words, if the increase in the number of occupants causes the excess of the total load capacity (combined weight of occupants plus cargo and luggage load), you have to reduce the cargo and luggage on your vehicle.
Page 313 DRIVING TIPS...
Page 314: In Case Of An Emergency
SECTION IN CASE OF AN EMERGENCY In case of an emergency If your engine stalls while driving ......If your vehicle will not start .
Page 315: If Your Engine Stalls While Driving
Have the key checked at your If the engine will not start, see “If your vehicle will not start”. Lexus dealer. If none of your keys work, there may be a malfunction in the immobilizer system. Call your Lexus dealer.
Page 316 1. Turn the ignition key to “ACC” or “LOCK” and try starting the engine again. If the engine still will not start, it needs adjustment or repair. Call a Lexus dealer, Roadside Assistance or Customer Service 2. If the engine will not start, the engine may be flooded Assistance. (See “Foreword”.) because of repeated cranking.
Page 317 If you are unsure about how to follow this procedure, we strongly recommend that you seek help from your Lexus dealer, Roadside Assistance or Customer Service Assistance. (See “Foreword”.) CAUTION D Batteries contain sulfuric acid which is poisonous and corrosive.
Page 318 IN CASE OF AN EMERGENCY JUMP STARTING PROCEDURE 1. If the booster battery is installed in another vehicle, make sure the vehicles are not touching. Turn off all unnecessary lights and accessories. When boosting, use the battery of matching or higher quality. Any other battery may be difficult to jump start with.
Page 319 CAUTION If the another attempt is not successful, the battery may be depleted. Have it checked at your Lexus dealer. When making the connections, to avoid serious injury, do not lean over the battery or accidentally let the jumper cables or clamps touch anything except the correct battery terminals or the ground.
Page 320: If You Cannot Increase Engine Speed
Turn off the engine. Leave the hood closed until there is no sign turned to the “ACC” or “LOCK” position. of steam or coolant. Your engine could have been seriously damaged already. Call your Lexus dealer for assistance. CAUTION CAUTION Be especially careful to prevent erroneous pedal operation.
Page 321: If You Have A Flat Tire
5. Read the following instructions thoroughly. If the cooling fan is not operating or the coolant is not in the acceptable range, turn off the engine and call your Lexus dealer. If both conditions are O.K., after the engine coolant temperature has cooled to normal, continue driving your vehicle.
Page 322 IN CASE OF AN EMERGENCY D Never get under the vehicle when the vehicle CAUTION is supported by the jack alone. When jacking, be sure to observe the following D Use the jack only for lifting your vehicle to reduce the possibility of personal injury: during wheel changing.
Page 323 IN CASE OF AN EMERGENCY " 1. Lift up the deck board and hang the deck board Spare tire Jack handle Wrench hook on the right hinge of the trunk lid. Jack Towing eyelet Make sure the board does not fall down. 2.
Page 324 IN CASE OF AN EMERGENCY " To remove the spare tire: Joint Remove the spare tire cover. When removing the jack, turn the joint by hand in the “contract” direction until the jack is free. Loosen the bolt and remove it. When storing, turn the joint by hand in the When storing the spare tire, place it with the inner “expand”...
Page 325 IN CASE OF AN EMERGENCY 3. Block the wheel diagonally opposite the flat tire 4. Loosen all the wheel nuts. to keep the vehicle from rolling when it is jacked Always loosen the wheel nuts before raising the vehicle. When blocking the wheel, place a wheel block in front Turn the wheel nuts counterclockwise to loosen them.
Page 326 IN CASE OF AN EMERGENCY Do not remove the nuts yet — just unscrew them about one−half turn. CAUTION Never use oil or grease on the bolts or nuts. The nuts may loose and the wheels may fall off, which could cause a serious accident. 5.
Page 327 IN CASE OF AN EMERGENCY CAUTION Never get under the vehicle when the vehicle is supported by the jack alone. 6. After making sure no one is in the vehicle, raise it high enough so that the spare tire can be installed.
Page 328 IN CASE OF AN EMERGENCY Before putting on the wheel, remove any corrosion 7. Remove the wheel nuts and remove the flat tire. on the mounting surfaces with a wire brush or such. Lift the flat tire straight off and put it aside. Installation of wheels without good metal−to−metal contact at the mounting surface can cause wheel nuts to loosen and eventually cause a wheel to come off...
Page 329 IN CASE OF AN EMERGENCY CAUTION Never use oil or grease on the bolts or nuts. Doing so may lead to overtightening the nuts and damaging the bolts. The nuts may loose and the wheels may fall off, which could cause a serious accident.
Page 330 IN CASE OF AN EMERGENCY CAUTION D When lowering the vehicle, make sure all portions of your body and all other persons around will not be injured as the vehicle is lowered to the ground. D Have the wheel nuts tightened with torque wrench to 103 N·m (10.5 kgf·m, 76 ft·lbf), as soon as possible after changing wheels.
Page 331 IN CASE OF AN EMERGENCY 10.After changing the wheel, check the air IF YOUR VEHICLE BECOMES pressure of the replaced tire. Stow all the tools, STUCK jack and flat tire securely. If your vehicle becomes stuck in snow, mud, sand, etc., If the pressure of the replaced tire is low, drive slowly then you may attempt to rock the vehicle free by moving to the nearest service station and fill to the correct...
Page 332 If towing is necessary, we recommend you to have it done precautions to prevent damage to the transmission and by your Lexus dealer or a commercial tow truck service. other parts. In consultation with them, have your vehicle towed using D Do not depress the accelerator pedal while shifting either (a) or (b).
Page 333 IN CASE OF AN EMERGENCY D From rear (a) Towing with a wheel lift type truck D From front Use a towing dolly under the front wheels. Release the parking brake. NOTICE NOTICE Never tow a vehicle with an automatic transmission from the rear with front wheels on the ground, as this When lifting wheels, take care to ensure adequate may cause serious damage to the transmission.
Page 334 IN CASE OF AN EMERGENCY (b) Using a flat bed truck If your Lexus is transported by a flat bed, it should be tied down at locations A and B as shown above. D Tie down points...
Page 335 IN CASE OF AN EMERGENCY D Tie down angle " Rear emergency towing eyelets If you use chains or wires to tie down your vehicle, the NOTICE angles shaded black must be at 45_. Do not use the rear emergency towing eyelets.
Page 336 (c) Towing with a sling type truck (d) Emergency towing If towing is necessary, we recommend you to have it done by your Lexus dealer or a commercial tow truck service. NOTICE If towing service is not available in an emergency, your...
Page 337 IN CASE OF AN EMERGENCY A driver must be in the vehicle to steer it and operate the (e) Installing front towing eyelet brakes. Towing in this manner may be done only on hard−surfaced roads for a short distance and at low speeds. Also, the wheels, axles, drive train, steering and brakes must all be in good condition.
Page 338 IN CASE OF AN EMERGENCY 2. Use the front towing eyelet in the trunk. Secure it to the hole 3. Tighten the front towing eyelet securely by a wheel nut on the bumper by turning clockwise. (For the eyelet location, wrench.
Page 339: Transmission Selector Lever
Be sure to have the system checked by your Lexus dealer as Turn the ignition key to “LOCK”. Make sure the parking soon as possible.
Page 340 IN CASE OF AN EMERGENCY IF YOU LOSE YOUR KEYS OR LOCK YOURSELF OUT You can purchase a new key at your Lexus dealer if you can give them the key number and master key, because your vehicle is equipped with the engine immobilizer system.
Page 341 IN CASE OF AN EMERGENCY...
Page 342 SECTION MAINTENANCE Maintenance Maintenance requirements ....... . General maintenance ........Does your vehicle need repairing? .
Page 343: Maintenance Requirements
Lexus supplied. performed. Note that both the new vehicle and emission The owner may elect to use non−Lexus supplied parts for control system warranties specify that proper maintenance replacement purposes without invalidating the emission and care must be performed.
Page 344: General Maintenance
Engine compartment warranty, your Lexus dealer will promptly take care of it. Again, be sure to keep a copy of the repair order for any service Items listed below should be checked from time to time, performed on your Lexus.
Page 345 MAINTENANCE Battery Vehicle interior Check the battery condition by the indicator color. See page Items listed below should be checked regularly, e.g. while 396 for additional information. performing periodic services, cleaning the vehicle, etc. Brake fluid level Lights Make sure the brake fluid level is correct. See page 364 for Make sure the headlight, stop lights, tail lights, turn signal additional information.
Page 346 MAINTENANCE Accelerator pedal Vehicle exterior Check the pedal for smooth operation and uneven pedal effort Items listed below should be performed from time to time, or catching. unless otherwise specified. Brake pedal Wheel nuts Check the pedal for smooth operation and the proper When checking the tires, make sure to check the nuts for clearance and freeplay.
Page 347 MAINTENANCE Tire inflation pressure DOES YOUR VEHICLE NEED Check the tire inflation pressure with a gauge every REPAIRING? two weeks, or at least once a month and adjust as Be on the alert for changes in performance and sounds, and shown on the tire and loading information label.
Page 348 MAINTENANCE If you notice any of these clues, take your vehicle to your Lexus EMISSIONS INSPECTION dealer as soon as possible. It probably needs adjustment or AND MAINTENANCE (I/M) repair. PROGRAMS CAUTION Some states have vehicle emission inspection programs which include OBD (On−Board Diagnostics) checks.
Page 349 MAINTENANCE...
Page 350 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Introduction Vehicle identification ........Theft prevention labels .
Page 351: Vehicle Identification
This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. The engine number is stamped on the engine block as...
Page 352: Theft Prevention Labels
INTRODUCTION THEFT PREVENTION LABELS (U.S.A. ONLY) Your new vehicle carries theft prevention labels which are approximately 47 mm (1.85 in.) by 12 mm (0.47 in.). The purpose of these labels is to reduce the incidence of vehicle thefts by facilitating the tracing and recovery of parts from stolen vehicles.
Page 353: Engine Compartment Overview
INTRODUCTION ENGINE COMPARTMENT OVERVIEW Power steering fluid reservoir Engine oil filler cap Brake fluid reservoir Fuse box Battery Radiator Condenser Electric cooling fans Engine oil level dipstick Washer fluid tank Engine coolant reservoir...
Page 354 — will be hot. So be period may affect your warranty coverage. Read the separate careful not to touch them. Oil and other fluids may Lexus Warranty statement for details and suggestions. also be hot. This Section gives instructions only for those items that are D Do not leave anything that may burn easily, such as relatively easy for an owner to perform.
Page 355: Parts And Tools
Here is a list of parts and tools you will need to perform falling material, fluid spray, etc. do−it−yourself maintenance. Remember all Lexus parts are D Be extremely cautious when working on the battery. designed in metric sizes, so your tools must be metric.
Page 356 INTRODUCTION Checking the engine coolant level Checking power steering fluid Parts (if level is low): Parts (if level is low): D “Toyota Super Long Life Coolant” or similar high quality D Automatic transmission fluid DEXRON II or III ethylene glycol based non−silicate, non−amine, non−nitrite, Tools: and non−borate coolant with long−life hybrid organic acid technology (Coolant with long−life hybrid organic acid...
Page 357: Positioning The Jack
INTRODUCTION Checking the cartridge type fuses POSITIONING THE JACK Parts (if replacement is necessary): D Genuine Lexus fuse or equivalent with same amperage rating as original Adding washer fluid Parts: D Water D Washer fluid containing antifreeze (for winter use)
Page 358 INTRODUCTION CAUTION NOTICE When jacking, be sure to observe the following to Make sure to place the jack correctly, or your vehicle reduce the possibility of personal injury: may be damaged. D Follow jacking instructions. D Do not put any part of your body under the vehicle supported by the jack.
Page 359 INTRODUCTION...
Page 360 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Engine Specifications ......... . . Fuel .
Page 361 ENGINE SPECIFICATIONS — GENERAL Model 3MZ−FE Type 6 cylinder V type, 4 cycle, gasoline Bore and stroke 92.0 83.0 mm (3.62 3.27 in.) Displacement 3311 cm (202.1 cu. in.) Valve clearance (engine cold) Intake 0.15 — 0.25 mm (0.006 — 0.010 in.) Exhaust 0.25 —...
Page 362 Recommended oil viscosity (SAE): 62Z002 Outside temperature NOTE: “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the above grade and viscosity. Please contact your Lexus dealer for further details.
Page 363 NOTE: “Toyota Super Long Life Coolant” is used in your Lexus vehicle at factory fill. In order to avoid technical problems, only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non−silicate, non−amine, non−nitrite, and non−borate coolant with long−life hybrid organic acid technology.
Page 364 Your vehicle must use only unleaded gasoline. If you detect heavy knocking even when using the To help prevent gas station mixups, your Lexus has a smaller recommended fuel, or if you hear steady knocking while fuel tank opening. The special nozzle on pumps with unleaded...
Page 365 10% ethanol or 15% D If drivability problems are encountered (poor hot MTBE. If you use gasohol in your Lexus, be sure that it has starting, vaporizing, engine knock, etc.), discontinue an octane rating no lower than 87.
Page 366: Fuel Pump Shut Off System
ENGINE FUEL PUMP SHUT OFF SYSTEM FACTS ABOUT ENGINE OIL CONSUMPTION The fuel pump shut off system stops supplying fuel to the engine to minimize the risk of fuel leakage when the engine stalls or an airbag inflates upon collision. To restart the engine Functions of engine oil after the fuel pump shut off system activates, turn the ignition Engine oil has the primary function of lubricating and cooling...
Page 367 Therefore, it is essential speeds and frequent acceleration and deceleration. that the oil level be checked regularly. Lexus recommends that the oil level be checked every time you refuel the vehicle. A new engine consumes more oil, since its pistons, piston rings and cylinder walls have not become conditioned.
Page 368: Used Engine Oil
Call your Lexus dealer or a service 1. To get a correct reading, the vehicle should be on level station for information concerning recycling or ground.
Page 369 ENGINE " Add oil O.K. Too full If the oil level is below or only slightly above the low mark, add engine oil of the same type as already in the engine. 4. Pull the dipstick out and look at the oil level while holding a Remove the oil filler cap and add engine oil a little at a time, rag under the end.
Page 370 ENGINE Engine oil selection NOTICE “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use D Be careful not to spill engine oil on the vehicle Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity.
Page 371 To ensure excellent lubrication performance for your engine, Oil identification marks “Toyota Genuine Motor Oil” is available, which has been specifically tested and approved for all Lexus engines. Please contact your Lexus dealer for further details about “Toyota Genuine Motor Oil”. SOIL11 " API Service Symbol "...
Page 372: Checking The Engine Coolant Level
LEVEL hoses, engine coolant filler cap, radiator cap and drain cock and water pump. If you can find no leak, have your Lexus dealer test the cap pressure and check for leaks in the cooling system. CAUTION To prevent burning yourself, do not remove the radiator cap when the engine is hot.
Page 373: Checking The Radiator And Condenser
If either of the above parts are extremely dirty or you are not Lexus recommends “Toyota Super Long Life Coolant”, which sure of their condition, take your vehicle to a Lexus dealer. has been tested to ensure that it will not cause corrosion nor...
Page 374: Spark Plugs
ENGINE SPARK PLUGS Your engine is fitted with iridium−tipped spark plugs. NOTICE Use only iridium−tipped spark plugs and do not adjust gaps for your engine performance and smooth drivability.
Page 375 ENGINE...
Page 376 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Chassis Specifications ......... . . Checking brake fluid .
Page 377 “Toyota Genuine ATF accompanied by vibration, and ultimately damage the Type T−IV” (ATF JWS3309 or NWS6500) to aid in assuring automatic transmission of your vehicle. optimum transaxle performance. Please contact your Lexus dealer for further details.
Page 378 CHASSIS — BRAKES Pedal clearance Fixed type 70 mm (2.8 in.) Min. * Adjustable type (in frontmost position) 59 mm (2.3 in.) Min. * Pedal free play Fixed type 1 — 6 mm (0.04 — 0.24 in.) Adjustable type (in frontmost position) 1 —...
Page 379 CHASSIS — TIRES AND WHEELS (type A) Tire size P215/60R16 94V Tire inflation pressure Recommended cold tire inflation Front 200 kPa (2.0 kgf/cm or bar, 29 psi) pressure Rear 200 kPa (2.0 kgf/cm or bar, 29 psi) For sustained high speeds above 160 km/h (99 mph), in countries where such speeds are permitted by law, add 40 kPa (0.4 kgf/cm or bar, 6 psi) to the front tires and rear...
Page 380 CHASSIS — TIRES AND WHEELS (type B) Tire size P215/55R17 93V Tire inflation pressure Recommended cold tire inflation pressure Normal driving Front 210 kPa (2.1 kgf/cm or bar, 30 psi) Rear 210 kPa (2.1 kgf/cm or bar, 30 psi) For sustained high speeds above 160 km/h (99 mph), in countries where such speeds are permitted by law, add 30 kPa (0.3 kgf/cm or bar, 4 psi) to the front tires and rear...
Page 381: Checking Brake Fluid
CHASSIS CHECKING BRAKE FLUID CAUTION Take care when filling the reservoir because brake fluid can harm your hands or eyes. If fluid gets on your hands or in your eyes, flush the affected area with clean water immediately. If you still feel uncomfortable with your hands or eyes, go to the doctor.
Page 382: Checking Power Steering Fluid
CHASSIS CHECKING POWER STEERING FLUID " If cold O.K. If cold add If hot O.K. If hot add Clean all dirt off the reservoir and look at the fluid level. If the fluid is cold, the level should be in the “COLD” range. Similarly, Check the fluid level through the reservoir.
Page 383 CHASSIS CHECKING TIRE INFLATION NOTICE PRESSURE Avoid overfilling, or the power steering could be damaged. 63E035...
Page 384 CHASSIS D Always use a tire pressure gauge. The recommended cold tire inflation pressures, appearance of a tire can be misleading. Besides, tire sizes and the combined weight of occupants tire inflation pressures that are even just a few and cargo (vehicle capacity weight) are described pounds off can degrade handling and ride.
Page 385 6. Install the tire valve cap. If a gauge and air pump are not available, have your vehicle checked by your Lexus dealer. CAUTION Be sure to reinstall the tire valve caps. Without the valve caps, dirt or moisture could get into "...
Page 386 CHASSIS CAUTION Keep your tires properly inflated. Otherwise, the following conditions may occur and cause an accident resulting in death or serious injuries. Low tire pressure (underinflation) — D Excessive wear D Uneven wear D Poor handling D Possibility of blowouts from an overheated tire D Poor sealing of the tire bead D Wheel deformation and/or tire separation...
Page 387 CHASSIS TIRE INFORMATION Tire symbols 63E040 " The illustration indicates typical tire symbols.
Page 388 CHASSIS Summer tire or all season tire: An all season Radial tires or bias−ply tires: A radial tire has tire has “M+S” on the sidewall. The tire not “RADIAL” on the sidewall. A tire not marked with marked with “M+S” is a summer tire. For details, “RADIAL”...
Page 389 CHASSIS DOT and Tire Identification Number (TIN) Tire size " The illustration indicates typical DOT and Tire " The illustration indicates typical tire size. Identification Number (TIN). Tire use (P=Passenger car, T=Temporary “DOT” symbol use) Tire Identification Number (TIN) Section width (in millimeters) Tire manufacturer’s identification mark Aspect ratio (tire height to section width) Tire size code...
Page 390 CHASSIS Name of each section of tire " Section width Tire height " Bead Wheel diameter Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer...
Page 391 Your Lexus dealer will help answer any questions characteristics and climate. you may have as you read this information. Traction AA, A, B, C — The traction grades, from DOT quality grades —...
Page 392 CHASSIS Temperature A, B, C — The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 393 CHASSIS Glossary of tire terminology Tire related term meaning Accessory weight the combined weight (in excess of those standard items which may be replaced) of automatic transmission, power steering, power brakes, power windows, power seats, radio, and heater, to the extent that these items are available as factory−installed equipment (whether installed or not) Cold tire inflation tire inflation pressure when the vehicle has been parked for at least 3 hours or...
Page 394 CHASSIS Tire related term meaning Normal occupant 68 kg (150 lb.) times the number of occupants specified in the second column of weight Table 1 that follows Occupant distribution distribution of occupants in a vehicle as specified in the third column of Table 1 that follows Production options the combined weight of those installed regular production options weighing over 2.3 kg...
Page 395 CHASSIS Tire related term meaning Vehicle maximum load the load on an individual tire that is determined by distributing to each axle its share of on the tire the maximum loaded vehicle weight and dividing by two Vehicle normal load the load on an individual tire that is determined by distributing to each axle its share of on the tire the curb weight, accessory weight, and normal occupant weight (distributed in...
Page 396: Types Of Tires
CHASSIS All season tires, however, do not have adequate TYPES OF TIRES traction performance compared with snow tires in Determine what kind of tires your vehicle is originally heavy or loose snow. Also, all season tires fall short equipped with. in acceleration and handling performance compared with summer tires in highway driving.
Page 397: Rotating Tires
Tires should be stored in a cool dry place. To equalize tire wear and help extend tire life, Lexus recommends that you rotate your tires according to the maintenance schedule. (For scheduled maintenance information, please refer to the “Owner’s Manual Supplement/Scheduled...
Page 398: Checking And Replacing Tires
CHASSIS The tires on your Lexus have built−in tread wear CHECKING AND REPLACING TIRES indicators to help you know when the tires need replacement. When the tread depth wears to 1.6 mm When to replace your tires (0.06 in.) or less, the indicators will appear. If you can see the indicators in two or more adjacent grooves, the tire should be replaced.
Page 399 CHASSIS This applies also to the spare tire and tires stored CAUTION for future use. Observe the following instructions. Otherwise, Tire selection an accident may occur resulting in death or When replacing a tire, use a tire of the same size serious injuries.
Page 400: Installing Snow Tires And Chains
CHASSIS INSTALLING SNOW TIRES AND Snow tire installation CHAINS Snow tires should be installed on all wheels. Installing snow tires on the front wheels only can lead to an When to use snow tires or chains excessive difference in road grip capability between the front and rear tires which could cause loss of vehicle control.
Page 401 CHASSIS Tire chain selection Regulations regarding the use of tire chains vary according to location or type of road. Always check local regulations before installing chains. NOTICE If the wrong combination of tire and chain is used, the chains could damage the vehicle body. Chain installation Install the chains on the front tires as tightly as possible.
Page 402: Replacing Wheels
CHASSIS REPLACING WHEELS CAUTION D Do not exceed 50 km/h (30 mph) or the chain When to replace your wheels manufacturer’s recommended speed limit, If you have wheel damage such as bending, cracks or whichever is lower. heavy corrosion, the wheel should be replaced. D Drive carefully avoiding bumps, holes, and sharp If you fail to replace a damaged wheel, the tire may slip off the turns, which may cause the vehicle to bounce.
Page 403: Aluminum Wheel Precautions
D Use only Lexus wheel nuts and wrench designed for your chain clearance to the body and chassis. aluminum wheels. D When balancing your wheels, use only Lexus balance CAUTION weights or equivalent and a plastic or rubber hammer.
Page 404: Suspension And Chassis
CHASSIS SUSPENSION AND CHASSIS CAUTION Do not modify the suspension/chassis with lift kits, spacers, springs, etc. It can cause dangerous handling characteristics, resulting in loss of control.
Page 405 CHASSIS...
Page 406 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Electrical components Specifications ......... . . Checking battery condition .
Page 407 ELECTRICAL COMPONENTS SPECIFICATIONS — FUSE LOCATIONS " Engine compartment Driver’s side instrument panel...
Page 408 ELECTRICAL COMPONENTS — FUSES Engine compartment 64E165 Driver’s side instrument panel...
Page 409 ELECTRICAL COMPONENTS FUSE AMPERE CIRCUIT FUSE AMPERE CIRCUIT Multiport fuel injection Multiport fuel injection system/sequential multiport system/sequential multiport ETCS fuel injection system fuel injection system Multiplex communication Horns HORN system (power door lock Starting system system, auto−door locking DOOR1 system, wireless remote Right−hand headlight (high HEAD RH control system)
Page 410 ELECTRICAL COMPONENTS FUSE AMPERE CIRCUIT FUSE AMPERE CIRCUIT Anti−lock brake system, All components in “RDI FAN”, vehicle stability control system, “ABS No.2”, “ABS No.3”, “CDS”, ABS No.2 traction control system, brake “HTR (50 A)” and “ADJ PDL” assist system fuses and anti−lock brake ABS NO.1 system, vehicle stability control All components in “HEAD LH...
Page 411 ELECTRICAL COMPONENTS FUSE AMPERE CIRCUIT FUSE AMPERE CIRCUIT Multiplex communication Cigarette lighter system (power door lock Power rear view mirrors, clock, system, security system, multi−information display, auto−door locking system, ECU− driving position memory automatic light control system, system, front passenger seat headlight delay off system, tail position memory system light auto cut system,...
Page 412 ELECTRICAL COMPONENTS FUSE AMPERE CIRCUIT FUSE AMPERE CIRCUIT Front passenger’s door lock Outside rear view mirror system, front passenger’s defogger PWR NO.2 power window Starting system On−board diagnosis system Front fog lights SEAT Seat ventilators/heaters SUN− Rear sunshade SHADE Windshield washer WASHER Auto anti−glare inside rear view mirror, compass, back−up...
Page 413: Checking Battery Condition
ELECTRICAL COMPONENTS CHECKING BATTERY CONDITION FUSE AMPERE CIRCUIT Power seats, driving position memory system, front Precautions passenger seat position SEAT memory system CAUTION Driver’s door lock system, driver’s power window, electric PWR NO.1 moonroof BATTERY PRECAUTIONS Rear window defogger The battery produces flammable and explosive hydrogen gas.
Page 414 ELECTRICAL COMPONENTS Checking battery exterior D If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or burn, get medical attention immediately. D If electrolyte gets on your clothes, there is a possibility of its soaking through to your skin, so immediately take off the exposed clothing and follow the procedure above, if necessary.
Page 415 To normalize the BLUE — Good condition moonroof, see page 98. WHITE — Charging necessary. Have the battery checked by your Lexus dealer. RED — Have the battery checked by your Lexus dealer. NOTICE Do not refill the battery with water.
Page 416 ELECTRICAL COMPONENTS BATTERY RECHARGING CHECKING AND REPLACING THE PRECAUTIONS BLADE TYPE FUSES During recharging, the battery is producing hydrogen gas. Therefore, before recharging: 1. If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable. 2.
Page 417 ELECTRICAL COMPONENTS " Driver’s side instrument panel 2. Make sure the inoperative component is turned off. Pull the suspected fuse straight out with the pull−out tool and 1. Turn the ignition switch off and remove the auxiliary check it. If it has blown, push a new fuse into the clips. box.
Page 418 It is a good idea to purchase a set of spare fuses and keep them in your vehicle for emergencies. If the new fuse immediately blows out, there is a problem with the electrical system. Have your Lexus dealer correct it as soon as possible. CAUTION Never use a fuse with a higher amperage rating, or any other object, in place of a fuse.
Page 419 CAUTION Always use a genuine Lexus fuse or equivalent for replacement. Never install an ordinary wire — even for a temporary fix. This may cause extensive damage and possibly a fire.
Page 420: Adding Washer Fluid
You may use plain water as washer fluid. However, in cold areas where temperatures range below the freezing point, use washer fluid containing antifreeze. This product is available at your Lexus dealer and most auto parts stores. Follow the manufacturer’s directions for how much to mix with water. NOTICE D Do not use engine antifreeze or any other substitute because it may damage your vehicle’s paint.
Page 421 ELECTRICAL COMPONENTS CHECKING THE HEADLIGHT AIM Adjusting the vertical aiming (vehicles with discharge headlight) 1. Turn the vertical movement adjusting bolt 1 in either direction using a Phillips−head screwdriver. At this time, keep " the turning direction and number of turns in mind. Vertical movement adjusting bolt 1 Vertical movement adjusting bolt 2 Before checking the headlight aim:...
Page 422: Replacing Light Bulbs
The illustration on the following pages show the locations of light bulbs. If it is necessary to replace a bulb, take your vehicle to your Lexus dealer as soon as possible. Use bulbs with the bulb numbers and wattage ratings given in the table.
Page 423 However, if there is a large drop of water on the inside of the lens, or if there is water pooled inside the light, contact your Lexus dealer. Light Bulbs Bulb No.
Page 424 ELECTRICAL COMPONENTS Light Bulbs Bulb No. Type Light Bulbs Bulb No. Type High mounted stoplight 7440 Vanity lights −−− Stop/tail lights −−− 21/5 Interior light −−− Rear side marker lights −−− Door courtesy lights Rear turn signal lights −−− Glove box light −−−...
Page 425 ELECTRICAL COMPONENTS Light Bulbs Bulb No. Type Trunk light −−− A: HB3 halogen bulbs B: D2S discharge bulbs C: H11 halogen bulbs D: HB4 halogen bulbs E: Wedge base bulbs F: Single end bulbs G: Double end bulbs...
Page 426 SECTION – SERVICE PROCEDURES AND SPECIFICATIONS Body Specifications ......... . . Protecting your vehicle from corrosion .
Page 427 BODY SPECIFICATIONS — DIMENSIONS AND WEIGHT Overall length 4855 mm (191.1 in.) Overall width 1810 mm (71.3 in.) Overall height 1455 mm (57.3 in.)* Wheelbase 2720 mm (107.1 in.) Tread — Front 1545 mm (60.8 in.) — Rear 1535 mm (60.4 in.) Vehicle capacity weight 410 kg (900 lb.) (occupants + luggage)
Page 428 BODY PROTECTING YOUR VEHICLE To help prevent corrosion on your Lexus, follow these guidelines: FROM CORROSION Keep your vehicle clean by regular washing. In addition, Proper care of your Lexus can help ensure long−term observe the following points. corrosion prevention.
Page 429: Washing And Waxing
WASHING AND WAXING accumulate under the floor mats and could cause corrosion. Occasionally check under the mats to make sure the area is Washing your Lexus dry. Be particularly careful when transporting chemicals, cleansers, fertilizers, salt, etc. These should be transported in Keep your vehicle clean by regular washing.
Page 430 Polishing and waxing is recommended to maintain the molding faces are soft. original beauty of your Lexus’ finish. Road tar: Remove with turpentine or cleaners that are marked Apply wax once a month or if the vehicle surface does not repel safe for painted surfaces.
Page 431: Cleaning The Interior
Windshield washer nozzles: Make sure that the nozzles do CAUTION not become blocked when waxing. If a nozzle becomes blocked, contact your Lexus dealer to have the vehicle D Be careful not to splash water or spill liquid on the serviced.
Page 432 BODY Remove dirt on the leather in the following ways: D Mildew may develop on soiled leather upholstery. Be 1. Wipe it off lightly using a soft cloth (e.g. gauze) dampened especially careful to avoid oil spots. Try to keep your with 5% solution of neutral detergent for wool.
Page 433 BODY Non−leather Trim (Dash) The seat belts may be cleaned with mild soap and water or with lukewarm water. The non−leather trim may be easily cleaned with a mild Use a cloth or sponge. As you are cleaning, check the belts for soap or detergent and water.
Page 434 It may contain the ingredients mentioned above. Immediately clean any spill using the method mentioned above. If you have any questions about the cleaning of your Lexus, your local Lexus dealer will be pleased to answer them.
Page 435 BODY...
Page 436 SECTION REPORTING SAFETY DEFECTS FOR U.S. OWNERS Reporting safety defects for U.S. owners Reporting safety defects for U.S. owners ....
Page 437 National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll−free: 1−800−25−LEXUS). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 438: Gas Station Information
D Automatic transaxle: GAS STATION INFORMATION Fluid type — Toyota Genuine ATF Type T−IV D Fuel selection: See page 360 for detailed information. Select unleaded gasoline with an Octane Rating of 87 D Tire information: (Research Octane Number 91) or higher. For improved See pages 366 through 386 for detailed information.

Lexus ES330 2005 Owner's Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lexus ES330 2005

Summary of Contents for Lexus ES330 2005

Table of Contents
