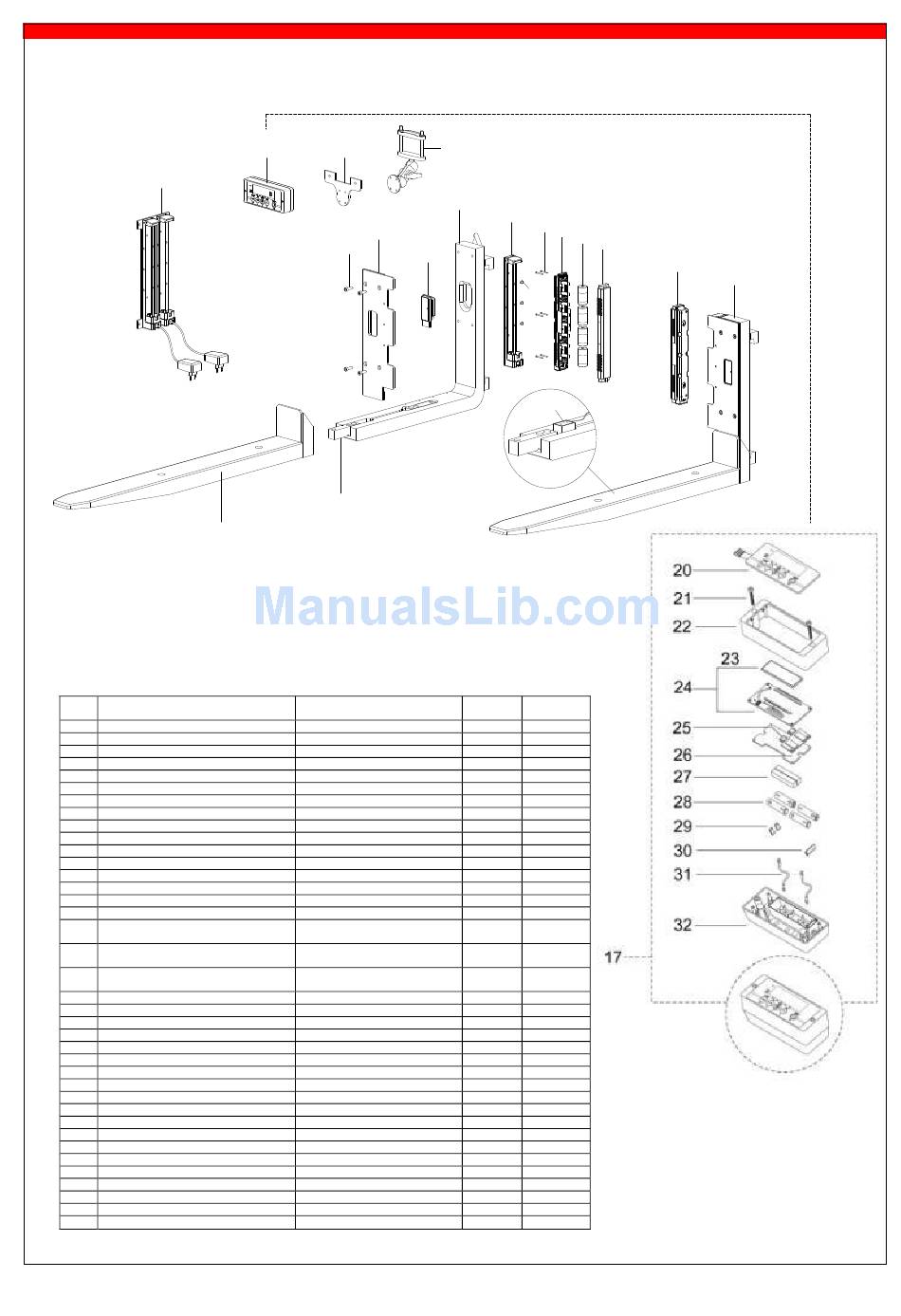

3. Exploded-view & parts list
18
12
Part Designation
nr.
1 Assembled weighing fork
2 Battery pack (assembly without D-cellls)
2a with 1.5 V alkaline D-cellls (standard)
2b with rechargable 1.2 V D-cells (option)
3 Top housing battery pack
4 Batteries (D-cell):
4a A = regular 1.5 V D-cells (standard)
4b B = rechargeable 1.2 V D-cells (option)
5 Bottom housing battery pack
6 Philips-head screw M3 x 25
7 Round-head screw M6 x 8
8 Holder battery pack
9 Weighing fork
10 Loadcell
11 Loadcell fixation ring
12 Fork shoe
13 Bluetooth transmitterbox (assembly)
13a Labels for Bluetooth transmitterboxes
(set with nr. 1 and 2)
14 Coverplate forks (left)
Coverplate forks (right)
15 Socket-head screw M8 x 20
16a Mounting bracket indicator
16b Indicator mounting support
17 Indicator (assembled)
18 Charger (option)
19 Level correction sensor (option)
20 Touch panel
21 Socket head screw M6x40
22 Top housing indicator (red)
23 Display
24 Indicator board
25 Bluetooth receiver board
26 Middle cover
27 Cellrubber block
28 AA battery 1.5V
29 Contact snap single
30 Contact snap dual
31 Strain relief
32 Bottom housing indicator
17 16a
14
15
13
11
Article code
BAP-IFORK
SA-BA-IFORK-ST
SA-BA-IFORK-RC
BA-1,5-DCELL
BA-1,5-DCELL-RC
MP-SCREW-M6-8-LOW-STST
BAP-HOLDER-WF
WF-2A-100-45-608 (or 2B)
LC-2000
MP-RING-LC-FIXATION
FS-WF-25-1150-10-15-RAL7021
HO-J-RWV-BLT-F1
HO-J-RWV-BLT-F2
SS-LABEL-WF-SMALL
MP-CP-RF-LEFT-FEM2A (or 2B)
MP-CP-RF-RIGHT-FEM2A
MP-BOLT-M8-20-CYL
MP-BRACKET-RAM-BB
MP-SUP-RAM-CLAMP-BASE
SA-IN-31-IFORK
SA-CH-WF-DUAL
EP-LEVELSENSOR
FR-31N-RAV-HO
MP-BOLT-M6-40-CYL
HOP-RAV-RAL3000-UPPER
INP-31-DISPLAY
IN-31-N-NO-ADS
EB-31-N-BLT-DUAL
HOP-MC
HOP-PACK-XTRA-RU-STRIP
BA-1,5-PENN-AA-R6
BAP-SNAP-SINGLE
BAP-SNAP-DUAL
HOP-RAV-STRAINRELIEF
HOP-RAV-RAL9011-LOWER
16b
9
8
6
5
4
3
7
10
Number Supplier
2 -
2 RAVAS
2 RAVAS
2 RAVAS
2 -
- -
8 Buy locally
8 Buy locally
2 -
12 Buy locally
6 Buy locally
2 RAVAS
2 RAVAS
4 RAVAS
4 RAVAS
2 RAVAS
1 RAVAS
1
1 RAVAS
1 RAVAS
1
8 Buy locally
1 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
2 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
4 Buy locally
2 RAVAS
1 RAVAS
1 RAVAS
1 RAVAS
2
1
