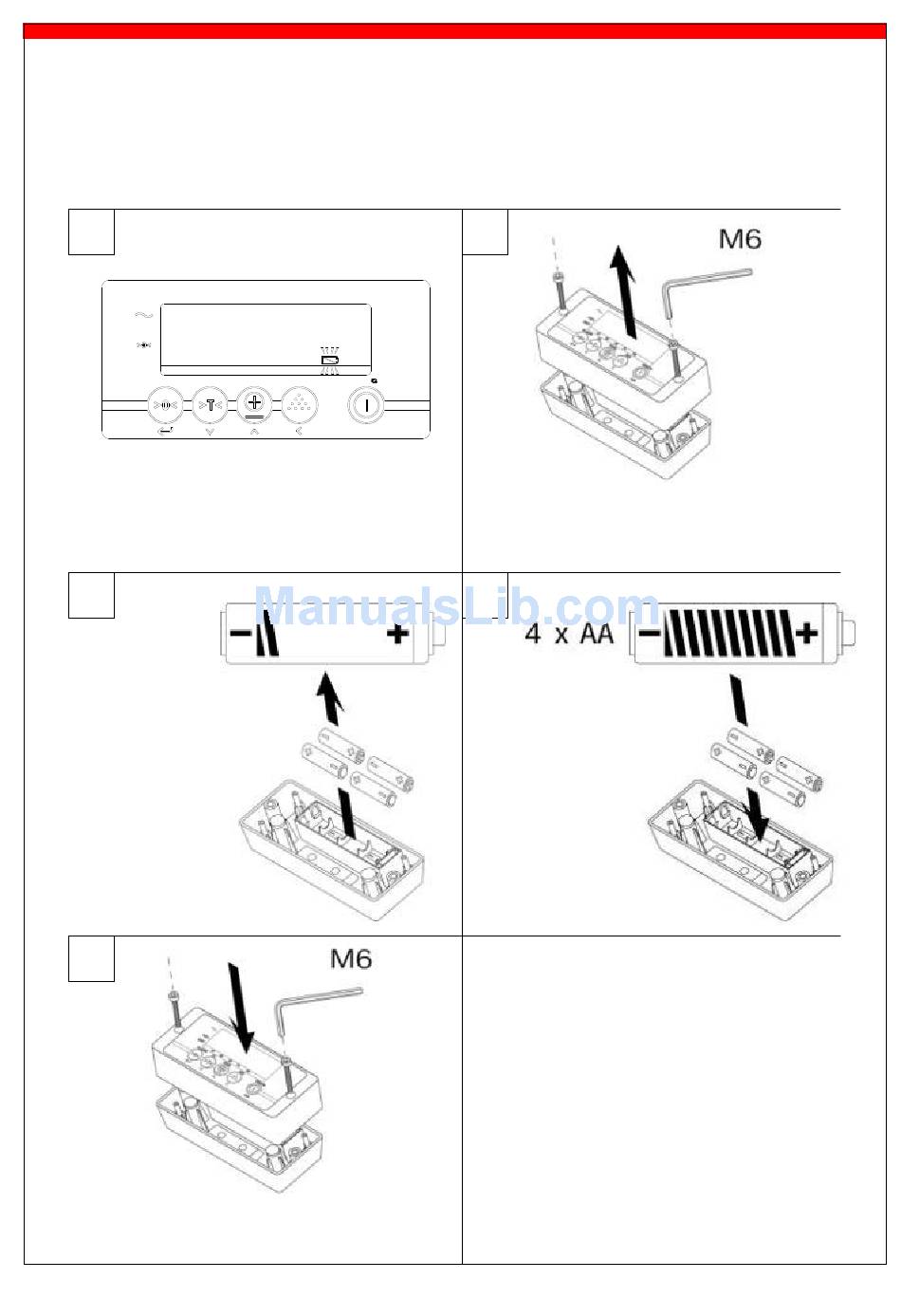

Changing the batteries of the indicator

As standard, the indicator is equipped with 4 AA batteries. Optionally the power supply of the indicator
can be wired from the truck's batteries. This has to be ordered separately because the indicator has to
be supplied with the approperiate voltage converter of voltage stabilizator board.
1
NET
e1 e2
ID CODE PT
Replace batteries as soon as the
low bat indicator starts blinking.
When the low-bat symbol starts
flashing during printing (option)
please change the batteries.
3
Open the indicator housing
and remove the empty
batteries.
5
Close the indicator housing and tighten
the bolts by using a M6 hex key.
e3 F1 F2
TOTAL PCS KG/LB
CLR
2
Use a M6 hex key to release the
bolts of the indicator housing.
4
Place new
batteries.
Be sure the
batteries are
positioned
correctly. Watch
for the polarity!
USER MANUAL –
iForks 13
