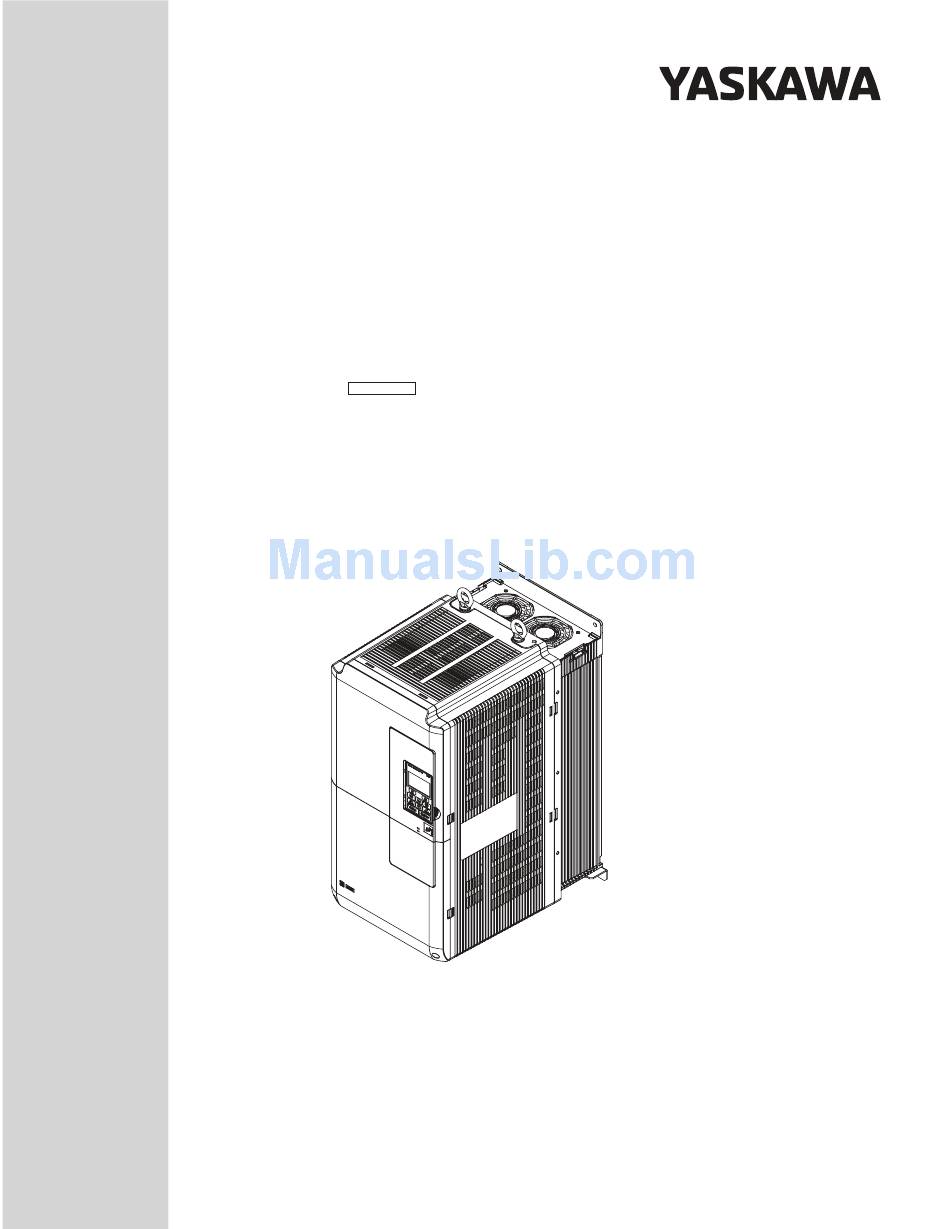

- Page 1 Low Harmonic Regenerative Pump Controller U1000 iQpump Drive Quick Start Procedure Type: CIMR-UW Models: 200 V Class: 10 to 100 HP ND 400 V Class: 7.5 to 350 HP ND MANUAL NO. TOEPYAIUPW02A PUBLISHED FEBRUARY 2017 Revision: <1> DRIVE SOFTWARE PRG: 0030...
-
Page 2: Table Of Contents
STEP 9: AUTO MODE OPERATION ..............17 STEP 10: HAND MODE OPERATION ..............20 STEP 11: PROGRAMMING ADVANCED PARAMETERS ........21 STEP 12: SLEEP AND ANTI-NO-FLOW (ANF) DETECTION ......23 STEP 13: YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... -
Page 3: Step 1: Identify The Model For Installation
This Quick Start Procedure serves as general guide to help install, configure and perform test run operation. Safety Symbols in Refer to the U1000 iQpump Drive User Manual No. TOEPYAIUPW01 for complete instructions to configure this this Document product for each specific installation site. -
Page 4: Step 2: Perform Mechanical Installation
Perform Mechanical Installation 2.1 Verify installation environment. Mechanical installation and mounting footprint vary by model. Refer to the U1000 iQpump Drive User Manual No. TOEPYAIUPW01 , Chapter 2: Mechanical Installation for details. Ensure the installation conditions are suitable to prolong and optimize performance life. -
Page 5: Step 3: Motor Line Power
Motor Line Power Remove the front cover. NOTICE: Improper removal of the drive’s protective covers can cause damage to the drive. Adhere to U1000 iQpump Drive User Manual TOEPYAIUPW01, Section 3.5, to avoid drive damage. Connect main input power and motor wiring to the drive. -
Page 6: Step 4: Select Start/Stop And Speed Method
M1 M2 M3 M4 MD ME MF V+ AC A1 A2 A3 FM AM AC RP AC S1 S2 S3 S4 S5 S6 S7 S8 SN SC SP MA MB MC Jumper (FWD) YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 7 Signal 0-10 Vdc (typical) Shield E(G) Output Note: Refer to Section B.7, Option Settings, in the U1000 iQpump Drive User Manual (No. TOEPYAIUPW01) to program the drive for network communication if required. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
- Page 8 10.0 0010.0 0020.0 (0.0~6000.0) (0.0~6000.0) (0.0~6000.0) '10.0 '10.0 '10.0 HOME HOME HOME Press to switch Press to save to edit mode. Modify Value new value. Press to return to the main menu. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
-
Page 9: Step 5: Real-Time Clock Setup
2012, 7:35 am Note: After the real-time clock is set, the real-time clock setup screen will not display again unless parameter o4-17 is set to 1. - PRMSET- Date/Time Config o4-17= "0" HOME YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... -
Page 10: Step 6: Application Setup
Init parameters Init parameters A1-03= 6008 A1-03= A1-03= Pressure Control No Initialize No Initialize "0" "0" HOME HOME HOME ENTER Increase/Decrease Switch to Edit Mode Select Application Selection Press to select ENTER YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 11 E2-01= 9.00 E2-01= 009.00 (1.10~16.50) (1.10~16.50) (1.10~16.50) "7.00A" "7.00A" "7.00A" HOME HOME HOME ENTER ENTER Switch to Edit Mode Modify Value Save New Value Press key to return to the main menu. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
-
Page 12: Step 7: Parameter Overview-Quick Setting Menu (Simplex)
Delta Level from the When P1-01, Pump Mode, is set to 3 System Setpoint. (MEMOBUS network), this function is active only on the first drive in the network. Pump Quick Setup YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 13 7.9 Optional step: P5-04 HAND Key Function Enables or disables the HAND key on the 1: Enabled Selection HOA keypad. HAND key on HOA keypad. 0: Disabled 1: Enabled YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
-
Page 14: Step 8: Fine-Tune Settings For Pumping Application
The drive continuously monitors the system feedback signal. Set the low feedback level parameter P1-08 to the minimum feedback level allowed for your system to display a “Low Feedback” fault. Set the high feedback level parameter P1-11 to the maximum feedback level allowed to display a “High Feedback” fault. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 15 Warning! Sudden Movement Hazard. Ensure all personnel remain clear of the motor when P4-10 = 1. Failure to comply may result in death or serious injury due to sudden equipment movement. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
-
Page 16: Step 9: Verify Pump Rotation And Transducer Feedback
Hand Speed .. Use to change Hand Speed value. Press to save value . Note: If the direction of rotation is not correct, de-energize the drive and follow step 9.3. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... -
Page 17: Step 10: Auto Mode Operation
AUTO Mode: Select the run command source setting in parameter b1-02 (Refer to Step 4.6 for an example of setting a parameter.) • b1-02 = 0 is the default setting (Operator/HOA Keypad) YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 18 Q1-01 within the Quick Setup Menu. Press to select the digit and to change the system setpoint. Press to store setpoint and press to return to the main operation menu. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
- Page 19 Feedback signal from (Example 5.0 seconds) pressure transducer (4 – 20 mA) Start/Draw Down Level P1-04 Start Start Pump System System Setpoint WAIT Delay (Example 80 PSI) Refer to Figure 8.2, Start/Draw Down Level. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
-
Page 20: Step 11: Hand Mode Operation
Set parameter P5-01 (HAND Mode Ref.) to 0 to adjust the hand mode reference from an external 0 – 10 V signal connected to terminals AC and A3. 0 – 10 V Connection +V AC A1 A2 A3 FM AM AC RP AC 24V E(G) Cable Shield 0 ~ 10 Vdc YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... -
Page 21: Step 12: Programming Advanced Parameters
- Low Level Feedback – ov - DC Bus Overvoltage - High Level Feedback – STo - Pull-Out Detection - Transducer Loss - Not Maintaining Setpoint - Loss of Prime - Pump Over Cycle. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 22 Note: Utility Start Delay is function. utility power is restored and active when P4-10 is enabled P4-10 is enabled. and operation (start/stop) is from the HOA keypad. Programming YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
-
Page 23: Step 13: Sleep And Anti-No-Flow (Anf) Detection
(P1-06) where it will hold for 5 seconds (P2-03) before going to sleep. 13.5 Run the system in normal automatic operation and verify sleep and wake-up operation until the system performs satisfactory. YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure... - Page 24 U1000 iQpump Page 24 Quick Start Procedure of 25 NOTES: YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
- Page 25 U1000 iQpump Page 25 Quick Start Procedure of 25 NOTES: YASKAWA TOEPYAIUPW02A U1000 iQpump Drive Quick Start Procedure...
- Page 26 Low Harmonic Regenerative Pump Controller U1000 iQpump Drive Quick Start Procedure YASKAWA AMERICA, INC. 2121, Norman Drive South, Waukegan, IL 60085, U.S.A. Phone: 1-800-YASKAWA (927-5292) or 1-847-887-7000 Fax: 1-847-887-7310 http://www.yaskawa.com DRIVE CENTER (INVERTER PLANT) 2-13-1, Nishimiyaichi, Yukuhashi, Fukuoka, 824-8511, Japan Phone: 81-930-25-3844 Fax: 81-930-25-4369 http://www.yaskawa.co.jp...
