Digitrax Zephyr xtra Manual page 45

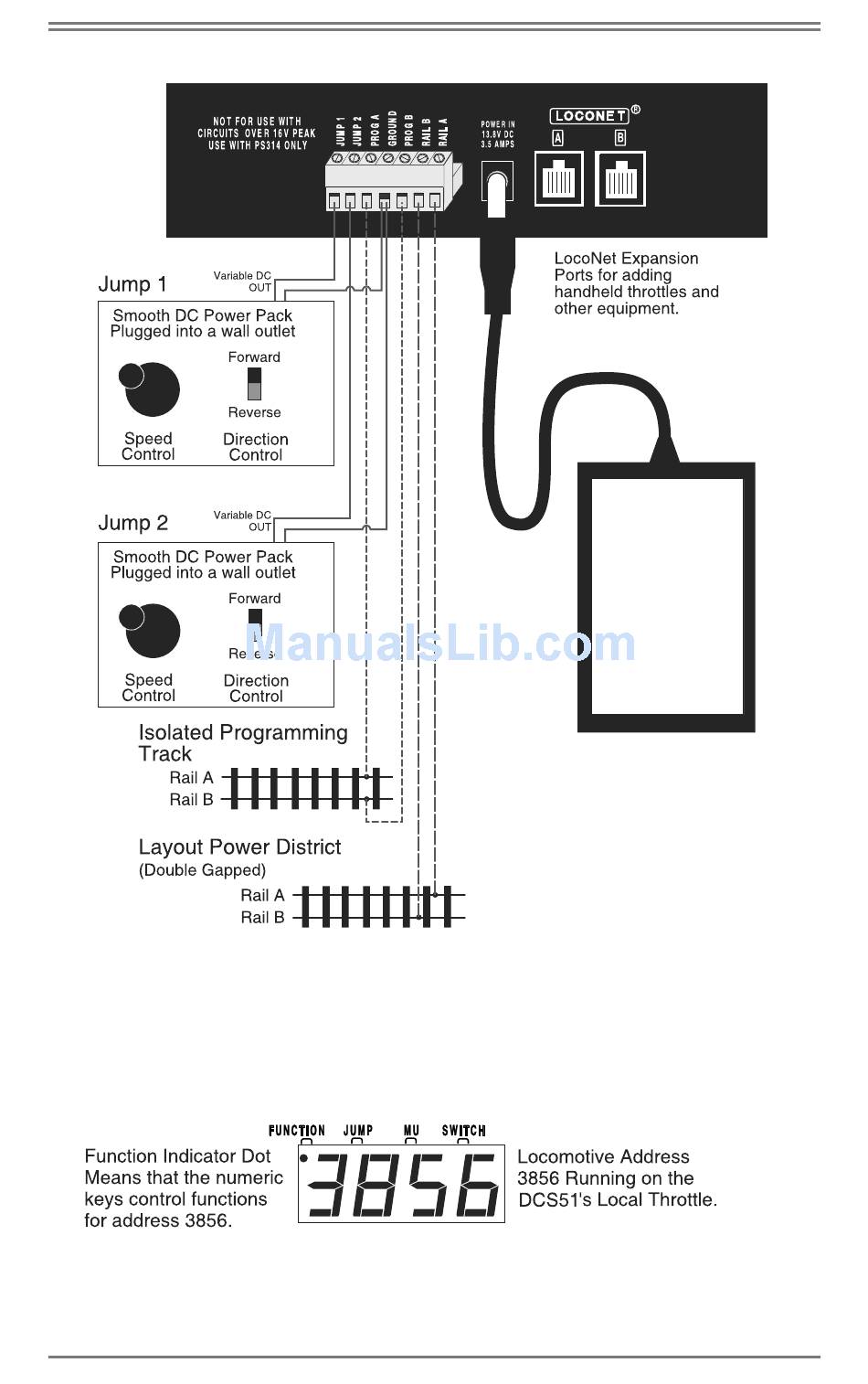

DCS51 rear panel Connections Diagram with Jump ports
pS314
or similar
DC supply
To view which addresses are being used by each throttle:
In the following example, locomotive address 3856 is selected on the Local
Throttle and nothing is selected on either Jump 1 or Jump 2.
1. The loco you are controlling on the DCS51's throttle knob is called the
local throttle. The local throttle display looks something like this:
