7.2 Connecting the Zephyr xtra

These simple instructions will help you get up and running quickly. A full
description of all controls and technical reference information are included later
in this manual. This section assumes that you are using a new set straight out of
the box.
1. Hook up the wires from the track to the rail a & rail B terminals on
the DCS51. Insert the wire from one rail of the track into the rail a termi-
nal on the back of the DCS51. Insert the wire from the other rail of the
track into the rail B terminal. Turn the screw counter clockwise to open
the connector and clockwise to close it once the wire is in place.
2. Plug the barrel connector from the PS314 into the pOWer in jack on the
back of the DCS51. Plug the body of the PS314 in to a regular wall outlet.
3. Turn track power on. Check the TRACK STATUS Light. If it is on, you
are ready to go. If the TRACK STATUS Light is unlit, press the
key (located on the left side of the keypad) to turn track power on. When
track power is on the TRACK STATUS Light will be lit.
The following examples will help you learn about your new DCS51. The
first example shows how to select and run a locomotive without a DCC
decoder. The second example shows how to select and run a DCC decoder
equipped locomotive.
©2012 Digitrax, Inc.

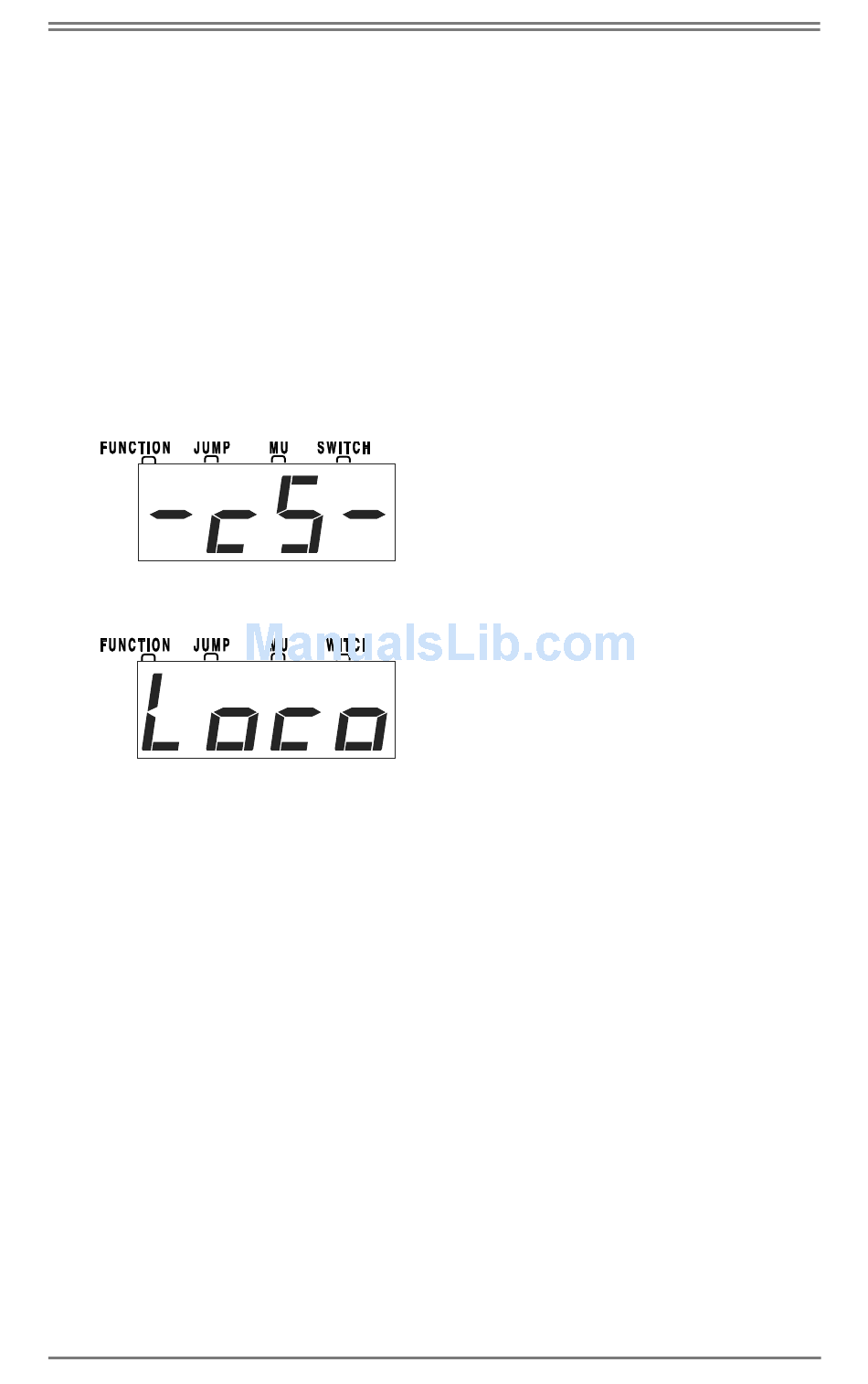

Once power is applied, the DCS51 will
briefly flash
running as a command station.
The DCS51's display will change auto-
matically to
was on the throttle when you turned it off.
www.digitrax.com
to let you know it is
"-cS-"
or the last address that
"Loco"
pOWer
