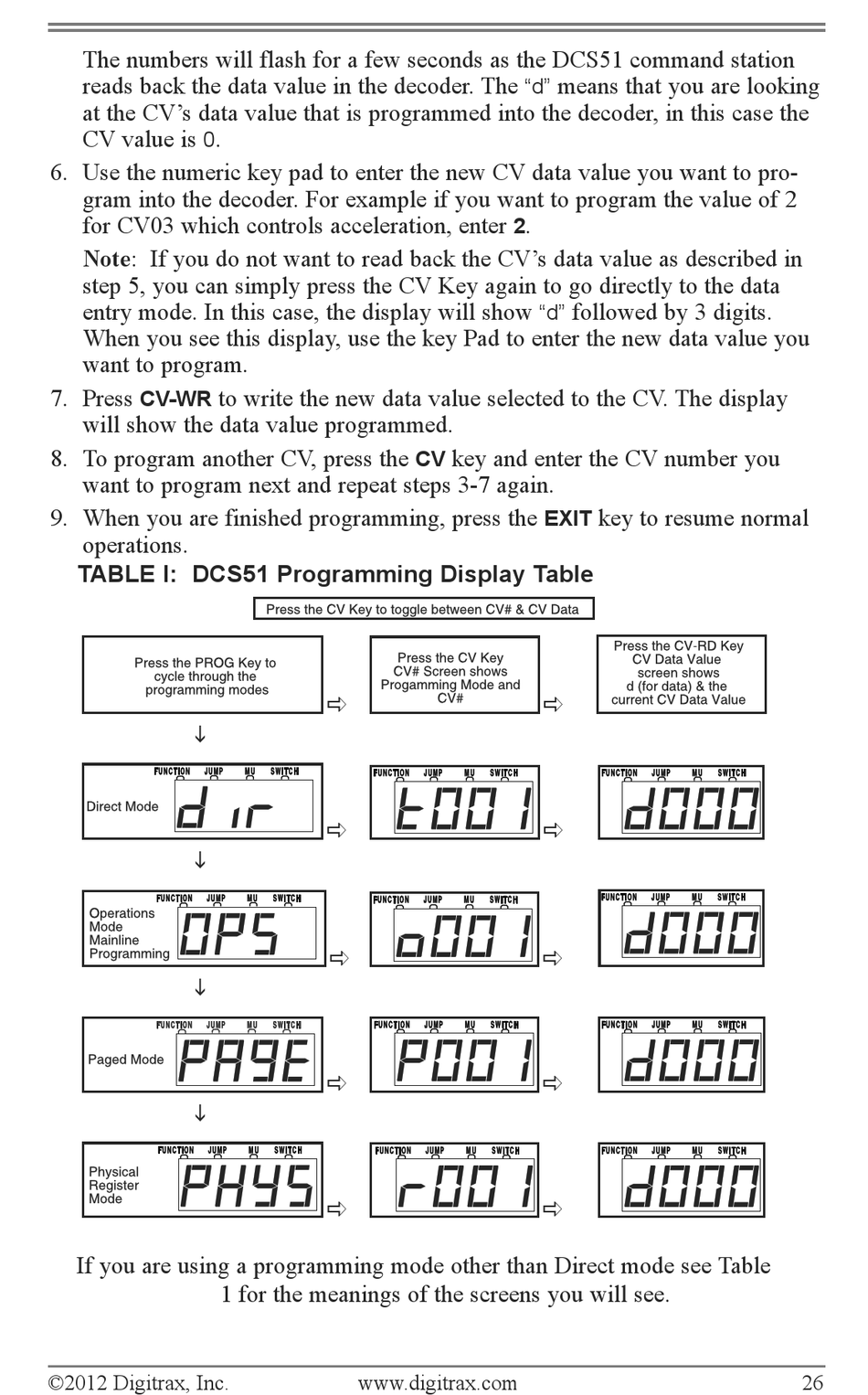

Digitrax Zephyr xtra Manual page 27

The numbers will flash for a few seconds as the DCS51 command station
reads back the data value in the decoder. The
at the CV's data value that is programmed into the decoder, in this case the
CV value is
0
6. Use the numeric key pad to enter the new CV data value you want to pro-
gram into the decoder. For example if you want to program the value of 2
for CV03 which controls acceleration, enter
Note: If you do not want to read back the CV's data value as described in
step 5, you can simply press the CV Key again to go directly to the data
entry mode. In this case, the display will show
When you see this display, use the key Pad to enter the new data value you
want to program.
7. Press
Cv-Wr
will show the data value programmed.
8. To program another CV, press the
want to program next and repeat steps 3-7 again.
9. When you are finished programming, press the
operations.
taBle i: DCS51 programming Display table
i
i
i
i
If you are using a programming mode other than Direct mode see Table
©2012 Digitrax, Inc.
.
to write the new data value selected to the CV. The display
1 for the meanings of the screens you will see.
