ASIC Program Composition and Version Up

5.7.1

ASIC Program Composition

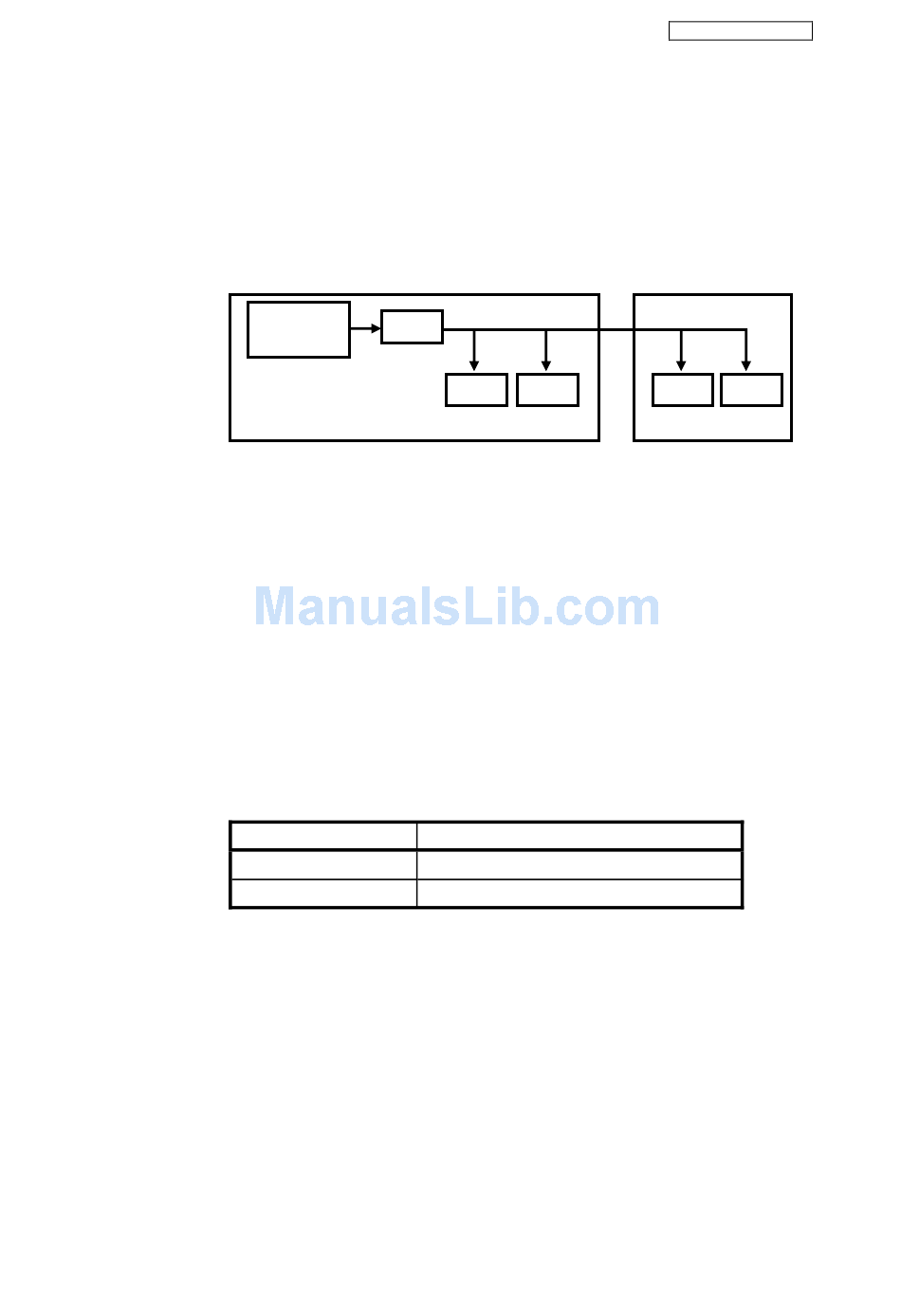

The CPU writes programs stored into the flash memory to ATG, RSM, PTC, and PDD
5.7.2

ASIC Program Version Up

(1) Turn the power off.
(2) Remove the masking plate on the front cover.
(3) For PCB-ASSY-IPB1, set bit 1 of SW10 to ON and bit 2 to OFF.
(4) Install the CFG card* in the IC card socket on the IPB1 board.
(5) Turn the power ON.
(6) When COPY 1 to 4 and on the operation panel and COPY END is displayed, writing
ends.
(7) Turn the power OFF.
(8) For IPB1 board, set the bit 1 of SW10 to OFF and bit 2 to ON.
(9) Reinstall the masking plate on the front cover.
* Combination between IPB1 board version and CFG card
Version 00 (U00080931300)
Version 01 (U00080931301)
