manual
linea pb

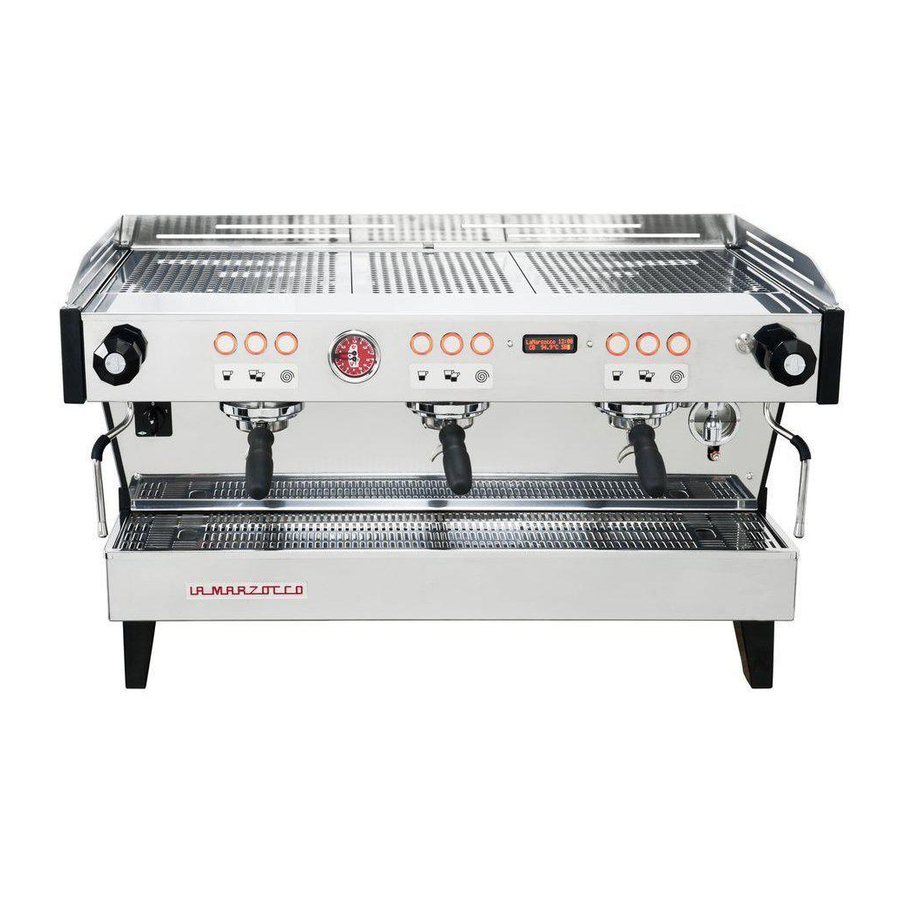

The Linea PB, designed by and named in recognition of Piero Bambi, refashions the
technical and stylistic workings of the Linea Classic, La Marzocco's industry icon introduced
to the marketplace over 20 years ago. In addition to distinctive La Marzocco features, the
Linea PB is equipped with exclusive, user-friendly interface software that gives the barista
control over boiler temperature, brewing volume, hot water tap dose and other options,
ensuring a new level of performance and reliability. The machine's lower profile and
increased work area make it practical, without abandoning world renown Italian design.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the linea pb and is the answer not in the manual?

Questions and answers

Related Manuals for La Marzocco linea pb

Summary of Contents for La Marzocco linea pb

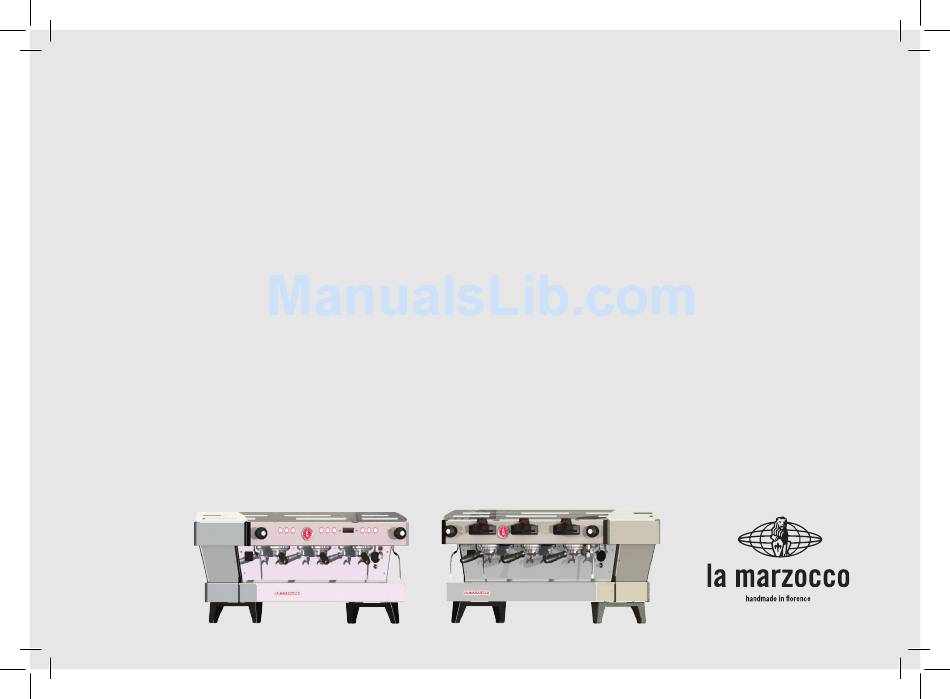

  • Page 1 The Linea PB, designed by and named in recognition of Piero Bambi, refashions the technical and stylistic workings of the Linea Classic, La Marzocco’s industry icon introduced to the marketplace over 20 years ago. In addition to distinctive La Marzocco features, the...

  • Page 2: Table Of Contents

    Operating Manual V3.3 - 06/2016 MAN.10.1.01 Chapters page 3 La Marzocco S.r.l. 1. General Warnings and Safety Specifications page 5 2. Definition of Available Models Via La Torre 14/H Località La Torre page 8 50038 Scarperia e San Piero 3.

  • Page 3: General Warnings And Safety Specifications

    1. General Warnings and Safety Specifications WARNING 4) Packaging (boxes, plastic bags, foam 9) Furthermore, you must ensure that parts and whatever else) must not be left the capacity of the available electrical THIS MACHINE IS FOR PROFESSIONAL USE ONLY AND around within easy reach of children, due system is suitable for the maximum power SHOULD BE INSTALLED IN LOCATIONS WHERE ITS USE...
  • Page 4 14) In case the machine is operating in a faulty manner or breaks down, disconnect 2 gr. 3 gr. 4 gr. LINEA PB it from the electrical network (as described A [mm] 1190 in the preceding point) and close the water supply valve.

  • Page 5: Definition Of Available Models

    2. Definition of Available Models This operating manual refers exclusively to the following models, of our own manufacture: LINEA PB, Model AV, ABR and MP into 2, 3 and 4 groups Main Switch Pressure Gauge (Steam & Brew water) Brew Groups...
  • Page 6 1) General description by an electronic temperature probe with accepts the portafilter used to hold the The machine is built in 2, 3, and 4 coffee a PID controller. The steam boiler has ground coffee; the espresso flows through group versions and is essentially composed various fittings used for safety devices, for the brewing group, through the portafilter of the following parts:...
  • Page 7 • Machine CE plate (AV version) • Machine ETL plate (AV version) ln/21 4av PB0000 LINEA PB PB0000 08/12 08/12 33-39 400/3N 8700 Ifmax 20 50/60 14.5 • Machine ETL plate (MP version) LINEA PB PB0000 08/12 220-240 AC 8824 38.4...

  • Page 8: Installation

    1540 3300 4840 AC400/50Hz SEE ELECTRICAL DEATH FROM SCALDING (COFFEE BOILER 207°F / 97°C- AC220-240V/60Hz 6100 25-29 1900 4000 5900 CONNECTIONS LINEA PB 6100 30,5 1900 4000 5900 STEAM BOILER 256°F / 124°C) AC208-240/60Hz AC400/50Hz 6690 2090 4400 6490 WARNING...
  • Page 9 1) Installation on the counter 2) Accessories The image below shows the recommended method to drill the hole on the counter. WARNING AT EACH INSTALLATION, THE MACHINE SHOULD BE EQUIPPED WITH A NEW SET OF TUBES FOR PLUMBING AND RELATED GASKETS. HERE THE POSITION OF THE POWER CORD AND WATER INLET HOSES 165 mm...
  • Page 10 In order to enable you to check if your water LA MARZOCCO WATER CALCULATOR (http:// protected socket and approved interlock supply is within the suggested ranges, La www.lamarzocco.com/water_calculator/). switch Marzocco machines will be equipped with 4) Water supply connection •...
  • Page 11 thus preventing them from working properly. 4/6/10mm2 cross section or AWG 12/10/8 c) Quick connection between the water pump and the espresso coffee machine Connect the water supply connection of for 2,3 4 group versions, secured to espresso the espresso machine to the water pump machine via a strain relief connector The electrical connection must be made outlet using one of the supplied stainless...
  • Page 12 6) Waste water drain connection WARNING WARNING THE MANUFACTURER DECLINES ANY RESPONSIBILITY FOR ANY EVENT LEADING TO LIABILITY SUITS WHENEVER REPLACE FUSES WITH THE SAME SIZE, TYPE AND RAT- GROUNDING HAS NOT BEEN COMPLETED ACCORDING ING F1 = 2A, 250V TO CURRENT LOCAL, NATIONAL, AND INTERNATIONAL REGULATIONS AND ELECTRICAL CODES, The espresso machine drain is to be...

  • Page 13: Machine Operation And Coffee Preparation

    4. Machine Operation and Coffee Preparation 1) Starting the espresso machine • Steam boiler Turn the main switch (item 1 in Fig. 1) to a) Filling the boilers with water position “1” or ON, the automatic steam Once the installation procedures have been boiler level gauge will be switched on, completed, it is necessary to fill the boiler activating the auto-fill solenoid valve and...
  • Page 14 2) Waiting for the espresso machine to heat to Engage the portafilters by inserting on the side to which the pump power operating temperature them into each group, brew water through supply is connected) clockwise to increase During this time, it may happen that the each group for at least two minutes.
  • Page 15 Place some ground coffee in the filter due to the rubber gasket between them. CAUTION itself: 1 dose (approximately 6-7 g) for This can be accomplished by leaving the NEVER REMOVE THE FILTER HOLDER WHEN WATER IS the small filter, 2 doses (2 approximately portafilters installed in the machine when BEING DELIVERED.

  • Page 16: Dispensing Steam And Hot Water

    5. Dispensing Steam and Hot Water 1) Steaming milk or other liquids 2) Preparing tea and other hot drinks and then clean the outside of the wand In order to allow for any condensed water itself with an appropriate cloth. in the wand to be released ALWAYS allow In order to prepare milk for making some steam to be discharged by turning on...

  • Page 17: Maintenance And Periodic Cleaning Operations

    6. Maintenance and Periodic Cleaning Operations 2) Cleaning filters the glazing marks, if any. Do not use any WARNING - Put 2 or 3 teaspoons of detergent powder alcohol or solvents whatsoever on painted THE MACHINE MUST BE INSTALLED SO THAT QUALIFIED for coffee machines in about 1/2 a litre or imprinted parts in order not to damage TECHNICAL PERSONNEL CAN EASILY ACCESS IT FOR...
  • Page 18 necessary to allow the following quantities WARNING of water to be brewed: IN ORDER TO PREVENT CRACKS OR LEAKAGE: DO NOT At least 1 liter for a 1/2 group machine Group STORE OR INSTALL THE COFFEE MACHINE IN PLACES At least 2 liters for a 3 group machine Assembly WHERE TEMPERATURE MAY CAUSE WATER IN BOILER OR HYDRAULIC SYSTEM TO FREEZE.

  • Page 19: De-Commissioning And Demolition

    7. De-commissioning and Demolition 1) De-commissioning and demolition Remove the hose connecting the espresso Recycling notice: Warning for the protection of the machine to the water pump. Remove environment. Start by setting the main switch to the “0” the reinforced plastic tubing on the drain Used Electrical and electronic waste or OFF position.

  • Page 20: Mandatory Maintenance And Check-Up Operations

    8. Mandatory Maintenance and Check-up Operations These operations are in addition to the Maintenance and Periodic Cleaning Operations as specified in Chapter 6. The following maintenance and check-up operations sould be carried out by a qualified technician. The time required for the periodic maintenance is determinated by the quantity of daily work and/or coffee consumption. N.B.

  • Page 21: Precision Scale

    • Machine vibrations caused, for example, make sure the grid is clean and dry; by the use of the adjacent group. - Use only original La Marzocco filters and filter holders, identified by the following - To avoid contact with dirt before placing...

  • Page 22: Software Programming Guide

    10. Software Programming Guide Programming Introduction Temperature Measurement Units page 59 page 23 page 60 Digital Display Name Programming Keypad (AV and ABR versions) page 24 Program Doses (available up to page 61 Programming Keypad (MP version) page 25 the 1.6.3 software version) First Use Procedures page 26 Program Doses (AV and ABR versions)

  • Page 23: Programming Introduction

    Programming Introduction Description • This espresso machine has a CPU and many configurable settings. • Additionally, there are many feedback controls employed in this espresso machine to troubleshoot problems should they occur. • The following is a brief introduction to the controls and display and how they interact with the operator. Digital Display Digital display 2nd group coffee boiler temperature...

  • Page 24: Programming Keypad (Av And Abr Versions)

    Programming Keypad (AV Version) Group 1 The keypad has two functions. The first is for control of the espresso. The second is for programming individual software parameters. The programming of the individual parameters is possible only using the buttons in the group 1 (group starting from the left). Button Description This button is used to control the brewing of the single espresso.

  • Page 25: Programming Keypad (Mp Version)

    (MP Version) Programming Keypad The programming of individual parameters is possible only using these buttons. Button Description This button is used to control the brewing of the single espresso. It is also used in the programming of the individual parameters such as the “back” button in the menu. For simplicity's sake in this manual it will be represented by this symbol with the name T1.

  • Page 26: First Use Procedures

    First Use Procedure Description Turning the Espresso Programming Mode Machine On The following is the procedure to be • Proceed making sure you have filled the followed for the first use of the espresso boilers. machine. • For the MP version, ongoing warming is •...

  • Page 27: Start Up Procedures

    Start Up Procedures Description Turning the Espresso Programming Mode Machine On The following is the procedure for turning • Proceed making sure you have filled the on the power to the espresso machine. boilers. • Please follow the procedures carefully •...

  • Page 28: Shut Down Procedures

    Shut Down Procedures Description Turning the Espresso Programming Mode Machine Off The following is the procedure for turning • This machine has two off settings. One off power to the espresso machine. setting turns off all of the components • Please follow the procedures carefully in the espresso machine and the other to avoid any damage to the espresso turns off power to the complete espresso...

  • Page 29: Accessing Programming Mode

    Accessing Programming Mode Description quality of the espresso. Programming Mode Programming Mode No password is required for access. • Technical Programming - The parameters • To change the values of any parameter contained within this level are ones the operator must first enter into the the operator can change to affect the programming mode.

  • Page 30: Cleaning Cycles

    Cleaning Cycles Description Programming Mode Cleaning Cycles • This parameter allows the operator • The rinsing procedure is provided to give to carry out the washing of the coffee the operator more flexibility and freedom groups, in an automatic way, by running with regard to this operation.

  • Page 31: Brewratio (Abr Version)

    Brewratio Programming (only on ABR espresso machine models) Description Programming Mode Brewratio The procedure for weighing the filter • To brew in brew ratio mode, set this holder either empty or filled with coffee mode by entering the software settings. powder is shown below.

  • Page 32: Barista" Programming

    “Barista” Programming (available up to the 1.6.3 software version) Description Programming Mode Program Dose • This parameter allows the operator to • Once programmed, the button remains program the amount of coffee (brewing lighted. amount) each button keyboard. Group Dose •...
  • Page 33 “Barista” Programming (available up to the 1.6.3 software version) Description Programming Mode Program Dose • This parameter allows the operator to • Once programmed, the button remains program the amount of coffee (brewing lighted. amount) each button keyboard. Group Dose •...
  • Page 34 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. amount) each button...
  • Page 35 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. amount) each button...

  • Page 36: Scales (Abr Version)

    “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. weight) for each button on the keyboard.
  • Page 37 “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. weight) for each button on the keyboard.
  • Page 38 “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to select the coffee brewing mode among those available: pulse, mass and brew ratio. Group Dose • PULSE mode: control of doses in volume Settings •...
  • Page 39 “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to select the coffee brewing mode among those available: pulse, mass and brew ratio. Group Dose • PULSE mode: control of doses in volume Settings •...
  • Page 40 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • The dose can be set by pulses or by view and manually change each dose for mass (weight). each key.
  • Page 41 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • The dose can be set by pulses or by view and manually change each dose for mass (weight). each key.
  • Page 42 “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • For greater accuracy and consistency of view and manually change each dose for the doses, it is recommended that you each key.
  • Page 43 “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • For greater accuracy and consistency of view and manually change each dose for the doses, it is recommended that you each key.
  • Page 44 “Barista” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • The dose can be set by pulses or by view and manually change each dose for mass (weight). each key.
  • Page 45 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to copy the doses present of each key to the others. Copy Dose Display Operating Procedure When the espresso machine is turned on, press and hold the T3 button to access the “Barista”...
  • Page 46 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to copy the doses present of each key to the others. Copy Dose Display Operating Procedure Press T1 or T2 to continue with the programming of the other parameters.
  • Page 47 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to cancel all the doses set. Reset Volume Doses Display Operating Procedure When the espresso machine is turned on, press and hold the T3 button to access the “Barista”...
  • Page 48 “Barista” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to cancel all the doses set. Reset Volume Doses Display Operating Procedure Press T1 or T2 to continue with the programming of the other parameters. LaMarzocco 00:00 Press T2 and T3...
  • Page 49 “Barista” Programming (only on ABR espresso machine models) Description Programming Mode Program Scales • This parameter enables the technician to set some scale parameters like: Enabling/disabling offset parameter; Scales - Setting the weight reading time; Configuration - Calibrating the scales. Display Operating Procedure When the espresso machine is turned on, press and hold the T3 button...
  • Page 50 “Barista” Programming (only on ABR espresso machine models) Description Programming Mode Program Scales • This parameter enables the technician to set some scale parameters like: Enabling/disabling offset parameter; Scales - Setting the weight reading time; Configuration - Calibrating the scales. Display Operating Procedure Press the T3 button...
  • Page 51 “Barista” Programming Description Programming Mode Tea Dose • This parameter allows the operator to • This feature can be enabled or disabled. program the amount of water (brewing amount) for the tea button. Tea Dose Settings Display Operating Procedure When the espresso machine is turned on, press and hold the T3 button T3 to access the “Barista”...
  • Page 52 “Barista” Programming Description Programming Mode Tea Dose • This parameter allows the operator to • This feature can be enabled or disabled. program the amount of water (brewing amount) for the tea button. Tea Dose Settings Display Operating Procedure Press the T3 button to return to the “Barista”...
  • Page 53 “Barista” Programming Description Programming Mode Coffee Boiler • This parameter allows the operator to • For an espresso machine composed of enable/disable the coffee boiler. 2 and 3 groups you can only set the • This parameter allows the operator to coffee boiler 1, while for an espresso program the coffee boiler temperature.
  • Page 54 “Barista” Programming Description Programming Mode Coffee Boiler • This parameter allows the operator to • For an espresso machine composed of enable/disable the coffee boiler. 2 and 3 groups you can only set the • This parameter allows the operator to coffee boiler 1, while for an espresso program the coffee boiler temperature.
  • Page 55 “Barista” Programming Description Pre-Infusion or Pre-Brewing Programming Mode • This parameter allows the operator to pre-brewing cycle; during this time the program the time of pre-brewing of pump is active. Once the pre-brewing water with the coffee. Each group can cycle is over, the normal brewing cycle have a different programming.

  • Page 56: Lamarzocco 00:00 Cb 93.8°C Sb

    “Barista” Programming Description Programming Mode Cup Warmer • This parameter allows the operator to • This function is displayed only on the enable or disable the cups heating models of espresso machine equipped function. with this accessory. Cup Warmer DISABLED Display Operating Procedure When the espresso machine is turned on, press and hold the T3 button...
  • Page 57 “Barista” Programming Description Programming Mode Exit Menu • This parameter allows the operator to exit the “Barista” programming and return to the normal use of the espresso machine. Exit Menu Display Operating Procedure Exit Press the T3 button to exit the “Barista” programming and return to the normal use of the espresso Menu machine.

  • Page 58: Press T1

    “Technical” Programming Description Programming Mode Language • This parameter allows the technician to change the language of the display. Language ENGLISH Display Operating Procedure When the espresso machine is turned on, press and hold the T3 button . After about 10 seconds the LaMarzocco 00:00 CB 93.8°C SB following screen is displayed.
  • Page 59 “Technical” Programming Description Programming Mode Temperature Measurement Units • This parameter allows the technician to change the temperature display from degrees Celsius to degrees Fahrenheit and vice versa. Temp Units CELSIUS Display Operating Procedure Enter Password After accessing the “Technical” programming menu and entering the password, use the buttons T1 ****** until the following screen is displayed.

  • Page 60: Or T2

    “Technical” Programming Description Programming Mode Name • This parameter allows the technician to • The user name is displayed continuously program a 16 character user name. on the display on the second line. Name LaMarzocco Display Operating Procedure Enter Password After accessing the “Technical”...
  • Page 61 “Technical” Programming “Technical” Programming (available up to the 1.6.3 software version) Description Programming Mode Program Dose • This parameter allows the operator to • Once programmed, the button remains program the amount of coffee (brewing lighted. amount) each button keyboard. Group Dose •...

  • Page 62: Press T2

    “Technical” Programming (available up to the 1.6.3 software version) Description Programming Mode Program Dose • This parameter allows the operator to • Once programmed, the button remains program the amount of coffee (brewing lighted. amount) each button keyboard. Group Dose •...
  • Page 63 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. amount) each button...
  • Page 64 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. amount) each button...
  • Page 65 “Technical” Programming “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key.
  • Page 66 “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • It is possible to set the dose for both a program the amount of coffee (brewing short and a long shot on the same key. weight) for each button on the keyboard.
  • Page 67 “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to select the coffee brewing mode among those available: pulse, mass and brew ratio. Group Dose • PULSE mode: control of doses in volume Settings •...
  • Page 68 “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to select the coffee brewing mode among those available: pulse, mass and brew ratio. Group Dose • PULSE mode: control of doses in volume Settings •...
  • Page 69 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • For greater accuracy and consistency of view and manually change each dose for the doses, it is recommended that you each key.
  • Page 70 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to • For greater accuracy and consistency of view and manually change each dose for the doses, it is recommended that you each key.
  • Page 71 “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • For greater accuracy and consistency of view and manually change each dose for the doses, it is recommended that you each key.
  • Page 72 “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • For greater accuracy and consistency of view and manually change each dose for the doses, it is recommended that you each key.
  • Page 73 “Technical” Programming (only on ABR espresso machine models) Description Program Dose Programming Mode Scales • This parameter allows the operator to • The dose can be set by pulses or by view and manually change each dose for mass (weight). each key.
  • Page 74 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to copy the doses present of each key to the others. Copy Dose Display Operating Procedure After accessing the “Technical” programming menu and entering the password, use the buttons T1 and T2 LaMarzocco 00:00 until the following screen is displayed.
  • Page 75 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to copy the doses present of each key to the others. Copy Dose Display Operating Procedure Press T1 or T2 to continue with the programming of the other parameters.
  • Page 76 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to cancel all the doses set. Reset Volume Doses Display Operating Procedure LaMarzocco 00:00 After accessing the “Technical” programming menu and entering the password, use the buttons T1 and T2 CB 93.8°C SB until the following screen is displayed.
  • Page 77 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Program Dose • This parameter allows the operator to cancel all the doses set. Reset Volume Doses Display Operating Procedure Press T1 or T2 to continue with the programming of the other parameters. LaMarzocco 00:00 Press T2 and T3...
  • Page 78 “Technical” Programming (only on ABR espresso machine models) Description Programming Mode Program Scales • This parameter enables the technician to set some scale parameters like: Enabling/disabling offset parameter; Scales - Setting the weight reading time; Configuration - Calibrating the scales; - Updating the scale software.
  • Page 79 “Technical” Programming (only on ABR espresso machine models) Description Programming Mode Program Scales • This parameter enables the technician to set some scale parameters like: Enabling/disabling offset parameter; Scales - Setting the weight reading time; Configuration - Calibrating the scales; - Updating the scale software.

  • Page 80: Tea Dose

    “Technical” Programming Description Programming Mode Tea Dose • This parameter allows the operator to • This feature can be enabled or disabled. program the amount of water (brewing amount) for the tea button. Tea Dose Settings Display Operating Procedure Enter Password After accessing the “Technical”...
  • Page 81 “Technical” Programming Description Programming Mode Tea Dose • This parameter allows the operator to • This feature can be enabled or disabled. program the amount of water (brewing amount) for the tea button. Tea Dose Settings Display Operating Procedure Press the T3 button to return to the “Technical”...

  • Page 82: Coffee Boiler

    “Technical” Programming Description though the temperature of the boiler Programming Mode Coffee Boiler may vary slightly, the temperature of the • This parameter enables the technician water exiting the group is constant. to set various parameters of the coffee • To properly calibrate the temperature boiler.
  • Page 83 “Technical” Programming Description Programming Mode Coffee Boiler • The OFFSET parameter is used to can cause unexpected results. calibrate the coffee boiler temperature • It is important to write down this value system to ensure the display temperature before making changes to be sure you accurately represents the temperature can return to the factory programming if Coffee Boiler...
  • Page 84 “Technical” Programming Temperature Pressure Description Programming Mode Steam Boiler 247°F/119°C 1.0 bar • This parameter enables the technician 260°F/127°C 1.5 bar to set various parameters of the steam boiler. 272°F/133°C 2.0 bar • The temperature of saturated water is Steam Boiler proportional to the pressure inside the CAUTION Settings...

  • Page 85: Exit

    “Technical” Programming Description Programming Mode Steam Boiler • The parameter filling WITH PUMP allows the overall dispensing pressure in the brew the technician to select the activation of boiler. the water pump during the automatic • During the auto-fill cycle, if a brew cycle is filling cycle of the service boiler.

  • Page 86: Press T1

    “Technical” Programming Description Programming Mode Steam Boiler • The parameter filling WITH PUMP allows boiler for pressure. The activation of the technician to select the activation the auto-fill cycle during the brewing of the water pump during the automatic process can reduce the overall dispens- filling cycle of the service boiler.

  • Page 87: To Exit The Submenu

    “Technical” Programming (only on espresso machine models WITH sight glass) Description Programming Mode Steam Boiler • The parameter “Level Sensit.” allows the • The probe level installed corresponds to technician to select the probe sensitivity the working level. for steam boiler filling according to water •...
  • Page 88 “Technical” Programming (only on espresso machine models WITH sight glass) Description Programming Mode Steam Boiler • The parameter “Level Sensit.” allows the • The probe level installed corresponds to technician to select the probe sensitivity the working level. for steam boiler filling according to water •...
  • Page 89 “Technical” Programming (only on espresso machine models WITHOUT sight glass) Description Programming Mode Steam Boiler • The parameter “Level Sensit.” allows the • The black connection cable corresponds technician to select the probe sensitivity to the working level probe. for steam boiler filling according to water •...
  • Page 90 “Technical” Programming (only on espresso machine models WITHOUT sight glass) Description Programming Mode Steam Boiler • The parameter “Level Sensit.” allows the • The black connection cable corresponds technician to select the probe sensitivity to the working level probe. for steam boiler filling according to water •...

  • Page 91: Pre-Infusion Or Pre-Brewing

    “Technical” Programming Description Pre-Infusion or Pre-Brewing Programming Mode • This parameter allows the operator to pre-brewing cycle; during this time the program the time of pre-brewing of pump is active. Once the pre-brewing water with the coffee. Each group can cycle is over, the normal brewing cycle have a different programming.
  • Page 92 “Technical” Programming Description Programming Mode Crono Function • When enabled, this parameter displays a • If enabled, the Chrono function is timer that times each shot. permanently displayed during brewing, • The timer is reset each time a button on while during wait state it alternates with the keypad is pressed.
  • Page 93 “Technical” Programming Description Programming Mode Clock Adjust • This parameter allows the user to set the • There are 4 changeable values within time of day and the day of the week. this parameter: • This parameter is used to display time •...
  • Page 94 “Technical” Programming Description Programming Mode Cup Warmer • This parameter allows the technician • This parameter allows the technician to to enable or disable the cups heating select the operating of the cup warmer function. by time or by button on the control •...
  • Page 95 “Technical” Programming Description Programming Mode Cup Warmer • This parameter allows the technician • This parameter allows the technician to to enable or disable the cups heating select the operating of the cup warmer function. by time or by button on the control •...
  • Page 96 “Technical” Programming Description Programming Mode Auto ON/OFF • This parameter allows the technician to • This feature also allows the espresso program the espresso machine to turn on machine to remain in the off condition at a preset time and turn off at a preset for one repeating closed day.
  • Page 97 “Technical” Programming Description Programming Mode Auto ON/OFF • This parameter allows the technician to • This feature also allows the espresso program the espresso machine to turn on machine to remain in the off condition at a preset time and turn off at a preset for one repeating closed day.
  • Page 98 “Technical” Programming Description Programming Mode ECO Mode • This parameter allows the technician to • It is possible to set this parameter also set up a temperature to be maintained during the normal operation of the in case of a temporary non utilization of machine by pressing T1 and T2 at the the espresso machine.
  • Page 99 “Technical” Programming Description Programming Mode ECO Mode • This parameter allows the technician to • It is possible to set this parameter also set up a temperature to be maintained during the normal operation of the in case of a temporary non utilization of machine by pressing T1 and T2 at the the espresso machine.
  • Page 100 “Technical” Programming “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Coffee Dose Counter • This parameter allows the technician • This parameter displays different values: to review the total doses dispensed for • Total coffee doses; each button.
  • Page 101 “Technical” Programming (only on AV and ABR espresso machine models) Description Programming Mode Coffee Dose Counter • This parameter allows the technician • This parameter displays different values: to review the total doses dispensed for • Total coffee doses; each button. •...
  • Page 102 “Technical” Programming “Technical” Programming (only on MP espresso machine models) Description Programming Mode Coffee Dose Counter • This parameter allows the technician to • This parameter displays different values: review the total doses. • Total coffee doses; • Coffee doses for each group; •...
  • Page 103 “Technical” Programming (only on MP espresso machine models) Description Programming Mode Coffee Dose Counter • This parameter allows the technician to • This parameter displays different values: review the total doses. • Total coffee doses; • Coffee doses for each group; •...
  • Page 104 “Technical” Programming Description Programming Mode Filter Alarm • This parameter enables the technician • A value of 0 (zero) disables the filter to program an alarm that will alert the alarm parameter. user about the need for maintenance or • This feature can be enabled or disabled. replacement of the water filter.
  • Page 105 “Technical” Programming Description Programming Mode Filter Alarm • This parameter allows the technician • A value of 0 (zero) disables the filter to preprogram an alarm that notifies alarm parameter. the user when the water filter requires • This feature can be enabled or disabled. service or replacement.
  • Page 106 “Technical” Programming Description Programming Mode Reset • This parameter allows the technician to • It is possible to reset the settings you reset all the values returning to initial made in the “Barista” programming or factory settings. the settings you made in the “Technical” programming.
  • Page 107 “Technical” Programming Description Programming Mode Update Firmware • This parameter allows the technician to update the control unit of the espresso machine via a USB Pendrive. Update Firmware Display Operating Procedure Enter Password After accessing the “Technical” programming menu and entering the password, use the buttons T1 ****** until the following screen is displayed.
  • Page 108 “Technical” Programming Description Programming Mode Exit Menu • This parameter allows the technician to exit the “Technical” programming and return to the normal use of the espresso machine. Exit Menu Display Operating Procedure Exit Press the T3 button to exit the “Technical” programming and return to the normal use of the espresso Menu machine.
  • Page 109 “Technical” Programming Troubleshooting • This espresso machine is equipped with several feedback mechanisms that alert the operator when an unusual condition occurs. Additionally the espresso machine will warn the operator when certain parameters fall below or above the programmed point. These errors and warnings will appear as a message in the display.
  • Page 110 Message Description Message Solution When the flowmeter alarm is displayed, push a button to turn off the alarm. This problem is a result of water This message is displayed when the CPU does not Flow Meter 1 not flowing through the flow meter. This can be caused by the coffee packed too tightly, a blockage in the No Pulse receive the appropriate signal from the flowmeter.
