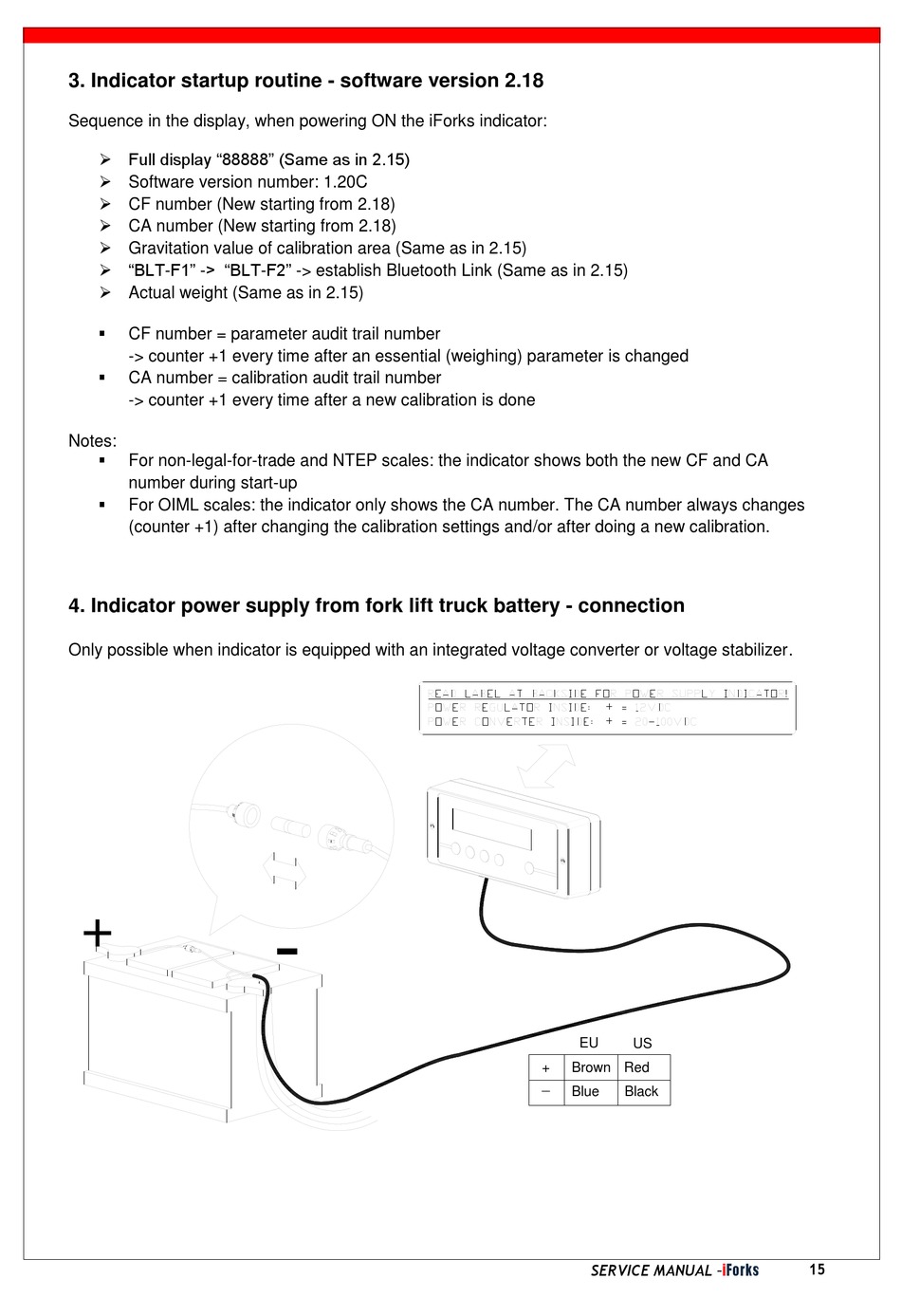

3. Indicator startup routine - software version 2.18

Sequence in the display, when powering ON the iForks indicator:
 Full display "88888" (Same as in 2.15)
 Software version number: 1.20C
 CF number (New starting from 2.18)
 CA number (New starting from 2.18)
 Gravitation value of calibration area (Same as in 2.15)
 "BLT-F1" -> "BLT-F2" -> establish Bluetooth Link (Same as in 2.15)
 Actual weight (Same as in 2.15)

CF number = parameter audit trail number
-> counter +1 every time after an essential (weighing) parameter is changed

CA number = calibration audit trail number
-> counter +1 every time after a new calibration is done
Notes:

For non-legal-for-trade and NTEP scales: the indicator shows both the new CF and CA
number during start-up

For OIML scales: the indicator only shows the CA number. The CA number always changes
(counter +1) after changing the calibration settings and/or after doing a new calibration.

4. Indicator power supply from fork lift truck battery - connection

Only possible when indicator is equipped with an integrated voltage converter or voltage stabilizer.
+
-
EU US
+ Brown Red
_
Blue Black
