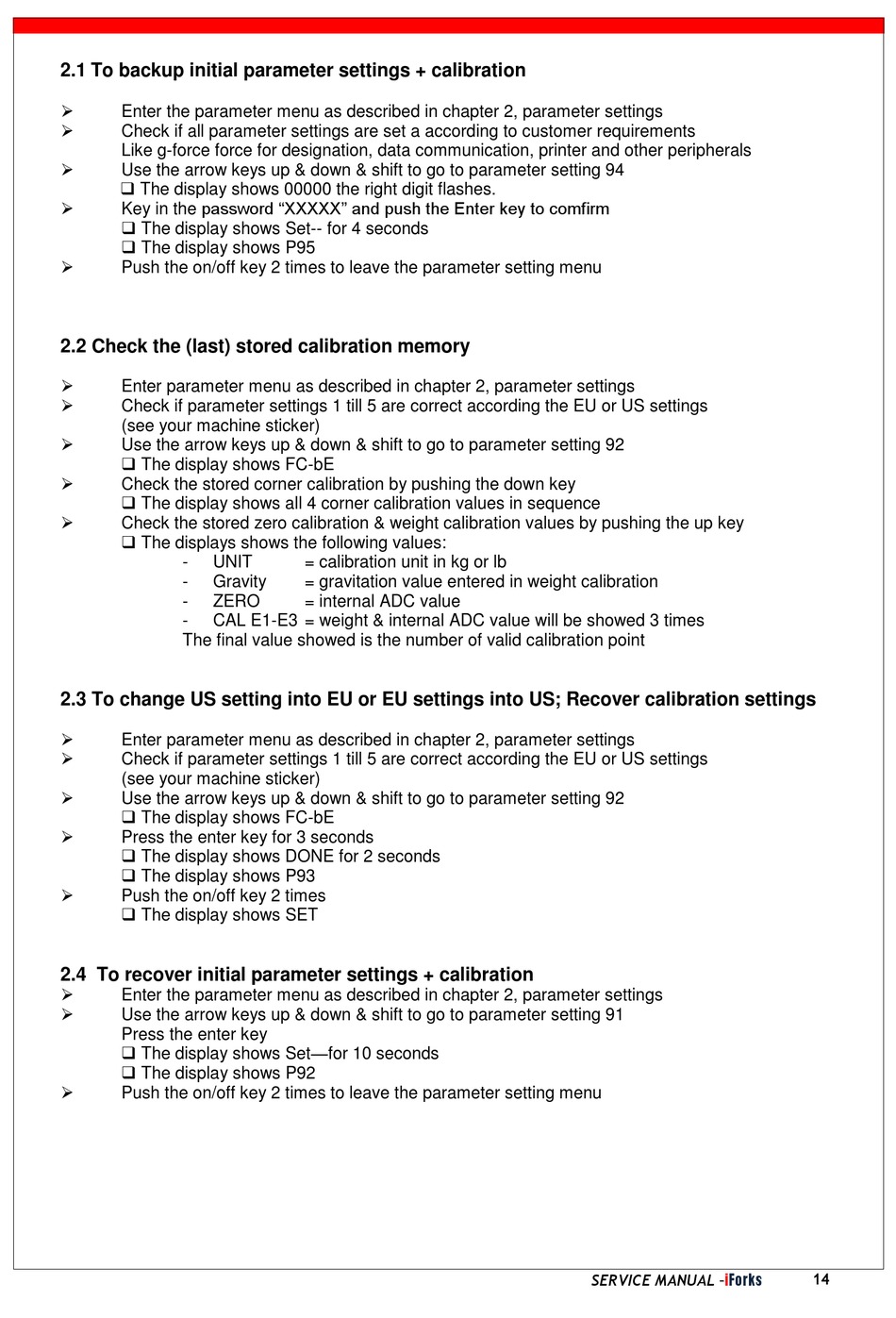

2.1 To backup initial parameter settings + calibration


Enter the parameter menu as described in chapter 2, parameter settings

Check if all parameter settings are set a according to customer requirements
Like g-force force for designation, data communication, printer and other peripherals

Use the arrow keys up & down & shift to go to parameter setting 94
 The display shows 00000 the right digit flashes.
 Key in the password "XXXXX" and push the Enter key to comfirm
 The display shows Set-- for 4 seconds
 The display shows P95

Push the on/off key 2 times to leave the parameter setting menu

2.2 Check the (last) stored calibration memory


Enter parameter menu as described in chapter 2, parameter settings

Check if parameter settings 1 till 5 are correct according the EU or US settings
(see your machine sticker)

Use the arrow keys up & down & shift to go to parameter setting 92
 The display shows FC-bE

Check the stored corner calibration by pushing the down key
 The display shows all 4 corner calibration values in sequence

Check the stored zero calibration & weight calibration values by pushing the up key
 The displays shows the following values:
- UNIT
- Gravity
- ZERO
- CAL E1-E3 = weight & internal ADC value will be showed 3 times
The final value showed is the number of valid calibration point
2.3 To change US setting into EU or EU settings into US; Recover calibration settings

Enter parameter menu as described in chapter 2, parameter settings

Check if parameter settings 1 till 5 are correct according the EU or US settings
(see your machine sticker)

Use the arrow keys up & down & shift to go to parameter setting 92
 The display shows FC-bE

Press the enter key for 3 seconds
 The display shows DONE for 2 seconds
 The display shows P93

Push the on/off key 2 times
 The display shows SET

2.4 To recover initial parameter settings + calibration


Enter the parameter menu as described in chapter 2, parameter settings

Use the arrow keys up & down & shift to go to parameter setting 91
Press the enter key
 The display shows Set—for 10 seconds
 The display shows P92

Push the on/off key 2 times to leave the parameter setting menu
= calibration unit in kg or lb
= gravitation value entered in weight calibration
= internal ADC value
