Assembling the rack
CAUTION!
Danger of cuts on hands and fingers
When connecting the parts, take care for sharp edges on the metal tubes, screws etc.

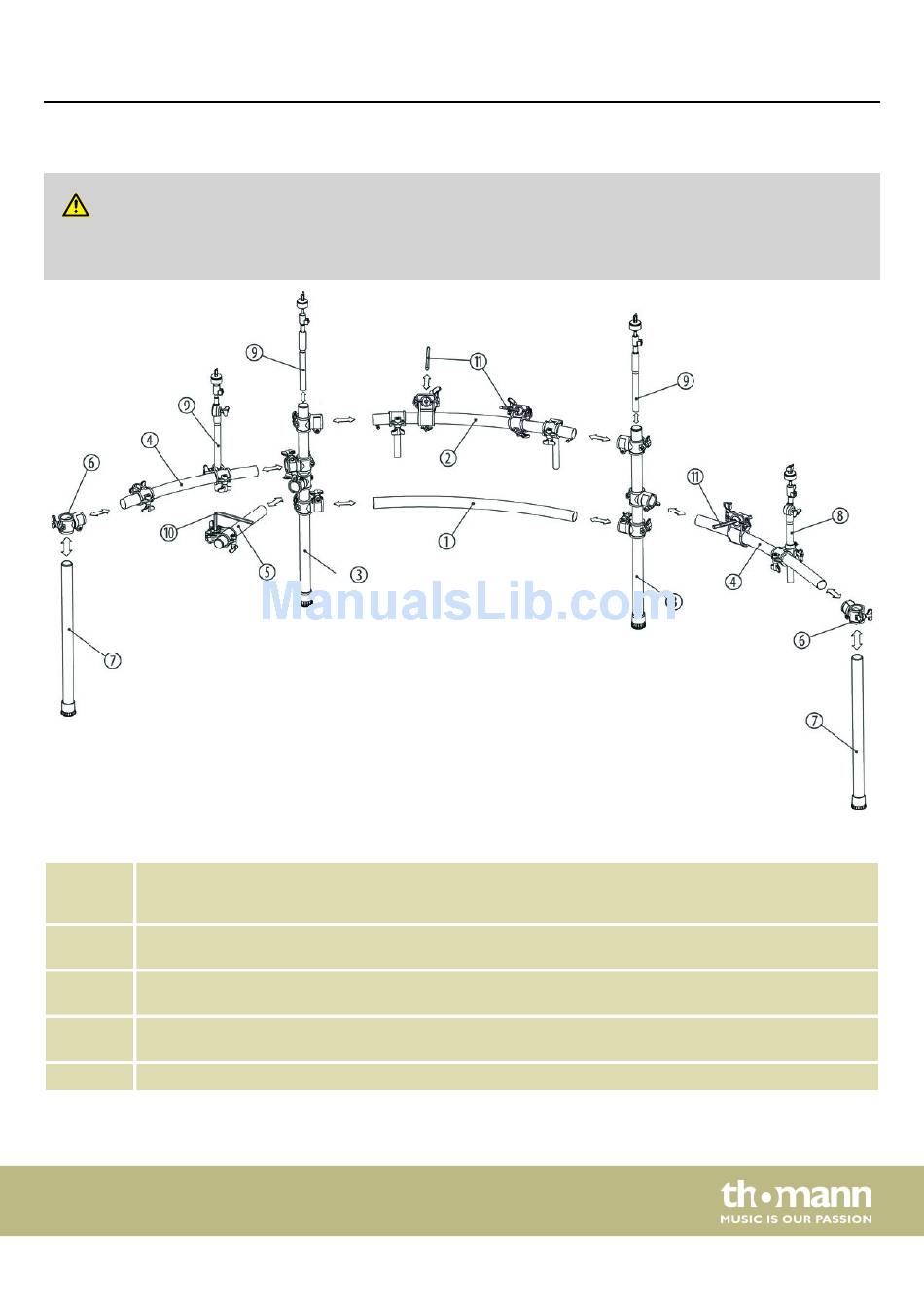

1 Align the upper and lower bracket for the connecting tubes (1, 2) of the two feet (3) of the rack in height and
according to the desired playing position. Insert the connecting pipes (1, 2) as shown and tighten the mounting
screws.
2 Insert the side arms (4) into the middle brackets of the two feet (3) of the rack. Make sure that the horizontal tubes
form a continuous arch.
3 Attach the two lateral supporting tubes (7) of the rack to the mounting brackets of the side arms (4). Make sure
that the ends of the support tubes are resting on the floor. Then tighten the retaining screws.
4 Position the mounting clamps (10/L-pieces, 11/hexagonal bars) for the individual pads. Then tighten the retaining
screws.
5 Turn the L-rods into a suitable position for mounting the pads. Then tighten the retaining screws.
MPS-750 Mesh Set
Assembly
7
