thomann Millenium MPS-600 Assembly Instructions Manual

E-drum set
Hide thumbs Also See for Millenium MPS-600:

Advertisement

Quick Links

Download this manual See also: User Manual
MPS-600
e-drum set
assembly instructions

Advertisement

loading

Related Manuals for thomann Millenium MPS-600

Summary of Contents for thomann Millenium MPS-600

  • Page 1 MPS-600 e-drum set assembly instructions...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.07.2015, ID: 230833...
  • Page 3 Table of contents Table of contents Safety instructions.......................................... 4 Contents of package........................................5 Assembly.............................................. 7 Protecting the environment....................................13 MPS-600...

  • Page 4: Safety Instructions

    Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.

  • Page 5: Contents Of Package

    Contents of package Contents of package Rack components Before you assemble your kit, make sure the contents of package is complete according to the following illustrations. Content of the box ‘Accessory’ Content of the boxes ‘Drum Module’ and ‘11''-Drum Pads’ MPS-600...
  • Page 6 Contents of package Content of the box ‘Kick Pad and 9''-Drum Pads’ Content of the boxes ‘Bass Drum Pedal’ and ‘Hi-Hat Pedal’ Content of the boxes ‘Cymbal 14''’ and ‘Cymbal 12''-Crash, 12''-Hi-Hat’ ‘Pillar Box’ Without illustration. This box contains the little left side arm of the rack. The boxes ‘Empty Box A/B/C’...

  • Page 7: Assembly

    Assembly Assembly Assembling the rack Loosen the screws of each terminal with the drum key before inserting the pipes. The positions of the pads, cymbals, etc. are shown in the table below. CAUTION! Danger of cuts on hands and fingers When plugging the connections, take care for sharp edges on the metal pipes.
  • Page 8 Assembly Connect the centre pipe (1) with the upper terminal and the centre pipe (2) with the lower terminal of the (L1). Roughly align the height of the terminals on pipe (L2) according to the height of their counter-terminals on pipe (L1). Con‐ nect the centre pipe (1) to the upper terminal and connect the centre pipe (2) to the lower terminal on pipe (L2).
  • Page 9 Assembly Connect the side arm (L1) with the terminal on pipe (L1) and tighten the screws of the terminal with the drum key firmly and evenly hand-tight. Connect the side arm (R) with the terminal on pipe (R1) and tighten the screws of the terminal with the drum key firmly and evenly.
  • Page 10 Assembly Mounting pads on the rack Attach the supplied L-pieces (box "Accessory") to the five pads. First, tighten the wing nuts on the pads by hand. Then slide the plastic ends of the L-pieces up to the stop into the designated terminals on the rack, see Ä...
  • Page 11 Assembly Put the two two-piece cymbal holder into the pipes (L1) and (R1) on the rack. Place the short one-piece cymbal holder into the (from the perspective of the drummer) right unused terminal of the left side arm. Put the long one-piece cymbal holder into the unused terminal of the right side arm. Unscrew the wing nuts from the cymbal holders and take the felt washer from the holders.

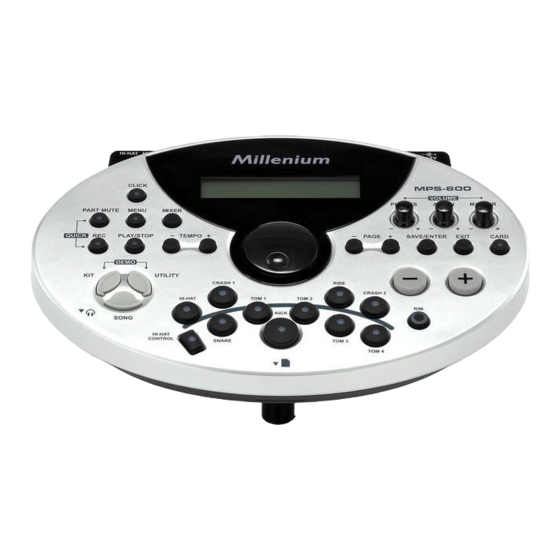

  • Page 12 Assembly Make sure that the connector block on the underside of the cymbals is not stuck to the cylinder bolt of the counterholder. Mounting the drum module on the rack Put the drum module up to the stop into the (from the perspective of the drummer) left unused terminal of the left side arm.

  • Page 13: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 14 Notes e-drum set...
  • Page 16 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
