Manual

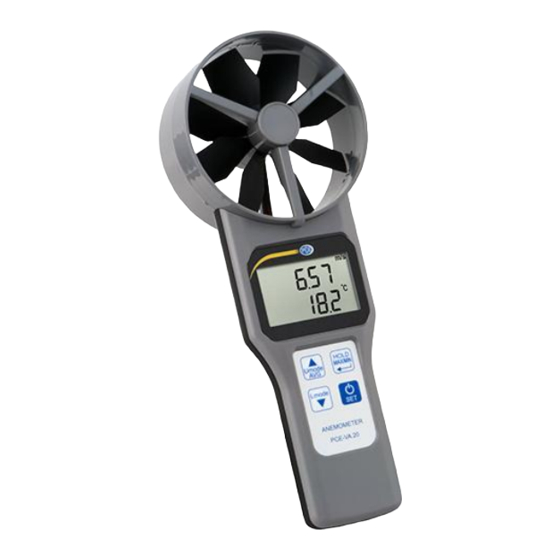

HVAC Meter PCE-VA 20
Version 1.1
Date of creation: 30.07.2015
Date of last change: 04.11.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-VA 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Instruments PCE-VA 20

Summary of Contents for PCE Instruments PCE-VA 20

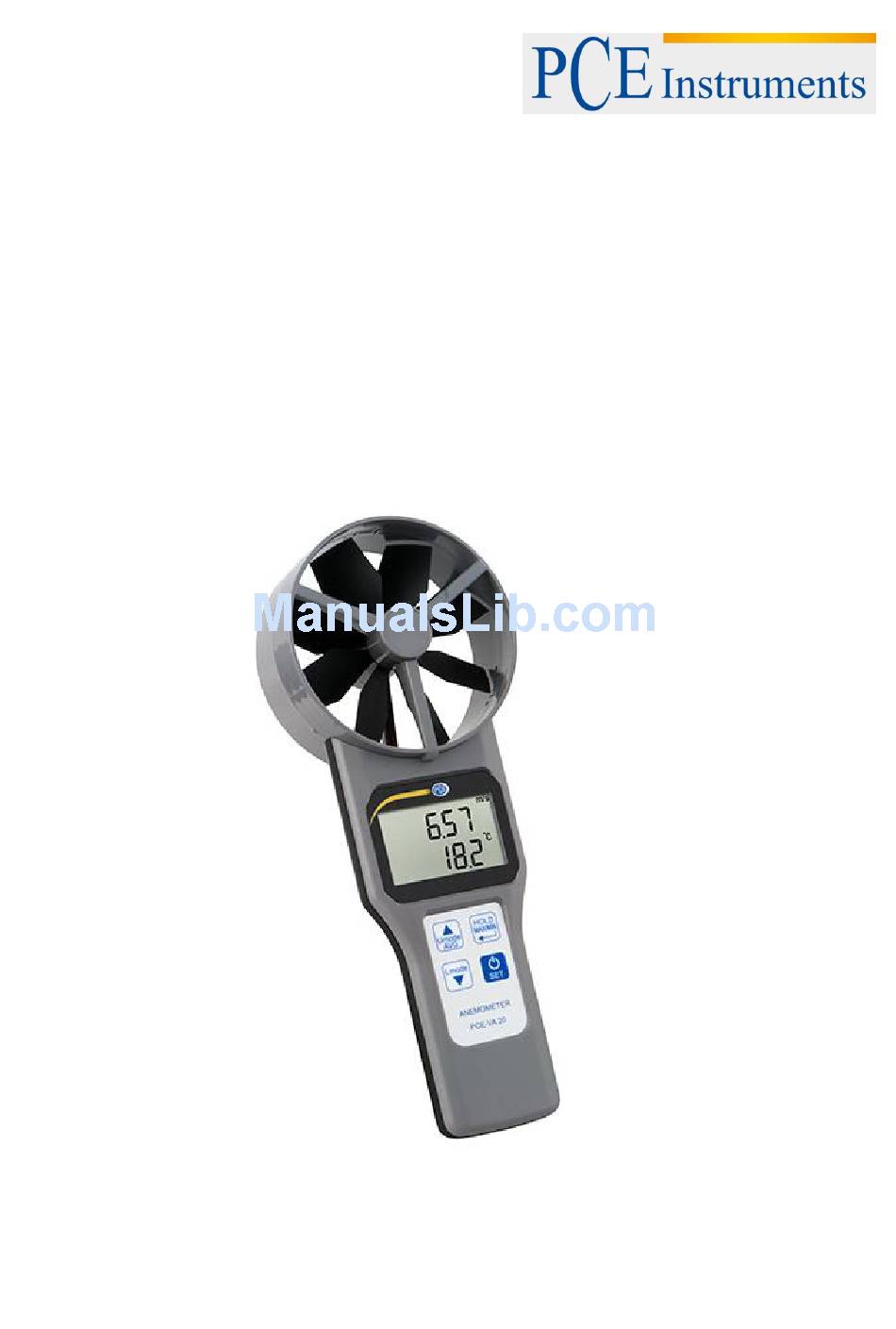

  • Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual HVAC Meter PCE-VA 20 Version 1.1 Date of creation: 30.07.2015 Date of last change: 04.11.2015...

  • Page 2: Table Of Contents

    Faults ...........................10 Error codes ...........................10 9.2.1 Air temperature ........................10 9.2.2 Relative humidity ........................10 9.2.3 Dew point and wet-bulb temperature ..................10 9.2.4 Flow velocity ..........................11 9.2.5 Volume Flow ..........................11 10 Contact ........................12 10.1 PCE Instruments UK ......................12 10.2 PCE Americas ........................12...

  • Page 3: Introduction

    Thank you for purchasing a vane anemometer PCE-VA 20 from PCE Instruments. The vane anemometer PCE-VA 20 is able to measure air volume flow, air velocity and parameters like air temperature and relative humidity. The gauge is extremely easy to handle and has a wide range of application.

  • Page 4: Specification

    -10 … +50 °C, <90 %RH Storage conditions Power supply 4 x AAA micro batteries Contents of delivery PCE-VA 20 1 x anemometer PCE-VA 20 4 x AAA batteries 1 x instruction manual 1 x carrying case PCE-VA 20-SET 1 x anemometer PCE-VA 20...

  • Page 5: System Description

    Manual System description Upper display: Air velocity, air humidity, timer and number of recordings in average mode. Lower display: Air temperature, volume flow, wet bulb temperature, dew point temperature Display Display indication Meaning HOLD: Freeze the current display AVG: Averaging MAX/MIN: Highest and lowest values Low battery warning...

  • Page 6: Buttons

    Manual Buttons The device is controlled via four buttons. The on/off-button, the HOLD/MIN/MAX-button, die up-button and the down-button: Turn the meter on and off. Long press to enter and exit the setup mode. Freeze current reading on LCD. Long press to view MIN and MAX values. In average mode, press to record data or start timed recording.

  • Page 7: Measuring

    Manual Measuring Switch between measurement parameters The anemometer shows 2 different measurement parameters at the same time. By default, these parameters are air temperature on the lower display and flow velocity on the upper display. To change the displayed parameters, use the Up and Down buttons. By pressing Up, you can switch between flow velocity and relative air humidity on the upper display.

  • Page 8: Averaging

    Manual Averaging 6.3.1 Multi-point average In normal measuring mode, press and hold the Up button for 2 seconds to enter multi-point average mode. (The upper display shows the record number and the lower is the measured reading)  Press the hold-button to record readings. ...

  • Page 9: Setup

    Manual SETUP To enter the settings, press and hold the On/Off button for 2 seconds in normal measuring mode. You can choose between the following settings: P1.0: Unit selection P2.0: AREA size P3.0: RH offset To switch between the settings, use the Up and Down buttons. To exit the setup, press and hold the On/Off button again.

  • Page 10: Troubleshooting

    Manual Troubleshooting Faults Fault Possible cause Remedy On/Off key pressed too Press the On/Off key slightly fleetingly longer It is not possible to power on the fan anemometer Batteries not inserted Check correct polarity correctly Battery voltage insufficient Replace batteries Error codes 9.2.1 Air temperature...

  • Page 11: Flow Velocity

    Manual 9.2.4 Flow velocity Error code Error Remedial action Take measurements within range If E03 is still displayed, Flow velocity is above range return the fan anemometer for repair. 9.2.5 Volume Flow Error code Error Remedial action Value is above display range. Check entered tube area.

  • Page 12: 10 Contact

    Manual 10 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. 10.1 PCE Instruments UK By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF...
