Page 1: Quick Start
H3C WA2620-AGN WLAN Access Point Quick Start Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6PW104-20110225... - Page 2 Copyright © 2009-2011, Hangzhou H3C Technologies Co., Ltd. and its licensors All rights reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd.
- Page 3 Preface H3C WA2620-AGN WLAN Access Point Quick Start describes the basic steps necessary to install and configure your H3C WA2620-AGN (1 1n 2.4+5GHz PoE) Access Point. This preface includes: Audience • Conventions • About the H3C WA2620-AGN documentation set •...
-
Page 4: Documentation Set
CAUTION corruption, or damage to hardware or software. An alert that contains additional or supplementary NOTE information. About the H3C WA2620-AGN documentation set The H3C WA2620-AGN documentation set includes: Category Documents Purposes Marketing Describe product specifications and Product brochures benefits. -
Page 5: Obtaining Documentation
Obtaining documentation You can access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com. Click the links on the top navigation bar to obtain different categories of product documentation: [Technical Support &... -
Page 6: Technical Support
Technical support customer_service@h3c.com http://www.h3c.com Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments. -
Page 7: Table Of Contents
Contents About This Guide······························································································1 AP Features······································································································· 1 Safety Information ···························································································· 3 Approved Channels························································································· 4 Mounting the AP ·······························································································5 Unpacking the AP ···························································································· 5 Preparing for Installation ················································································· 5 Mounting the AP ······························································································ 6 Wall or Electrical Box Mounting ··························································· 6 Tabletop Mounting ··················································································... - Page 8 EU Compliance information··········································································20 CE Marking····························································································20 EU Country Restriction in 2.4GHz band ············································24 EU Country Restriction in 5GHz band ················································24 WEEE Directive–2002/96/EC ···························································25 USA Compliance information·······································································26 US Federal Communications Commission statement·························26 RF Requirements ····················································································26 Antennas ································································································27 Industry Canada·····························································································27 RF Compliance ······················································································27 Brazil RF Compliance ····················································································28 Korea RF Compliance····················································································29 Taiwan regulatory statement·········································································29...
-
Page 9: About This Guide

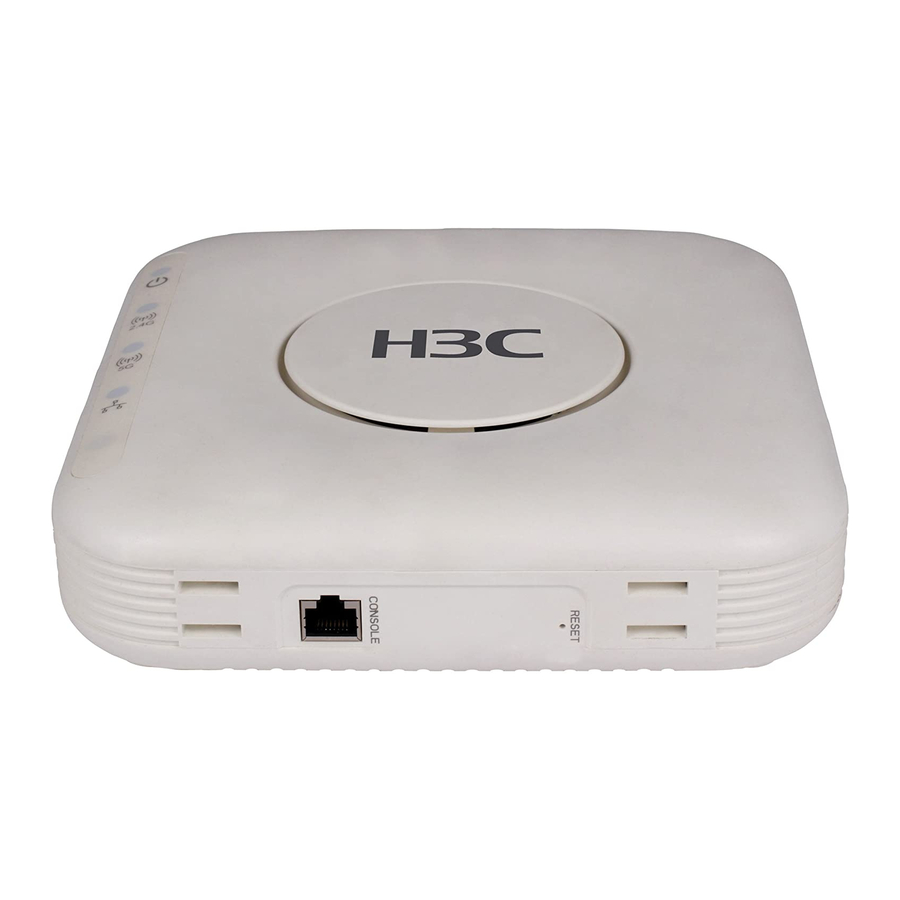

About This Guide This Quick Start Guide describes the basic steps necessary to install and configure your H3C WA2620-AGN (1 1n 2.4+5GHz PoE) Access Point. Note: This guide refers to these devices as the AP. Before you install or move the AP, you must carefully read the safety information of this manual. - Page 10 Feature Description The Ethernet port provides a 10/100/1000 BASE-T Ethernet connection to a switch. Use a suitable Category Ethernet Port 5 cable with straight-through wiring and standard RJ-45 connectors to connect your AP to the network. The LEDs indicate power and activity. See Checking the LEDs LED Indicators...
-
Page 11: Safety Information
Feature Description Dimensions (length x width x depth): 7 x 3 x 4 mm (0.28 Security slot x 0.12 x 0.16 in.) ,and a standard Kensington lock is recommended. Safety Information This equipment must be installed in compliance with local and national building codes, regulatory restrictions, and FCC rules. -
Page 12: Approved Channels
For proper installation, select your country from the country-selection list. To conform to FCC and other country restrictions, your product may be limited in the channels that are available. If other channels are permitted your country, please visit the web site for the latest software version: http://www.h3c.com... -
Page 13: Mounting The
• One console cable • Preparing for Installation H3C recommends that you connect and check the Ethernet cable and LEDs before you install the AP in a hard-to-reach location. Also, observe these items before you mount or connect the AP:... -
Page 14: Mounting The Ap
Power (PoE) compliant device such as a PoE switch or a PoE injector. Requirement For maximum performance, H3C recommends that you use a Gigabit link. Record the AP MAC address in a safe place before the AP is installed in a hard-to-reach location. -
Page 15: Tabletop Mounting
The mounting bracket tabs should be pointing upward. • If mounting to drywall, use the 4 screws and 4 wall anchors. • If mounting to an EU electrical box (60.3mm), use 2 threaded screws and • insert into the holes marked “A” in the diagram shown below. If mounting to a US electrical box (83.3mm), use 2 threaded screws and •... - Page 16 Insert the tabs on the table stand into the slots on the side of the AP, as shown in the illustration. Align the cable routing cut out toward the upper part of the stand. To lock the stand to the AP, slide the stand back and the AP forward, as shown here: Place the AP and table stand on the table.
-
Page 17: Ceiling Mounting
Connect the Ethernet cable for power and network connection to the LAN port on the back of the AP. Ceiling Mounting To install your AP on the Ceiling, use the ceiling bracket kit that comes with the device. Follow these steps: Attach the metal slider to the back of the AP using the two small screws. - Page 18 Clip the metal ceiling bracket to a suitably located ceiling tile separator. Slide the moveable section into place and tighten the screw (found underneath) to secure it.
- Page 19 Position the AP so that the two tabs from the ceiling bracket can be inserted in the slots in the AP. Slide the slider across to lock the AP to the bracket.
-
Page 20: Connecting Power
Connecting Power This section describes how to power the AP in the following ways: By Power over Ethernet (PoE) supplied over the LAN by an 802.3af PoE • compliant device such as a switch. By PoE supplied by a PoE injector or midspan (not included with the AP). •... - Page 21 Connect the LAN cable from a switch to the Switch port on the PoE injector. Connect a LAN cable from the Ethernet port on the AP to the other LAN port on the PoE injector. Plug the PoE injector into a properly grounded electric outlet. See the illustration.
-
Page 22: Checking The Led Indicators
Checking the LED Indicators When the AP is connected to power, LEDs indicate activity as follows: Indicator Color State Description No power LED 1 Failure of CPU or system Amber (Power/ System initiation or reset (software Blinking System) self- testing and loading) Green Powered on and ready for operation Radio disabled... -
Page 23: Connecting To The Ap
You can remotely manage and maintain the AP through Telnet. Configure the AP to enable open-system authentication mode, with the • SSID being H3C. Log into the AP To Log into the AP after you determine its IP address, follows these steps: Connect the AP and PC, and ensure that the PC and AP can communicate with each other properly. -
Page 24: Converting Your Managed Ap (Fit) To A Stand-Alone Ap (Fat)
Converting your Managed AP (FIT) to a Stand-alone AP (FAT) If you plan to run this AP in stand-alone mode, without a wireless controller, go to the web page at http://www.h3c.com to get the FAT firmware and instructions. Converting your Stand-alone AP (FAT) to a... -
Page 25: Optional
Optional Optional POE injector Optional POE injector 3C Number 802.3af Gigabit POE injector 3CNJPSE-GIG Optional Antennas Optional Antennas 3C Number 2dBi Dual-Band Omni Antenna Kit 3CWE590 6/8dBi Dual-Band Omni Antenna 3CWE591 18/20dBi Dual-Band Panel Antenna 3CWE596 8/10dBi Dual-Band Panel Antenna 3CWE598 Optional Antenna Cables Optional Antenna Cables... -
Page 26: Appendixa Regulatory Compliance Information
AppendixA Regulatory Compliance Information Regulatory compliance standards Table 1 Regulatory compliance standards Discipline Standards FCC Part 15.207 & 15.209 & 15.247& 15.205 & 15.407 FCC Bulletin OET-65C IC RSS 210 ETSI EN 300 328 ETSI EN 301 893 EMC & RF EN 60601-1-2 EN 61000-3-2 EN 61000-3-3... -
Page 27: Support Antennas & Accessories Information
Support Antennas & Accessories information This product can be used with the following antennas and accessories: Table 2 Authorized Antennas & Accessories Item Description Exclusions Internal antenna None 3CWE590 Rubber Duck Antenna None Must be used with 3CWE586 3Com 6/8dBi Dual-Band Omni and one of the following: 3CWE591 Antenna... -
Page 28: Eu Compliance Information
Item Description Exclusions Required for all external antennas 3Com RSMA to SMA 6- inch 3CWE586 (not required for Internal Antenna Cable antenna and Rubber Duck Antenna). This product does not contain any user serviceable components. Any • unauthorized Product changes or modifications will invalidate the warranty and all •... - Page 29 Hereby, H3C Corporation, declares that this RLAN device is in English compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Por medio de la presente H3C Corporation declara que el RLAN Español device cumple con los requisitos esenciales y cualesquiera otras [Spanish]...
- Page 30 Con la presente H3C Corporation dichiara che questo RLAN Italiano device è conforme ai requisiti essenziali ed alle altre disposizioni [Italian] pertinenti stabilite dalla direttiva 1999/5/CE. Ar šo H3C Corporation deklarē, ka RLAN device atbilst Direktīvas Latviski 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem [Latvian] noteikumiem.
- Page 31 Svenska överensstämmelse med de väsentliga egenskapskrav och övriga [Swedish] relevanta bestämmelser som framgår av direktiv 1999/5/EG. Hér með lýsir H3C Corporation yfir því að RLAN device er í Íslenska samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í [Icelandic] tilskipun 1999/5/EC.
-
Page 32: Eu Country Restriction In 2.4Ghz Band
The user should check the current channel of operation. If operation is occurring outside of the allowable frequencies as listed above, the user must cease operating the WA2620-AGN at that location and consult the local technical support staff responsible for the wireless network. -
Page 33: Weee Directive-2002/96
The presence of nearby radar operation may result in temporary interruption in communications of this device. The Access Point’s radar detection feature will automatically restart operation on a channel free of radar. You may consult with the local technical support staff responsible for the wireless network to ensure the Access Point device(s) are properly configured for European Community operation. -
Page 34: Usa Compliance Information
The products this manual refers to are covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner. USA Compliance information US Federal Communications Commission statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. -
Page 35: Antennas
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. Antennas Only use the supplied antenna. Unauthorized antennas, modifications or change to the antennas could violate FCC regulations and void the user’s authority to operate the equipment. -
Page 36: Brazil Rf Compliance
radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. -
Page 37: Korea Rf Compliance
Korea RF Compliance This device may cause radio interference during its operation. Therefore service in relation to human life security is not available. Taiwan regulatory statement 經審驗合格之射頻電信終端設備，非經許可，公司商號或使用者均不 得擅自變更頻率，加大功率或變更原設計之特性及功能。 射頻電信終端設備之使用不得影響飛航安全及干擾合法通信；經發現 有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。所謂 合法通信，係指依電信法規定作業之無線電信。低功率射頻電機須忍 受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 輸入、製造射頻電信終端設備之公司、商號或其使用者違反本辦法規 定，擅自使用或變更無線電頻率、電功率者，除依電信法規定處罰 外，電信總局並得撤銷其審驗合格證明。 本機限在不干擾合法電台與不受被干擾保障條件下於室內使用。 在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 無線資訊傳輸設備的製造廠商應確保頻率穩定性，如依製造廠商使用 手冊上所述正常操作，發射的信號應維持於操作頻帶中。... -
Page 38: Appendixb 产品中有毒有害物质清单全集
AppendixB 产品中有毒有害物质清单 全集 NOTE: This document contains information required by the People's Republic of China as per their legislation titled "Management Methods for Controlling Pollution by Electronic Information Products". 产品中有毒有害物质清单全集 有毒、有害物质和元素 多溴 多溴二 部件名称 汞 六价铬 铅 Pb 镉 Cd 联苯... - Page 39 有毒、有害物质和元素 多溴 多溴二 部件名称 汞 六价铬 铅 Pb 镉 Cd 联苯 苯醚 Cr（VI） PBDE 〇 〇 〇 〇 〇 硬盘 〇 〇 〇 〇 〇 电源适配器 1 〇 〇 〇 〇 〇 电源适配器 2 〇 〇 〇 〇 〇 电源适配器 3 〇...
- Page 40 有毒、有害物质和元素 多溴 多溴二 部件名称 汞 六价铬 铅 Pb 镉 Cd 联苯 苯醚 Cr（VI） PBDE 〇 〇 〇 〇 〇 麦克风 〇 〇 〇 〇 〇 内存条 〇 〇 〇 〇 〇 天线 〇 〇 〇 〇 〇 光模块 1 〇 〇...
