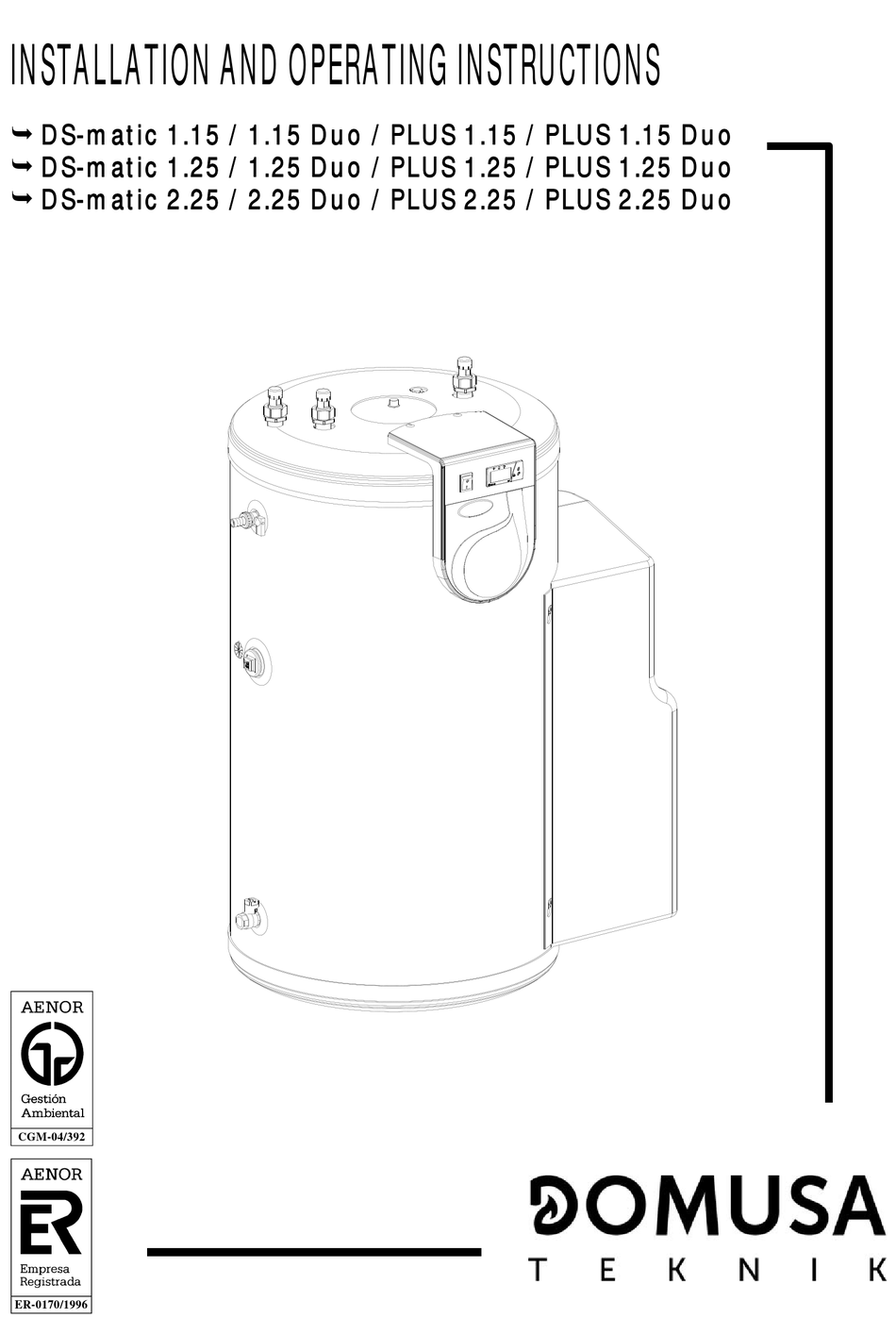

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS DS-matic 1.15 / 1.15 Duo / PLUS 1.15 / PLUS 1.15 Duo DS-matic 1.25 / 1.25 Duo / PLUS 1.25 / PLUS 1.25 Duo DS-matic 2.25 / 2.25 Duo / PLUS 2.25 / PLUS 2.25 Duo...
- Page 2 Thank you for choosing a DOMUSA TEKNIK product. From the range of DOMUSA TEKNIK products you have chosen the DS-Matic model, an automatic solar heating system for producing domestic hot water (DHW) with a double chamber. This manual refers to the installation, operation and maintenance of the DS-matic automatic solar heating system.
-
Page 3: Table Of Contents
USER GUIDE INDEX Page 1 SAFETY COMPONENTS................................2 2 LOCATION ....................................2 3 SOLAR POWER UNIT................................4 3.1 M .......................................4 ODELS 3.2 D ..............................5 ISPLAY AND CONTROL PANEL 3.3 E ....................................5 QUIPMENT 3.4 P ....................................6 ARAMETERS 3.4.1 D .................................... 6 ISPLAY PARAMETERS 3.4.2 A ................................... -
Page 4: Safety Components
It is very important to choose a correct location for the solar collectors, as an unsuitable location can reduce the system’s efficiency: wrong orientation, shadows cast on the solar collector, etc. DOMUSA TEKNIK recommends taking the following indications into account when choosing a location: 1. - Page 5 If other tube diameters are used it cannot be guaranteed to work properly, and there may also be risk of noise on functioning. DOMUSA TEKNIK supplies tubes with insulation and a cable for the sensor, together with the connectors for making the connections to the collectors and the accumulator.
-
Page 6: Solar Power Unit
DS-matic 3 SOLAR POWER UNIT 3.1 Models There are two families of hot water tank, depending on the type of power unit: DS-matic and DS-matic Duo. DS-MATIC The power unit of the DS-matic models is designed for controlling the solar pumps only. It is equipped with two sensor inputs for this purpose - the collector sensor input and the hot water tank sensor input - and two outputs for the solar pumps. -
Page 7: Display And Control Panel
DS-matic or a DS-matic Duo model. DS-matic 1.15 DS-matic 1.25 / 2.25 DS-matic 1.15 Duo DS-matic 1.25 / 2.25 Duo DS-matic PLUS 1.15 DS-matic PLUS 1.25 / 2.25 DS-matic PLUS 1.15 Duo... -
Page 8: Parameters
DS-matic 3.4 Parameters The system is supplied with all its power unit parameters adjusted for maximum efficiency, so none of the parameters need adjusting. There follows a description of all the power unit parameters. 3.4.1 Display parameters The display parameters are for information purposes only, i.e. they provide data on the temperatures. There follows a list of display parameters for each of the solar power units. - Page 9 Adjustment parameters for DS-matic power units BASIC ADJUSTMENT PARAMETERS FOR DS-MATIC POWER UNITS Display Function Range Options Hot water tank setpoint temperature with 2…95ºC solar energy input. Adjustment: 60ºC ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC POWER UNITS Display Function Range Options 0: Pumps in automatic mode.
- Page 10 DS-matic ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC POWER UNITS Display Function Range Options This code must be entered to view 0…255 Access code. and/or change advanced Adjustment: 0 adjustment parameters.
- Page 11 Adjustment parameters for DS-matic Duo power units BASIC ADJUSTMENT PARAMETERS FOR DS-MATIC DUO POWER UNITS Display Function Range Options Hot water tank setpoint temperature 1…95ºC Adjustment: 60ºC Minimum value: TAC + 1ºC with solar energy input. Hot water tank setpoint temperature 0…94ºC Adjustment: 45ºC Maximum value: TSA - 1ºC with auxiliary energy input.
- Page 12 DS-matic ADVANCED ADJUSTMENT PARAMETERS FOR DS-MATIC DUO POWER UNITS Display Function Range Options 0: Function off. 1: If the collector temperature raises to 140 ºC, the solar pumps remain activated until collector temperature is less than 90 ºC. If the store temperature is higher than hot water tank 0…1 Solar collectors cooling...
-
Page 13: Display And Adjustments
3.5 Display and adjustments All the power unit functions are controlled by three buttons to the right of the display. There follows a description of the procedure for viewing the temperatures and adjusting the basic and advanced parameters. 3.5.1 Temperature display The temperatures of the sensors installed are displayed on the main screen. -
Page 14: Configuring The Advanced Adjustment Parameters
DS-matic 3.5.3 Configuring the advanced adjustment parameters The advanced adjustment parameters are used for regulating the functioning of the DS-matic models. The system is supplied with all the parameters programmed for optimum functioning, so none of the values need to be adjusted. The procedure for adjusting these parameters is as follows. 1- Press the SET button and hold it down for 8 seconds. - Page 15 ! IMPORTANT: THE DISPLAYS WITH A WHITE BACKGROUND ONLY APPEAR ON THE DS-MATIC DUO MODELS. Press for 8 seconds Press Press to increace value Press to reduce value Press Press Press to increace value Press Press to reduce value Press Press Press Press...
-
Page 16: Starting Up The Installation
In any case, to prevent risk in case of incomplete draining, DOMUSA TEKNIK supplies an inhibitor liquid, which in addition to protecting the different components of the installation from corrosion, also serves as an anti-freeze. -
Page 17: Draining The Solar Circuit
4. Completely drain the solar heating circuit (see table below). 5. Disconnect the hoses used. Figure 8 DS-matic 1.15 - 1.15 Duo DS-matic 1.25 - 2.25 DS-matic 1.25 - 2.25 Duo PLUS 1.15 , PLUS 1.15 Duo PLUS 1.25 - 2.25 PLUS 1.25 - 2.25 Duo... -
Page 18: Switching Off The Unit
DS-matic 7 SWITCHING OFF THE UNIT If you wish to deactivate the unit, adjust the HNS parameter to value 1, so that the pumps are permanently deactivated. In case of prolonged absence, apart from deactivating the pumps (or disconnecting the unit from the electricity supply) you should also drain the accumulator primary circuit, following the instructions given in the previous point. - Page 19 Check the sensors are working correctly Check that the temperatures indicated by the power unit coincide with the real temperature. Check the power unit adjustment parameters Check that the parameters are correctly adjusted (see point 2.2 of User guide). Check the pump is working correctly in automatic and manual mode (on/off) Programme the HNS parameter in all its configurations, checking the pumps are working correctly for each of the configurations.
-
Page 20: Technical Data
DS-matic 9 TECHNICAL DATA DS-matic DS-matic DS-matic 1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo Hot water tank Volume 150 litres 250 litres Insulation Polyuréthane expansé External diameter 581 mm Width 747,5 mm Depth 581 mm Height 1028 mm 1628 mm Weight of empty hot water tank 84 Kg... -
Page 21: Guarantee Conditions
8 Years for solar collectors. 2 Years for electrical and hydraulic elements, pumps, valves, supports, etc. During the 2-year period following the start-up date, DOMUSA TEKNIK will carry out any repairs of original flaws or defects totally free of charge. -
Page 22: Installation Guide
DS-matic INSTALLATION GUIDE INDEX Page 1 DOCUMENTATION................................22 2 SAFETY GUIDELINES................................22 2.1 H ..................................22 OT WATER TANK 2.2 I ..................................22 NHIBITOR LIQUID 2.2.1 P ...............................22 RODUCT AND COMPANY NAMES 2.2.2 C .............................23 OMPOSITION COMPONENT INFORMATION 2.2.3 H ..................................23 AZARD IDENTIFICATION 2.2.4 F .......................................23 IRST AID 2.2.5 F... - Page 23 8.1 C / DS- ........................51 ONNECTING THE MATIC MATIC 8.2 F ..............................52 ILLING THE HOT WATER TANK 8.3 F ..............................52 ILLING THE SOLAR CIRCUIT 8.4 S ..................................52 EAL CONTROL 8.5 F ..................................53 LOW REGULATION 8.6 C ....................................54 HECK LIST 9 SOLAR POWER UNIT................................55 9.1 D...
-
Page 24: Documentation
Follow the instructions detailed in the "Water draining of the tank" chapter to empty the tank. 2.2 Inhibitor liquid The data below refer to the inhibitor liquid supplied by DOMUSA TEKNIK. Although the liquid is unalterable if it is stored in hermetically-sealed containers, the liquid used should be changed in accordance with the maintenance plan (see point 10 of Installation guide). -
Page 25: Composition Component Information
Supplier data: DOMUSA TEKNIK calefacción, S.Coop. Bº San Esteban s/n 20737 – Errezil, Spain Tel: 943 813 899; Fax: 943 815 666 In case of emergency, call the nearest toxicology centre. 2.2.2 Composition / component information Propane-1,2-diol with a concentration of over 90% with corrosion inhibitors. -
Page 26: Measures In Case Of Accidental Spillage
DS-matic 2.2.6 Measures in case of accidental spillage PERSONAL PRECAUTIONS: Avoid contact with skin and eyes. Do not breathe in fumes. Do not smoke. Individual equipment: Full protection equipment. Evacuate the hazardous area. Cut off the leak. Suppress the entire source of ignition. ENVIRONMENTAL PRECAUTIONS: Channel and clean up the spillage. -
Page 27: Stability And Reactivity
Spontaneous combustion temperature: 371ºC Lower explosivity limits: 2.4% (volume) Upper explosivity limits: 17.4% (volume) Vapour pressure: <0.1 mmHg at 25ºC Vapour density (air=1): 2.6 Density: 1.051gr/cm at 20ºC Solubility in water: Total Dynamic viscosity: 46mPa.s, at 25ºC Hygroscopicity: Hygroscopic product 2.2.9 Stability and reactivity STABILITY: Stable at ambient temperature and under the conditions of use. -
Page 28: Regulatory Information
DS-matic OBSERVATIONS: As the regulations governing transportation of hazardous material may evolve, we recommend you ensure their validity by consulting the commercial agency. 2.2.14 Regulatory information No R-phrase, no S-phrase. The regulatory information figuring in this section refers only to the main stipulations specifically applicable to the product subject to the FDS. - Page 29 ENV 12977-2 Solar heating installations and components; specific prefabricated installations for clients, Part 2: Test methods. ISO 9459-1 : 1993 Solar domestic water heating systems, Part 1: Performance rating procedure using indoor test methods. ISO/TR 10217 Solar energy / Water heating systems / Guide to material selection with regard to internal corrosion. Collectors and collector assembly: ENV 1991-2-4 Eurocode 1 –...
-
Page 30: Functioning
DS-matic 3 FUNCTIONING The DS-matic automatic solar heating system is an appliance designed to make maximum use of solar energy. Its operating principle is based on the liquid in the solar circuit being heated in the solar collector, and the absorbed heat then being exchanged with the domestic hot water in the hot water tank. - Page 31 Avantages du DS-matic The DS-matic automatic solar heating system has the following advantages as compared to traditional solar heating systems with a pressurised solar circuit: 1. Its compensation system drains all the water from the solar collectors when it does not require energy from them.
-
Page 32: Components And Main Characteristics
DS-matic 4 COMPONENTS AND MAIN CHARACTERISTICS DOMUSA TEKNIK has designed the DS-matic PLUS range to overcome level differences of up to 15m. The DS-matic and DS-matic PLUS systems can also be combined with other optional components to add to their features. -
Page 33: Hot Water Tank
● ● ● ● DS-matic 2.25 RE ● ● 14 ● ● ● ● ● ● ● ● DS-matic 1.15 Duo RE ● ● ● ● ● ● ● ● ● ● ● DS-matic 1.25 Duo RE ● ● 14 ●... - Page 34 DS-matic coated in the solar liquid. The solar liquid is conveyed through the solar collectors and heated up, transmitting the heat absorbed by the solar plates to the water in the hot water tank. As regards insulation, the entire surface of the DS-matic system hot water tanks is insulated with expanded polyurethane, reducing to a minimum any heat loss from the hot water tank.
-
Page 35: Hot Water Tank Control Panel
The main characteristics of the DS-matic and DS-matic PLUS system hot water tanks are as follows: DS-matic - DS-matic PLUS 1.15 / Duo 1.25 / Duo / Duo RE 1.15 RE / Duo RE 2.25 / Duo / Duo RE 150 litres Volume 250 litres... -
Page 36: Inhibitor Liquid
DS-matic The resistance and heat transmission of DOMUSA TEKNIK inhibitor liquid make it suitable for use in solar heating installations. Its main function is to protect the various components of the installation from corrosion, as different metals are used. DOMUSA TEKNIK recommends using a minimum concentration of 30% of inhibitor liquid. -
Page 37: Ds- Matic Configuration
DS-matic is the ideal solution for combining with boilers or heaters producing domestic hot water. The domestic water is heated up in the solar accumulator and conveyed to the cold water inlet of the boiler. The water is pre-heated before entering the boiler, to provide a suitable temperature for the hot water even if the burner is not ignited or is functioning on a lower setting. -
Page 38: Location
It is very important to choose a correct location for the solar collectors, as an unsuitable location can reduce the system’s efficiency: wrong orientation, shadows cast on the solar collector, etc. DOMUSA TEKNIK recommends taking the following indications into account when choosing a location: 1. - Page 39 If other tube diameters are used it cannot be guaranteed to work properly, and there may also be risk of noise on functioning. DOMUSA TEKNIK supplies tubes with insulation and a cable for the sensor, together with the connectors for making the connections to the collectors and the accumulator.
-
Page 40: Packaging And Transport
DS-matic 6 PACKAGING AND TRANSPORT The DS-matics are supplied in two packs. The accumulator and the solar panels are supplied together on a pallet, and the supports come separately in another pack. Figure 16 All the components should be stored indoors in their original packaging until they are installed. The accumulator and the panels should be stored as they are supplied to prevent damage from knocks. -
Page 41: Installation
Ø581 DS-matic 1.15 RE 1028 Ø581 DS-matic 1.25 RE 1491 1628 Ø581 DS-matic 2.25 RE 1491 1628 Ø581 DS-matic 1.15 Duo RE 1028 Ø581 DS-matic 1.25 Duo RE 1132 1408 1491 1628 Ø581 DS-matic 2.25 Duo RE 1132 1408 1491 1628 Ø581... -
Page 42: Hot Water Tank
DS-matic 7.2 Hot water tank Remove the hot water tank from the pallet it is supplied on and place it in its definitive location, ensuring there is sufficient space for installation and maintenance work to be carried out. The casing must be removed for installation and maintenance work. To do this, lift up the casing and pull it out. -
Page 43: Hydraulic Connection
Also, when the stored water is heated up, the pressure in the hot water tank may increase, and DOMUSA TEKNIK therefore recommends fitting the S200 hydraulic kit (optional) consisting of dielectric sleeves, a DHW expansion vessel and a safety unit. -
Page 44: Solar Heating Circuit
DS-matic 7.3.2 Solar heating circuit 7.3.3 R Boiler connection When installing the solar heating circuit, bear DS-matic Duo models have a pipe coil on the in mind that the up and down pipes must have upper part of the hot water tank for connecting a diameter of 12mm. - Page 45 DHWI DHWO DHWI DHWO Figure 20 FS: Filling socket. ES: Element socket. LS: Level socket. PI: Primary inlet (DS-matic Duo). PO: Primary outlet (DS-matic Duo). DHWO: DHW outlet. DHWI: DHW inlet. AS: Auxiliary socket. SI: Solar inlet. SO: Solar outlet.
-
Page 46: Installation Example
DS-matic 7.4 Installation example Hydraulic diagram of a DS-matic without back-up power. DHW outlet DHW inlet Figure 21 1: Pressure valve 2: Filling / empty socket. 3: Pumps. 4: Flow regulator. 5: Level socket. 6: Hot Water tank. 7: Solar collector. 8: Kit M. - Page 47 Hydraulic diagram of a DS-matic with auxiliary support. DHW inlet DHW outlet Figure 22 1: Pressure valve 2: Filling / empty socket. 3: Pumps. 4: Flow regulator. 5: Level socket. 6: Hot Water tank. 7: Solar collector. 8: Kit M. (Option) 8a: Safety unit.
-
Page 48: Electrical Connection
DS-matic 7.5 Electrical connection The electrical connection of DS-matic systems must be made by qualified staff, and any modifications may only be made by the official technical assistance service. The electrical connection must be made in accordance with the following recommendations: ... - Page 49 DS-Matic Duo Figure 24 CR: Element switch. BS inf: Lower solar pump. BS sup: Upper solar pump. Sd1: Collector sensor (Pt1000). Sd2: Lower hot water tank sensor (PTC 1K). Sd3: Upper hot water tank sensor (PTC 1K). Out1: Solar pumps relay. Out3: Switched relay for connection to boilers with a thermostat input.
- Page 50 DS-matic Connection to boilers For connecting the DS-matic Duo system to other boilers, check whether the boiler has a sensor or thermostat input (for measuring the temperature in the upper part of the hot water tank). If the boiler has a thermostat input, the relay 3 terminals should be connected to the thermostat input terminals of the boiler.
-
Page 51: Thermostatic Valve
If the chloride concentration in the domestic hot water is higher than 250 mg/dm , we recommend installing a cathodic protection inside the heat exchanger to avoid premature wear to the hot water tank. DOMUSA TEKNIK optionally supplies suitable electronic cathodic protection for its range of heat exchangers. -
Page 52: Electrical Element
7.5.6 Hydraulic connection kit The tubes supplied by DOMUSA TEKNIK have a diameter of 12 mm. They have external thermal insulation and a cable for the collector sensor. The insulation withstands high operating temperatures (+150ºC, with peaks of up to... -
Page 53: Starting Up
8 STARTING UP DS-matic systems must be started up by staff authorised by DOMUSA TEKNIK. The start-up procedure is as follows: 1. Connecting the DS-matic. 2. Fill the hot water tank. 3. Fill the solar circuit. 4. Check the seal. -
Page 54: Filling The Hot Water Tank
Figure 35 IMPORTANT! DOMUSA TEKNIK WILL ONLY BE LIABLE FOR THE CORRECT FUNCTIONING OF THE SYSTEM IF IT HAS BEEN FILLED WITH DOMUSA TEKNIK INHIBITOR LIQUID. 8.4 Seal control You should check that there no leaks anywhere on the solar circuit while the pumps are activated. -
Page 55: Flow Regulation
8.5 Flow regulation. To regulate the flow of the solar heating circuit, the DS-matic units have a manual regulator with a flow display. The units are supplied with the regulator totally open, i.e. at maximum flow, and so the regulation wheel should be turned clockwise until the flow is adjusted to 2 l/min. To regulate the flow, start up the pumps in manual mode. -
Page 56: Check List
DS-matic 8.6 Check list The following chart may be used as a guideline for installation and start-up. DONE REMARKS ASSEMBLY The supports have been placed according to the instructions The supports have been placed according to the instructions After fixing the supports in place, the roof covering has been correctly replaced The roof has not been damaged The solar circuit has been earthed... -
Page 57: Solar Power Unit
DS-matic or a DS-matic Duo model. DS-matic 1.15 DS-matic 1.25 / 2.25 DS-matic 1.15 Duo DS-matic 1.25 / 2.25 Duo DS-matic PLUS 1.15 DS-matic PLUS 1.25 / 2.25 DS-matic PLUS 1.15 Duo... -
Page 58: Electrical Diagram
DS-matic 9.3 Electrical diagram The electrical connection of all the power units must be made with a voltage of 210 - 250V and 50 - 60Hz, in accordance with the electrical diagram for each model (see 7.5.1 "Electrical diagram"). There follows a description of the electrical diagram of the power unit and its connection terminals. -
Page 59: Initial Start-Up
DS-matic Duo On DS-matic Duo models, the pumps (relay 1) are directly connected to the power unit, while the supply and the sensors (sensors 1, 2 and 3) are connected via the hot water tank terminal block (see 7.5.1 "Electrical diagram"). DS-matic Duo power units are equipped with 2 relays. -
Page 60: Maintenance
DS-matic 10 MAINTENANCE Maintenance must only be carried out by qualified staff. All work carried out on the system must be done by the Official Technical Assistance Service, as changing the configuration could cause functioning errors and damage to the system and its surrounding environment. 10.1 Cleaning the inside of the tank The inside of the domestic hot water tank should be thoroughly cleaned once a year. -
Page 61: Water Draining Of The Tank
10.5 Water draining of the tank Before draining the water of the tank, its DHW circuit must be despressurized. Remove tank's upper cap and put in a hose to empty it. Direct the opposite end of the hose to a drainage, assuring that it is located in a level below the bottom of the tank. - Page 62 DS-matic Check the connections are correctly sealed With the circulation pump running (see point 8.5), visually check the accumulator connections. Check the state of the collectors Visually check the state of the collectors (dirt, dents, connections, etc.) and rectify any anomalies found.
-
Page 63: Spares List
11 SPARES LIST 11.1 Hot water tank Figure 42 Pos. Code Designation Pos. Code Designation Short bulb-holder sheath SELEDSM008 Electrical board (DS-matic 150 / PLUS) (DS-matic Duo / PLUS Duo) Electrical board (DS-matic 150 Duo / SELEDSM009 Long bulb-holder sheath PLUS) SELEDSM010 Electrical board (DS-matic 250 / PLUS) -
Page 64: Electrical Board
DS-matic 11.2 Electrical board Figure 43 Pos. Code Designation CACU000037 Control panel cover lid CACU000036 Control panel cover CACU000055 Control panel CELC000025 Switch CELC000362 Solar power unit (DS-matic / DS-matic PLUS) CELC000363 Solar power unit (DS-matic Duo / PLUS Duo) -
Page 65: Hydraulic Unit
11.3 Hydraulic unit Figure 44 Pos. Code Designation CFOV000153 Pump SCOB011957 Pump joining tube CFOV000144 Pump (DS-matic / Duo) CFOV000152 Pump (DS-matic PLUS / PLUS Duo) SCOB012000 Pump siphon tube CVAL000027 Valve CVAL000017 Safety valve CVAL000018 Flow regulator SCOB012001 Flow regulator tube... -
Page 66: Technical Data
DS-matic 12 TECHNICAL DATA DS-matic DS-matic DS-matic 1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo Hot water tank Volume 150 liters 250 liters Insulation Polyuréthane expanded External diameter 581 mm Width 747,5 mm Depth 581 mm Height 1028 mm 1628 mm DHW connections 1/2"... - Page 67 1.15 1.15 Duo 1.25 1.25 Duo 2.25 2.25 Duo Electrical element Voltage 230 V - 50 Hz Power 1.5 kW 2.5kW DHW heated volume 45 L 40 L 76 L 56 L 76 L 56 L Power unit Sensor wire diameter 0,75 mm Min.
- Page 68 DS-matic NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 69 NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 70 DS-matic NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 71 NOTES: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 72 Bº San Esteban s/n Ellesmere Port, CH65 9BF 20737 ERREZIL (Gipuzkoa) Tel: 0151 909 6222 Tel: (+34) 943 813 899 www.domusateknik.com DOMUSA TEKNIK reserves the right to make modifications of any kind to its product *CDOC001160* characteristics without prior notice. CDOC001160 08/16...
