This example uses direct portal authentication, and therefore select No from the Reallocate
IP list.
e. Select whether to support sever heartbeat and user heartbeat functions.
In this example, select No for both Support Server Heartbeat and Support User
Heartbeat.
f. Click OK.

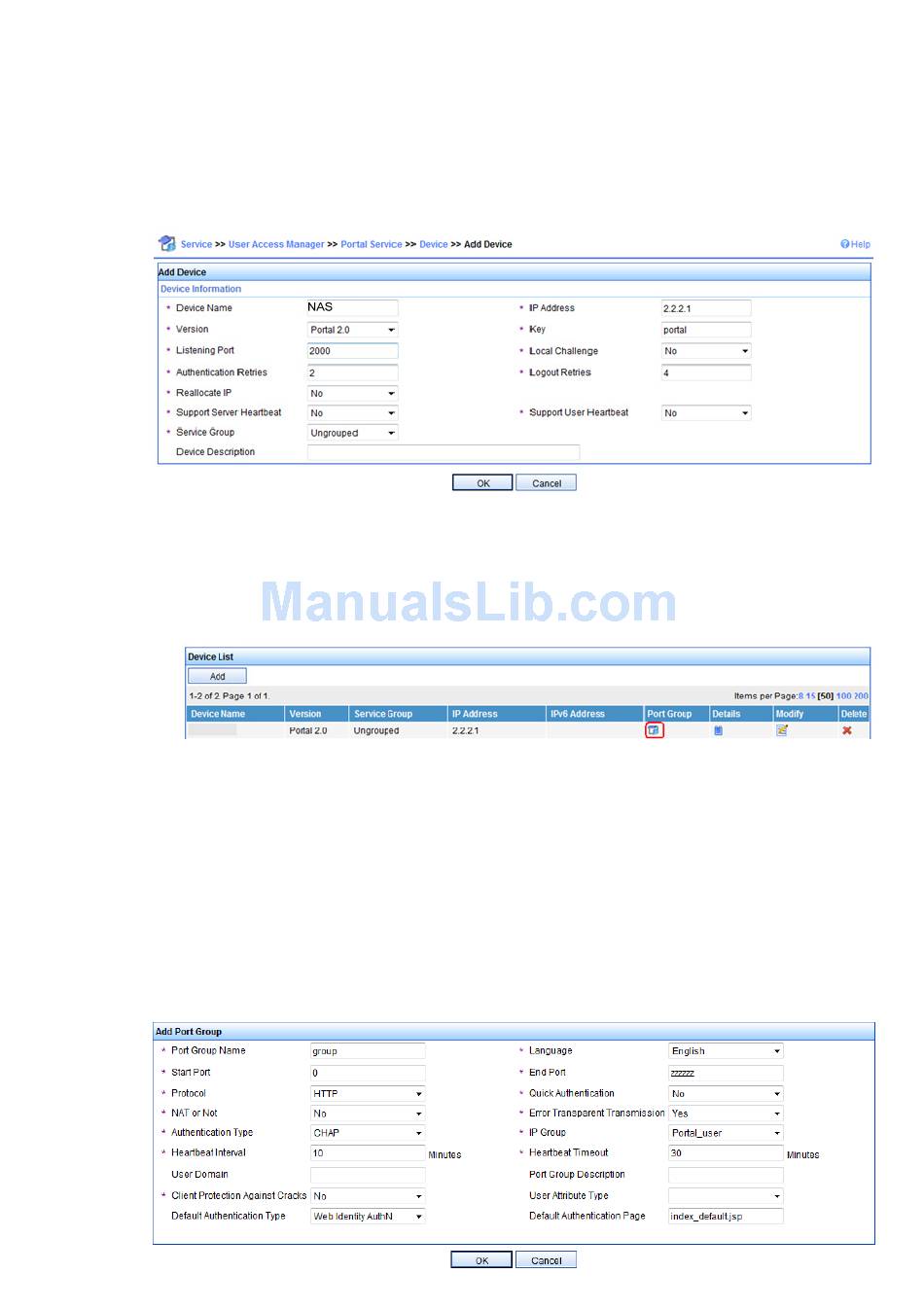

Figure 97 Adding a portal device
4. Associate the portal device with the IP address group.
Figure
a. As shown in
of device NAS to enter the port group configuration page.
Figure 98 Device list
NAS
b. On the port group configuration page, click Add to enter the page shown in
Perform the following configurations:
c. Enter the port group name.
d. Select the configured IP address group.
The IP address used by the user to access the network must be within this IP address
group.
e. Use the default settings for other parameters.
f. Click OK.
Figure 99 Adding a port group
98, click the icon in the Port Group Information Management column
314
Figure 99.
