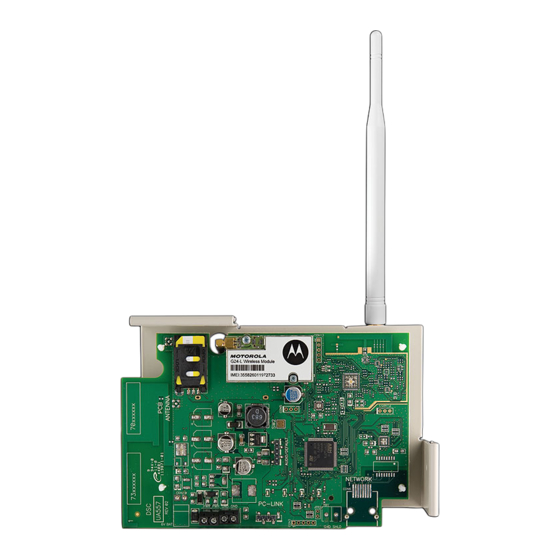

TL260GS / TL265GS
Internet and GSM / GPRS Dual-Path Alarm Communicator
GS2060 / GS2065
GSM / GPRS Wireless Alarm Communicator
Software Version 1.0
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL260GS and is the answer not in the manual?

Questions and answers

Summary of Contents for DSC TL260GS

  • Page 1 TL260GS / TL265GS Internet and GSM / GPRS Dual-Path Alarm Communicator GS2060 / GS2065 GSM / GPRS Wireless Alarm Communicator Software Version 1.0 Installation Manual...
  • Page 2: Limited Warranty

    The laws of some jurisdictions limit or do not allow the disclaimer of consequential damages. If the laws of such a jurisdiction apply to any claim by or against DSC, the limitations and disclaimers contained here shall be to the greatest extent permitted by law.
  • Page 3: Disclaimer Of Warranties

    Disclaimer of Warranties This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied warranties of merchantability or fitness for a particular purpose) and of all other obligations or liabilities on the part of Digital Security Controls.
  • Page 4: Criminal Knowledge

    WARNING Please Read Carefully Note to Installers This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system. System Failures This system has been carefully designed to be as effective as possible.
  • Page 5: Motion Detectors

    tors, such as when the fire is in a chimney, walls or roofs, or on the other side of closed doors. Smoke detectors may not detect smoke from fires on another level of the residence or building. Every fire is different in the amount of smoke produced and the rate of burning. Smoke detectors cannot sense all types of fires equally well.
  • Page 6: Compliance Statement

    Warning The SG-System I is a PLUGGABLE EQUIPMENT TYPE A, using a detachable power supply cord that serves as a disconnecting device. It shall be installed and used in an environment that provides the pollution degree m ax 2 and overvoltages category II, NON-HAZARDOUS LOCATIONS, INDOOR only.
  • Page 7: Important - Read Carefully

    EULA, even if this EULA is deemed to be a modification of any previous arrange- ment or contract. If You do not agree to the terms of this EULA, DSC is unwilling to license the SOFTWARE PRODUCT to You, and You have no right to use it.
  • Page 8: Export Restrictions

    WARE PRODUCT. (f) Termination - Without prejudice to any other rights, DSC may terminate this EULA if You fail to comply with the terms and conditions of this EULA. In such event, You must destroy all copies of the SOFTWARE PRODUCT and all of its component parts.
  • Page 9 CHASERS TIME, THE CLAIMS OF THIRD PARTIES, INCLUDING CUSTOMERS, AND INJURY TO PROPERTY. WARNING: DSC recommends that the entire system be completely tested on a regular basis. However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this SOFTWARE...
  • Page 10 Communicator using the GUI on the screen. See Options on page 23 for detailed programming information. Also, please refer to your DLS IV manual. For UL Residential Fire and Burglary installations, the TL260GS/TL265GS/GS2060/GS2065 Communicator is listed as a pri- mary (sole) communication means or as a backup when used in conjunction with a POTS line (dialer).
  • Page 11: Technical Specifications

    • Quad-Band: 850 MHz, 1900 MHz, 900 MHz and 1800 MHz Technical Specifications The input voltage to the TL260GS/TL265GS/GS2060/GS2065 Communicator can be drawn from the UL/ULC Listed Control Panel or provided by an external UL Listed power supply rated for the application (external power-limited source).
  • Page 12 Ratings Table 1: Communicator Ratings Model Category Values TL260GS Power Supply Ratings 10V ~ 13.8V DC • Input Voltage (From the Panel Bell output) (Ethernet & GSM) Current Consumption • Standby Current • 100mA @ 12V • Alarm (Transmitting) Current •...
  • Page 13 Compatibility Table 2: Compatible Receivers and Control Panels Communicator Receiver / Panel Description GS2060 / TL260GS Receiver • Sur-Gard System I Receiver, version 1.10+ GS2065 / TL265GS • Sur-Gard System II Receiver, version 1.30+ • Sur-Gard SG-DRL3-IP, version 2.20+ (for Sur-Gard System III...
  • Page 14: Installing The Gsm / Ethernet Communicator

    All this information can be found in your GVRU Activation Package. 7. Turn on the panel. Wait for the initialization of the Communicator. For installation of the TL260GS/TL265GS/GS2060/GS2065 Communicator, the local installer is responsible for module pro- gramming. See Compatibility on page 12 for more information.
  • Page 15 • Insert the previously activated SIM card face down in the SIM card holder. 2. Install the Communicator module into the Cabinet NOTE: Before installing the TL260GS/GS2060 or inserting or removing the SIM card, ensure that the system is turned off.
  • Page 16 - Call the Connect 24 VRU to activate your account. NOTE: If a Bell/Siren is not being used, wire the Bell/Siren terminals on the panel with a 1K Ω resistor, then only wire the BELL+ to the BELL IN of the TL260GS/GS2060. Connection the PC-Link Cable - Insert the connector on the TL260GS/GS2060 with the black wire on Pin 1 of the PC-Link header.
  • Page 17 NOTE: If a shielded network cable is being used, this step is optional. Nor is it necessary to complete this step if the cable shield is already grounded by the equipment at the other end. To Remove Connector - insert small, flat head screwdriver between cable and Rx/Tx module then gently pry plug loose.
  • Page 18 PC1616 / PC1832 / PC1864 Programming In order that your Communicator and your panel operate correctly together, specific panel options must be set. Take the following steps to ensure that your Communicator and your panel work together as intended. These options must be set at the panel keypad. 1.
  • Page 19: Status Leds

    Option 382 Option 382, sub-option 5, ‘T-Link Interface Enabled’, must be set to On. Connecting the TL260GS/TL265GS/GS2060/GS2065 Communicator • Power Terminal Blocks • PC-Link Connection • Ethernet Interface • Hardware Default Jumper STATUS LEDs The module has four onboard surface mount LED indicators. These include a Trouble Status LED on page 18, a Network Con- nection Status LED on page 20, and two Signal Strength LEDs on page 20.
  • Page 20 This trouble will be indicated when communication between the Communicator module and the control panel fails. If for some reason the the module can not communicate with the panel - eg, loss of power to the panel - the module itself will send a ‘Panel Absent Trouble Event’...
  • Page 21: Network Connection Status Led

    Network Connection Status LED The normal state of the Red Network Connection Status LED is Off when there are no network connection issues present. This LED will activate when there is an issue with either the Ethernet or the GPRS network connection. This LED will be trig- gered: •...
  • Page 22: Trouble Condition

    5. Apply the jumper to the two pins. 6. Turn on power to the Communicator. Wait for ten seconds. 7. Remove the jumper from the pins. The hardware settings of your Communicator have now been reset to their default values. PC-LINK Communicator Troubles on a 9155 Panel The following troubles will appear on the keypad LCD when encountered by a Communicator on the 9155 panel.
  • Page 23 Table 5: Communicator Troubles on a 9155 Panel Trouble Condition Description User Action Loss of Time and Date If power was lost completely (AC and battery), the Re-program Time and Date time and date will need to be re-programmed. Press *. Communicator Troubles on a 1616 / 1832 / 1864 Panel The General System trouble is the sole trouble that will appear on the keypad LCD when encountered by a Communicator on the 1616 / 1832 / 1864 panel.
  • Page 24: System Options

    Options System Options GPRS Receiver 1 Options Option 001: Ethernet IP Address on page 23 Option 201: GPRS Receiver 1 Account Code on page 27 Option 002: Ethernet IP Subnet Mask on page 23 Option 202: GPRS Receiver 1 DNIS on page 27 Option 003: Ethernet Gateway IP Address on page 23 Option 203: GPRS Receiver 1 Address on page 27 Option 004: Receiver Supervision Interval on page 24...
  • Page 25 Enter the Ethernet Gateway IP address of the dual communicator. The address must be entered as a dotted decimal number (e.g. 192.168.1.100). Each three-digit segment of the address must be within a valid range of 000 to 255. The gateway is used in the event that the destination address is not on the local network.
  • Page 26: Programming Options

    Table 7: System Toggle Options Valid Data Range Effect Default Bit 8 Reserved Disabled (Off) NOTE: *Receivers 1 and 3 can be supervised; if enabled, heartbeats are sent. Receivers 2 and 4 cannot be super- vised. Programming Options Option 011: Installer Code Default (CAFE) This option is used to program the installer code of the Communicator module.
  • Page 27: Ethernet Receiver 2 Options

    address must be entered as four 3-digit entries (e.g. 192.168.1.101). Each 3-digit segment of the address must be within a valid range of 000 to 255. Option 104: Ethernet Receiver 1 Local Port Default (3060) You can use this option to set the value of the local outgoing port. You can set the value of this port in case your installation is located behind a firewall and must be assigned a particular port number as determined by your network administrator.
  • Page 28 GPRS Receiver 1 Options Option 201: GPRS Receiver 1 Account Code Default (0000000000) The account code is used by the central station to distinguish between transmitters. This account code is used when transmitting signals to the central station receiver. Signals received from the control panel will use the control panel account number. Valid entries will range from 0000000000 to FFFFFFFFFF hexadecimal.
  • Page 29: Gprs Options

    Option 213: GPRS Receiver 2 Address Default (0.0.0.0) Enter the GPRS receiver 2 IP address. This information will be provided by your central station. Note that when a valid address has been entered, the GPRS will be considered to be enabled and will communicate events over the GPRS channel. The address must be entered as four 3-digit entries (e.g.
  • Page 30: Programming Worksheets

    You can use this option to confirm the IP address of the Ethernet port. Option 993: GPRS IP Address You can use this option to confirm the IP address of the GPRS connection. Option 994: SIM Number You can use this option to confirm the SIM number of the device. Option 995: Telephone Number You can use this option to confirm the telephone number of the device.
  • Page 31 Bit 6 - Remote Firmware Upgrade |______| Bit 7 - UL Remote Firmware Upgrade |______| Bit 8 - Reserved |______| Programming Options Option 011: Installer Code |_____|_____|_____|_____| Option 012: DLS Port |_____|_____|_____|_____| Option 013: DLS Local Port |_____|_____|_____|_____| Ethernet Receiver 1 Options Option 101: Ethernet Receiver 1 Account Code |_____|_____|_____|_____|_____|_____|_____|_____|_____|_____| Option 102: Ethernet Receiver 1 DNIS...
  • Page 32: Troubleshooting

    Option 213: GPRS Receiver 2 Address |____|____|____|____|____|____|____|____|____|____|____|____| Option 214: GPRS Receiver 2 Port |_____|_____|_____|_____| Option 215: GPRS Receiver 2 APN |_____|_____|_____|_____| GPRS Options Option 221: GPRS Public APN _______________________________________________________ Option 222: GPRS Login User Name _______________________________________________________ Option 223: GPRS Login Password _______________________________________________________ System Information Option 991: Firmware Version...
  • Page 33 Technical Support: 1-800-387-3630 (Canada / US) 905-760-3000 (International) www.dsc.com 29 0 0 7 5 1 6 R0 0 1 © 2008 Digital Security Controls...
