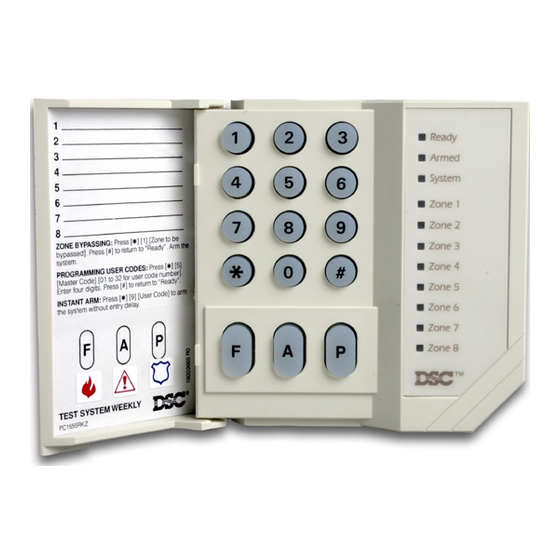

DSC PC 1500 Instruction Manual

DSC PC 1500 Instruction Manual

4 digit master code
Hide thumbs Also See for PC 1500:

Advertisement

Master Code

The 4 digit Master Code is used to arm and disarm the security system, to
program additional security codes and to change other system features.
The Master Code will be supplied to you by your installer. All keypad
entries are made by pressing one key at a time. (See Additional Codes
section)

Arming the System

Check the following items before arming the system:
Bypass Light
If the "Bypass" light is ON, insure that zones are intentionally bypassed
before arming the system (See Zone Bypassing section).
Trouble Light
If the " Trouble" light is ON, check to see what the trouble condition is and
call for service. (See Viewing Trouble Conditions section).
Ready Light
If the "Ready" light is NOT ON, check to see that all doors and windows are
closed and that motion is stopped in areas covered by motion detectors.
The system cannot be armed unless the "Ready" light is ON indicating that
all zones are closed.
NOTE: The system may be armed with a zone bypassed or a trouble
present but your security protection will be reduced.
To Arm
Enter your 4 digit access code. As each digit is entered, the keypad
sounder will beep. If the correct access code is entered, the keypad
sounder will beep quickly and the "Armed" light will come ON.
If the access code was entered incorrectly or the "Ready" light comes ON,
the keypad buzzer will sound steadily for 2 seconds. If this occurs, press
the [#] key and re-enter your access code.
When the correct access code is entered and the "Armed" light comes ON,
exit the premises through the door indicated by your installer as the Exit-
Entry door.
At the end of the exit delay period, all lights, except the "Armed" light, will
go out and the system will be armed. The exit time delay can be changed
by your installer.
Auto-Bypass Option - Home-Away Arming
This feature, if selected by your installer, will allow you to arm your system
with any valid user code and the system will automatically bypass the
interior zones. The "Bypass" light will come on. If you exit within the allowed
exit time, the system will automatically activate the interior zones and the
"Bypass" light will go out. This feature is designed to save the customer
from having to manually bypass interior zones each time they wish to arm
the system and remain at home.
In residential applications where the system has been armed and the
interior zones are automatically bypassed, the interior zones can be
reactivated from a keypad that is outside the interior zone's protection area.
To reactivate the interior zones, press [
will go out.
*
] then [1] and the "Bypass" light
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for DSC PC 1500

  • Page 1: Master Code

    Master Code The 4 digit Master Code is used to arm and disarm the security system, to program additional security codes and to change other system features. The Master Code will be supplied to you by your installer. All keypad entries are made by pressing one key at a time.
  • Page 2: Disarming The System

    Entry Delay Off Arming If you wish to arm your system and eliminate the entry delay, enter [ ][9] before your access code. The “Armed” light will flash as a reminder that the system is armed and has no entry delay. An entry through any zone programmed as a delay zone will create an instant alarm.
  • Page 3: Alarm Test

    Alarm Test Enter [ ][6][Master Code][8] for a 2-second test of the keypad lights, keypad buzzer, battery and the bell/siren. Press [#] to return to Ready. Programming Security Codes The Master Code Enter [ ][5][current Master Code][1][new Master Code] Press [#] to return to Ready. Record your new Master Code on the System Information page in this booklet.
  • Page 4: If An Alarm Sounds

    NOTE: The alarm memory is cleared each time the panel is armed so that any alarms showing are alarms that occurred only during the last armed period. If An Alarm Sounds Fire Alarm If your system has been installed with fire detectors and the alarm sounds in a pulsing mode, follow your Emergency Evacuation Plan immediately.
  • Page 5: Keypad Zones

    Pressing any key on the keypad will silence the sounder but the “Trouble” light will remain ON until the trouble condition is cleared. If you cannot determine the cause of the trouble condition, contact your installer for assistance. Press [ ][2] to display the type of trouble.
  • Page 6: Testing Your System

    Reset To restore the smoke detector(s) to normal, press [ ][7]. If the detector still has smoke in it, the alarm will resound and the sequence described above will repeat. If the detector is clear of smoke, the system will return to normal.
  • Page 7 Ready light ON - System is ready for arming. Ready Ready light OFF - System has an open zone which must be closed or bypassed Armed before arming. Memory Bypass Armed light will come ON indicating the system is armed. To arm, ensure “Ready” Trouble light is ON - enter 4 digit code.
  • Page 8 Instruction Manual PC15OO/PC155O © 1997 Digital Security Controls Ltd. • W A R N I N G • 1645 Flint Road, Downsview, Ontario, Canada M3J 2J6 Printed in Canada 29000203 R3 This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer.
