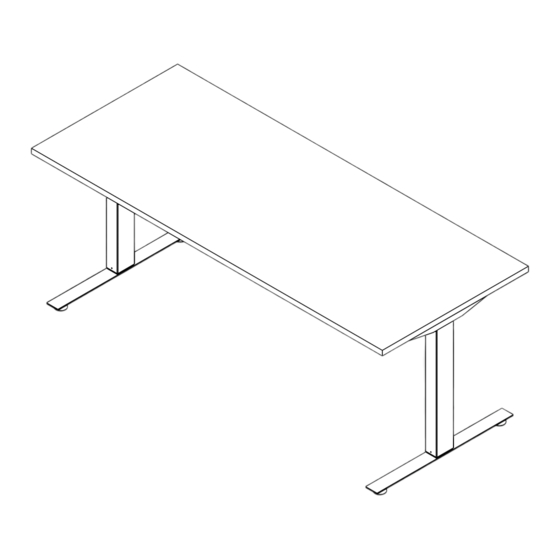

- Page 1 OV1000 | Part No. 23624 OV1000 HEIGHT ADJUSTABLE TABLE USER GUIDE...
- Page 2 HEIGHT ADJUSTABLE TABLE A healthier work environment starts with the option to sit or stand throughout the day. Our OV1000 table is the industry standard in height-adjustable products, and your first step towards improving the efficiency and well-being of your organization.
-
Page 3: Table Of Contents
TABLE OF CONTENTS User Guide: OV1000 TABLE OF CONTENTS Parts Diagram Full Length Independent Independent with HAT Channel Three-Leg Safety Information 10-13 Assembly Instructions Operation 14-15 Initialization and Reset Handswitch Operation Programmable Handswitch Operation - Change the Height Unit - Adjust Height Display... -
Page 4: Parts Diagram
PARTS DIAGRAM User Guide: OV1000 OV1000 PARTS DIAGRAM SCREW SCREW FULL LENGTH For tables up to 84" PARTS Qty/Package 1. Beam 2. Column 3. Top Support 4. Foot 5. M8x1.25 12mm Screw 6. M10x1.5 50mm Screw Handswitch 8. Control Box 9. -
Page 5: Independent
PARTS DIAGRAM User Guide: OV1000 INDEPENDENT For tables 60" or Less PARTS Qty/Package 1. Independent Beam 2. Column 3. Top Support 4. Foot 5. M8x1.25 12mm Screw 6. M10x1.5 50mm Screw Handswitch 8. Control Box 9. Power Cord OV1000 | 5... -
Page 6: Independent With Hat Channel
PARTS DIAGRAM User Guide: OV1000 INDEPENDENT WITH HAT CHANNEL For tables up to 84” PARTS Qty/Package 1. Independent Beam 2. Column 3. Top Support 4. Foot 5. HAT Channel 6. M8x1.25 12mm Screw M10x1.5 50mm Screw 8. Handswitch 9. Control Box 10. -
Page 7: Three-Leg
PARTS DIAGRAM User Guide: OV1000 THREE-LEG PARTS Qty/Package 1. Independent Beam 2. Column 3. Top Support 4. Foot 5. M8x1.25 12mm Screw 6. M10x1.5 50mm Screw Handswitch 8. Control Box 9. Power Cord Please note: 3-Leg configuration is not UL or BIFMA tested... -
Page 8: Safety Information
To reduce the risk of death, serious injury, or property damage, read and follow this safety information and the provided instructions when assembling this product. Do not change or replace components and accessories provided by OMT-Veyhl. INSTALL ONLY APPROVED WORK SURFACES This table system does not include a work surface (desktop). - Page 9 SAFETY INFORMATION User Guide: OV1000 DO NOT OVERLOAD DESK To prevent table from tipping or collapsing, make sure the desk frame is not overloaded by the weight of tabletop and objects on table. Evenly distribute load; excess loads near edges can reduce stability and lead to tip over.
-
Page 10: Assembly Instructions
The assembly of the table frame to be made in accordance with this manual. Changes to the table frame or improper use may affect the safety, function, and life of your product. This manual is for all sit-stand tables from the OV1000 series. Due to different models or types, pictures may vary. -
Page 11: Full Length
ASSEMBLY INSTRUCTIONS User Guide: OV1000 Column Male Hex Motor Female Hex ASSEMBLE THE COLUMN TO THE BEAM Make sure that the male hex adapter on the column is aligned with the female hex adapter in the motor. If they are not aligned, use a 9mm wrench to turn the male hex adapter on the column to align with the female hex adapter in the motor. -
Page 12: Independent
ASSEMBLY INSTRUCTIONS User Guide: OV1000 FASTEN THE TABLE FRAME ONTO THE TABLE TOP Be sure to use approved screws per the table top supplier. FULL LENGTH INDEPENDENT 1.5 in INDEPENDENT WITH THREE-LEG HAT CHANNEL Please make sure top supports are mounted 1.5" from edge of work surface. - Page 13 ASSEMBLY INSTRUCTIONS User Guide: OV1000 FASTEN THE CONTROL BOX AND HANDSWITCH TO THE TABLE TOP Make sure the control box and handswitch are fastened in a location where all the cables will connect without being in tension. Be sure to use approved screws per the table top supplier.
-
Page 14: Operation
OPERATION INFORMATION User Guide: OV1000 OPERATION INFORMATION INITIALIZATION/RESET The desk may need to be initialized/reset after any of the following: - After assembly - After disconnection from the power supply - After any impact on the table top. To initialize/reset, you will need to move the table to the lowest position by holding the DOWN button of the handswitch until all columns reach the lowest position. -
Page 15: Change The Height Unit
OPERATION INFORMATION User Guide: OV1000 PROGRAMMABLE HANDSWITCH OPERATION (continued) CHANGE THE HEIGHT UNIT (inches or centimeters) The height display of the handset can display either centimeters or inches. With the help of the S5-menus, the unit can be changed. If the display was originally set to centimeters, then after the procedure noted below it will change to inches or vice versa. -
Page 16: Troubleshooting
TROUBLESHOOTING User Guide: OV1000 TROUBLESHOOTING UNIT ERROR CODE SOURCE SOLUTION No power supply Plug in the power cord or check the connection Table does not on the control box move No connection or a loose Verify the plug connections of the motor cable... -
Page 17: Handswitch Errors
TROUBLESHOOTING User Guide: OV1000 HANDSWITCH DISPLAY ERROR CODE SOURCE SOLUTION The control box monitors the duty cycle (time-controlled) and its max Wait until the “HOT” display goes out - the table is working properly again temperature. A value has been exceeded. -
Page 18: Technical Data
TECHNICAL DATA User Guide: OV1000 TECHNICAL DATA GENERAL CONTROL BOX Power supply 120 VAC ±10% / 60 Hz Standby power consumption, primarily <0.3 W Operating temperature 0-35°C Protection class IP 20 Maximum power output 216VA/24V TWO-COLUMN FRAME WITH CONTROL BOX Maximum lift capacity 200 lb (≈... -
Page 19: Customer Service
CUSTOMER SERVICE User Guide: OV1000 CUSTOMER SERVICE If you have any problems with PHONE: 1-616-738-6688 your table base, please contact FAX: 1-616-738-6682 our service department. STANDARDS & CERTIFICATIONS The drive system is tested according to the following standards: UL 962 Issued: 2014/11/07 Ed: 4 Household and Commercial Furnishings CSA C22.2#68... - Page 20 OV1000 USER GUIDE Part No. 23624 Rev 013117...
