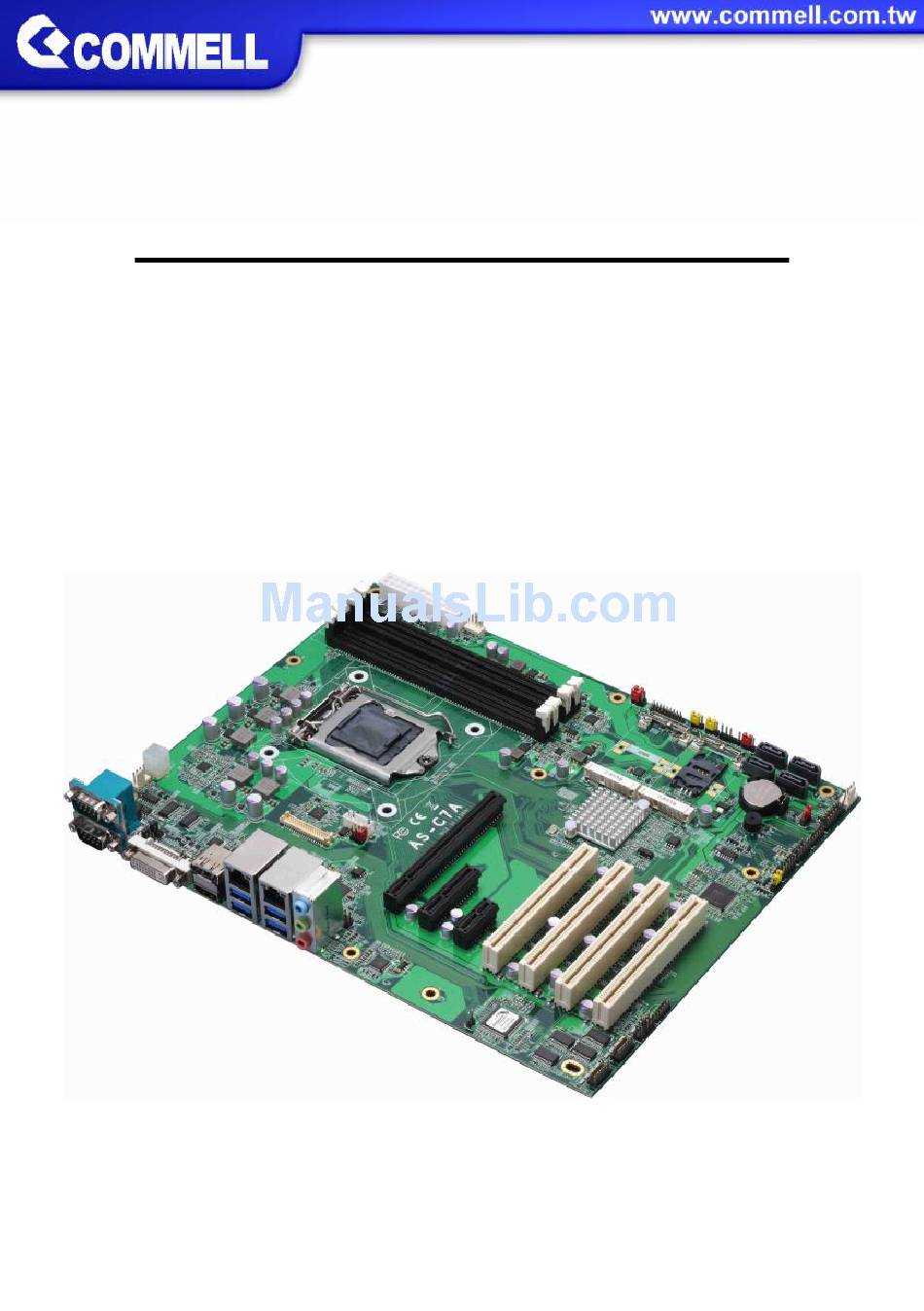

- Page 1 AS-C7A ATX Industrial Motherboard User’s Manual Edition 1.4 2017/01/20...
- Page 2 AS-C7A User’s Manual Copyright Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
AS-C7A User’s Manual Packing List: Please check the package content before you starting using the board. 1 x AS-C7A ATX Industrial Motherboard 2 x SATA Cable 1 x VGA Cable (OALSATA3-L) / (1040529) (OALVGA-S-7) / (1040556) 1 x I/O Shield... -
Page 4: Table Of Contents
AS-C7A User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup>............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <CPU and Memory Setup>... -
Page 5: Chapter 1
All in One multimedia solution AS-C7A provides high performance onboard graphics, 18/24-bit single/dual channel LVDS interface, DisplayPort, HDMI, DVI-I, VGA and High Definition Audio, to meet the requirement of the multimedia application. -
Page 6: Product Specification
AS-C7A User’s Manual 1.2 <Product Specification> System Intel® Skylake Core™ i7, i5, i3 S-series and Xeon® E3-1200 v5 Product Processor Family Processor, FCLGA1151 package Chipset Intel® C236 PCH-H 4 x DDR4 DIMM 1866/2133 MHz up to 64GB, Support Non-ECC, Memory unbuffered memory only (Xeon®... -
Page 7: Block Diagram
AS-C7A User’s Manual 1.3 <Block Diagram> 1 x HDMI Channel A1 DDR4 DIMM 1.2V 1 x DisplayPort Channel A2 DDR4 DIMM 1.2V 1 x DVI-I Channel B1 DDR4 DIMM 1.2V Gen Processor Channel B2 PTN3355 DDR4 DIMM 1.2V 1 x CRT... -
Page 8: Chapter 2
AS-C7A User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_SMBUS SATA3-2 CN_USB 3-1 SATA3-1 SATA3-4 AUXFAN SYSFAN SATA3-3 JFRNT DDR4_B2 DDR4_B1 CN_LPC DDR4_A2 CN_USB2-1 DDR4_A1 CN_USB2-2 SIMM PCI1 PCI2 PCI3 CN _INV PCI4 CN_LVDS CN_DIO CN_12V CN_PS2... -
Page 9: Internal Connectors List
AS-C7A User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A1/A2/B1/B2 288-pin DDR4 DIMM slot SATA3-1/2/3/4 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 10: Cpu And Memory Setup
AS-C7A User’s Manual 2.2 <CPU and Memory Setup> 2.2.1 <CPU installation> AS-C7A has a LGA1151 CPU socket onboard; please check following steps to install the processor properly. Attention If AS-C7A need RMA please Keep CPU socket cover on the CPU Socket. -
Page 11: Memory Setup
AS-C7A User’s Manual 2.2.2 <Memory Setup> AS-C7A has four 288-pin DDR4 DIMM support up to 64GB of memory capacity and 1.2 Voltage. The memory frequency supports 1866/2133 MHz. Only Non-ECC memory is supported. Please check the pin number to match the socket side well before installing memory module. -
Page 12: Jumper Location And Reference
AS-C7A User’s Manual 2.3 <Jumper Location and Reference> JVUSB JMSATA1 JMSATA2 JVSATA3-2 JRTC JCSEL2 JCSEL1 JVLCD 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA1 MiniCard 1 MSATA Setting JMSATA2 MiniCard 2 MSATA Setting... -
Page 13: Clear Cmos And Power On Type Selection
AS-C7A User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Ethernet Interface
AS-C7A User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I219-LM I210-AT 2.4.3 <Display interface>... - Page 15 AS-C7A User’s Manual CN_INV JVLCD CN_LVDS CN_CRT CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD...
- Page 16 AS-C7A User’s Manual A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3- B_LVDS_CLK- A_LVDS_3+ B_LVDS_CLK+ LVDS_DDCSCL LVDS_DDCSDA Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper...
-
Page 17: Serial Port Interface
AS-C7A User’s Manual 2.4.4 <Serial Port interface> COM2 COM1 CN_COM5/6 JCSEL1 JCSEL2 CN_COM3/4 COM1: RS232 DB9 connector Signal Signal Set by JP1 -16-... - Page 18 AS-C7A User’s Manual COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Use JCSEL1 and JCSEL2 to select communication mode COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal...
-
Page 19: Usb Interface
AS-C7A User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 (Default) RS485 RS422 2.4.5 <USB interface> USB3.0 USB3.0 (LEFT) (RIGHT) CN_USB3-1 JVUSB CN_USB2-1 CN_USB2-2 -18-... -
Page 20: Audio Interface
AS-C7A User’s Manual CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7. CN_USB3-1 USB3.0 20-pin header (Pitch 2.00 mm) Description Description (5V_SB/ 5V) USB3.0_RX0-... -
Page 21: Expansion Slot
AS-C7A User’s Manual CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT 2.4.7 <Expansion slot> JMSATA1 JMSATA2 PCI1 PCI2 PCI3 PCI4 PCIE_4X PCI_E16X PCIE_1X MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. -
Page 22: Front Panel Switch And Indicator
AS-C7A User’s Manual JMSATA1/2: Setting MINI_CARD to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+... -
Page 23: Gpio And Other Interface
AS-C7A User’s Manual 2.4.9 <GPIO and Other interface> CN_SMBUS AUXFAN SYSFAN CN_LPC CN_DIO CPUFAN CN_PS2 When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. - Page 24 AS-C7A User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_PS/2: PS/2 10-pin header (Pitch 2.54mm)
-
Page 25: Power Supply
AS-C7A User’s Manual CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector Signal Sensor Control AUXFAN: AUX cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input> CN_12V CN_12V: ATX12V 4-pin connector... - Page 26 AS-C7A User’s Manual ATX: main power 24-pin connector (As input) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V -25-...
-
Page 27: Appendix A
AS-C7A User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the... - Page 28 AS-C7A User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 29: Appendix C
AS-C7A User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. -
Page 30: Appendix D
AS-C7A User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F5 -o 4F 00 ;set “00” is second mode, set “04” is minute mode -o 4E F6 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute... -
Page 31: Appendix E
AS-C7A User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87... -
Page 32: Appendix F
AS-C7A User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS. -
Page 33: Appendix G
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -32-...
