EX2200 Switch Models

Table 3: EX2200 Switch Models

Model Access Ports
EX2200-C-12T-2G 12 Gigabit Ethernet
EX2200-C-12P-2G 12 Gigabit Ethernet
EX2200-24T-4G 24 Gigabit Ethernet
EX2200-24P-4G 24 Gigabit Ethernet
EX2200-24T-4G-DC 24 Gigabit Ethernet
EX2200-48T-4G 48 Gigabit Ethernet
EX2200-48P-4G 48 Gigabit Ethernet
Related
Documentation
Copyright © 2017, Juniper Networks, Inc.

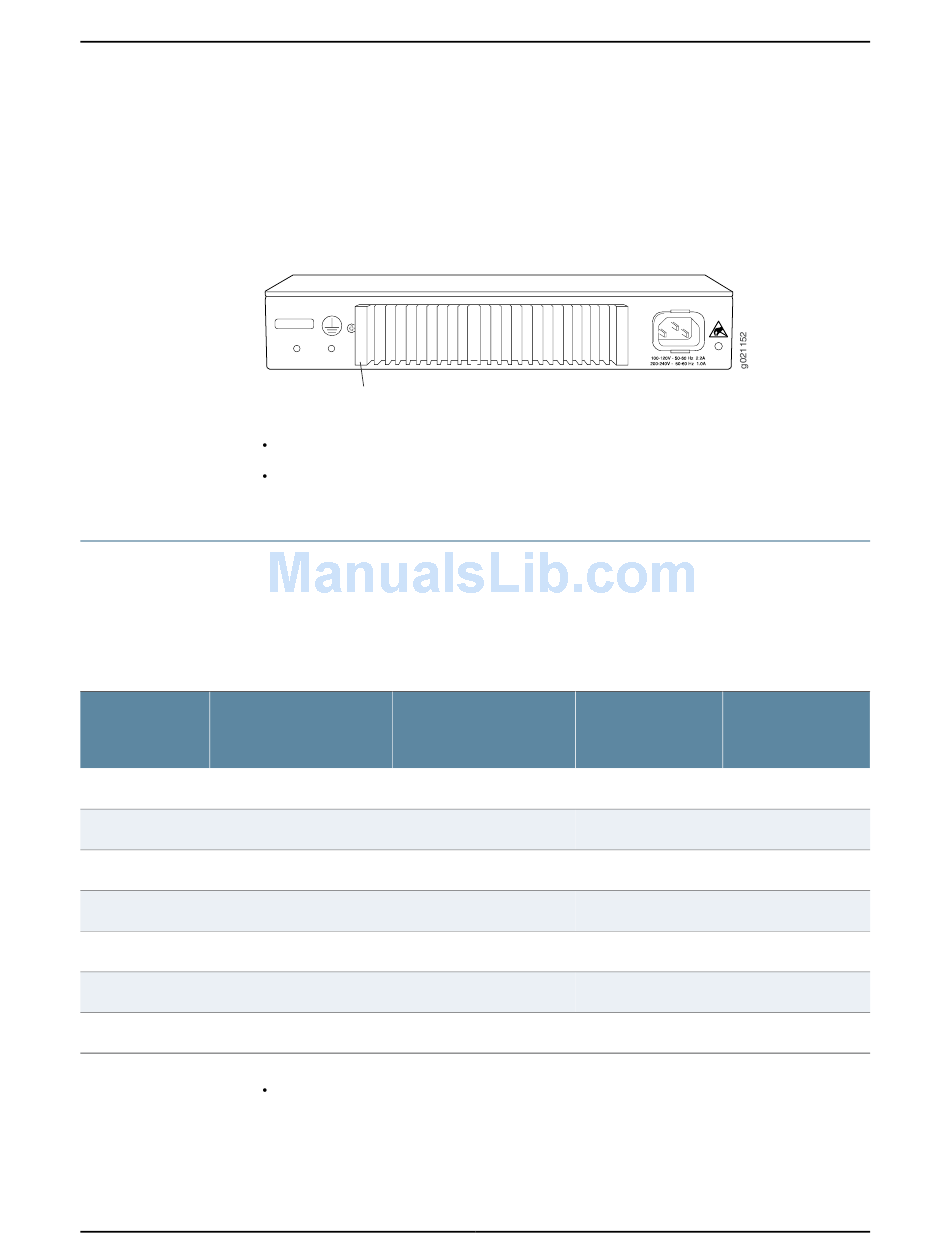

Figure 6 on page 9 shows the rear panel of an EX2200-C-12P switch with heatsink.
EX2200-C switches being fanless models have no exhaust openings. The switch has
vents on the top and on both the sides of the chassis. The PoE+ models have a heatsink
installed in the rear panel to dissipate the heat, while non-PoE models have no heatsink.

Figure 6: Rear Panel of an EX2200-C-12P Switch with Heatsink

Heatsink
EX2200 Switch Models on page 9
Site Preparation Checklist for EX2200 Switches on page 47
The EX2200 switch is available with 12, 24, or 48 built-in network ports with full Power
over Ethernet (PoE) capability (all 12, 24, or 48 built-in network ports support PoE) or no
PoE capability. EX2200 switches with DC power supply do not provide PoE.
Table 3 on page 9 lists the EX2200 switch models.
Ports in Which PoE is
Available
–
All 12 ports
–
All 24 ports
–
–
All 48 ports
EX2200 Switches Hardware Overview on page 3
Chapter 1: System Overview
Maximum System
Power Available for First Junos OS
PoE Release
– 11.3R1
100 W 11.3R1
– 10.1R1
405 W 10.1R1
– 10.1R1
– 10.1R1
405 W 10.1R1
9
