Page 3 INTRODUCTION INTRODUCTION INTRODUCTION READ FIRST The symbols described below are found in this instruction We recommend that you wait until the positioning stabilizes manual as well as on the unit itself to insure its proper and before starting to drive. safe usage and to prevent injury or damage to property.
Page 4 INTRODUCTION Information in this manual that must be observed for the SYMBOLS USED IN ILLUSTRATIONS unit, and information that is useful to know is indicated as follows. Safety symbol WARNING The symbol of a circle with a slash through it means “Do not”, “Do not do this”...
Page 5 INTRODUCTION l The driver should not perform operations such as volume PRECAUTIONS FOR USE adjustment while driving. Inattention to road conditions ahead may result in an accident, so be sure to stop the vehicle in a safe place before performing the operation. WARNING l The driver should not change discs while driving.
Page 6 If such an abnormality occurs, stop l Be careful of the volume when turning on the power. If a loud using the unit immediately and contact your SUBARU dealer. noise is emitted suddenly when you turn on the power, it may An accident, fire or electric shock may result if you continue to damage your hearing.
Page 7 Furthermore, do not hit the screen or rub it with hard objects. If the unit does not return to normal operation even after several l Avoid touching the “SD memory card” terminals to prevent hours, contact your SUBARU dealer. contamination. Doing so may cause card read failure.
Page 8 INTRODUCTION NOTE NOTE When using the unit for the first time after purchase, or after The display may appear brighter when the temperature is low, the battery was removed for a long time, the current position or immediately after starting the engine, however, this is a may not be displayed correctly.
Page 9 INTRODUCTION WARNING SAFETY INSTRUCTION (WITHOUT NAVIGATION FUNCTION) l For safety, the driver should not operate the system while he/ she is driving. Insufficient attention to the road and traffic may cause an accident. SAFETY INSTRUCTION (WITH NAVIGATION FUNCTION) To use this system in the safest possible manner, follow all the safety tips shown below.
Page 10 INTRODUCTION Prior to the actual use of this system, learn how to use it and While driving, listen to the voice instructions as much as become thoroughly familiar with it. Read the entire manual possible and glance at the screen briefly and only when it to make sure you understand the system.
Page 11 INTRODUCTION HOW TO READ THIS MANUAL Name Description Operational Outlines An outline of the operation is explained. Main Operations The steps of an operation are explained. Supplemental information Describes supplemental information relating to main operation. ● When a panel button should be selected, button names are shown as ●...
Page 12: Table Of Contents
Table of Contents BASIC FUNCTION BASIC INFORMATION BEFORE OPERATION ... 38 INITIAL SCREEN ..............38 QUICK GUIDE ● INITIAL SCREEN ............38 BASIC FUNCTION ..........20 LOADING AND UNLOADING A DISC ........40 ● LOADING A DISC ............40 OVERVIEW BUTTONS ............20 ● UNLOADING A DISC............41 “HOME (HOME)”...
Page 13 MEDIA OPERATION ..........78 AUDIO CD ..................78 BASIC OPERATION ..........54 ● OVERVIEW ..............78 SOME BASICS ..............54 USB MEMORY ..............81 ● TURNING THE SYSTEM ON AND OFF ......54 ● OVERVIEW ..............81 ● SELECTING AN AUDIO SOURCE ........55 iPod ..................84 ● SOUND SETTINGS............56 ●...
Page 14 Bluetooth PHONE MESSAGE FUNCTION ......130 PHONE ● RECEIVING A MESSAGE ..........131 PHONE OPERATION (HANDS-FREE SYSTEM ● CHECKING MESSAGES ..........132 ● REPLYING TO A MESSAGE (QUICK REPLY) ....133 FOR CELLULAR PHONES) ....... 116 ● CALLING THE MESSAGE SENDER ......134 QUICK REFERENCE ............116 SOME BASICS ..............117 SETUP ..............
Page 15 ● ABOUT APP-BASED CONNECTED CONTENT ...151 ● DISPLAYING STOCKS INFORMATION......171 ● DISPLAYING FUEL INFORMATION SUBARU STARLINK .......... 153 (NOT AVAILABLE IN CANADA) ........172 SUBARU STARLINK ............153 ● DISPLAYING SUBARU STARLINK INFORMATION ..153 SETTINGS Bluetooth SETTINGS ........176 ® MirrorLink™ ............154 REGISTERING/CONNECTING Bluetooth DEVICE ..176...
Page 16 OTHER SETTINGS ..........190 DESTINATION SEARCH ........207 GENERAL SETTINGS ............190 DESTINATION SEARCH SCREEN ........207 ● GENERAL SETTINGS SCREEN ........190 SEARCH OPERATION ............208 VOICE SETTINGS ...............196 ● SETTING HOME AS DESTINATION ......209 ● VOICE SETTINGS SCREEN ........196 ● SEARCHING BY FIND ADDRESS ........209 ●...
Page 17 ROUTE GUIDANCE ..........221 MEMORY POINTS ..........234 ROUTE GUIDANCE SCREEN ..........221 MEMORY POINTS SETTINGS ...........234 ● SCREEN FOR ROUTE GUIDANCE ......221 ● SETTING UP HOME .............234 ● STANDARD MAP ICON ..........221 ● SAVING DESTINATIONS ..........235 ● DATA FIELDS ..............222 SETUP ..............
Page 18 Siri/VOICE RECOGNITION SYSTEM APPENDIX/WHAT TO DO IF/INDEX Siri ............... 248 MAP DATABASE INFORMATION AND UPDATES ........... 274 Siri ..................248 ® ● BEFORE USING Siri .............248 CERTIFICATION ..........277 ● USING Siri ..............249 ● Siri OPERATION ............249 CERTIFICATION ..............277 ● SiriusXM Satellite Radio ..........277 ®...
Page 19 MEMO...
Page 20: Quick Guide
QUICK GUIDE...
Page 21: Basic Function

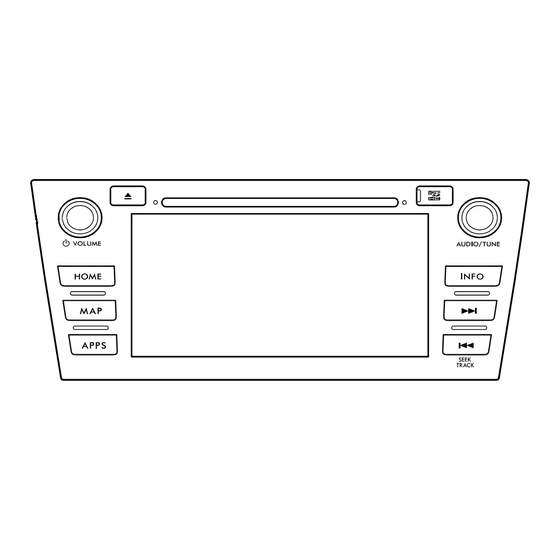

BASIC FUNCTION BASIC FUNCTION OVERVIEW BUTTONS Function Page XWithout navigation function By touching the screen with your finger, 44, 46 you can control the selected functions. Insert a disc into this slot. The CD player turns on immediately. 60, 69, Turn the “AUDIO/TUNE”...
Page 22 BASIC FUNCTION Function Page Function Page microSD card slot* Select to seek up or 60, 69, Open the cover and insert an SD card down for a radio station or to access a 78, 81, into this slot. desired track/file. 84, 87, Select to display the navigation screen Press and hold...
Page 23: Home (Home)" Screen
BASIC FUNCTION “HOME (HOME)” SCREEN Function Page Select to display the “HOME (HOME)” screen. Select to display the map screen. Select to display the audio control screen. Select to display the hands-free operation screen. Select to display the “SETTINGS (SETTINGS)” screen. Select to display the “INFO (INFO)”...
Page 24: Apps (Apps)" Screen
Function Page Select , or select and then select APPS Select to display the “SUBARU STARLINK disclaimer (SUBARU (APPS), to display the “APPS (APPS)” screen. STARLINK disclaimer)” screen. Select to display the “MirrorLink™ (MirrorLink™)” screen. Select to display the “Pandora (Pandora)*”...
Page 25: Info (Info)" Screen
BASIC FUNCTION “INFO (INFO)” SCREEN Function Page This screen can be used to display sports information and Select to display sports information. photos, etc. Select to display weather information. Select , or select and then select INFO Select to display stocks information. (INFO), to display the “INFO (INFO)”...
Page 26: Split Screen
BASIC FUNCTION SPLIT SCREEN Press and hold the “AUDIO/TUNE” knob, to display the split screen. The split screen can display two information screens simultaneously, such as the audio system screen and hands-free screen or the hands-free screen and navigation* screen. When hands-free mode is selected, it is possible to make a call on the home screen if the desired telephone number is registered to one of the 4 displayed buttons.
Page 27: Status Display
BASIC FUNCTION STATUS DISPLAY Indicators Conditions The status of the Bluetooth connection and so on is This icon is displayed when the Bluetooth connection is established. displayed on the screen. An antenna for the Bluetooth connection is built into the instrument panel. The condition of the Bluetooth connection may deteriorate and the system may not function when a Bluetooth device is used in the following...
Page 28 BASIC FUNCTION Indicators Conditions Full amount The amount displayed does not always of battery correspond with the amount displayed on the charge left Bluetooth device. The amount of battery charge left may not be displayed depending on the type of the Bluetooth device connected.
Page 29: Quick Reference
QUICK REFERENCE QUICK REFERENCE “SETTINGS (SETTINGS)” SCREEN Function Page The items shown on the “SETTINGS (SETTINGS)” screen Select to turn the screen off. can be set. Select and then select SETTINGS Select to change the selected language, (SETTINGS) to display the “SETTINGS (SETTINGS)” operation sound, automatic screen screen.
Page 30: Navigation Operation
NAVIGATION OPERATION NAVIGATION OPERATION REGISTERING HOME (WITH Select (Destination). Destination NAVIGATION FUNCTION) Select , or select and then select (MAP). Select (Go Home). Go Home Select (Menu). Menu Select (Yes).
Page 31 NAVIGATION OPERATION Select (Find on Map). Select (OK). Find on Map ● Registration of home is complete. Select (Select). Select XRegistering home in a different way →P.234 XSetting home as the destination →P.32...
Page 32: Operation Flow: Guiding The Route (With Navigation Function)
NAVIGATION OPERATION OPERATION FLOW: GUIDING Select (Destination). Destination THE ROUTE (WITH NAVIGATION FUNCTION) Select , or select and then select (MAP). There are different kinds of methods to search for a destination. (→P.207) Select (Menu). Menu Select (Next). Next...
Page 33: Setting Home As The Destination (With Navigation Function)
NAVIGATION OPERATION SETTING HOME AS THE Select (Go!). ● Guidance to the destination is displayed on the DESTINATION (WITH NAVIGATION screen and can be heard via voice guidance. FUNCTION) Select , or select and then select (MAP). Select (Menu). Menu...
Page 34 NAVIGATION OPERATION Select (Destination). Destination Select (Go Home). Go Home Select (Next). Next Select (Go!). ● Guidance to the destination is displayed on the screen and can be heard via voice guidance.
Page 35: Function Index
FUNCTION INDEX FUNCTION INDEX FUNCTION INDEX XMap* *: With navigation function XAudio Displaying maps Page Function Page Viewing the map screen Using the radio 60, 69 Displaying the current position Playing an audio CD or MP3/WMA/AAC disc Changing the scale Playing an SD* card Changing the map orientation...
Page 36 FUNCTION INDEX XRoute guidance* *: With navigation function Before starting or during route guidance Page Starting route guide Editing the route Viewing the entire route map Adjusting route guidance volume Deleting the destination XUseful functions Hands-free system (for cellular phone) Page Registering/connecting Bluetooth phone Making a call on a Bluetooth phone...
Page 37 MEMO...
Page 38: Basic Function
BASIC FUNCTION...
Page 39: Basic Information Before Operation
BASIC INFORMATION BEFORE OPERATION BASIC INFORMATION BEFORE OPERATION INITIAL SCREEN Select (I Agree). I Agree INITIAL SCREEN WARNING l When the vehicle is stopped with the engine running, always apply the parking brake for safety. ● After about 5 seconds, the “CAUTION (CAUTION)” screen automatically switches to the next screen.
Page 40 BASIC INFORMATION BEFORE OPERATION Select (Next). Change the unit settings if necessary. Select Next Next (Next) to continue. ● The “Configuration Wizard (Configuration Wizard)” starts. ● You can change this at any time from “Units and Formats (Units and Formats)”. (→P.241) Select the desired language and narrator.
Page 41: Loading And Unloading A Disc
BASIC INFORMATION BEFORE OPERATION LOADING AND UNLOADING A DISC Select (Finish). Finish LOADING A DISC CAUTION l Never try to disassemble or oil any part of the CD player. Do not insert anything other than a disc into the slot. ●...
Page 42: Unloading A Disc
BASIC INFORMATION BEFORE OPERATION CONNECTING AND UNLOADING A DISC DISCONNECTING A USB MEMORY/ Press and remove the disc. PORTABLE DEVICE CONNECTING A DEVICE The device slot is located in the center at the bottom of the instrument panel or inside the center console box. ●...
Page 43: Loading And Unloading An Sd Card (With Navigation Function)
BASIC INFORMATION BEFORE OPERATION LOADING AND UNLOADING AN Turn the ignition switch to the “OFF” position. SD CARD (WITH NAVIGATION Open the SD card slot cover. FUNCTION) LOADING AN SD CARD CAUTION l Position the SD card with the “▲” mark at the far end and insert it until it clicks into place.
Page 44: Unloading An Sd Card
BASIC INFORMATION BEFORE OPERATION Close the SD card slot cover. UNLOADING AN SD CARD NOTE CAUTION Compatible SD card: →P. 108 You can enjoy music/video by inserting an SD card containing l When removing an SD card from the unit, pull it out audio files and/or video files.
Page 45: Touch Screen Gestures
BASIC INFORMATION BEFORE OPERATION TOUCH SCREEN GESTURES Turn the ignition switch to the “OFF” position. Open the SD card slot cover. Operations are performed by touching the touch screen directly with your finger. Operation method Outline Main use Touch Changing Quickly touch and selecting and release...
Page 46 BASIC INFORMATION BEFORE OPERATION Operation method Outline Main use Operation method Outline Main use Drag* Rotate* Touch the To change the Changing the • Scrolling the screen with map direction, horizontal lists your finger, rotate with two display angle of •...
Page 47: Touch Screen Operation
BASIC INFORMATION BEFORE OPERATION TOUCH SCREEN OPERATION INFO SCREEN OPERATION This system is operated mainly by the buttons on the REORDERING THE MENU ICONS screen. (Referred to as screen buttons in this manual.) ● When a screen button is touched, a beep sounds. Order of the menu icons can be changed.
Page 48: Split Screen Operation
BASIC INFORMATION BEFORE OPERATION SPLIT SCREEN OPERATION CUSTOMIZING THE SPLIT SCREEN The split screen can display multiple information screens, The display items/area on the split screen can be changed. such as the audio system screen and hands-free screen, XFrom the split screen simultaneously.
Page 49: Entering Letters And Numbers/List Screen Operation
BASIC INFORMATION BEFORE OPERATION ENTERING LETTERS AND ● On certain letter entry screens, letters can be entered in upper or lower case. NUMBERS/LIST SCREEN • : Select to enter in lower case. OPERATION • : Select to enter in upper case. ●...
Page 50 BASIC INFORMATION BEFORE OPERATION CHARACTER JUMP BUTTONS IN LISTS Icon Function Select to skip to the next or previous page. Some lists contain character screen buttons, (ABC), Select and hold to scroll through the (DEF) etc., which allow a direct jump to list entries displayed list.
Page 51: Screen Adjustment
BASIC INFORMATION BEFORE OPERATION SCREEN ADJUSTMENT SORTING (WITH NAVIGATION FUNCTION) The brightness, contrast, tone and color of the screen can The order of a list displayed on the screen can be sorted in be adjusted. the order of name, distance, detour, etc. Select Select (More).
Page 52 BASIC INFORMATION BEFORE OPERATION XVideo (USB video/SD video*) Function *: With navigation function Select to adjust the general screen display. Select to adjust the camera display. Select to adjust the video display. Select the desired item to be adjusted. XGeneral Screen button Function Select to darken the screen.
Page 53: Changing Between Day And Night Mode
BASIC INFORMATION BEFORE OPERATION CHANGING BETWEEN DAY AND NIGHT MODE Depending on the position of the headlight switch, the screen changes to day or night mode. NOTE If the screen is set to day mode with the headlight switch turned on, this condition is memorized even with the engine turned off.
Page 54: Audio Cd
AUDIO...
Page 55: Basic Operation
BASIC OPERATION BASIC OPERATION SOME BASICS TURNING THE SYSTEM ON AND OFF This section describes some of the basic features of the audio/visual system. Some information may not pertain to your system. Your audio/visual system works when the ignition switch is turned to the “ACC”...
Page 56: Selecting An Audio Source
BASIC OPERATION NOTE SELECTING AN AUDIO SOURCE When there are two pages, select to change the page. Press the “AUDIO/TUNE” knob. REORDERING THE AUDIO SOURCE Display the “Select Audio Source (Select Audio Source)” screen. (→P.55) Select (Reorder). Reorder ● The screen can also be displayed by selecting followed by (AUDIO).
Page 57: Sound Settings
BASIC OPERATION Select (Sound) on the audio control screen. Sound SOUND SETTINGS Select the desired screen button. The following sound quality can be adjusted. BALANCE: A good balance of the left and right stereo channels and of the front and rear sound levels is also important. Keep in mind that when listening to a stereo recording or broadcast, changing the right/left balance will increase the volume of 1 group of sounds while decreasing the volume of...
Page 58 BASIC OPERATION n SAVING THE SOUND QUALITY ADJUSTING THE SOUND QUALITY You can save the adjusted sound quality settings. You can adjust the sound quality from the low band to the Adjust the sound quality. high band. Select (EQ1) or (EQ2) for 2 seconds or n ADJUSTING THE SOUND QUALITY more.
Page 59: Audio Screen Adjustment
BASIC OPERATION XMirrorLink AUDIO SCREEN ADJUSTMENT Select (Screen Format) on the Screen Format The screen size can be selected for each type of media. application list screen. Select the desired item to be adjusted. XUSB video/SD video* *: With navigation function Select on the audio control screen.
Page 60: Voice Recognition System
BASIC OPERATION VOICE RECOGNITION SYSTEM Press this switch to operate the voice recognition system. XType A XType B ● The voice recognition system and its list of commands can be operated. (→P.251)
Page 61: Radio Operation
RADIO OPERATION RADIO OPERATION AM/FM RADIO Function Select to seek for a station/channel. Select and hold for continuous seek. OVERVIEW XControl screen Select (AM) or (FM) on the “Select Audio Source (Select Audio Source)” screen. (→P.55) XControl panel <Top screen> <Option screen>...
Page 62: Presetting A Station
RADIO OPERATION PRESETTING A STATION Function Select to display the audio source selection screen. Radio mode has a mix preset function, which can store up to 36 stations from any of the AM, FM or SiriusXM Satellite Select to display the cache radio operation buttons. Radio bands.
Page 63: Selecting A Station From The List
RADIO OPERATION SELECTING A STATION FROM THE LIST RADIO BROADCAST DATA SYSTEM A station list can be displayed. This audio system is equipped with Radio Broadcast Data Systems (RBDS). RBDS mode allows text messages to be Select received from radio stations that utilize RBDS transmitters. FM radio only: Select the desired program genre.
Page 64 RADIO OPERATION SELECTING A DESIRED GENRE REFRESHING THE STATION LIST Select Select (Refresh) on the station list screen Refresh and the following screen will be displayed. FM radio only: Select a desired genre of station and select a desired station. ●...
Page 65: Available Hd Radio™ Technology
RADIO OPERATION TRAFFIC ANNOUNCEMENT (FM RADIO) AVAILABLE HD Radio™ TECHNOLOGY A station that regularly broadcasts traffic information is automatically located. Select Select (Traffic). Traffic Select the desired traffic program station. NOTE If a traffic program station is found, the name of the traffic program station will be displayed for a while.
Page 66 RADIO OPERATION HD Radio Technology manufactured under license from MULTICAST iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are On the FM radio frequency most digital stations have proprietary trademarks of iBiquity Digital Corp. “multiple”...
Page 67 RADIO OPERATION NOTE The tag information can not be preserved while scanning or caching the radio station. ● FM stations can provide additional digital-only audio If tagging the music information fails, “Saving the HD Radio programming on HD2/HD3 Channels. tag was unsuccessful. (Saving the HD Radio tag was unsuccessful.)”...
Page 68: Caching Radio Programs
RADIO OPERATION CACHING RADIO PROGRAMS A radio program can be cached and played back in a time- ● Program Service Data: Presents song name, artist, station shifted manner. IDs, and other relevant data streams. AUTOMATIC PLAYBACK OF THE CACHE ● Visual information related to content being played on If the radio broadcast is interrupted by another audio your HD Radio receiver, such as Album Art, historical output, such as an incoming phone call, the system will...
Page 69 RADIO OPERATION PLAYING BACK THE CACHE MANUALLY Function Returns to the live radio broadcast. The broadcast cached in the program cache can be played back manually. Shows the current playback location relative to the cached broadcast recording time with a bar scale. Display the cache radio operation buttons.
Page 70: Siriusxm ® Satellite Radio
RADIO OPERATION SiriusXM Satellite Radio ® XControl screen OVERVIEW Select (SiriusXM) on the “Select Audio Source SiriusXM (Select Audio Source)” screen. (→P.55) XControl panel <Top screen> <Option screen> Information/Function Select to scroll the list of preset buttons. Select to display the option screen. Function Displayed when playing cached programs.
Page 71: How To Subscribe To Siriusxm ® Satellite Radio
RADIO OPERATION NOTE Information/Function If the ignition switch is turned “OFF” and then set to the “ACC” Select to display the sound setting screen. (→P.56) or “ON” position when listening to an XL channel, broadcasting from the XL channel will not begin. If so, the SXM001 channel Select to display a list of categories.
Page 72 RADIO OPERATION HOW TO SUBSCRIBE WARNING l SiriusXM Satellite Radio Services — Legal Disclaimers and ® It is necessary to enter into a separate service agreement Warnings with SiriusXM Satellite Radio Services in order to receive ® • Fees and Taxes — Subscription fee, taxes, one time satellite broadcast programming in the vehicle.
Page 73 RADIO OPERATION NOTE CAUTION SiriusXM Satellite Radio Services — Subscription Instructions ® l It is prohibited to copy, decompile, disassemble, reverse • For SiriusXM Services requiring a subscription (such as engineer, hack, manipulate, or otherwise make available any SiriusXM Satellite Radio Services, and some Infotainment & ®...
Page 74: Displaying The Radio Id
RADIO OPERATION NOTE PRESETTING A CHANNEL SiriusXM Satellite Radio Service is solely responsible for the ® quality, availability and content of the satellite radio services Tune in the desired channel. provided, which are subject to the terms and conditions of the Select ((add new)).
Page 75: Caching Radio Programs
RADIO OPERATION PLAYING BACK THE CACHE CACHING RADIO PROGRAMS A radio program can be cached and played back in a time- The broadcast cached in the program cache can be played shifted manner. back. The program that is currently being listened to, and channel Display the cache radio operation buttons.
Page 76: Registering A Smart Favorite Channel
RADIO OPERATION TuneStart FUNCTION Function Fast forwards continuously. TuneStart begins playing the current program from the The fast forward speed increased the longer the button beginning when tuning to a channel registered in Smart is held down. Favorites, allowing you to enjoy the complete program. Select to access the desired program.
Page 77: Tunescan Tm Function
RADIO OPERATION TuneScan FUNCTION SEARCHING BY FEATURED FAVORITES TuneScan is a function used to listen to the first 10 seconds Featured Favorites are a collection of channels that are of all recorded programs one after another. created by the SiriusXM programming team that are updated several times throughout the year.
Page 78: Preserving A Music Information
RADIO OPERATION NOTE PRESERVING A MUSIC INFORMATION The tag information can not be preserved while scanning or Tag information in the music broadcasting is preserved in caching the radio program. The song title and artist name will appear on the screen when the system and transmits to an iPod.
Page 79: Media Operation
MEDIA OPERATION MEDIA OPERATION XControl panel OVERVIEW The CD operation screen can be reached by the following methods: ● Insert a disc. (→P.40) ● Select (DISC) on the “Select Audio Source DISC (Select Audio Source)” screen. (→P.55) Function Turn to adjust volume. Press to turn the audio system on/off.
Page 80 MEDIA OPERATION XControl screen Function XAudio CD Select to enable/disable repeat playback of the track currently playing. XMP3/WMA/AAC disc The repeat method changes as shown below each time the repeat button is selected. : Repeat playback is disabled. <Audio CD> : The file currently playing will be repeated.
Page 81 MEDIA OPERATION NOTE Function If a disc contains CD-DA files and MP3/WMA/AAC files, only the XAudio CD CD-DA files can be played back. Select to enable/disable random playback for the tracks If a CD-TEXT disc is inserted, the title of the disc and track will currently playing on the CD.
Page 82: Usb Memory
MEDIA OPERATION USB MEMORY XControl panel Audio files, video files and image files on the USB memory can be played back/viewed. Image files can be viewed at the same time that audio files are being played back. While driving, video/slideshow will not be displayed. Only sound will be output.
Page 83 MEDIA OPERATION XControl screen (Audio/Video) Function The repeat method changes as shown below each time the repeat button is selected. : Repeat playback is disabled. : The file/track currently playing will be repeated. <USB Audio> : The files/tracks contained within the folder/album currently playing will be repeated.
Page 84 MEDIA OPERATION XControl screen (Photo) Function Select to display the play mode selection screen. • “Artists (Artists)”/“Albums (Albums)”/“Songs (Songs)”/“Genres (Genres)”/“Composers (Composers)”/“Folder (Folder)”/“Videos (Videos)” are on the play mode selection screen. • Switching between USB audio and USB video is possible on the play mode selection screen. To return to the top screen, select Now Playing (Now...
Page 85: Ipod
MEDIA OPERATION iPod WARNING l Do not operate the player’s controls or connect the USB When an iPod is connected, you can play iPod music files. memory while driving. On this unit, you can perform operations such as selecting a file from a list or changing to the random playback mode. CAUTION OVERVIEW l Do not leave your portable player in the car.
Page 86 MEDIA OPERATION XControl panel XControl screen Function Turn to adjust volume. Press to turn the audio system on/off. Turn to select a track. Function Press to select an audio mode. Displays cover art. Select to select a track. Select to display a track list. Select and hold to fast forward/rewind.
Page 87 MEDIA OPERATION CAUTION Function l Do not leave your portable player in the car. In particular, high Select to set repeat playback. temperatures inside the vehicle may damage the portable player. The random playback method changes as shown below each time the random button is selected. l Do not push down on or apply unnecessary pressure to the portable player while it is connected as this may damage the : The tracks contained within the list...
Page 88: Sd Card (With Navigation Function)
MEDIA OPERATION SD CARD (WITH NAVIGATION OVERVIEW FUNCTION) The SD Audio/Video playback screen can be reached by the Audio files, video files and image files on the SD card can following methods: be played back/viewed. Image files can be viewed at the ●...
Page 89 MEDIA OPERATION XControl panel XControl screen (Audio/Video) <SD Audio> Function <SD Video> Turn to adjust volume. Press to turn the audio system on/off. Turn to select a file/track. Function Press to select an audio mode. Displays cover art. Select to select a file/track. Select to display file/track list.
Page 90 MEDIA OPERATION Function Function The repeat method changes as shown below each time Select to display the play mode selection screen. the repeat button is selected. • “Artists (Artists)”/“Albums (Albums)”/“Songs (Songs)”/“Genres (Genres)”/“Composers : Repeat playback is disabled. (Composers)”/“Folder (Folder)”/“Videos (Videos)” are on the play mode selection screen.
Page 91 MEDIA OPERATION XControl screen (Photo) WARNING l Do not operate the player’s controls or insertion and pulling out the SD card while driving. CAUTION l Do not insert foreign objects into the SD card slot. NOTE Audio files and image files can be played back at the same time. However, the slideshow interval may be longer than when an audio file is not being played back.
Page 92: Bluetooth Audio
MEDIA OPERATION Bluetooth AUDIO XControl panel The Bluetooth audio system enables users to enjoy listening to music that is played on a portable player on the vehicle speakers via wireless communication. This audio system supports Bluetooth, a wireless data system capable of playing portable audio music without cables.
Page 93 MEDIA OPERATION XControl screen Function Select to enable/disable repeat playback of the track currently playing. Select to enable/disable random playback for the tracks currently playing on the Bluetooth audio device. Select to display the playlist screen. To return to the top screen, select Now Playing (Now Playing) on the list screen.
Page 94 MEDIA OPERATION WARNING NOTE Depending on the Bluetooth device that is connected to the l Do not operate the player’s controls or connect to the system, the music may start playing when selecting while Bluetooth audio system while driving. it is paused. Conversely, the music may pause when selecting l Your audio unit is fitted with Bluetooth antennas.
Page 95: Connecting A Bluetooth Device
MEDIA OPERATION CONNECTING A Bluetooth DEVICE To use the Bluetooth audio system, it is necessary to OVERVIEW register a Bluetooth device with the system. The AUX operation screen can be reached by the following XRegistering an additional device methods: Select (Select Device) on the Bluetooth Select Device ●...
Page 96 MEDIA OPERATION XControl screen WARNING l Do not operate the player’s controls or connect the portable audio device while driving. CAUTION l Do not leave portable audio device in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the player.
Page 97: Audio/Visual Remote Controls
AUDIO/VISUAL REMOTE CONTROLS AUDIO/VISUAL REMOTE CONTROLS STEERING SWITCHES Switch Some parts of the audio/visual system can be adjusted “+/-” switch using the switches on the steering wheel. “ ” switch XType A Mute/enter switch Back switch List switch “Source” switch X“+/-”...
Page 98 AUDIO/VISUAL REMOTE CONTROLS ” switch XMute/enter switch X“ Mode Operation Function Mode Operation Function Except list Press Preset channel up/down Press Mute/unmute AM/FM Radio, screen SiriusXM ® Press and hold Seek up/down continuously List screen Press Select cursor entry Press Content up/down XBack switch Rewind the current content...
Page 99 Operation Function Press Change audio modes NOTE In the aha, Pandora* and SUBARU STARLINK mode, some operation may be done on the screen depend on the selected APPS. *: Pandora is available in the United States, Australia, and New Zealand.
Page 100: Setup
SETUP SETUP AUDIO SETTINGS AUDIO SETTINGS SCREEN Detailed audio settings can be programmed. Select Select (SETTINGS). SETTINGS Select (Audio). Audio Select the items to be set. Function Page Select to specify the sound settings. Select to change the number of preset radio stations/channels displayed on the screen.
Page 101 SETUP DISPLAYING THE “Audio Settings (Audio Function Page Settings)” SCREEN IN A DIFFERENT WAY Select to specify the iPod/SD*/USB auto play settings on/off. XUSB video/SD video* Select to specify the iPod sound signal input *: With navigation function settings. Select on the audio control screen.
Page 102 SETUP iPod SETTINGS Display the “Audio Settings (Audio Settings)” screen. (→P.99) Select (iPod Sound Input). iPod Sound Input Select a screen button for the desired setting. AUTOMATIC SOUND LEVELIZER (ASL) The system adjusts to the optimum volume and tone quality according to vehicle speed to compensate for increased vehicle noise.
Page 103: Tips For Operating The Audio/Visual System
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM OPERATING INFORMATION RADIO Usually, a problem with radio reception does not mean there CAUTION is a problem with the radio — it is just the normal result of l To avoid damage to the audio/visual system: conditions outside the vehicle.
Page 104 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM Fading and drifting stations: Generally, the effective range Fading: AM broadcasts are reflected by the upper of FM is about 25 miles (40 km). Once outside this range, atmosphere — especially at night. These reflected signals you may notice fading and drifting, which increase with can interfere with those received directly from the radio the distance from the radio transmitter.
Page 105: Cd Player And Disc
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ● Use only discs marked as shown above. The CD PLAYER AND DISC following products may not be playable on your player: ● Extremely high temperatures can keep the CD player • SACD from working. On hot days, use the air conditioning system to cool the inside of the vehicle before using •...
Page 106 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM XLow quality discs CAUTION l Do special shaped, transparent/translucent, low quality or labeled discs such as those shown in the illustrations. The use of such discs may damage the player, or it may be impossible to eject the disc. l This system is not designed for use of Dual Discs.
Page 107 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ● Dirt, scratches, warping, pin holes or other disc CD-R/RW DISCS damage could cause the player to skip or to repeat a section of a track. (To see a pin hole, hold the disc up ●...
Page 108: Usb Memory
● iPod classic ● iPod video is not supported. ● iPod with video* ● For USA customers, please visit www.subaru.com for details. Outside of the USA customers, contact your local dealer to arrange a demonstration in order to confirm whether or not the phone can be paired with...
Page 109: Sd Card (With Navigation Function)
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM CORRESPONDING SAMPLING FREQUENCY SD CARD (WITH NAVIGATION FUNCTION) (Audio) SD cards that are marked as follows can be used. File type Frequency (kHz) MP3 files: 32/44.1/48 ● Audio files saved to the map SD card cannot be MPEG 1 LAYER 3 played.
Page 110 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ● The player is compatible with VBR (Variable Bit Rate). ● WMA/AAC files can contain a WMA/AAC tag that is used in the same way as an ID3 tag. WMA/AAC tags ● MP3 (MPEG Audio Layer 3), WMA (Windows Media carry information such as track title and artist name.
Page 111 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ● MP3/WMA/AAC files in folders up to 8 levels deep can be played. However, the start of playback may be delayed when using discs containing numerous levels of folders. For this reason, we recommend creating discs with no more than 2 levels of folders.
Page 112 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM COMPATIBLE COMPRESSED FILES (Video) XVideo Codec File Type Profile • Simple Profile WMV9 • Main Profile • Advanced Profile • Simple Profile MPEG4 MPEG4 • Advanced Simple Profile • Baseline Profile H.264/AVC • Main Profile MPEG4 •...
Page 113: Terms
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM WMA TAG TERMS ● WMA files can contain a WMA tag that is used in the PACKET WRITE same way as an ID3 tag. WMA tags carry information such as track title and artist name. ●...
Page 114 TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ● Playlists created using “WINAMP” software have a ● AAC is short for Advanced Audio Coding and refers to playlist file extension (.m3u). an audio compression technology standard used with MPEG2 and MPEG4. ● MP3 is an audio compression standard determined by a working group (MPEG) of the ISO (International Standard Organization).
Page 115 MEMO...
Page 116: Phone
PHONE...
Page 117: Phone Operation (Hands-Free System For Cellular Phones)
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) QUICK REFERENCE Function Page The phone top screen can be used to make a phone call. To Registering/connecting Bluetooth phone display the hands-free operation screen, select Calling on the Bluetooth phone then select (PHONE), select...
Page 118: Some Basics
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) SOME BASICS CAUTION The hands-free system enables calls to be made and l Do not leave your cellular phone in the vehicle. The temperature inside may rise to a level that could damage the received without having to take your hands off the steering phone.
Page 119: Registering/Connecting A Bluetooth Phone
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) NOTE USING THE PHONE SWITCH/MICROPHONE Keep call volume down. Otherwise, the other party’s voice XSteering switch may be audible outside the vehicle and voice echo may increase. When talking on the phone, speak clearly towards the By pressing the phone switch, a call can be received or microphone.
Page 120: Voice Recognition System
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) Volume control switch VOICE RECOGNITION SYSTEM ● Press the “+” side to increase the volume. ● Press the “-” side to decrease the volume. Press this switch to operate the voice recognition system. Off hook switch XType A On hook switch...
Page 121: About The Contacts In The Contact List
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ABOUT THE CONTACTS IN THE CONTACT WHEN SELLING OR DISPOSING OF THE LIST VEHICLE ● The following data is stored for every registered A lot of personal data is registered when the hands-free phone.
Page 122: Calling On The Bluetooth Phone
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) CALLING ON THE Bluetooth XWith navigation function PHONE Select After a Bluetooth phone has been registered, a call can be made using the hands-free system. There are several methods by which a call can be made, as described below. XWithout navigation function Select Select...
Page 123: By Speed Dial List
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) BY SPEED DIAL LIST How to make a call list Page By speed dial list Calls can be made using registered contacts which can be selected from a contact list. (→P.143) By call history Display the phone top screen.
Page 124: By Call History
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) is selected XWhen BY CALL HISTORY Check that the “Call (Call)” screen is displayed. Up to 30 of the latest call history items (missed, incoming XWhen the desired contact is selected and outgoing) can be selected from the (Call Call History Select...
Page 125: By Contacts List
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) WHEN THE CONTACT IS EMPTY BY CONTACTS LIST Calls can be made by using contact data which is n FOR PBAP COMPATIBLE Bluetooth PHONES transferred from a registered cellular phone. (→P.124) When “Automatic Contact/History Transfer (Automatic Up to 2500 contacts (maximum of 4 phone numbers and Contact/History Transfer)”...
Page 126: By Dial Pad
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) BY DIAL PAD BY OFF HOOK SWITCH Display the phone top screen. (→P.121) Calls can be made using the latest call history item. Select the (Dial Pad) tab and enter the phone Dial Pad Press the switch on the steering wheel to display number.
Page 127: By Split Screen
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) RECEIVING ON THE Bluetooth BY SPLIT SCREEN PHONE Display the split screen. (→P.47) INCOMING CALLS When a call is received, the incoming call screen is displayed with a sound. Select or press the switch on the steering wheel to talk on the phone.
Page 128: Talking On The Bluetooth Phone
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) TALKING ON THE Bluetooth PHONE NOTE During international phone calls, the other party’s name or While talking on the phone, this screen is displayed. The number may not be displayed correctly depending on the type of operations outlined below can be performed on this screen.
Page 129: Sending Tones
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) SENDING TONES Function Page Select to send tones. This button only appears BY DIAL PAD when a number that contains a (w) is dialed in hands-free mode. This operation cannot be performed while driving. Select to hang up the phone.
Page 130: Transmit Volume Setting
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) Select (OK). NOTE A continuous tone signal is a character string that consists of NOTE numbers and the characters “p” or “w”. (e.g. 056133w0123p#1Û) The sound quality of the voice heard from the other party’s When the “p”...
Page 131: Bluetooth Phone Message Function
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) Bluetooth PHONE MESSAGE Select FUNCTION ● The phone top screen can be displayed by pressing switch on the steering wheel. Received messages can be forwarded from the connected Check that the message inbox screen is displayed. Bluetooth phone, enabling checking and replying using the XWith navigation function system.
Page 132: Receiving A Message
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) Check that the message inbox screen is displayed. RECEIVING A MESSAGE When an e-mail/SMS/MMS is received, the incoming message screen pops up with sound and is ready to be operated on the screen. ●...
Page 133: Checking Messages
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) NOTE Function The pop up screen is separately available for incoming e-mail Select Mark Unread (Mark Unread) or Mark Read and SMS/MMS messages under the following conditions: • “Incoming E-mail Display (Incoming E-mail Display)” is set to (Mark Read) to mark mail unread or read on the “Full Screen (Full Screen)”.
Page 134: Replying To A Message (Quick Reply)
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) EDITING QUICK REPLY MESSAGES NOTE The text of the message is not displayed while driving. Turn the “POWER/VOLUME” knob, or use the volume control This operation cannot be performed while driving. switch on the steering wheel to adjust the message readout Select (Quick Message).
Page 135: Calling The Message Sender
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) CALLING FROM E-MAIL/SMS/MMS MESSAGE NOTE DISPLAY I'm driving right now. I will call you back later. “Quick Message 1” ( (I'm driving right now. I will call you back later.)* Display the message inbox screen. (→P.130) I am driving and will arrive in approximately [ETA] minutes.
Page 136 PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) Select the text area. Select corresponding to the desired number to call. ● Identified phone numbers contained in the message are displayed. Check that the “Call (Call)” screen is displayed. NOTE A series of numbers may be recognized as a phone number. Additionally, some phone numbers may not be recognized, such as those for other countries.
Page 137: Setup
SETUP SETUP PHONE/MESSAGE SETTINGS PHONE/MESSAGE SETTINGS SCREEN Select Information Page Connect phone Select (SETTINGS). SETTINGS Sound settings Select (Phone). Phone Select the item to be set. Contact/call history settings Messaging settings Phone display settings...
Page 138: Sound Settings (Sound Settings)" Screen
SETUP Select the desired item to be set. DISPLAYING THE PHONE/MESSAGE SETTINGS SCREEN IN A DIFFERENT WAY Display the phone top screen. (→P.121) Select “Sound Settings (Sound Settings)” SCREEN The call and ringtone volume can be adjusted. A ringtone Function can be selected.
Page 139: Contact/Call History Settings (Contact/Call History Settings)" Screen
SETUP Select the desired item to be set. Function Select to set the desired incoming e-mail tone. Select to adjust the incoming e-mail tone volume. Select to adjust the default volume of the other party’s voice. Select to reset all setup items. “Contact/Call History Settings (Contact/Call History Settings)”...
Page 140 SETUP UPDATE CONTACTS FROM PHONE Function Page Select to add contacts to the speed dial list. Operation methods differ between PBAP compatible and OPP compatible Bluetooth phones. Select to delete contacts from the speed dial list. If your cellular phone is neither PBAP nor OPP compatible, Select to set the transferred contact image the contacts cannot be transferred.
Page 141 SETUP n FOR OPP COMPATIBLE Bluetooth PHONES REGISTERING A NEW CONTACT TO THE CONTACT LIST This operation cannot be performed while driving. Select (Update Update Contacts from Phone New contact data can be registered. Contacts from Phone). Up to 4 numbers per person can be registered. For PBAP Transfer the contact data to the system using a compatible Bluetooth phones, this function is available when Bluetooth phone.
Page 142 SETUP n REGISTERING A NEW CONTACT IN A DIFFERENT Select corresponding to the desired name or WAY (FROM THE “Call History (Call History)” number. SCREEN) This function is available for OPP compatible Bluetooth phones. Display the phone top screen. (→P.121) Select the (Call History) tab and then Call History...
Page 143 SETUP Select (Edit Contact). Select (Yes) when the confirmation screen Edit Contact appears. NOTE Multiple data can be selected and deleted at the same time. n DELETING THE CONTACT IN A DIFFERENT WAY (FROM THE “Contact Details (Contact Details)” SCREEN) ●...
Page 144 SETUP XWhen 15 contacts have already been registered to SPEED DIAL LIST SETTING the speed dial list When 15 contacts have already been registered to Up to 15 contacts (maximum of 4 numbers per contact) can the speed dial list, a registered contact needs to be be registered in the speed dial list.
Page 145 SETUP n DELETING THE CONTACTS IN THE SPEED DIAL LIST Select at the beginning of the desired contact list name to be registered in the speed dial list. Select (Remove Speed Dial). Remove Speed Dial Select the desired contacts and then select Remove (Remove).
Page 146: Messaging Settings
SETUP Select at the beginning of the contact list name to “Messaging Settings (Messaging Settings)” be deleted from the speed dial list. SCREEN Display the “Phone/Message Settings (Phone/Message Settings)” screen. (→P.136) Select (Messaging Settings). Messaging Settings Select the desired item to be set. ●...
Page 147: Phone Display Settings (Phone Display Settings)" Screen
SETUP Function Function Select to change the incoming e-mail display. Select to set automatic message readout on/off. Full Screen (Full Screen): When an e-mail is Select to set the SMS/MMS notification popup on/off. received, the incoming e-mail display screen is the displayed and can be operated on the screen.
Page 148 SETUP Select the desired item to be set. Function Select to change the incoming call display. Full Screen (Full Screen): When a call is received, the hands-free screen is displayed and can be operated on the screen. Drop-Down (Drop-Down): A message is displayed on the upper side of the screen.
Page 149 MEMO...
Page 150: Apps
APPS...
Page 151: Before Using The Application
BEFORE USING THE APPLICATION BEFORE USING THE APPLICATION BEFORE USING THE APPLICATION NOTE Depending on the application, certain functions are not available Precautions to be aware of when using the application are while driving for reasons of safety. shown below. In order to maximize signal reception, performance and precision of the smartphone, please ensure the smartphone is placed as In this chapter, iPhone or Android devices will be referred to...
Page 152: Settings Required To Use The Application
BEFORE USING THE APPLICATION SETTINGS REQUIRED TO USE THE ABOUT APP-BASED CONNECTED APPLICATION CONTENT In order to use the application on this system, the Requirements for using the connected content services of application must be installed on the smartphone. the application on this system. ●...
Page 153 BEFORE USING THE APPLICATION NOTE NOTE Limitations: Communication and phone call charges for smartphones should • Access to app-based connected content will depend on the be paid by the wireless subscriber. availability of wireless cellular and/or Wi-Fi network coverage If you lose the data in a smartphone or other device while using for the purpose of allowing your smartphone to connect to the it with the system, no compensation will be given for the lost internet.
Page 154: Subaru Starlink
SUBARU STARLINK Check that the “SUBARU STARLINK disclaimer (SUBARU STARLINK disclaimer)” screen is displayed. The SUBARU STARLINK function allows the system to link with a smartphone using Bluetooth. When connecting iPhone or Android devices with the SUBARU STARLINK application installed, you can control SUBARU STARLINK content through the system.
Page 155: Mirrorlink
MirrorLink™ MirrorLink™ XControl panel MirrorLink™ The MirrorLink function allows smartphone content to be operated via the system. To use the MirrorLink application, connect your Android device to the USB port. Depending on differences between models or software version etc., some models might be incompatible with this system.
Page 156 MirrorLink™ XControl screen Function Displays software buttons that function as the buttons on the smartphone. Select to change the other audio source (Radio, Disc etc.). NOTE This function cannot be used while USB audio, video or photo is <Application list screen> in use.
Page 157: Aha Tm By Harman
by HARMAN by HARMAN by HARMAN OVERVIEW aha is a cloud-based application that connects to the system XControl panel and gives you access to your favorite web content safely and easily. There are over 40,000 stations spanning internet radio, personalized music, audiobooks, Facebook, Twitter, restaurant and hotel searches, weather and more.
Page 158 by HARMAN XControl screen Function Select to display the audio source selection screen. Station list Select to display the station operation screen. Displays station name. Select to display the top screen. Select to display the sound setting screen. (→P.56) <Top screen> Station operation screen buttons.
Page 159: Using Aha Application
by HARMAN ABOUT THE SUPPORTED DEVICES FOR aha NOTE Top 35 entries in the preset station list on the smartphone are displayed. When there are more than 35 entries in the preset This system supports the following devices. station list, change the order of the entries in the list on the ●...
Page 160 by HARMAN ● Main functions of the station operation screen button: For Android devices: Select (aha) on the “APPS →P.160 (APPS)” screen. ● For details on the services or the operations, check ● The “aha” top screen can also be displayed by the aha site (http://www.aharadio.com) on the selecting (aha) on the “Select Audio Source...
Page 161 by HARMAN STATION OPERATION SCREEN BUTTONS Button Function Select to refresh the content item information in the current station. Button Function Select to rewind the current content item for 15 Select to start playback. seconds. Select to fast forward the current content item for Select to pause playback.
Page 162 by HARMAN Check that the countdown screen is displayed. Select (Send). Send ● (Cancel): Select to cancel shout function. Cancel ● (Confirmation): Select to confirm the Confirmation Record your voice and then select (Save). saved voice. Save ● (Try Again): Select to record your voice Try Again again.
Page 163: Pandora
Pandora ® Pandora ® Pandora ® OVERVIEW Pandora is free personalized radio that offers effortless and The Pandora operation screen can be reached by the endless music enjoyment and discovery. following methods: To use the Pandora application, connect your iPhone ●...
Page 164 Pandora ® XControl panel Function Turn to adjust volume. Press to turn the audio system on/off. Press to select an audio mode. Select to skip to the next track. Select and hold to rate the track currently playing as “Like” or “Dislike”.
Page 165 Pandora ® XControl screen Function Select to skip to the next track. Select to play/pause. Select to display a station list. Displays cover art. ABOUT THE SUPPORTED DEVICES This system supports the following devices. ● iPhone: iOS 5.0 or later ●...
Page 166: Information
INFORMATION...
Page 167: Useful Information
USEFUL INFORMATION USEFUL INFORMATION SiriusXM RADIO DATA SERVICE* DISPLAYING SPORTS INFORMATION *: SiriusXM U.S. satellite and data services are available only in the 48 contiguous USA and DC. SiriusXM satellite service is also available in Sports information can be received via the SiriusXM ®...
Page 168: Displaying Weather Information
USEFUL INFORMATION n CHANGING THE FAVORITE Function Select (Change) next to the item to be edited. Change Select to switch to an audio broadcast while information during a game is being displayed. Select the desired sports. The scores are compared, and the affiliate with the Select (Select) next to the item you want to set Select...
Page 169 USEFUL INFORMATION XWith navigation function Weather forecast icons Check that weather information is displayed. Display Information No Data Available none Unknown Precip Isolated Thunderstorms Scattered Thunderstorms Scattered Thunderstorms (night) Function Select to switch the timing of the displayed forecast. Severe Thunderstorms Thunderstorms Items such as the weather forecast, forecast temperature or highest temperature (orange)/lowest...
Page 170 USEFUL INFORMATION Display Information Display Information Moderate Snow Scattered Showers (night) Snow Drizzle Heavy Snow Freezing Drizzle Scattered Snow Showers (night) Freezing Rain Blowing Snow Mixed Rain And Hail Wintry Mix Blizzard Mixed Rain And Snow Mixed Rain And Sleet Sandstorm Hail Blowing Dust...
Page 171 USEFUL INFORMATION Display Information Display Information Light Fog Sunny Heavy Fog Mostly Sunny Mist Clear (night) Hazy Mostly Clear (night) Smoky Partly cloudy Blustery Partly cloudy (night) Windy Mostly cloudy Cold Mostly cloudy (night) Cloudy...
Page 172: Displaying Stocks Information
USEFUL INFORMATION Check that stock information is displayed. Display Information Tropical Storm Hurricane Funnel Cloud Tornado Function Changes in brand, stock price and variation are DISPLAYING STOCKS INFORMATION displayed. Variations greater than zero are displayed in white and variations less than zero are displayed in red. Stock information can be received via the SiriusXM ®...
Page 173: Displaying Fuel Information (Not Available In Canada)
USEFUL INFORMATION DISPLAYING FUEL INFORMATION Function (NOT AVAILABLE IN CANADA) Select to sort gas station by Distance from the current position. Fuel information can be received via the SiriusXM Satellite ® Select to sort gas station by price. Radio Service. Select to display information about the gas station and Display the “INFO (INFO)”...
Page 174 USEFUL INFORMATION SETTING FUEL TYPE Select (Fuel Type). Fuel Type Select the desired fuel type. SETTING GAS STATION AS DESTINATION Select the desired nearby gas station. Select (Destination). Destination Follow the steps in “SEARCH OPERATION” from “STEP 5”. (→P.208)
Page 175 MEMO...
Page 176: Settings
SETTINGS...
Page 177: Bluetooth ® Settings
Bluetooth SETTINGS ® Bluetooth SETTINGS ® REGISTERING/CONNECTING Turn the Bluetooth connection setting of your cellular phone on. Bluetooth DEVICE ® ● This function is not available when Bluetooth connection setting of your cellular phone is set to off. XWithout navigation function Select to display the phone top screen.
Page 178 Bluetooth SETTINGS ® XFor PBAP compatible Bluetooth phones When this screen is displayed, search for the device name displayed on this screen on the screen of your Select the desired item. Bluetooth device. ● (Yes): Transfer contacts from cellular phone. ●...
Page 179 Bluetooth SETTINGS ® XFor OPP compatible Bluetooth phones Select the desired item. Select (OK). ● (Transfer): Select to transfer contacts from Transfer the connected cellular phone. NOTE ● (Add): Select to add a new contact manually. The system waits for connection requests from the registered ●...
Page 180: Registering A Bluetooth Audio Device For The First Time
Bluetooth SETTINGS ® Press the “AUDIO/TUNE” knob. REGISTERING A Bluetooth AUDIO DEVICE FOR THE FIRST TIME To use the Bluetooth Audio, it is necessary to register an audio device with the system. Once the player has been registered, it is possible to use the Bluetooth Audio.
Page 181: Profiles
Bluetooth SETTINGS ® PROFILES This system supports the following services. Bluetooth Device Spec. Function Requirements Recommendations Bluetooth Phone/ Registering a Bluetooth Bluetooth Specification Ver. 1.1 Ver. 3.0 +EDR Bluetooth Audio Device device Bluetooth Device Profile Function Requirements Recommendations HFP (Hands-Free Profile) Hands-free system Ver.
Page 182: Setting Bluetooth Details
Bluetooth SETTINGS ® SETTING Bluetooth DETAILS “Bluetooth Settings (Bluetooth Settings)” SCREEN Select Function Page Select (SETTINGS). SETTINGS Registering a Bluetooth device Select (Bluetooth). Bluetooth Deleting a Bluetooth device Select the desired item to be set. Connecting a Bluetooth device Editing the Bluetooth device information Bluetooth system settings...
Page 183: Registering A Bluetooth Device
Bluetooth SETTINGS ® Select (Add). DISPLAYING THE “Bluetooth Settings (Bluetooth Settings)” SCREEN IN A DIFFERENT WAY XWhen another Bluetooth device is connected ● To disconnect the Bluetooth device, select (Yes). XFrom the phone/message settings screen XWhen 5 Bluetooth devices have already been Select registered Select...
Page 184: Deleting A Bluetooth Device
Bluetooth SETTINGS ® Register the Bluetooth device using your Bluetooth Select (OK) when the connection status changes device. from “Connection waiting... (Connection waiting...)” to ● A PIN-code is not required for SSP (Secure Simple “Connected (Connected)”. Pairing) compatible Bluetooth devices. Depending on the type of Bluetooth device being connected, a message confirming registration may be displayed on the Bluetooth device’s screen.
Page 185: Connecting A Bluetooth Device
Bluetooth SETTINGS ® Select the device to be connected. Select (Yes) when the confirmation screen appears. Check that a confirmation screen is displayed when the operation is complete. NOTE When deleting a Bluetooth phone, the contact data will be deleted at the same time. ●...
Page 186 Bluetooth SETTINGS ® Check that a confirmation screen is displayed when the CONNECTING MANUALLY connection is complete. ● If an error message is displayed, follow the guidance When the auto connection has failed or “Bluetooth Power on the screen to try again. (Bluetooth Power)”...
Page 187: Editing The Bluetooth Device Information
Bluetooth SETTINGS ® Confirm and change the Bluetooth device information. EDITING THE Bluetooth DEVICE INFORMATION The Bluetooth device’s information can be displayed on the screen. The displayed information can be edited. Display the “Bluetooth Settings (Bluetooth Settings)” screen. (→P.181) Select the desired device to be edited. Select (Device Info).
Page 188 Bluetooth SETTINGS ® SETTING AUDIO DEVICE CONNECTION METHOD Information Compatibility profile of the Bluetooth device. Select (Connect Audio Connect Audio Device from Device from). Select to reset all setup items. Select the desired connection method. ● (Vehicle): Select to connect the audio NOTE Vehicle system to the audio device.
Page 189: System Settings (System Settings)" Screen
Bluetooth SETTINGS ® “System Settings (System Settings)” Information Page SCREEN Select to set Bluetooth connection on/off. The Bluetooth settings can be confirmed and changed. Displays system name. Can be changed to a desired name. Display the “Bluetooth Settings (Bluetooth Settings)” PIN-code used when the Bluetooth device screen.
Page 190 Bluetooth SETTINGS ® CHANGING “Bluetooth Power (Bluetooth Power)” Select (Bluetooth Power). Bluetooth Power n WHEN “Bluetooth Power (Bluetooth Power)” IS ON The Bluetooth device is automatically connected when the ignition switch is turned to the “ACC” or “ON” position. n WHEN “Bluetooth Power (Bluetooth Power)” IS OFF The Bluetooth device is disconnected, and the system will not connect to it next time.
Page 191: Other Settings
OTHER SETTINGS OTHER SETTINGS GENERAL SETTINGS GENERAL SETTINGS SCREEN Settings are available for keyboard layout, operation sounds, etc. Select Select (SETTINGS). SETTINGS Select (General). General Select the items to be set.
Page 192 Select to change the unit for measuring distance. Select to update the Gracenote database. For details, ® contact your SUBARU dealer. Select to turn the beep sound on/off. Select to display the software information. Notices Select to change the button and screen color.
Page 193 OTHER SETTINGS n SETTING THE TIME ZONE CLOCK SETTINGS (WITH NAVIGATION FUNCTION) Select (Time Zone). Time Zone Select the desired time zone. Used to set the auto update setting for time zones, daylight saving time and automatic time adjustment on/off. Display the “General Settings (General Settings)”...
Page 194 OTHER SETTINGS Select the desired images from the list and then select NOTE (Copy). Copy When saving the images to a USB or SD card* name the folder that the screen off image is saved to “Image”. If this folder name is not used, the system cannot download the images.
Page 195 OTHER SETTINGS n SETTINGS THE SCREEN OFF IMAGES n DELETING TRANSFERRED IMAGES Display the “General Settings (General Settings)” Display the “General Settings (General Settings)” screen. (→P.190) screen. (→P.190) Select (Customize Select (Customize Customize Screen Off Image Customize Screen Off Image Screen Off Image).
Page 196 OTHER SETTINGS DELETING PERSONAL DATA CAUTION l With navigation function: Make sure the map SD card is Display the “General Settings (General Settings)” inserted when deleting personal data. The personal data screen. (→P.190) cannot be deleted when the map SD card is removed. To delete the data, after inserting the map SD card, turn Select (Delete Personal Data).
Page 197: Voice Settings
OTHER SETTINGS VOICE SETTINGS VOICE SETTINGS SCREEN Voice volume, etc. can be set. Select Function Select to adjust the volume of voice guidance. Select to set the voice recognition prompts. Select (SETTINGS). SETTINGS Select to reset all setup items. Select (Voice).
Page 198: Navigation System
NAVIGATION SYSTEM (WITH NAVIGATION FUNCTION)
Page 199: Basic Operation
BASIC OPERATION BASIC OPERATION QUICK REFERENCE Name Information/Function Page Select to change the map MAP SCREEN display mode between 2D 2D North-up, 2D north-up, 2D heading-up heading-up or or 3D. In 3D map, only To display this screen, select , or select 3D symbol a heading-up view is then select...
Page 200: Map Operations
BASIC OPERATION MAP OPERATIONS Name Information/Function Page Highway Select to display the You can touch a position on the map, and then check that information highway information. position during navigation. The map’s current position Speed Limit Displays the speed limit for tracking function stops (the car marker (a blue arrow by indicator the road being driven on.
Page 201 BASIC OPERATION Operation Function Operation Function Select to open another screen Select to select the cursor as a new Selecting a displaying information on the destination. The route is researched destination selected map position (cursor). When automatically. Point Bluetooth is enabled on your cellular information Select to display the additional phone, a call can be placed if the...
Page 202: Navigation Menu
BASIC OPERATION NAVIGATION MENU Function Select to search for a destination. You can select which When you select (Menu) on the navigation screen, Menu method to use to reach your destination by entering the the navigation menu (main menu) appears. You can access address, selecting a favorite spot, selecting a position all of the software’s functions from this menu.
Page 203: Check Current Position
BASIC OPERATION CHECK CURRENT POSITION Information/Function Latitude/Longitude (Current positional coordinates use The button on this screen searches for information on the the WGS84 land survey system) current position (if there is no GPS reception it uses the last Altitude (Advanced information acquired by the GPS confirmed position) and recommended spots in the area, receiver - may not be accurate) and displays them on the screen.
Page 204: Map Screen Operation
BASIC OPERATION MAP SCREEN OPERATION NOTE While driving, the current position mark is fixed on the screen and the map moves. CURRENT POSITION DISPLAY The current position is automatically set as the vehicle receives signals from the GPS (Global Positioning System). If the current Select , or select and then select...
Page 205: Map Scale
BASIC OPERATION ● This map shows the current position (shown as the MANUAL OPERATION vehicle marked as a blue arrow), recommended routes (blue lines), and the immediate surrounding Select to change the scale of the map screen. area. ● When GPS positioning is not active, the vehicle marker is clear.
Page 206: Orientation Of The Map
BASIC OPERATION X3D screen ORIENTATION OF THE MAP The orientation of the map can be changed between 2D north-up, 2D heading-up and 3D. Select XNorth-up screen ● : 2D north-up symbol Regardless of the direction of vehicle travel, north is always up.
Page 207: Position Marker
BASIC OPERATION TRAFFIC INFORMATION POSITION MARKER SELECTED MAP LOCATION (CURSOR) DISPLAYING TRAFFIC INFORMATION Road sections affected by traffic conditions are displayed in Use one of the following methods to mark a map location. a different color on the map, and a small icon representing ●...
Page 208: Destination Search
DESTINATION SEARCH DESTINATION SEARCH DESTINATION SEARCH SCREEN Function Page The “Destination (Destination)” screen enables to search Select to search for a destination by address. for a destination. To display the “Destination (Destination)” Select to search for a destination by point of screen, select , or select and then select...
Page 209: Search Operation
DESTINATION SEARCH SEARCH OPERATION ● If necessary, you can touch another point on the map to change the destination. Select , or select and then select ● The cursor ( ) is displayed at the new position. (MAP). Select (Next) (when a route has been set) or Next (Select) (when no route has been set) to set the Select...
Page 210: Setting Home As Destination
DESTINATION SEARCH Select the desired country or state (province). SETTING HOME AS DESTINATION To use this function, it is necessary to register a home address. (→P.234) Display “Destination (Destination)” screen. (→P.207) Select (Go Home). Go Home Select (Next) (when a route has been set) or Next Select the desired search method.
Page 211 DESTINATION SEARCH SEARCHING BY CITY NOTE If the destination is to be used frequently, it can be saved to the Select (City). City destination list before selecting Next (Next) (when a route has been set) or (Go!) (when no route has been set). Enter a city name or ZIP Code.
Page 212 DESTINATION SEARCH SEARCHING BY INTERSECTION HINTS FOR QUICK ADDRESS ENTRY ● When entering a city/town name or a street name: Select (Intersecting Street). Intersecting Street • Only characters that can be displayed in the Select from the list. search results are shown on the keyboard. Other ●...
Page 213: Searching By Find Places
DESTINATION SEARCH ● You can search by road category as well as road SEARCHING BY FIND PLACES name. When the same word is included in names such as the street, road, and main street, by entering There are 3 methods to search for a destination by Find the first character for the type of road, you can quickly Places.
Page 214 DESTINATION SEARCH SEARCHING BY NAME SEARCHING BY LOCATION Select (Quick Search Select (Custom Search). Quick Search Along Route Custom Search Along Route). Select the spot area. ● When route been set, select (Quick Search Quick Search Around Last Known Position Around Last Known Position) (no GPS signal) or (Quick Search Around Here) Quick Search Around Here...
Page 215 DESTINATION SEARCH n SELECTING FROM THE CATEGORIES n SEARCHING BY NAME Select a main category (such as accommodation) or Select a main category (such as accommodations) or (List All Places). (Find by Name). List All Places Find by Name Select a sub-category (such as hotel or motel) or Select a sub-category (such as hotels or motels) or (List All Places).
Page 216 DESTINATION SEARCH Select the desired spot. SEARCHING BY PRESET CATEGORY Select the desired search category. ● (Filter): Select to narrow down the list. Filter ● (More): Select to change the sort order of the More list or to display all listed spots on the map. Function Select to search for gas stations along the set route.
Page 217: Searching By Find On Map
DESTINATION SEARCH SEARCHING BY FIND ON MAP SEARCHING BY FAVORITES Display “Destination (Destination)” screen. Display “Destination (Destination)” screen. (→P.207) (→P.207) Select (Find on Map). Select (Favorites). Find on Map Favorites Scroll the map to the desired point and touch. Select the desired destination. ●...
Page 218: Searching From A Frequently Used Destination (Smart History)
DESTINATION SEARCH ● (Filter): Select to narrow down the list. Filter SEARCHING FROM A FREQUENTLY USED ● : Select to delete the previous destination. DESTINATION (SMART HISTORY) ● (More): Select to delete all destinations on the More list. Display “Destination (Destination)”...
Page 219: Other Search Operation
DESTINATION SEARCH OTHER SEARCH OPERATION ● This button searches for everything around your current position (or the latest confirmed position if it is unavailable). SEARCHING BY WHERE AM I? Select the desired spot. You can search for the closest assistance service by using the “Where Am I? (Where Am I?)”...
Page 220: Starting Route Guidance
DESTINATION SEARCH STARTING ROUTE GUIDANCE ● When the countdown is displayed in the (Go!), guidance begins automatically after 10 seconds even When the destination is set, the entire route map from the if you do not select the button. current position to the destination is displayed. WARNING STARTING ROUTE GUIDANCE l Be sure to obey traffic regulations and keep road conditions...
Page 221: Canceling Route
DESTINATION SEARCH Select (More). More Function Select (Simulate Navigation). Simulate Navigation Select to change the speed of the simulation. You can Check that the route simulation is displayed. select from speeds of 4x, 8x, or 16x. Select again to ● The simulation begins from the start point and works return to normal speed.
Page 222: Route Guidance
ROUTE GUIDANCE ROUTE GUIDANCE ROUTE GUIDANCE SCREEN Information/Function Current street name During the route guidance, various types of guidance Select to display the “Where Am I? (Where Am I?)” screens can be displayed depending on conditions. screen. (→P.202) Next street name SCREEN FOR ROUTE GUIDANCE NOTE If the vehicle goes off the guidance route, the route is searched...
Page 223: Data Fields
ROUTE GUIDANCE Icon Explanation Icon Explanation Disembark from the ferry. U-turn right You are half way to your destination. Keep left at the fork in the road. You have arrived at your destination. Keep right at the fork in the road. Turn left &...
Page 224: Route Overview
ROUTE GUIDANCE Select to display the desired item. Check that the entire route map is displayed. NOTE LANE INFORMATION AND SIGNS When the vehicle is on the guidance route, the distance measured along the route is displayed. Travel time and arrival LANE INFORMATION time are calculated based on the average speed for the specified speed limit.
Page 225: Highway Services
ROUTE GUIDANCE SIGNS HIGHWAY SERVICES When driving on the expressway, this displays information When detailed information is available, the arrows are on up to the next three highway service areas. By default, removed and signs are displayed. Signs are displayed “Gas Station (Gas Station)”, “Restaurant (Restaurant)”, at the top of the map.
Page 226: Junction Display
ROUTE GUIDANCE TYPICAL VOICE GUIDANCE Select one from the list to display more details. PROMPTS As the vehicle approaches an intersection, or point, where maneuvering the vehicle is necessary, the system’s voice guidance will provide various messages. WARNING ● You can check it on the map and set it as a waypoint l Be sure to obey the traffic regulations and keep the road or as a destination.
Page 227: Route Related Functions
ROUTE GUIDANCE ROUTE RELATED FUNCTIONS Information/Function • Destination Name/Address DISPLAYING CHANGE ROUTE • Displays detailed information (unpaved roads, toll roads, and so on) on the warning icons (depending on conditions) for the current route. You can check a variety of route settings recommended by •...
Page 228: Editing Route
ROUTE GUIDANCE EDITING ROUTE ADDING DESTINATIONS You can change the destination list and edit the route. You Display the “Edit Route (Edit Route)” screen. (→P.227) can add or delete destinations, change the start point, or Select change the order of the list. Search for an additional destination in the same way as Display the “Change Route (Change Route)”...
Page 229: Deleting Destinations
ROUTE GUIDANCE DELETING DESTINATIONS Display the “Edit Route (Edit Route)” screen. (→P.227) Select Select (Delete) when the confirmation screen Delete appears. SETTING ROUTE PREFERENCES The conditions to determine the route can be selected from various choices such as Highways, Toll Road, Ferries, etc. Select (Menu) on the map screen.
Page 230 ROUTE GUIDANCE SELECTING ROUTE TYPE Function Select whether or not to use the expressway when Display the “Route Settings (Route Settings)” screen. creating the route. (→P.228) Select whether or not to use toll roads (Period Charge) Select (Route Planning Route Planning Method in the route.
Page 231: Avoidances Setting
ROUTE GUIDANCE AVOIDANCES SETTING Function Select to delete the avoid route being navigated. The avoidances feature allows you to remove any of the roads or special sections on the planned route. ● In each case, the result of the selected avoidance is shown on the map with an indication of additional or Display the “Change Route (Change Route)”...
Page 232: Setting A New Starting Point
ROUTE GUIDANCE SETTING A NEW STARTING POINT In standard navigation, all routes are created from the current position. You can turn off the GPS so that you can study a route that is not currently being driven, run a simulation, and check the time or distance for the route. This way, you can set a start point for the route without using the current GPS position.
Page 233: Creating A Route
ROUTE GUIDANCE Select the route’s start point by using the same method CREATING A ROUTE as selecting the destination. Set the new start point and then select (Go!). You can create a route for each destination in the saved ● The vehicle marker goes clear on the map, indicating routes menu.
Page 234: Route Alternatives
ROUTE GUIDANCE Search for a destination. (→P.207) Select the desired route. ● Select the route’s destination using the same method as described previously. ● After selecting a new destination, you are returned to the list. ● To add another destination, select at the point where you want to add a new route point to the list, and repeat the steps above.
Page 235: Memory Points
MEMORY POINTS MEMORY POINTS MEMORY POINTS SETTINGS Select (Set HOME Set as HOME location location). Home and preset destinations can be set as memory points. The registered points can be used as the destinations. (→P.207) SETTING UP HOME If home has been registered, that information can be recalled by selecting (Go Home) on the Go Home...
Page 236: Saving Destinations
MEMORY POINTS SAVING DESTINATIONS The destination list is a list of frequently used destinations. Up to 100 destinations can be stored in the favorites list. Select the desired item to search for the location. (→P.207) ● The map is displayed in full-screen mode with the selected point at the center.
Page 237: Setup
SETUP SETUP NAVIGATION SETTINGS Function Select to check global sunrise and sunset times. Places a mark on the map to show the user’s current position OPTIONAL FUNCTIONS and route points. Select Details button to check accurate sunrise and sunset times for all points along the route Various options are available from the “More (More)”...
Page 238 SETUP SCREENS FOR NAVIGATION SETTINGS Function Page Select to change the voice guidance language. Display the “More (More)” screen. (→P.236) Select to specify various warnings and warning Select (Settings). settings. Settings Select the items to be set. Select to set On/Off of traffic information display and the method to use the received real-time traffic information on route search.
Page 239 SETUP SOUND AND WARNINGS Function This button displays the current language for voice guidance. Select to change to a new language/narrator WARNING from the available languages and list of narrators. When you select an item from the list, a sample of the audio is l Be sure to set the volume of the audio at an appropriate level.
Page 240 SETUP n DETOUR SETTINGS TRAFFIC Display the “Traffic Settings (Traffic Settings)” screen. Display the “Settings (Settings)” screen. (→P.237) (→P.239) Select (Traffic). Traffic Select (Detour). Detour Select the items to be set. Select the items to be set. Function Function Select to turn on or off the traffic information display. When this button is selected, routes that do not satisfy traffic conditions are not searched.
Page 241 SETUP n EVENT TYPES SETTINGS MAP SETTINGS Display the “Traffic Settings (Traffic Settings)” screen. Fine tunes the map screen appearance. Because the map (→P.239) is displayed on the screen, you can check the results as you Select (Event Types). Event Types change settings.
Page 242 SETUP UNITS AND FORMATS Function Select to adjust the standard zoom and the angle of tilt. Sets the units used by the program to measure distance. You can set the level in three stages. You can select to display the time in various international Select to turn the auto zoom function on or off.
Page 243 SETUP TRIP MONITOR VISUAL GUIDANCE Contains useful information on the user’s distance moved Changes settings related to map screen guidance. in the trip logs and path logs. You can save trip logs Display the “Settings (Settings)” screen. (→P.237) automatically by turning this setting on, or save them Select (Visual Guidance).
Page 244 SETUP Function Select to set the data fields. Select the guidance you want to display. You can select route data related to the final destination or the next waypoint on the route. Displays service area information while driving on the expressway.
Page 245: Tips For The Navigation System
TIPS FOR THE NAVIGATION SYSTEM TIPS FOR THE NAVIGATION SYSTEM The Global Positioning System (GPS) developed and GPS (GLOBAL POSITIONING operated by the U.S. Department of Defense provides SYSTEM) an accurate current position, normally using 4 or more satellites, and in some case 3 satellites. The GPS system has a certain level of inaccuracy.
Page 246 TIPS FOR THE NAVIGATION SYSTEM • When the tires are worn. CAUTION • After replacing a tire or tires. l The installation of window tinting may obstruct the GPS • When using tires that are smaller or larger than the signals.
Page 247: Map Data
TIPS FOR THE NAVIGATION SYSTEM MAP DATA • If a location has multiple names and the system announces 1 or more of them. • When a route cannot be searched. REGARDING ROADS AND PLACE NAME • If the route to your destination includes gravel, DATA unpaved roads or alleys, the route guidance may not be shown.
Page 248: Siri/Voice Recognition System
Siri/VOICE RECOGNITION SYSTEM...
Page 249: Siri
Siri Siri ● An iPhone and iPod touch data plan: If the data plan Siri ® for your iPhone and iPod touch does not provide for unlimited data usage, additional charges from your Siri is a function that allows your iPhone and iPod touch to carrier may apply for accessing app-based connected be used without any manual operation by connecting your content via 3G, 4G, Wi-Fi, or 4G LTE wireless...
Page 250: Using Siri
Siri ● Press and hold the talk switch to start Siri. USING Siri ● To cancel Siri, press and hold the talk switch. STEERING SWITCH MICROPHONE XType A The microphone is built into the map light slits. ● It is unnecessary to speak directly into the microphone when using Siri.
Page 251 Siri ● To cancel Siri, select (Cancel), or press and Cancel ABOUT THE SUPPORTED DEVICES FOR Siri hold the talk switch. This system supports the following devices. NOTE Siri cannot be started while placing or receiving hands-free n Supported iOS versions calls with your iPhone and iPod touch (including while holding incoming calls), or while having a hands-free conversation.
Page 252: Voice Recognition System Operation
VOICE RECOGNITION SYSTEM OPERATION VOICE RECOGNITION SYSTEM OPERATION XType B VOICE RECOGNITION SYSTEM The voice recognition system enables the navigation, audio, hands-free systems, etc. to be operated using voice commands. Refer to the command list for samples of voice commands. (→P.257) USING THE VOICE RECOGNITION SYSTEM Talk switch...
Page 253: Voice Recognition System Operation
VOICE RECOGNITION SYSTEM OPERATION Say the command. NOTE Voice commands may not be recognized if: • Spoken too quickly. • Spoken at a low or high volume. • Driving with a window open. • Passengers are talking while voice commands are spoken. •...
Page 254 VOICE RECOGNITION SYSTEM OPERATION ● With navigation function: VOICE COMMAND EXAMPLE: SEARCH FOR A To use the voice recognition system for navigation SONG function, say the command to change to the navigation function first. (→P.257) Press the talk switch. • This function is available when “Voice Language Say “Play song <name>”.
Page 255 VOICE RECOGNITION SYSTEM OPERATION NOTE NOTE While the recognition data is being created or being updated, a When the system recognizes multiple names from the contacts track search cannot be performed using a voice command. list, a name candidate list will be displayed on the screen. If the desired name is not displayed on the top of the screen, say or VOICE COMMAND EXAMPLE: CALL NAME select the number of the name from the candidate list (number 1,...
Page 256: Casual Speech Recognition
VOICE RECOGNITION SYSTEM OPERATION When the confirmation screen appears, say “Yes”, CASUAL SPEECH RECOGNITION select (Yes), or press the switch on the steering wheel. Due to natural language speech recognition technology, this ● Try saying the complete number. If it is not system enables recognition of a command when spoken recognized, however, numbers can be added, naturally.
Page 257 VOICE RECOGNITION SYSTEM OPERATION EXPRESSION EXAMPLES FOR EACH FUNCTION Command Expression examples Phone the <phonetypes> number of Call by specifying <contacts>. contact Ring <contacts> ’s <phonetypes> number. Call by specifying Phone <phone number>. phone number Search artists to Put on the artist <name>. listen to song Listen to the singer <name>.
Page 258: Command List
COMMAND LIST COMMAND LIST XBasic command Recognizable voice commands and their actions are shown below. Voice command Phrase Function ● Frequently used commands are listed in the following Pause the current tables. System pause pause voice interaction ● For devices that are not installed in the vehicle, the related commands will not be displayed in the screen.
Page 259 COMMAND LIST XCommands for changing the audio mode XCommands for changing the mode Voice command Phrase Function Voice command Phrase Function AM mode Switch to AM Hands-free mode [go to] phone, phone play AM, select AM Switch to HF mode change mode change...
Page 260 COMMAND LIST XCommands for Hands-free XCommands for Pandora* *: Pandora is available in the United States, Australia, and New Zealand. Voice command Phrase Function Voice command Phrase Function Places a call to the redial, call again, dial phone number of Pandora mode Switch to Pandora Redial...
Page 261 COMMAND LIST XCommands for AM control Voice command Phrase Function Voice command Phrase Function dislike/unselect dislike, Mark “Dislike” flag/ Dislike on/off thumbs down/unselect Unmark it Designate the thumbs down Direct frequency tune to AM frequency to tuning <frequencies> switch to a specific When station go there, route, has location...
Page 262 COMMAND LIST XCommands for SiriusXM Radio Control XCommands for MP3/WMA/AAC, USB, SD* Control *: With navigation function Voice command Phrase Function Voice command Phrase Function Designate the Preset number tune to preset preset channel to Artist music Select a song by play artist <artists>...
Page 263 COMMAND LIST XCommands for iPod Control XCommands for navigation mode* *: With navigation function Voice command Phrase Function Voice command Phrase Function Select a song in Artist music play artist <artists> the iPod by artist Accepts questions selection Accept accept name (such as talkback) Select a song in...
Page 264 COMMAND LIST Voice command Phrase Function Voice command Phrase Function [find, go to, search [find, go to, search for, look for] [an] for, look for] [an] accommodation at my accommodation near destination here [find, go to, search [find, go to, search for, look for] [an] for, look for] [an] accommodation at the...
Page 265 COMMAND LIST Voice command Phrase Function Voice command Phrase Function Transits to the Transits to the Back back screen that allows previous screen [find, enter, search for, you to search for Address [go, jump, move, scroll] Transits to the look for] [an] address the destination Bottom [to] [the] bottom...
Page 266 COMMAND LIST Voice command Phrase Function Voice command Phrase Function Reflects the Sets the selected route destination from History [find] [in] history and starts the the search history navigation results guidance Reduces the detour distance set go to [the] map Less less (on the avoid route...
Page 267 COMMAND LIST Voice command Phrase Function Voice command Phrase Function Selects the item [line] 3 [near] here listed in the third Narrows down line of the list nearby the selected POI Line 3 (on the screen Near here search candidates third [line] where the list is to places along the...
Page 268 COMMAND LIST Voice command Phrase Function Voice command Phrase Function [find, go to, search for, [find, go to, search for, look for] [a] parking [lot] look for] [a] parking [lot] [along, around, near, near here Searches for on] [the] route Parking along [find, go to, search for, parking lots along...
Page 269 COMMAND LIST Voice command Phrase Function Voice command Phrase Function [find, go to, search for, route info Narrows down POI look for] [a] parking Parking* search targets to Route info route information [lot] [find, go to, search parking lots Reads the route for, look for] [a] car park information that route summary...
Page 270 COMMAND LIST Voice command Phrase Function Voice command Phrase Function [find, go to, search for, [find, go to, search for, look for] [a] restaurant look for] [a] restaurant Searches for along [the] route near here Restaurant along restaurants along route [find, search for, look [find, go to, search for, the route...
Page 271 COMMAND LIST Voice command Phrase Function Voice command Phrase Function [find, go to, search for, [find, go to, search for, look for] [a] gas station look for] [a] gas station Narrows down POI at my destination Gas station* search targets to [find, go to, search gas stations for, look for] [a] petrol...
Page 272 COMMAND LIST Voice command Phrase Function Voice command Phrase Function [find, go to, search for, Transits to the top look for] [a] gas station [go, jump, move, scroll] of the list (on the near here [to] [the] top screen where the list is displayed) [find, go to, search for, look for] [a] gas station...
Page 273 COMMAND LIST Voice command Phrase Function Accepts questions or other contents spoken to you yeah *: Searches for candidates close to your vehicle’s position. ● Commands on the touch screen that cannot be operated have their colors toned down.
Page 274: Appendix/What To Do If/Index
APPENDIX/WHAT TO DO IF/INDEX...
Page 275: And Updates
MAP DATABASE INFORMATION AND UPDATES MAP DATABASE INFORMATION AND UPDATES...
Page 276 MAP DATABASE INFORMATION AND UPDATES...
Page 277 MAP DATABASE INFORMATION AND UPDATES...
Page 278: Certification
SiriusXM DATA SERVICE responsible for compliance could void the user’s authority to operate the equipment. Neither SiriusXM nor Subaru is responsible for any errors l CAUTION: Radio Frequency Radiation Exposure or inaccuracies in the SiriusXM data services or its use in This equipment complies with FCC radiation exposure limits vehicle.
Page 279 CERTIFICATION XCanada WARNING ● IC: 2024B-FT0054A l CAUTION: Radio Frequency Radiation Exposure ● This device complies with Industry Canada licence- This equipment complies with IC radiation exposure limits set exempt RSS standard(s). Operation is subject to the forth for an uncontrolled environment and meets RSS-102 of following two conditions: (1) this device may not cause the IC radio frequency (RF) Exposure rules.
Page 280: Gracenote
CERTIFICATION XMéxico Gracenote ● Gracenote , Gracenote logo and logotype, and the ® “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries. ● RCPFUFT14-1151 ● La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia,...
Page 281: Bluetooth
CERTIFICATION Bluetooth ● The Bluetooth word mark and logos are registered ® trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Fujitsu Ten Limited is under license. Other trademarks and trade names are those of their respective owners.
Page 282: Ipod
CERTIFICATION iPod MirrorLink ● “Made for iPod” and “Made for iPhone” mean that an ● MirrorLink Certified™, the Design Only™ Certification electronic accessory has been designed to connect Logo, MirrorLink™ and the MirrorLink™ Logo are specifically to iPod or iPhone respectively, and has been certification marks and trademarks of the Car Connectivity certified by the developer to meet Apple performance Consortium LLC.
Page 283: How To Get The Source Code Using The Open Source
HOW TO GET THE SOURCE CODE USING THE OPEN SOURCE HOW TO GET THE SOURCE CODE USING THE OPEN SOURCE This system implements software using the open source. For customers who would like to get the source code of the software, it is available by downloading it from the web site of Clarion, Co., Ltd.
Page 284: What To Do If
WHAT TO DO IF WHAT TO DO IF TROUBLESHOOTING RADIO OPERATION Experience Cause Action Mismatch of time alignment- a user may hear The radio stations analog and digital volume None, radio broadcast issue. A user can a short period of programming replayed or an is not properly aligned or the station is in contact the radio station.
Page 285: Phone
For USA customers, please visit The connected device may not be a www.subaru.com for details. compatible Bluetooth cellular phone. Outside of the USA customers, The hands-free system or Bluetooth contact your local dealer to arrange device does not work.
Page 286 WHAT TO DO IF XWhen registering/connecting a cellular phone Page Symptom Likely cause Solution Cellular This phone system An incorrect passcode was entered Enter the correct passcode on the on the cellular phone. cellular phone. The registration operation has not Complete the registration operation been completed on the cellular phone on the cellular phone (approve...
Page 287 For USA customers, please visit The profile version of the connected www.subaru.com for details. cellular phone may not be compatible Outside of the USA customers, with transferring phonebook data. contact your local dealer to arrange...
Page 288 WHAT TO DO IF XWhen using the Bluetooth message function Page Symptom Likely cause Solution Cellular This phone system Enable message transfer on the Message transfer is not enabled on cellular phone (approve message the cellular phone. transfer on the phone). Messages cannot be viewed.
Page 289 WHAT TO DO IF XIn other situations Page Symptom Likely cause Solution Cellular This phone system The Bluetooth connection status is To turn off the display, set connection displayed at the top of the screen Connection confirmation display on confirmation display on this system each time the ignition switch is turned this system is set to on.
Page 290: Error Messages
ERROR MESSAGES ERROR MESSAGES If the following messages appear, check by referring to the cause and action below. Mode Message Cause Action “No stations available. Displayed when the FM radio signal Try to receive the signal again in a FM radio (No stations available.)”...
Page 291 “Antenna Disconnected (Antenna Disconnected)” A short circuit occurs in the antenna See a SUBARU certified dealer for “Antenna Shorted (Antenna Shorted)” or the surrounding antenna cable. assistance. The SiriusXM signal is too weak at Wait until your vehicle reaches a “No Signal (No Signal)”...
Page 292 ERROR MESSAGES Mode Message Cause Action “No music files found. (No music files This indicates that no MP3/WMA/ Insert a disc on which playable music found.)” AAC files are included in the disc. data is recorded. It indicates that the disc is dirty, “Check DISC (Check DISC)”...
Page 293 ERROR MESSAGES Mode Message Cause Action “No music files found. This indicates that there is no music Connect a iPod in which playable (No music files found.)” data in the iPod. music data is stored. • Playback failure or communication •...
Page 294 • Connect a device that is compatible tracks not supported. Please check audio playback was connected. with audio playback. your audio player.)” • Install the SUBARU STARLINK application. Please disconnect mobile device • The SUBARU STARLINK • Turn ON the your smartphone...
Page 295 ERROR MESSAGES Mode Message Cause Action • When not able to get the content • Please try again (Refresh etc.) later information. “The content cannot be acquired. or reconnect it. • When not able to switch to the Top (The content cannot be acquired.)” •...
Page 296 Please try again later. error has occurred. : With navigation function : Pandora is available in the United States, Australia, and New Zealand. NOTE If the malfunction is not rectified: Take your vehicle to your SUBARU dealer.
Page 297: Index
INDEX INDEX CD ....................78 Command list................257 by HARMAN ...............156 AM radio ..................60 “APPS (APPS)” screen ..............23 Destination search screen ............207 Audio settings .................99 AUX ....................94 Entering letters, numbers/list screen ..........48 Entering letters/numbers............. 48 Bluetooth ..................176 List screen operation ..............48 Profiles ..................180 Error messages ................289 Registering Bluetooth audio device ..........
Page 298 INDEX “INFO (INFO)” screen ..............24 Operating information ..............102 Info screen operation ..............46 CD player/disc ................104 Reordering the menu icons............46 File information .................108 Initial screen ...................38 iPod...................107 iPod ....................84 Radio ..................102 SD card ..................108 Terms ..................112 Overview buttons ................20 Loading/unloading an SD card ............
Page 299 INDEX Receiving on Bluetooth phone............126 Screen adjustment................50 Incoming calls ................126 Day and night mode..............52 Registering home ................29 SD card...................87 Route guidance screen..............221 Search operation ................208 Data fields .................222 Coordinates ................217 Highway services ..............224 Favorites ...................216 Junction display ................225 Find address ................209 Lane information/signs..............223 Find on map ................216 Route overview .................223...
Page 300 Starting route guidance ..............219 Canceling ..................220 Route simulation ...............219 Starting ..................219 Status display .................26 Steering switches ................96 SUBARU STARLINK ..............153 Talking on Bluetooth phone ............127 Incoming call waiting..............129 Sending tones ................128 Transmit volume setting ............129 Touch screen gestures ..............44 Touch screen operation ..............
Page 301 MEMO...

Subaru STARLINK Manual

1 Quick Guide

Basic Function

Overview Buttons

Split Screen

Status Display

Quick Reference

Navigation Operation

Registering Home (with Navigation Function)

Operation Flow: Guiding the Route (with Navigation Function)

Setting Home as the Destination (with Navigation Function)

Function Index

2 Basic Function

Basic Information before Operation

Initial Screen

Loading and Unloading a Disc

Connecting and Disconnecting a Usb Memory/ Portable Device

Loading and Unloading an Sd Card (with Navigation Function)

Touch Screen Gestures

Touch Screen Operation

Info Screen Operation

Split Screen Operation

Entering Letters and Numbers/List Screen Operation

Screen Adjustment

3 Audio CD

Basic Operation

Some Basics

Radio Operation

Am/Fm Radio

Siriusxm ® Satellite Radio

Media Operation

Usb Memory

Ipod

Sd Card (with Navigation Function)

Bluetooth AUDIO

Aux

Audio/Visual Remote Controls

Steering Switches

Setup

Audio Settings

Tips for Operating the Audio/Visual System

Operating Information

4 Phone

Phone Operation (Hands-Free System for Cellular Phones)

Quick Reference

Some Basics

CALLING on the Bluetooth PHONE

RECEIVING on the Bluetooth PHONE

TALKING on the Bluetooth PHONE

Bluetooth PHONE MESSAGE FUNCTION

Setup

Phone/Message Settings

5 Apps

Before Using the Application

Subaru Starlink

Mirrorlink

Aha TM by HARMAN

Pandora

Useful Information

Siriusxm RADIO DATA SERVICE

Bluetooth ® SETTINGS

REGISTERING/CONNECTING Bluetooth DEVICE

SETTING Bluetooth DETAILS

Other Settings

General Settings

Voice Settings

8 Navigation System

Basic Operation

Quick Reference

Map Screen Operation

Traffic Information

Destination Search

Destination Search Screen

Search Operation

Other Search Operation

Starting Route Guidance

Route Guidance

Route Guidance Screen

Typical Voice Guidance Prompts

Route Related Functions
